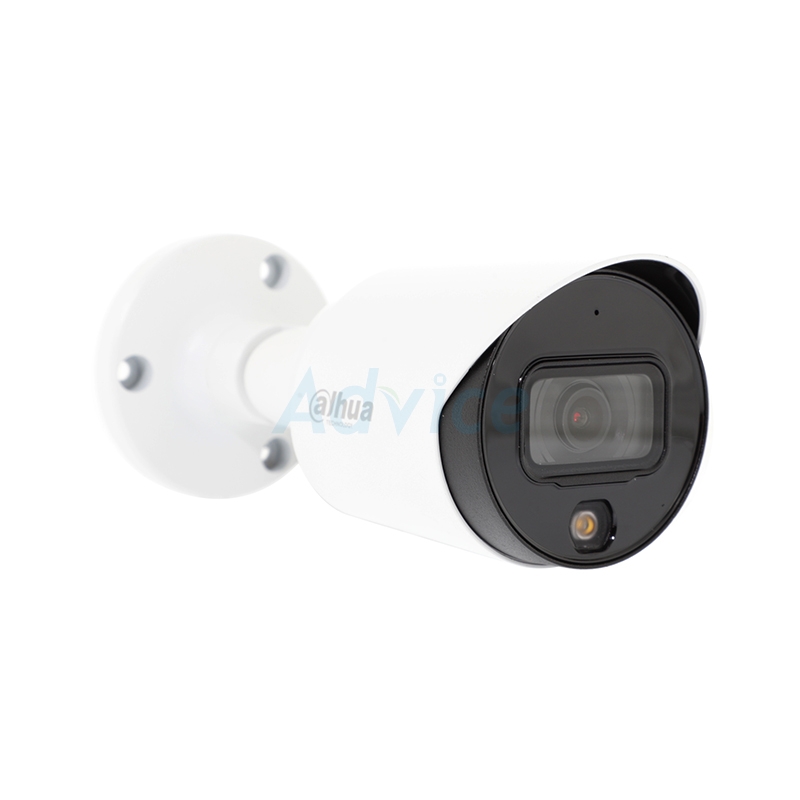

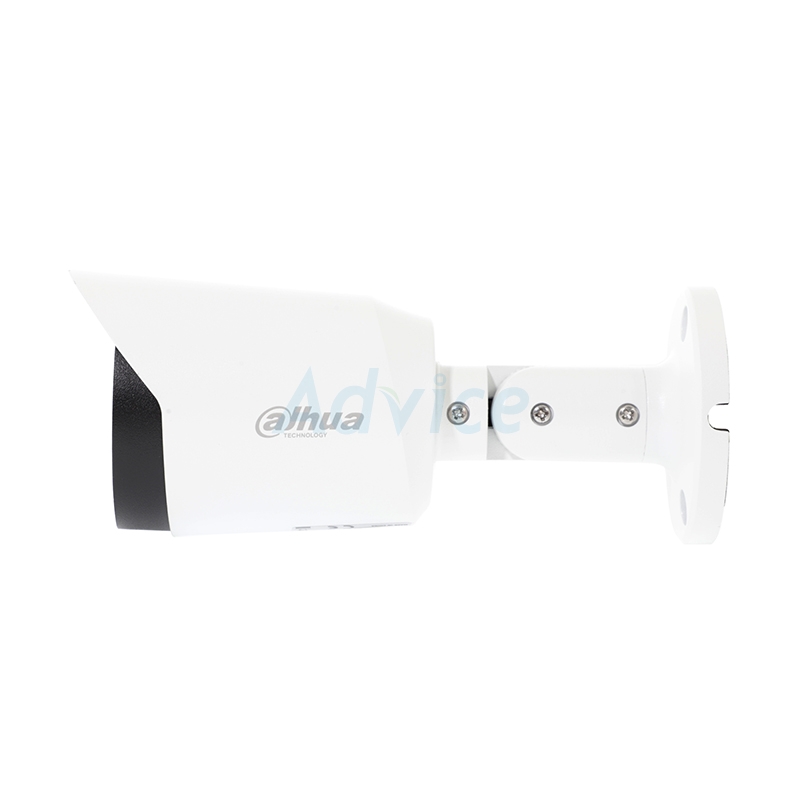

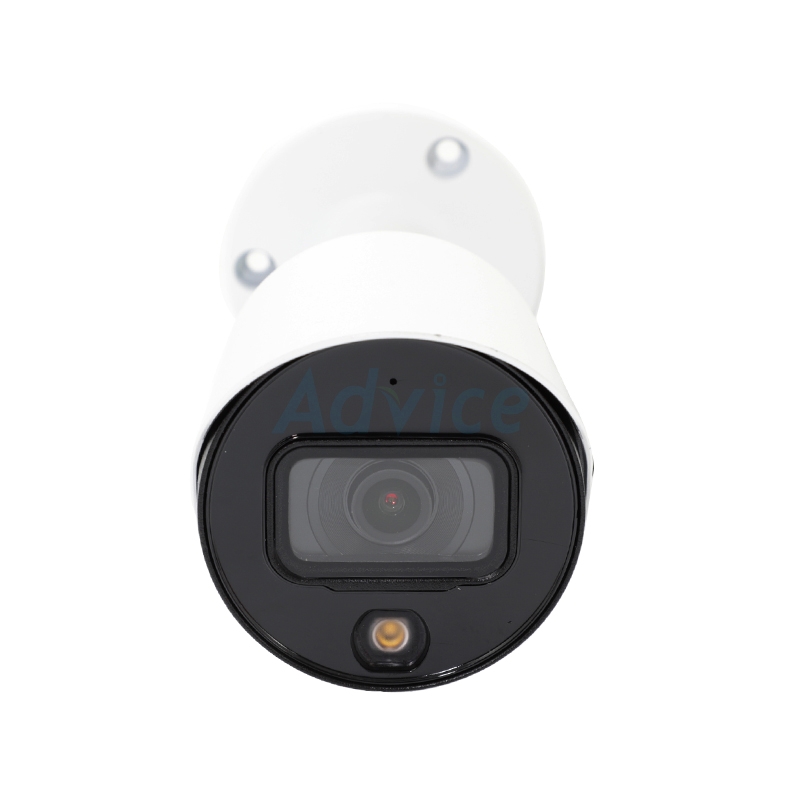

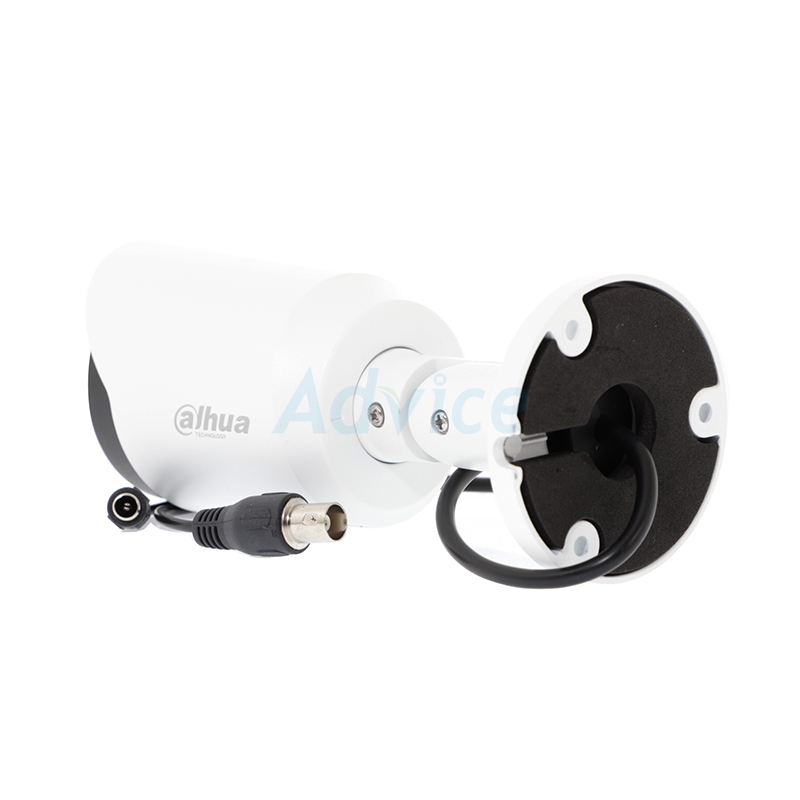

กล้องวงจรปิด 2.8mm HDCVI DAHUA HFW1239TP-A-LED
- Image Sensor : 2MP , 1/2.8 inch 2.16 Mega Pixels CMOS
- Max. Resolution : 1080P (1920×1080); 720P (1280×720); 960H (704×576/704×480)
- Lens Type : 2.8mm
- Video Output : CVI/CVBS/AHD/TVI Switchable
- IR Distance : 20m
- Frame Rate : 1080P@25/30fps; 720P@25/30fps;720P@50/60fps
- Day/Night Mode : Full-color starligth
- Audio Port : Built-in mic (-A)
- Protection : IP67
- Casing Material : IMetal throughout the whole casing
ข้อมูลผลิตภัณฑ์
HFW1239TP-A-LED
1/2.8" CMOS
Aperture : F1.6
Focal Length : 2.8mm
M12
Horizontal : 106.0°
Vertical : 56.5°
Diagonal : 126.2°
Pan : 0°-360°
Tilt : 0°-78°
Rotation : 0°-360°
PAL : 1/25s–1/100000s
NTSC : 1/30s–1/100000s
0.005Lux/F1.6, 30IRE, 0Lux white Light on
30m
1920×1080
N/A
PAL : 1080@25fps, 720@25fps, 720@50fps;
NTSC : 1080@30fps, 720@30fps, 720@60fps
AHD : PAL: 1080@25fps,720@25fps;
NTSC : 1080@30fps,720@30fps
TVI : PAL: 1080@25fps,720@25fps,720@50fps;
NTSC : 1080@30fps,720@30fps,720@60fps
CVBS : PAL: 960×576H;
NTSC : 960×480H
Built-in mic
BNC
DWDR
White Balance
Gain Control
Noise Reduction
Smart Light
Electronic Defog
16X Digital Zoom
12VDC, ±30%
Max 3W (12V DC, white light on)
Operating Temperature : -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Storage Temperature : -40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
IP67
IMetal throughout the whole casing
N/A
