NAS QNAP (TS-133, Without HDD.)

TS-133

ARM 4-core Cortex-A55 1.8GHz processor

QTS 5.0.0

2 GB on board (non-expandable)

Note: Reserves some RAM for use as shared graphics memory.

3.5-inch SATA 6Gb/s, 3Gb/s

1

N/A

System Status, LAN, HDD

N/A

USB 2.0 port x 1

USB 3.2 Gen 1 port x 1

Gigabit Ethernet Port (RJ45)

N/A

N/A

N/A

Power, Reset

N/A

N/A

1. 8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
2. 6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
3. 4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
4. 2-bay: JBOD, Single, RAID 0, 1

N/A

N/A

N/A

N/A

Internal drive

EXT4

External drive

EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)

Note: To use exFat in certain models you must purchase an exFAT driver license from License Center.

N/A

N/A

N/A

1 x 50mm, 12VDC

36W Adapter, 100-240V

7.32 W

Tested with drives fully populated.

N/A

N/A

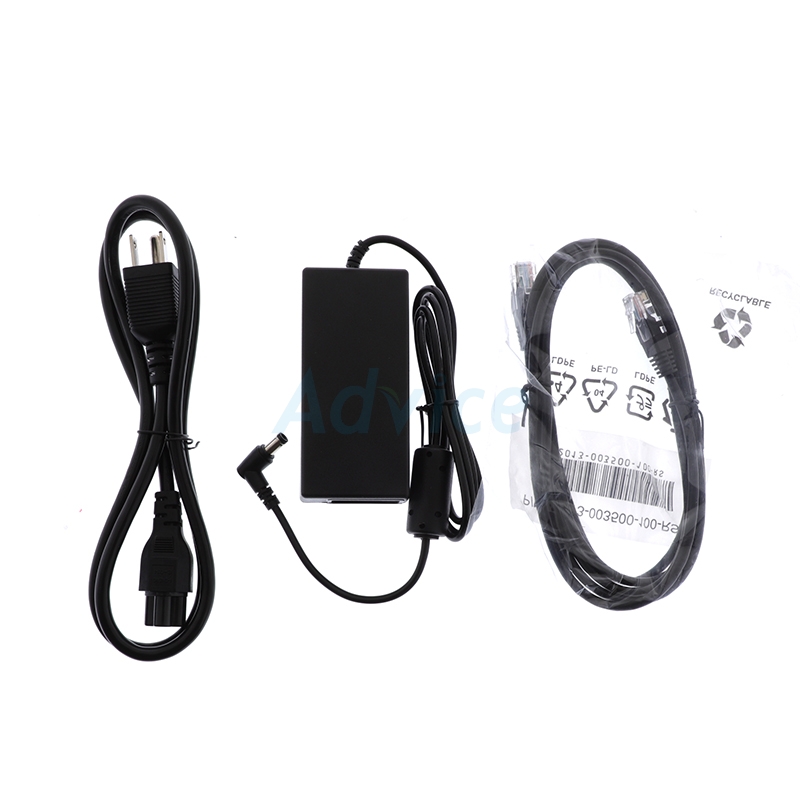

TS-133
Ethernet Cable x 1
AC Adapter
Power Cord
Flat head screw (for 3.5" HDD) x6
Flat head screw (for 2.5" HDD) x2
Quick Installation Guide (QIG)
