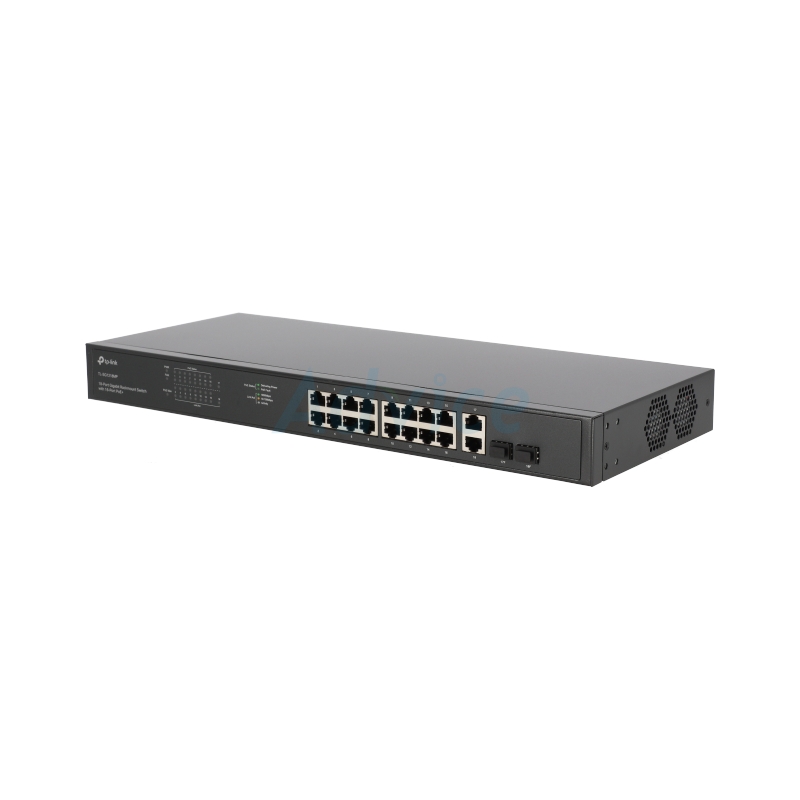

Gigabit Switching Hub 16 Port TP-LINK TL-SG1218MP (17",16 PoE,+2 Gigabit copper/SFP combo)
- Standards and Protocols : IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
- Interface
- 16× PoE+ gigabit RJ45 ports
- 2× gigabit non-PoE RJ45 ports
- 2× combo gigabit SFP slots
- Switching Type : Unmanaged
- Switching Capacity : 36Gbps
- Casing : Metal
- Package Contents
- TL-SG1218MP
- Installation Guide
- Power Cord

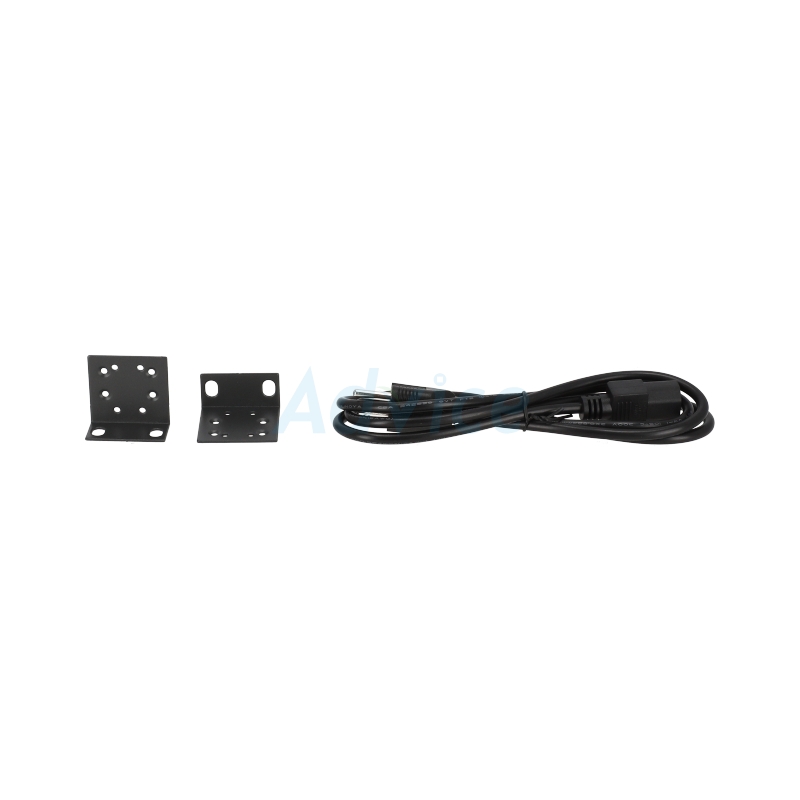

- Rackmount Kit
- Rubber Feet
- High PoE power budget with up to 30 W for each PoE port and 250 W for all PoE ports*
- Working with IEEE 802.3af/at compliant PDs
- Plug and play, with no configuration and installation needed
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic

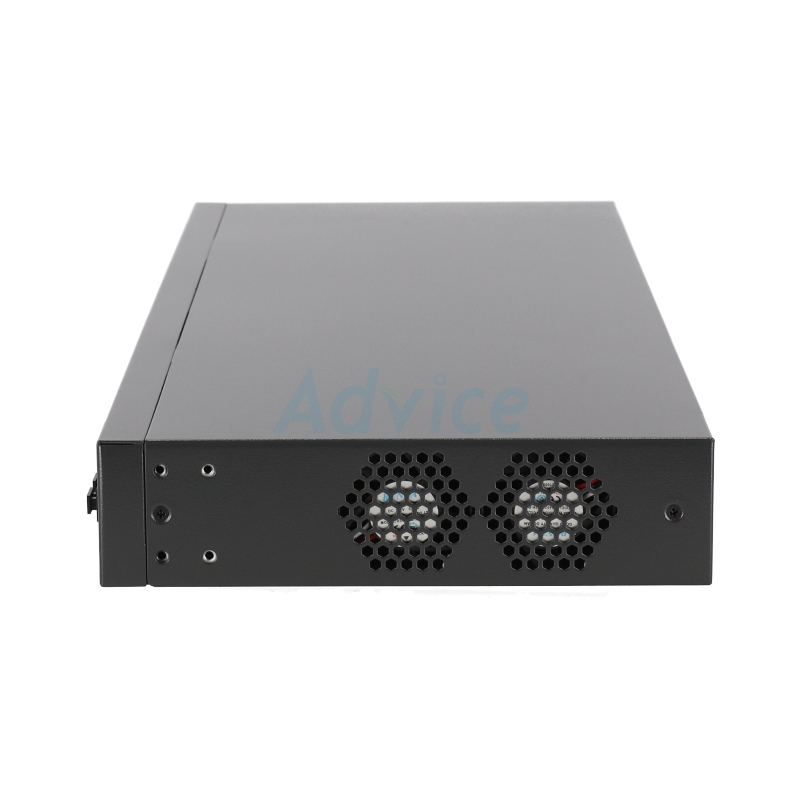

- Durable metal casing and professional heat dissipation design ensure a wide operating temperature range (0–50°C)
รายละเอียดสินค้า
อ้างอิงจาก:https://www.tp-link.com
ข้อมูลผลิตภัณฑ์
TL-SG1218MP
16× PoE+ gigabit RJ45 ports
2× gigabit non-PoE RJ45 ports
2× combo gigabit SFP slots
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
36 Gbps
8K
26.78 Mbps
10 KB
4.1 Mbit
2
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF
Standard: 802.3at/802.3af compliant
PoE Ports: Ports 1–16
PoE Power Budget: 250 W
100–240 VAC, 50/60 Hz
21.4 W (220/50 Hz. no PD connected)
286.64 W (220/50 Hz. with 250 W PD connected)
Operating Temperature: 0–50 °C (32–122 °F)
Storage Temperature: -40–70 °C (-40–158 °F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
CE, FCC, RoHS
TL-SG1218MP
Installation Guide
Power Cord
Rackmount Kit
Rubber Feet
