ข้อมูลสินค้าWireless PCIe Adapter TP-LINK (Archer TX20E) AX1800 Dual Band Gigabit WiFi 6
Wireless PCIe Adapter TP-LINK (Archer TX20E) AX1800 Dual Band Gigabit WiFi 6
TP-LINK

Wireless PCIe Adapter TP-LINK (Archer TX20E) AX1800 Dual Band Gigabit WiFi 6

ประกัน LT.
รหัสสินค้า: A0152175
  • Network Standard : IEEE 802.11ac/n/a 5 GHz , IEEE 802.11n/g/b 2.4 GHz , Bluetooth 5.2
  • Signal Rate : Wireless AX1800
    • 5 GHz: Up to 1201 Mbps
    • 2.4 GHz: Up to 574 Mbps
  • Interface : PCI Express

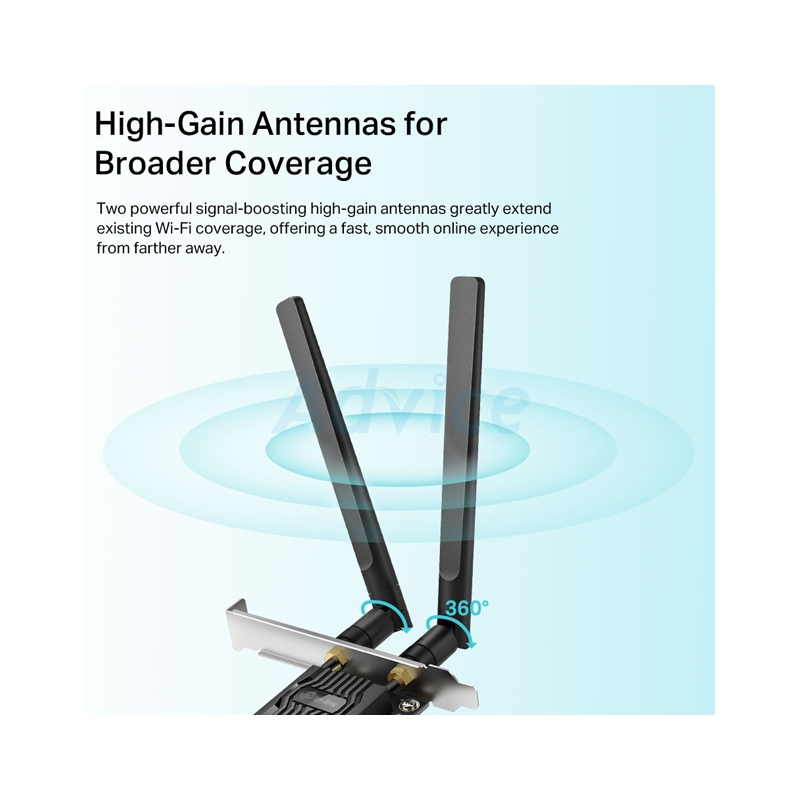

  • Antenna Type  : Two High-Gain Dual Band Antennas
  • Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability

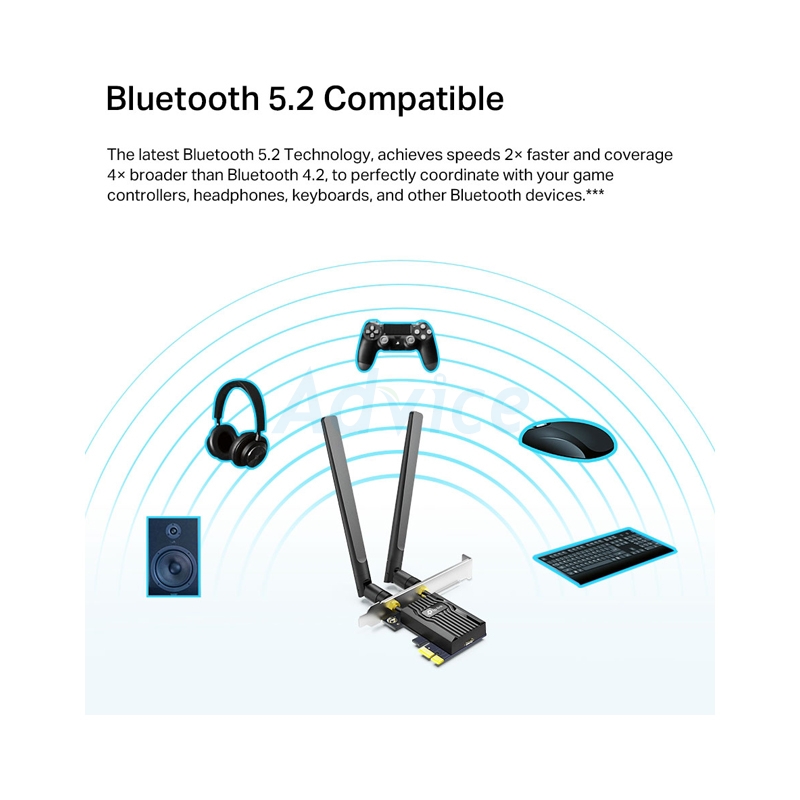

  • Bluetooth 5.2—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2
  • Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
  • Backward Compatibility – Full support for 802.11ax/ac/a/b/g/n standards
คำค้นหาWirelessPCIeAdapterTP-LINKTX20EAX1800Dual bandGigabitWI-FI 6Bluetooth 5.2การ์ดไวไฟ
ราคาหน้าร้าน ฿950

รายละเอียดสินค้า



อ้างอิงจาก : www.tp-link.com

ข้อมูลผลิตภัณฑ์

BrandTP-LINK
Model

TX20E

Interface

PCI-E

Antenna

Two High-Gain Dual Band Antennas

Standards

IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.2

Frequency

2.4GHz / 5GHz

Signal Rate

5 GHz
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)

Sensitivity

5 GHz :
11ax HE80: -57.0dBm
11ax HE40: -60.0dBm
11ax HE20: -63.0dBm
11ac VHT80: -59.5dBm
11ac VHT40: -62.5dBm
11ac VHT20: -67.5dBm
11n HT40: -69.5dBm
11n HT20: -72.5dBm
11a 54Mbps: -74.0dBm
11a 6Mbps: -94.5dBm

2.4GHz :
11ax HE40: -60.0dBm
11ax HE20: -63.0dBm
11n HT40: -69.5dBm
11n HT20: -72.5dBm
11g 54Mbps: -74.0dBm
11b 11Mbps: -88.0dBm

Transmit Power

5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP)

Wireless Mode

Infrastructure mode

Wireless Security

Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x

Certification

CE, FCC, RoHS

Environment

Operating Temperature: 0°C~40°C(32°F~104°F)
Storage Temperature: -40°C~70°C(-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

System Requirements

Windows 11/10(64-bit) only

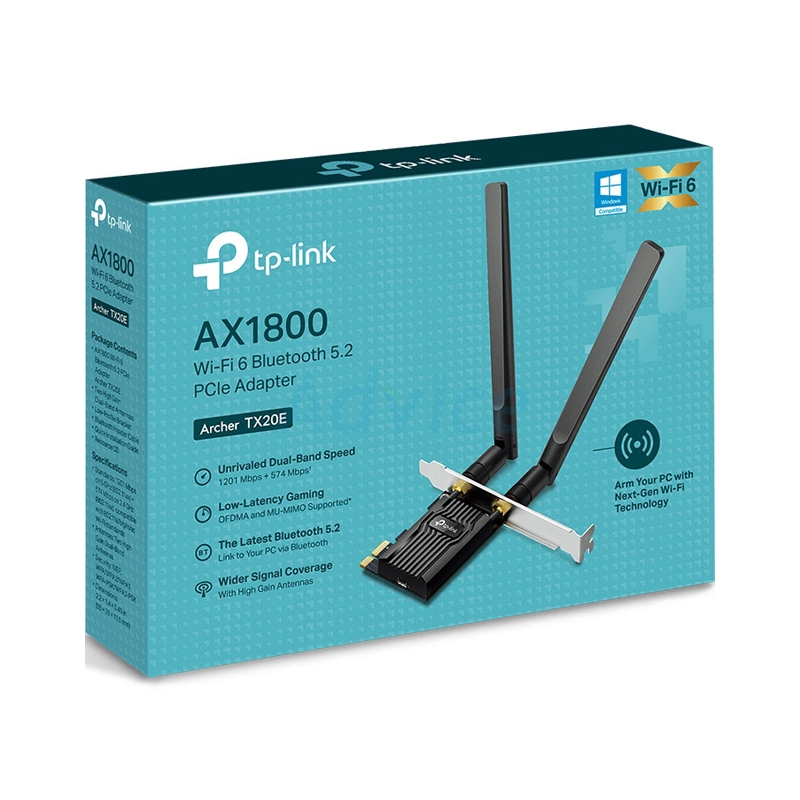

Package Content

Archer TX20E
Two High-Gain Dual Band Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD
