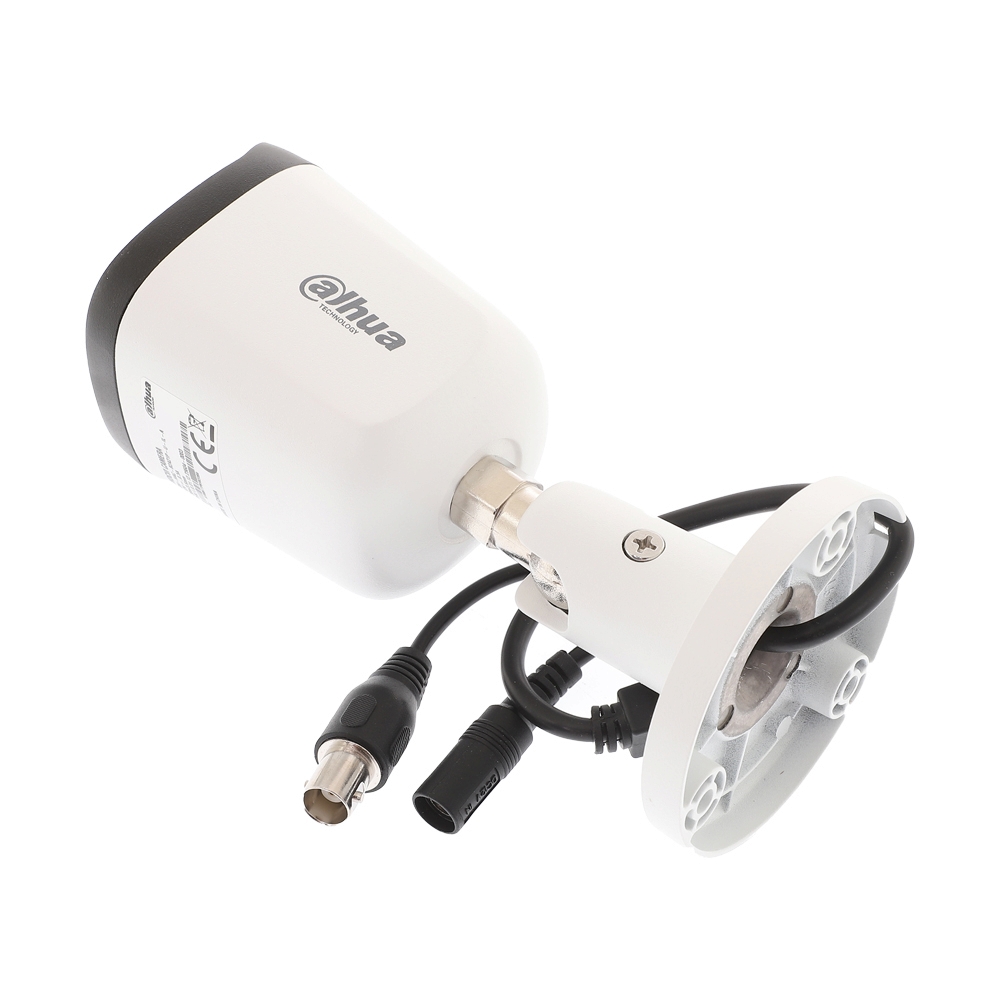

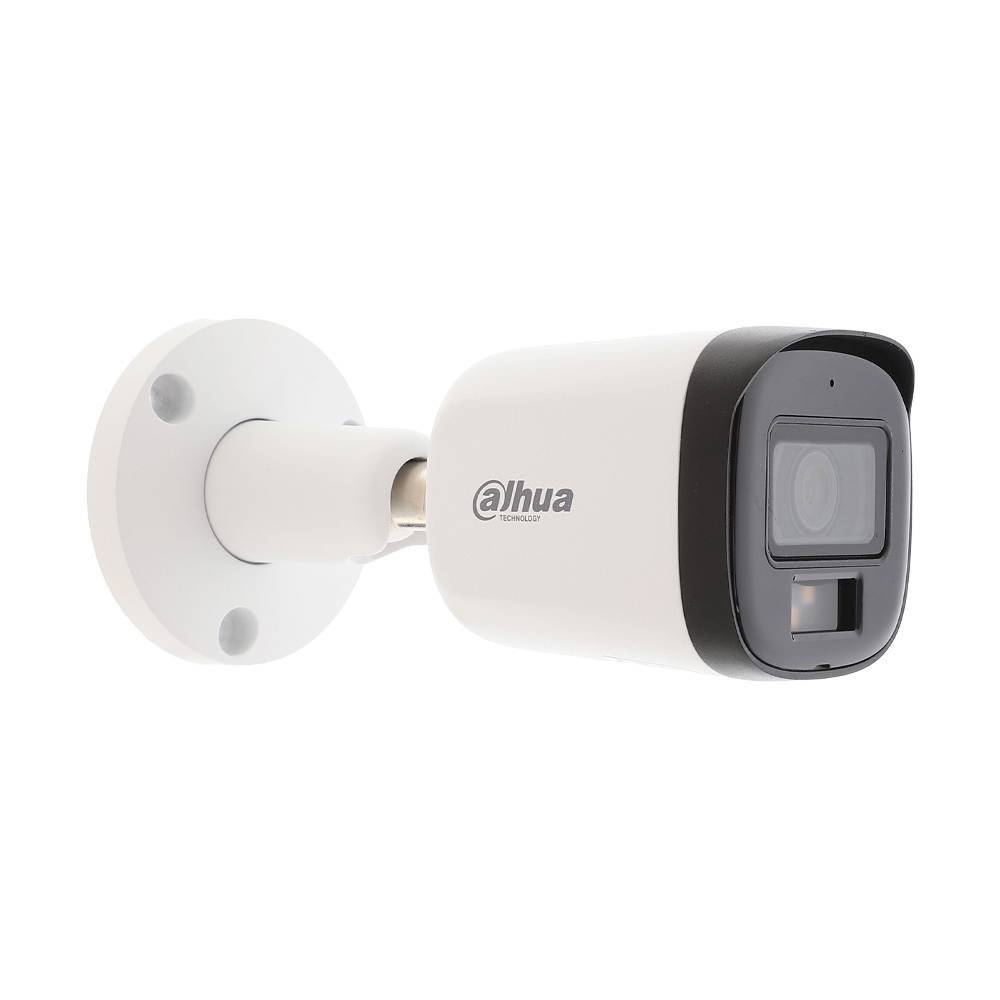

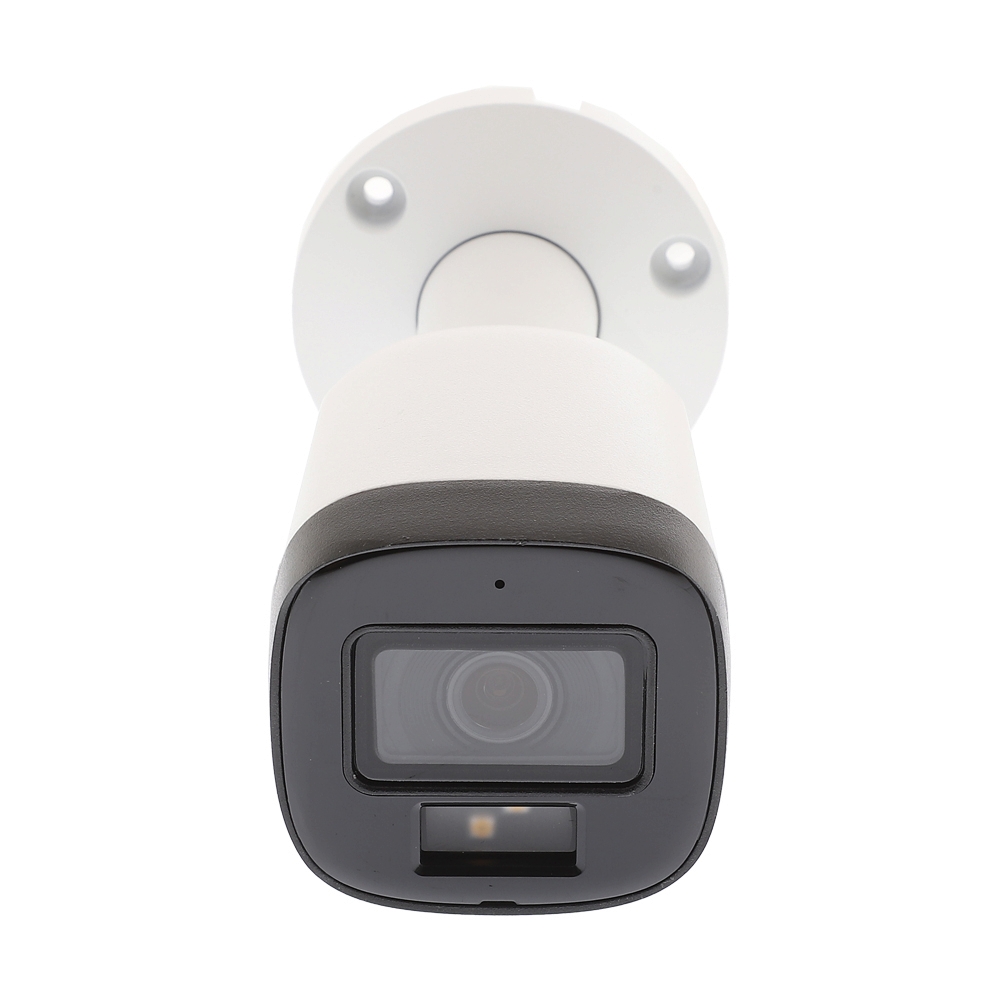

กล้องวงจรปิด 3.6mm HDCVI DAHUA B2A21P-U-IL-A
- Image Sensor : 2MP , CMOS
- Max. Resolution : 1920 (H) × 1080 (V)
- Lens Type : 3.6mm
- Video Output : CVI/TVI/AHD/CVBS by one BNC Port
- IR Distance : 30m
- Frame Rate : CVI , AHD , TVI
- PAL: 1080p@25 fps
- NTSC: 1080p@30 fps
- Day/Night Mode : Auto(ICR)/Color/B/W (Smart Dual Light)
- Audio Port : Built-in mic
- Protection : IP67
- Casing Material : Metal
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์
B2A21P-U-IL
• 2MP , CMOS
• Lens Type : Fixed-focal
• Focal Length : 3.6mm
• M12
• H: 80°; V: 43°; D: 94°
• Pan : 0°–360°
• Tilt : 0°–90°
• Rotation : 0°–360
• PAL: 1/25 s–1/100,000 s
• NTSC: 1/30 s–1/100,000 s
• 0.02 [email protected] (Color, 30 IRE);
• 0.002 [email protected] (B/W, 30 IRE) ;
• 0 lux (Illuminator on)
• IR : 30m (98.43 ft)
• Warm light : 20m (65.62 ft)
• 1920 (H) × 1080 (V)
N/A
CVI
• PAL : 1080p@25 fps
• NTSC : 1080p@30 fps
AHD
• PAL : 1080p@25 fps
• NTSC: 1080p@30 fps
TVI
• PAL : 1080p@25 fps
• NTSC : 1080p@30 fps
CVBS
• PAL: 960H
• NTSC: 960H
• One channel built-in Mic
N/A

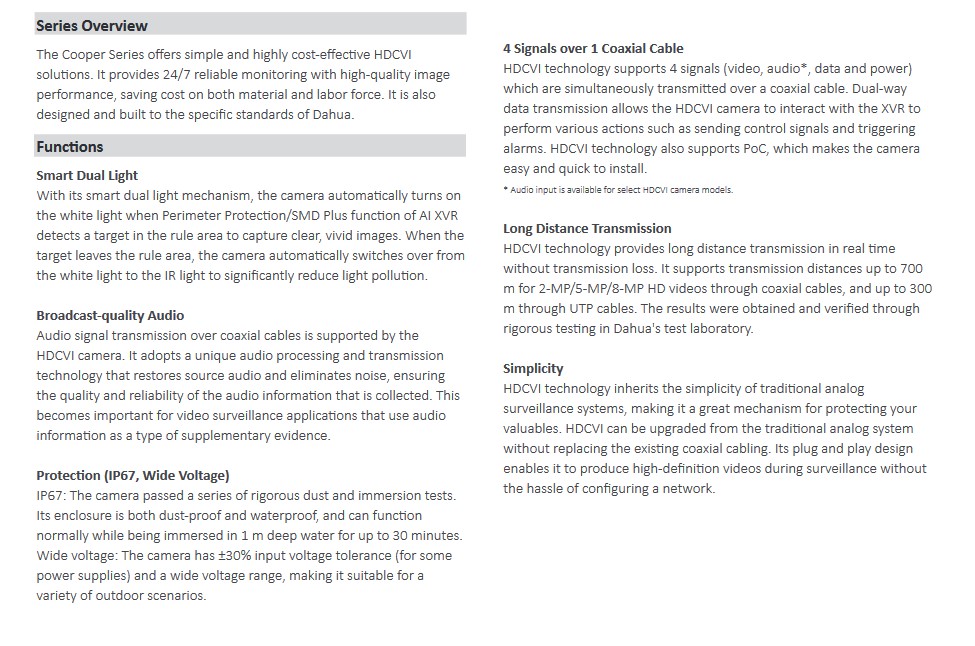

• Smart Dual Light
• Broadcast-quality Audio
• Protection (IP67, Wide Voltage)
• 4 Signals over 1 Coaxial Cable
• Long Distance Transmission
• Simplicity
• 12 VDC ± 30%
• Max 3.3 W (12 VDC, LED on)
• Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity : <95% (RH), non-condensing
• Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity : <95% (RH), non-condensing
• IP67
• Metal
N/A
