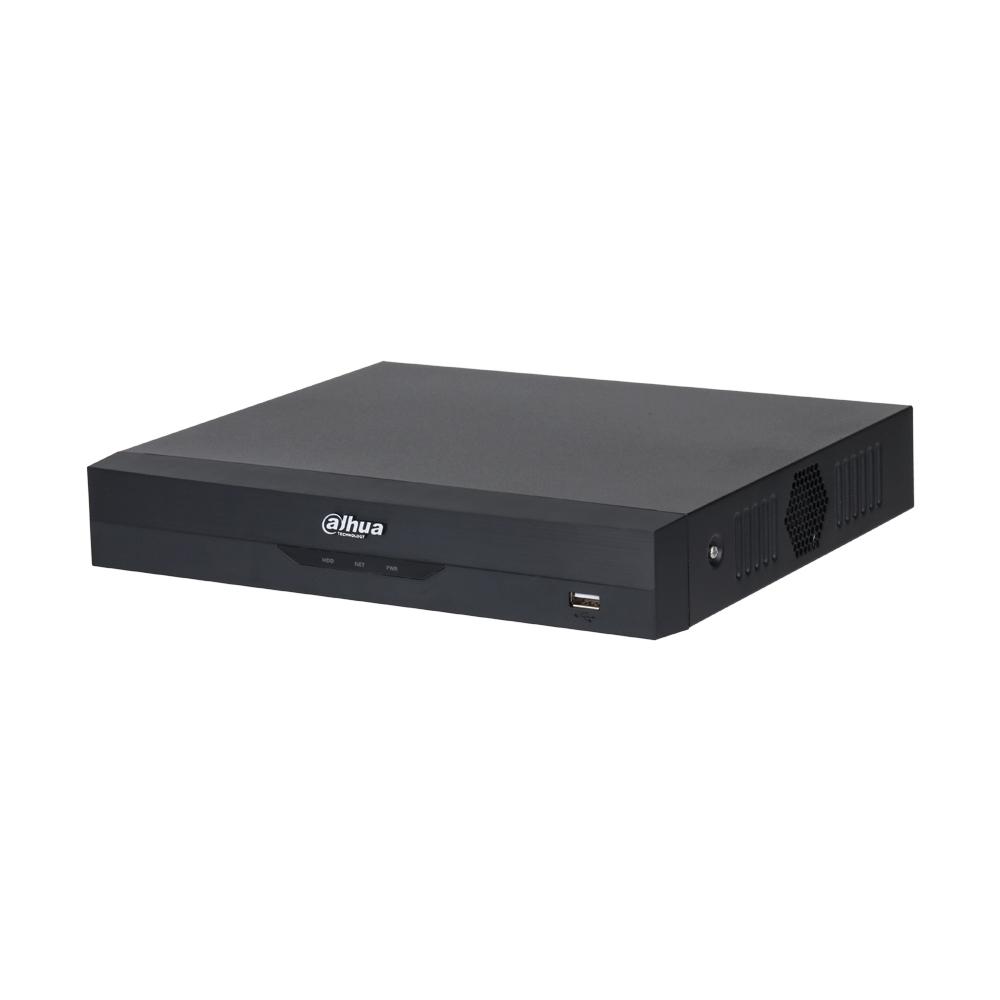

DVR 8CH. HDCVI DAHUA#XVR5108HS-5M-I3
- Analog Camera Input : 8 Ch.
- Video Compression : AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Encoding Resolution : 1080N; 720p; 960H; D1; CIF
- Main stream : 4-ch 5 MP@(1 fps-12 fps)/5M-N@(1 fps-25 fps), others 5M-N@(1 fps-12 fps); 4-ch 4M-N/1080p@(1 fps-25 fps), others 4M-N@(1 fps-15 fps)/1080p@(1 fps-12 fps); 1080N/720p/960H/D1/CIF@(1 fps-25/30 fps)
- Sub stream : D1/CIF@(1 fps-15 fps) It changes to D1/CIF@(1 fps-7 fps) when Main stream is 5 MP/5M-N/4M-N/1080p.
- Interface
- 1x SATA port
- 2x USB 2.0 (1 front USB 2.0 port, 1 rear USB 2.0 port)
- 1x HDMI
- 1x VGA
- 1x (10/100 Mbps Ethernet port, RJ-45)
- 1x RS-485
- Video output : HDMI/VGA independent output
- Capacity : up to 16 TB. This limit varies depending on the environment temperature.
- 4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
- 2-channel face recognition for analog channels which supports face comparison.
- 8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
- Supports up to 12-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 64 Mbps.
- IoT and POS capabilities.
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์
XVR5108HS-5M-I3
• HDCVI , AHD , TVI , CVBS and IP video input
• Analog Camera Input : 8 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
- CVI : 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps;720p@50/60 fps; 720p@25/30 fps.
- TVI : 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
- AHD : 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
- 4 IP channels by default + 8 channels (analog channel sare converted to IP channels) **After IP extension is enabled, the AI Function (IVS,SMD, FACE) will be disabled**
• Video Compression : AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
• Audio Input : 1-channel RCA , 8-channel BNC (Coaxial Audio)
• Two-way Talk : Yes (share the same audio input with the first channel)
• HDMI : 2560 × 1440, 1920 × 1080, 1280 × 1024, 1280 × 720
• VGA : 1920 × 1080, 1280 × 1024, 1280 × 720
• Multi-screen Display : When IP extension mode not enabled: 1/4/8/9 , When IP extension mode enabled: 1/4/8/9/16
• Audio Output : 1-channel RCA
• Audio Compression : G.711a; G.711u; PCM
• Main stream : 4-ch 5 MP@(1 fps-12 fps)/5M-N@(1 fps-25 fps), others 5M-N@(1 fps-12 fps); 4-ch 4M-N/1080p@(1 fps-25 fps), others 4M-N@(1 fps-15 fps)/1080p@(1 fps-12 fps); 1080N/720p/960H/D1/CIF@(1 fps-25/30 fps)
• Sub stream : D1/CIF@(1 fps-15 fps) It changes to D1/CIF@(1 fps-7 fps) when Main stream is 5 MP/5M-N/4M-N/1080p
**When Encode Enhancement is enabled, Face Recognition, Face Detection and Perimeter Protection cannot be used**
Network Protocol : HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Mobile Phone Access : OS; Android
Interoperability : ONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDK
Browser : Chrome; IE; Safari; Edge; Firefox

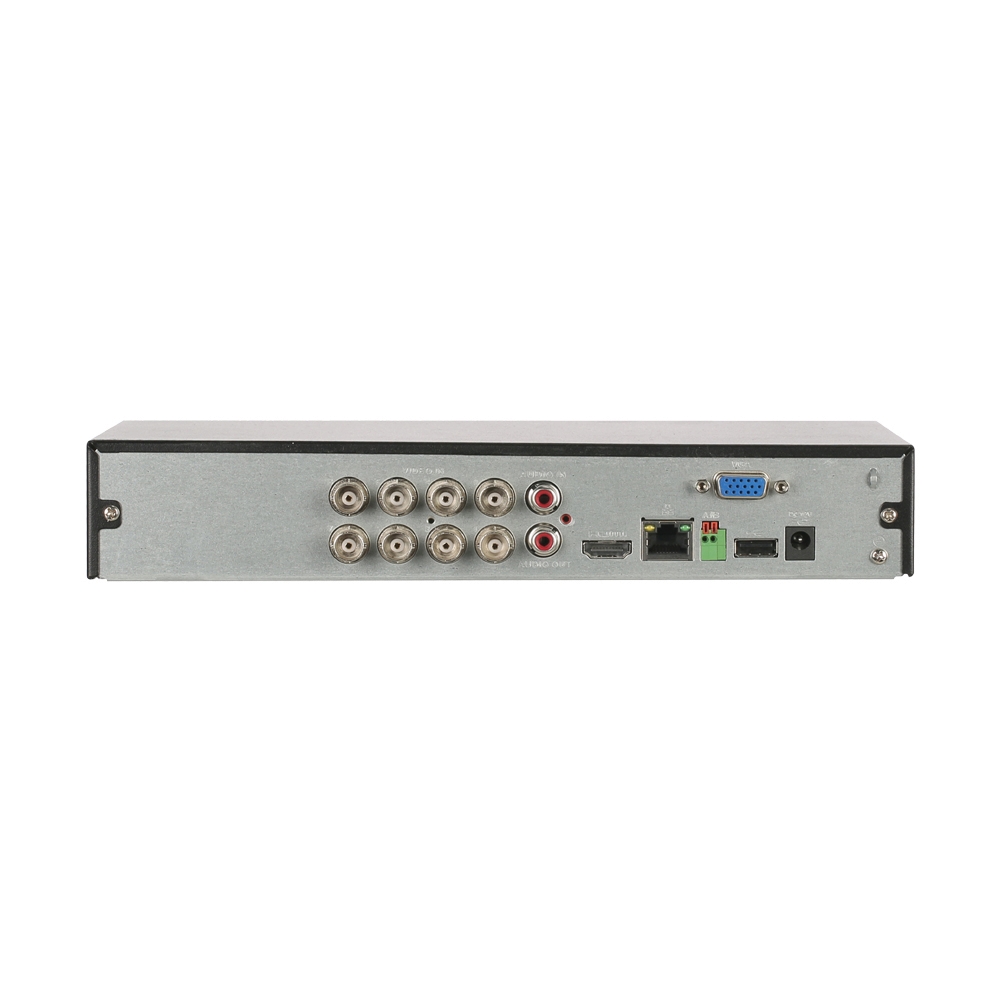

• 8x channel BNC (Coaxial Audio)
• 1x (10/100 Mbps Ethernet port, RJ-45)
• 1x channel RCA
• 1x -channel RCA
• 1x RS-485
• 2x USB (1 front USB 2.0 port, 1 rear USB 2.0 port)
• 1x VGA
• 1x HDMI
• 1x SATA
• up to 16 TB. This limit varies depending on the environment temperature.
• 12 VDC, 2 A
• <7 W (without HDD)
• Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
• Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Operating Humidity : 10%–90% (RH), non-condensing
• Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
