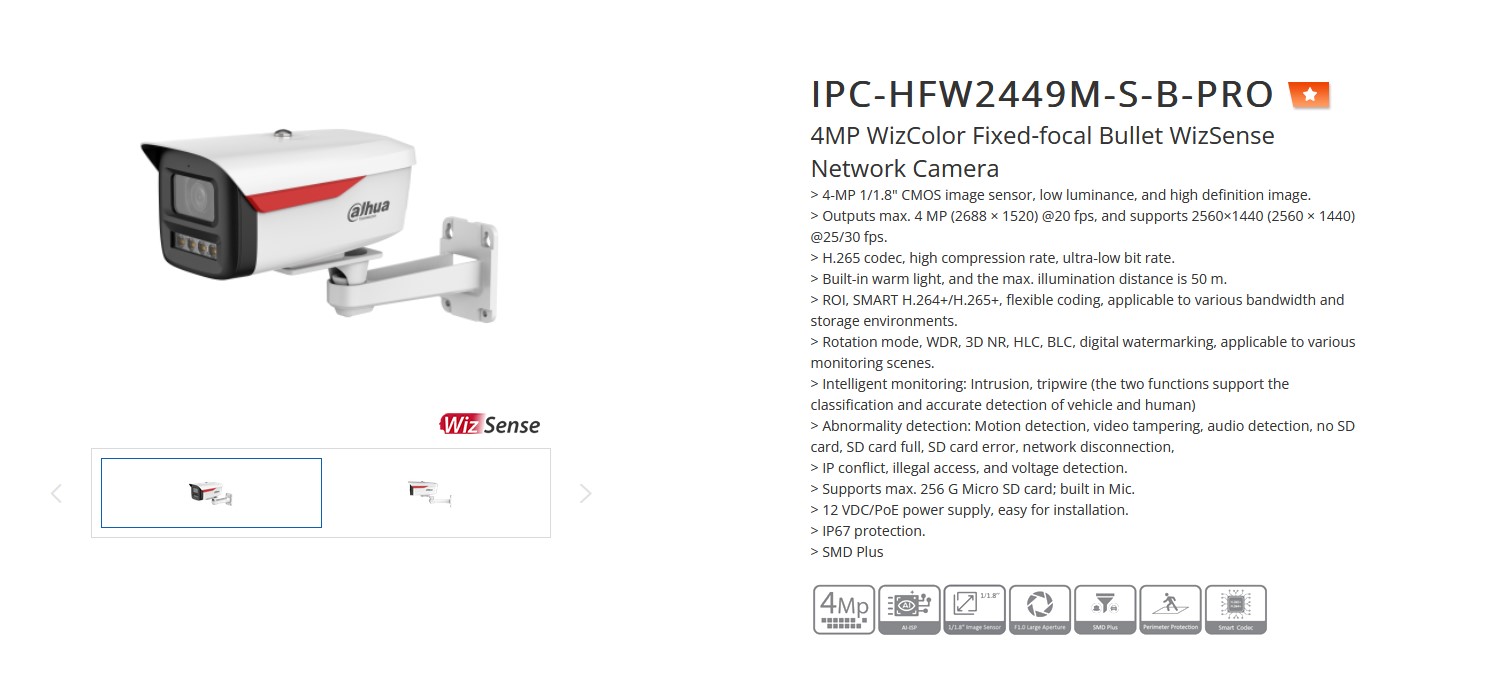

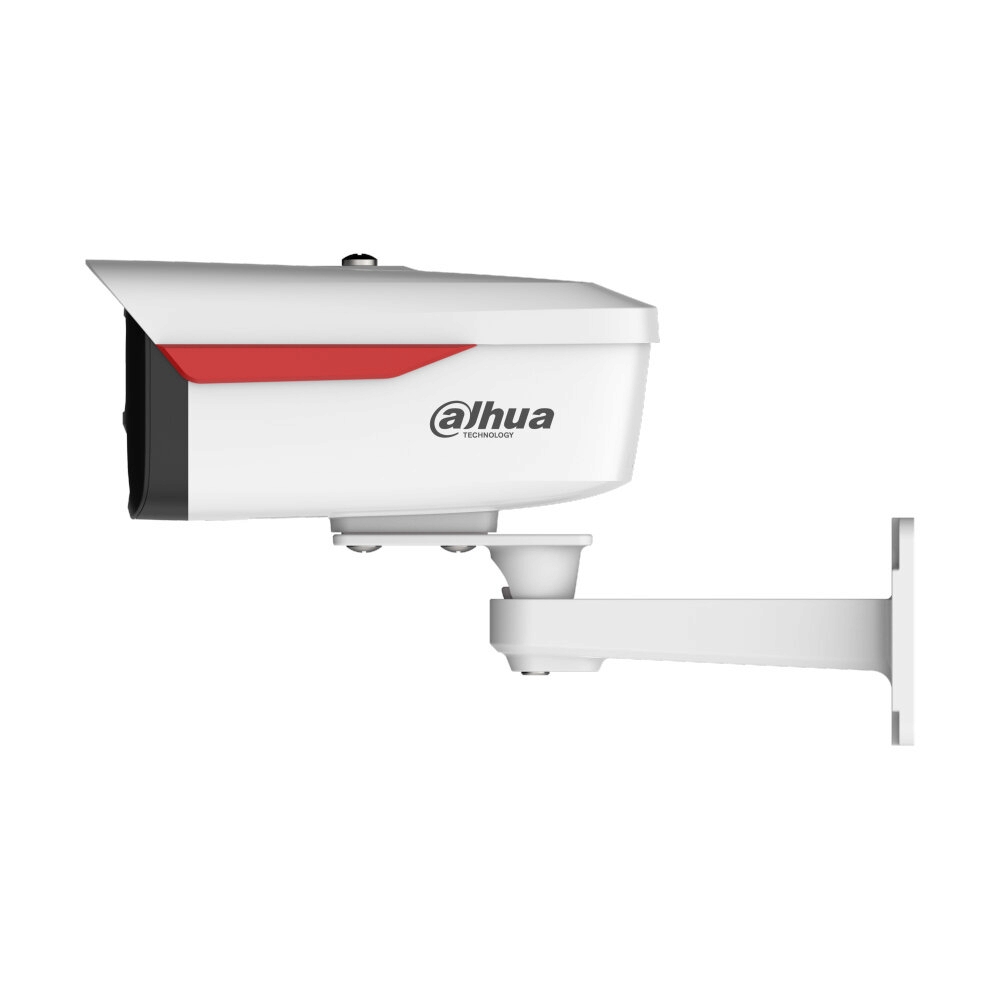

กล้องวงจรปิด 3.6mm IP Camera DAHUA HFW2449M-S-B-PRO

HFW2449M-S-B-PRO

• 4MP , 1/1.8" CMOS

• Focal Length  : 3.6mm
• Max. Aperture : F10

• M16

N/A

N/A

• H: 94°; V: 50°; D: 113°

N/A

• Auto/Manual 1/3 s–1/100,000 s

• 0.0005 [email protected]

N/A

• 50m

• Color/B/W

• >56 dB

•120 dB

• 2688 (H) × 1520 (V)

• H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

• Main stream: 2688 × 1520@(1–20 fps)/2560 × 1440@(1–25/30 fps)
• sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

• 20 (Total bandwidth: 48 M)

• FTP; SFTP; Micro SD card (support max. 256 GB); NAS

• 1x RJ-45 (10/100 Base-T)

N/A

• No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

• ONVIF (Profile S & Profile G & Profile T); CGI

• IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration

• WizColor Technology
• AI-ISP
• SMD Plus
• Perimeter Protection
• Smart H.265+ & Smart H.264+
• Cyber Security
• Protection (IP67, Wide Voltage)

• 12 VDC; PoE

• Basic: 2.0 W (12 VDC); 2.5 W (PoE);
• Max.: 5.7 W (12 VDC); 6.8 W (PoE) (H.265+ intelligence on + WDR + illuminator intensity)

• Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity : ≤95% (RH), non-condensing
• Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity : ≤95% (RH), non-condensing

• IP67

N/A
