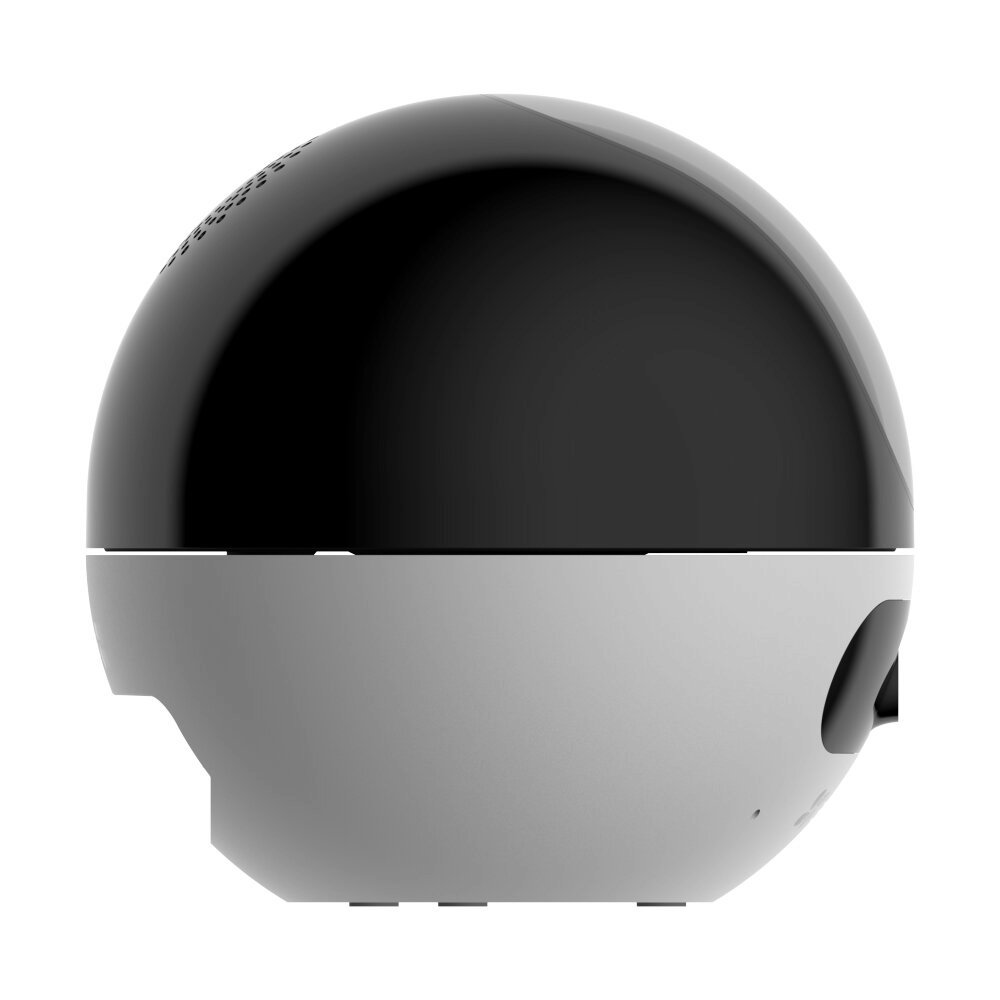

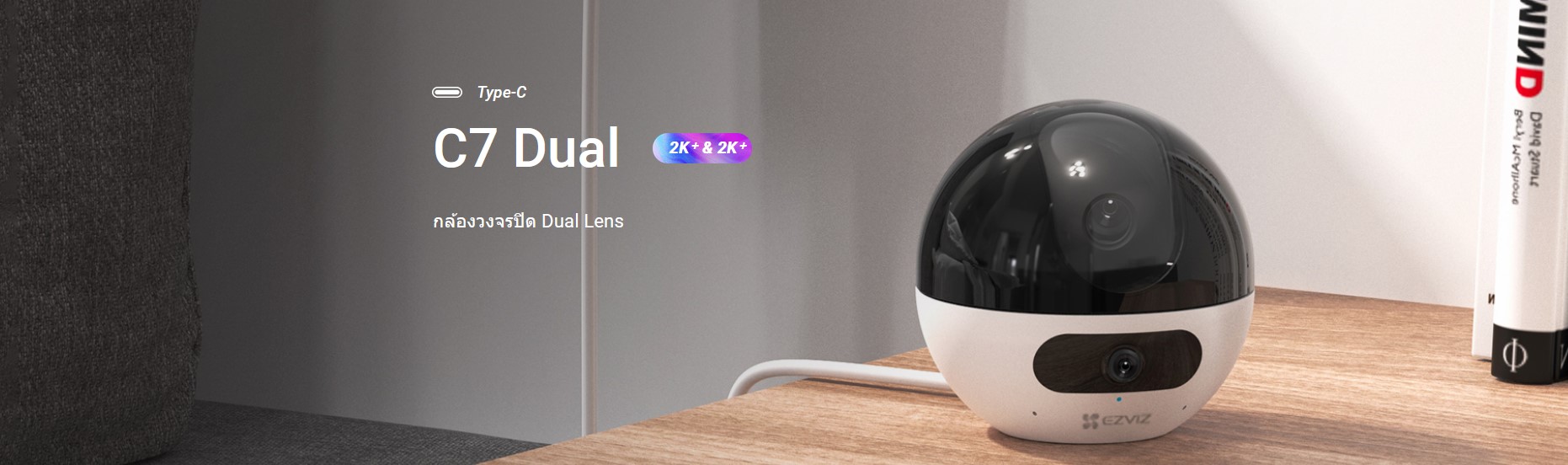

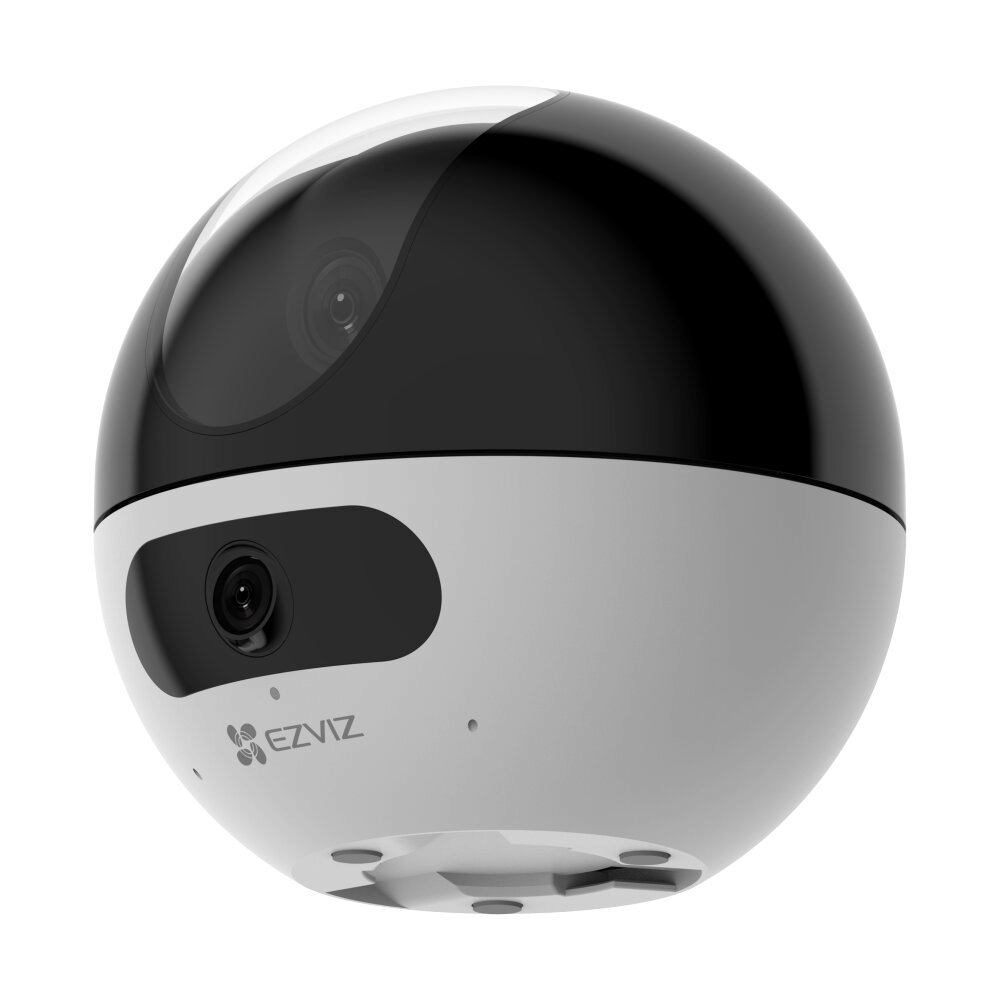

กล้องไร้สาย Smart Camera (4.0MP+4.0MP) EZVIZ C7 DUAL

C7 Dual 2K+

• 4MP , CMOS 1/3”

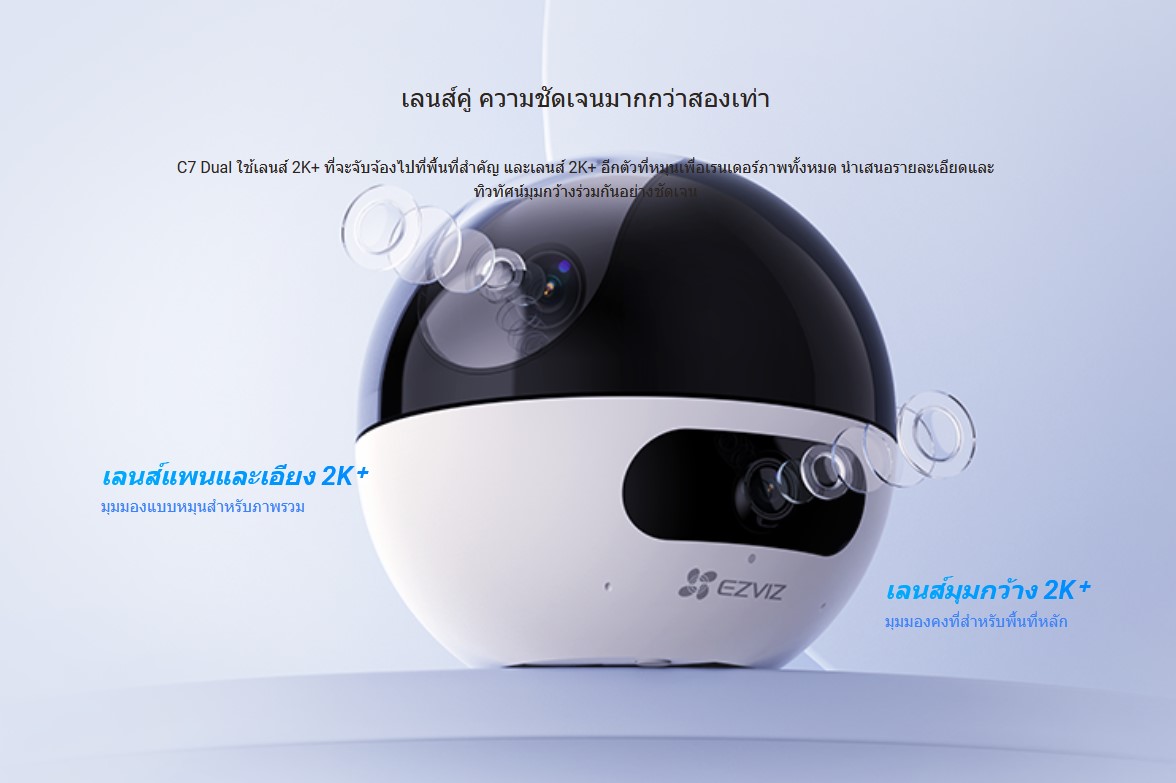

• Fixed Lens : 2.8mm
• Pan & Tilt Lens : 6mm

• M12

N/A

N/A

• Fix Lens  [email protected] :  มุมมองมุม: 108 ° (เส้นทแยงมุม), 92 ° (แนวนอน), 50 ° (แนวตั้ง)
• Pan&Tilt Lens  [email protected] : มุมมองมุม: 60 ° (เส้นทแยงมุม), 51 ° (แนวนอน), 28 ° (แนวตั้ง)

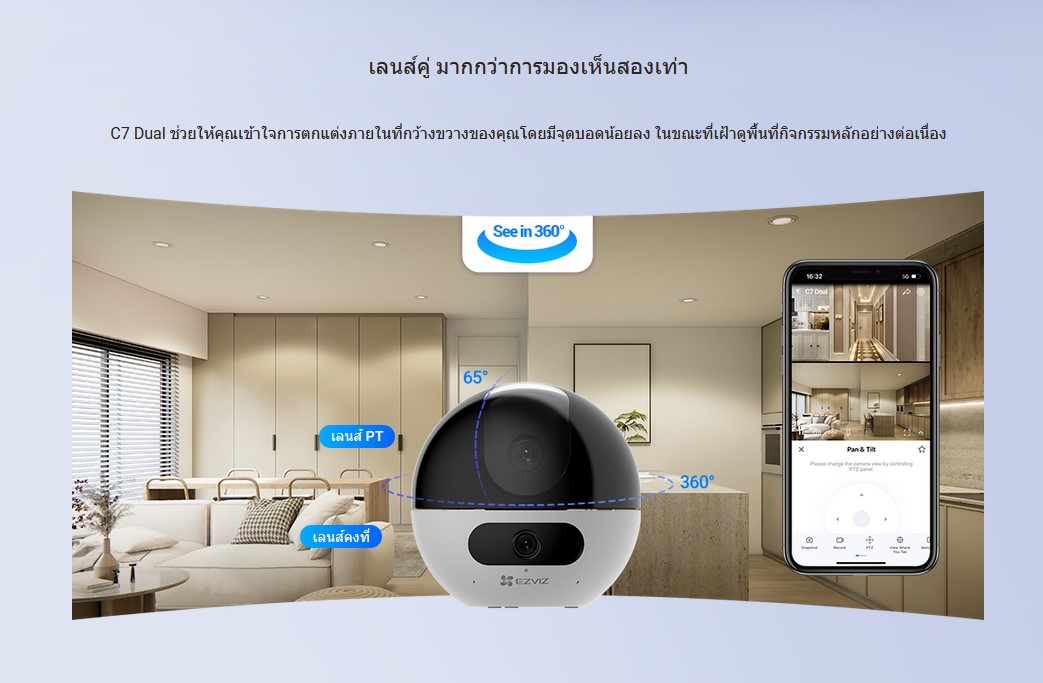

• PT Angle : Pan: 360°, Tilt: 65°

• Self-adaptive shutter

N/A

• 10m

• IR-cut filter with auto-switching

• Digital WDR

• 2560 × 1440

• H.264/H.265

• 15fps

• Two-Way

• Wi-Fi Pairing : AP Pairing / Bluetooth Pairing
• Standard : IEEE802.11b, 802.11g, 802.11n,802.11ac 802.11ax
• Frequency Range : 2.4GHz: 2.4 GHz ~ 2.4835 GHz 5GHz: 5.150GHz~5.250GHz
• Channel Bandwidth : 2.4GHz Supports 20MHz 5GHz Supports 80MHz
• Security : WPA-PSK, WPA2-PSK, WPA3-Personal
• Transmission Rate : 2.4GHz Max. Rate Support: 11b_11M?11g_54M, 11n_MCS7_20M?11ax_MCS11_20M 5.15-5.25GHz Max. Rate Support: 11a_54M, 11n_MCS7_20-40M?11ac_MCS9_20-40-80M, 11ax_MCS11_20-40-80M
• Output Power(EIRP) : 20 dBm
• Antenna Gain : [email protected][email protected]

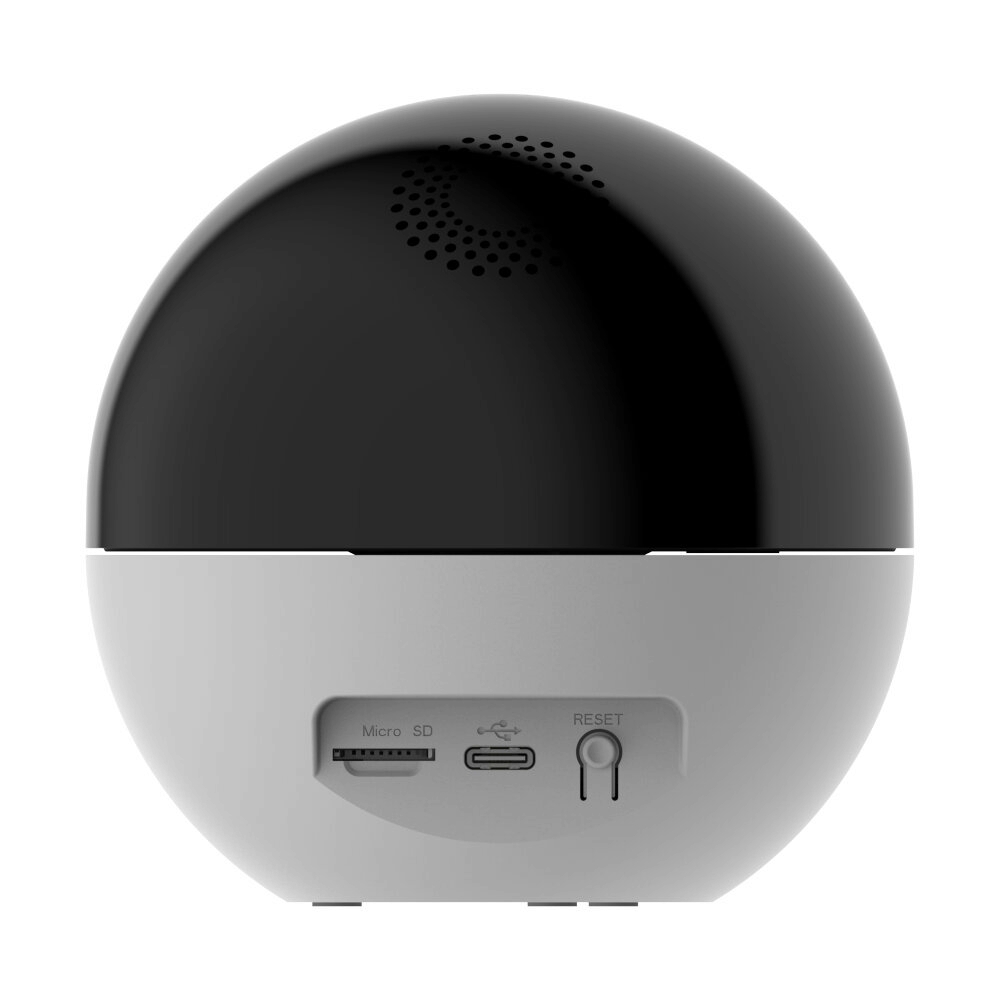

• Micro SD card slot (Max. 512G)

• 1x RJ45 (10M/100M self-adaptive Ethernet port)

• YES

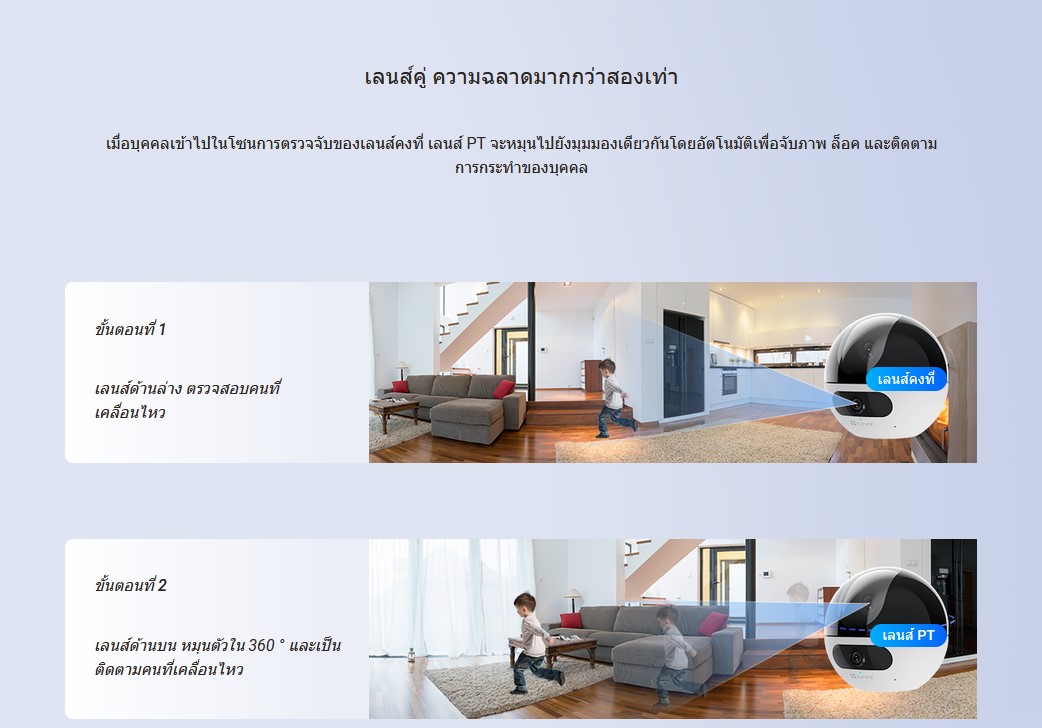

• Motion Detection, Human Shape Detection, Pet Detection, Patrol Mode Detection

NONE

• EZVIZ cloud proprietary protocol

• Supports Dual-Band Wi-Fi 6 (2.4 / 5 GHz)¹
• Sleep Mode for Privacy Protection
• Two-Way Calling by Gesture Recognition
• Smart Integration with Google Assistant & Amazon Alexa²

N/A

• DC 5V/2A

• Max. 8W

• -20°C to 50°C ( -4 °F to 122 °F ) Humidity 95% or less (non-condensing)

NONE

• 1x Camera
• 1x Power Adapter
• 1x Power Cable
• 1x Drill Template

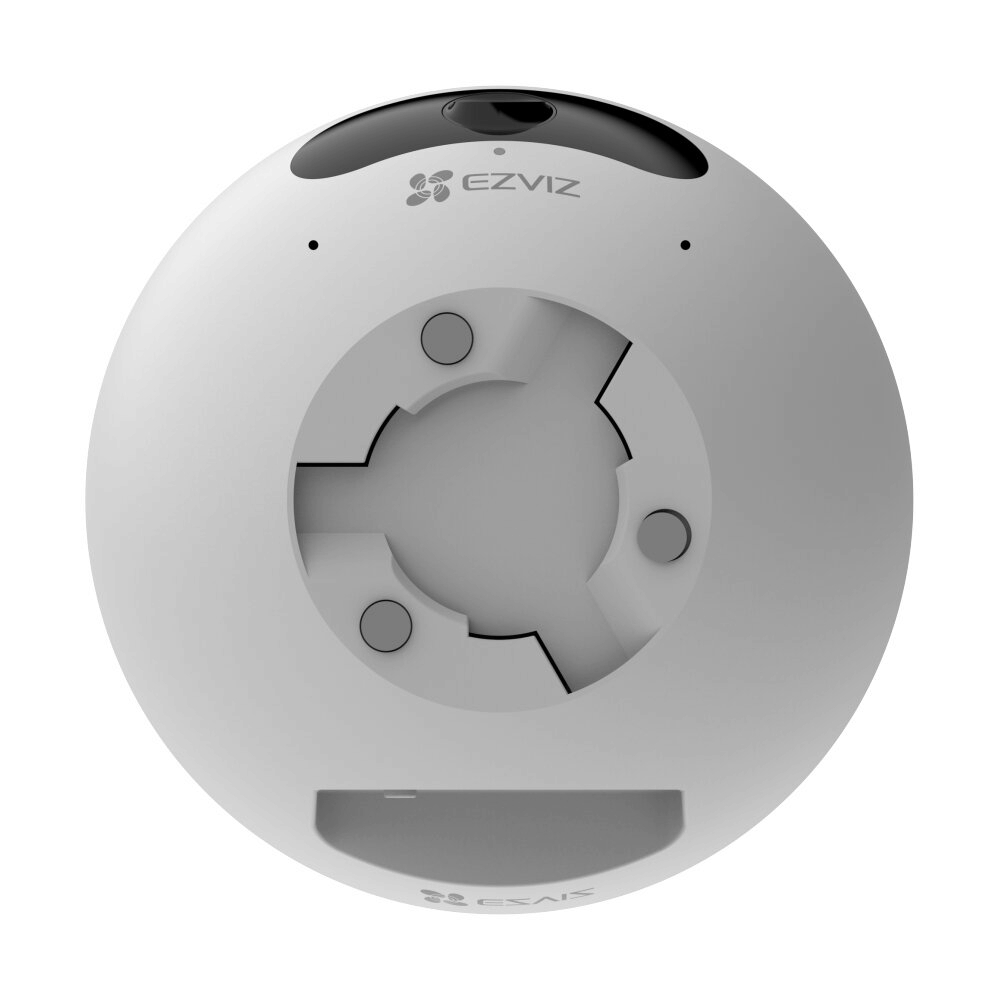

• 1x Mounting Plate
• 1x Screw Kit
• 1x Regulatory Information
• 1x Quick Start Guide
