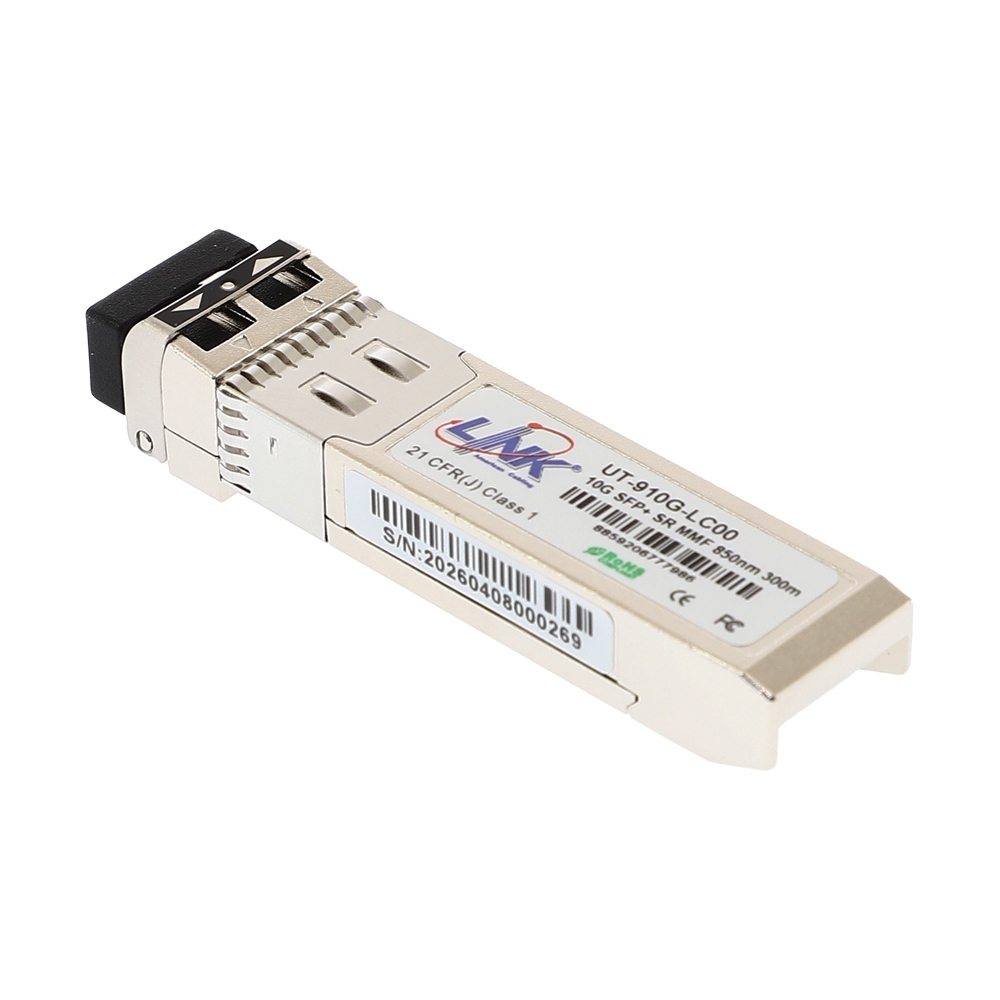

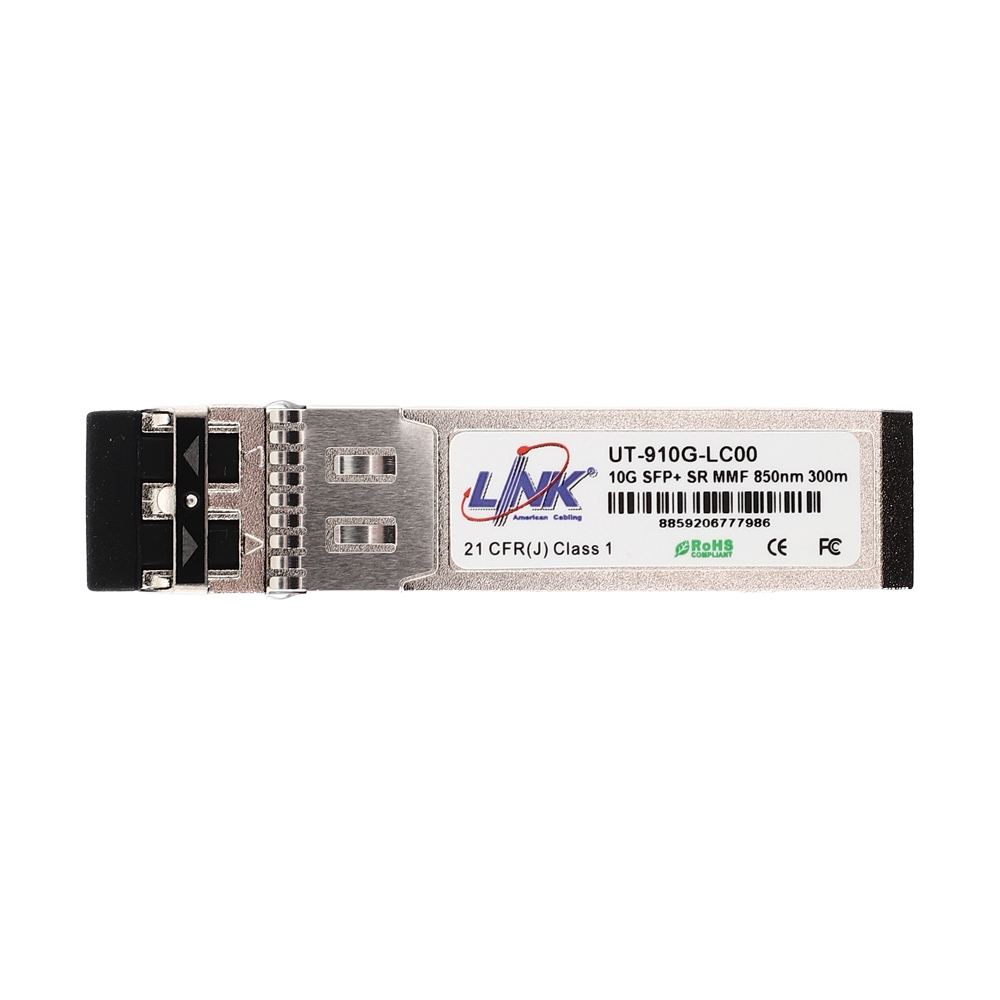

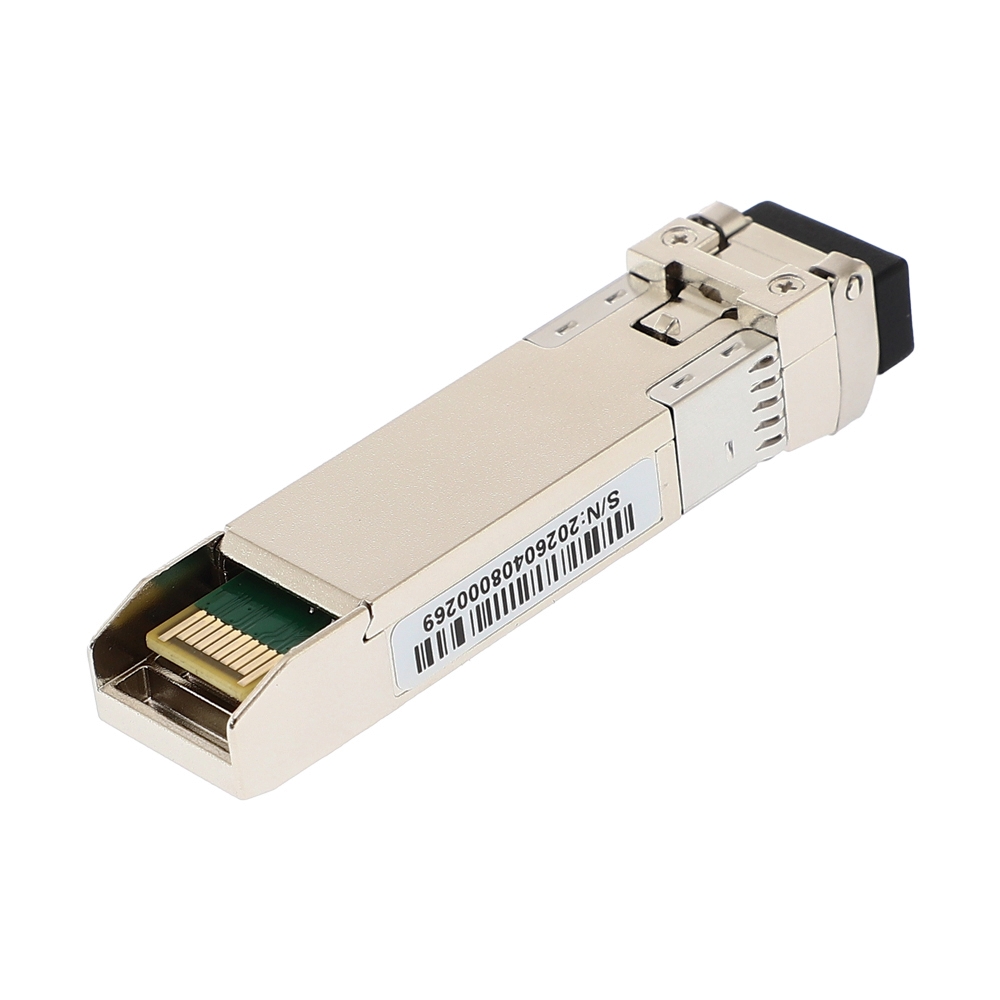

SFP Media TRANSCEIVER MODULE LINK (UT-910G-LC00)

UT-910G-LC00

• 10G SFP+ Transceiver Module

• Duplex LC connector

• Multi-mode (MM)

• 10 Gigabit

• 82 เมตร (OM2), 300 เมตร (OM3), 400 เมตร (OM4)

• 850 nm

• Hot-Pluggable and support data rate up to 10Gbps
• Compliant with IEEE802.3ae 10Gigabit Ethernet standard
• Compliant with Fiber Channel standard
• Compliant with SFP+ Multi Source Agreement (MSA)
• 850nm VCSEL and 1310nm DFB transmitter, PIN photo-detector
• Electrical interface compliant to SFF-8431 andSFF-8432
• Class 1 laser and complies with EN 60825-1
• Digital Diagnostic Monitoring Interface (DDMI) Capability
• Diagnostic Monitoring Interface to SFF-8472
• All-metal housing for superior EMI performance
• Low power consumption, Single +3.3V Power supply
• Duplex LC connector
• Operating temperature from 0°°C to 70°°C
• Cost effective SFP+ solution, enables higher port densities and greater bandwidth
• RoHS Compliant

• Switch Cisco, Linksys, TP-Link, D-Link, Link, MikroTik, Ubiquiti, Ruijie Reyee
