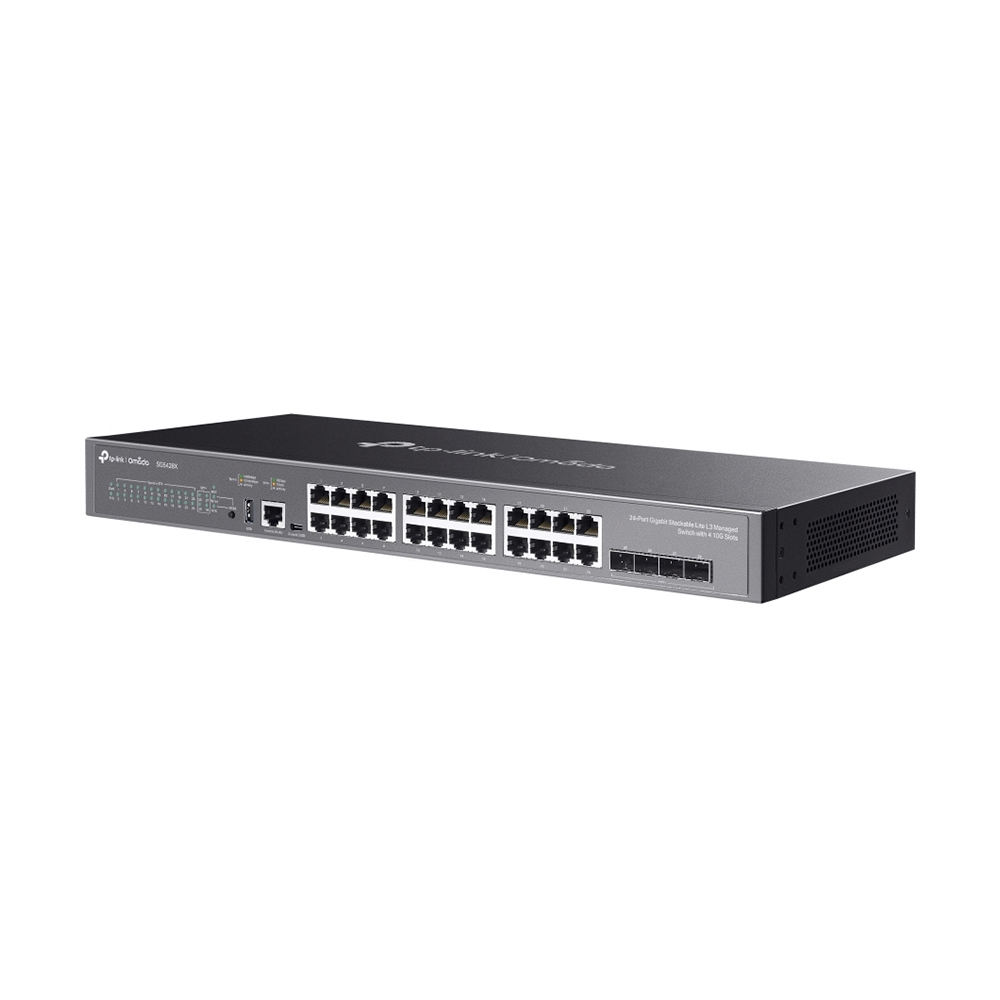

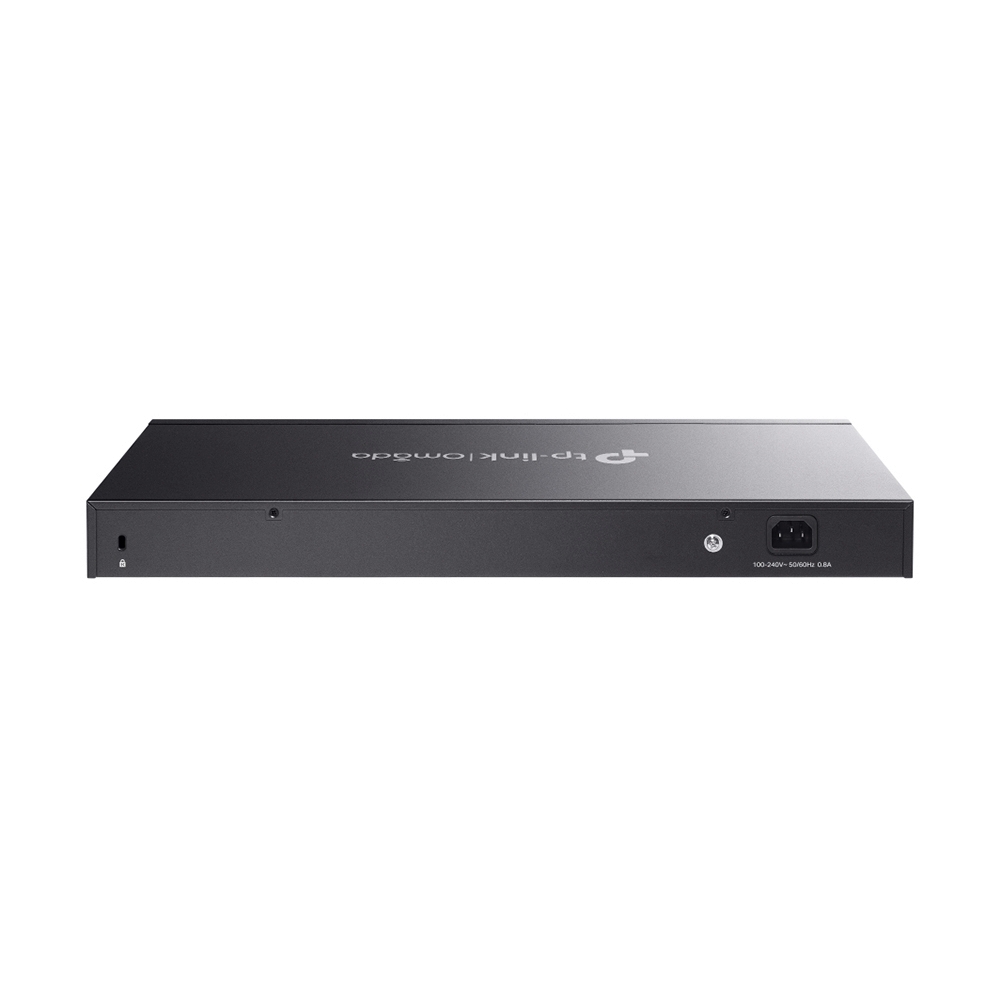

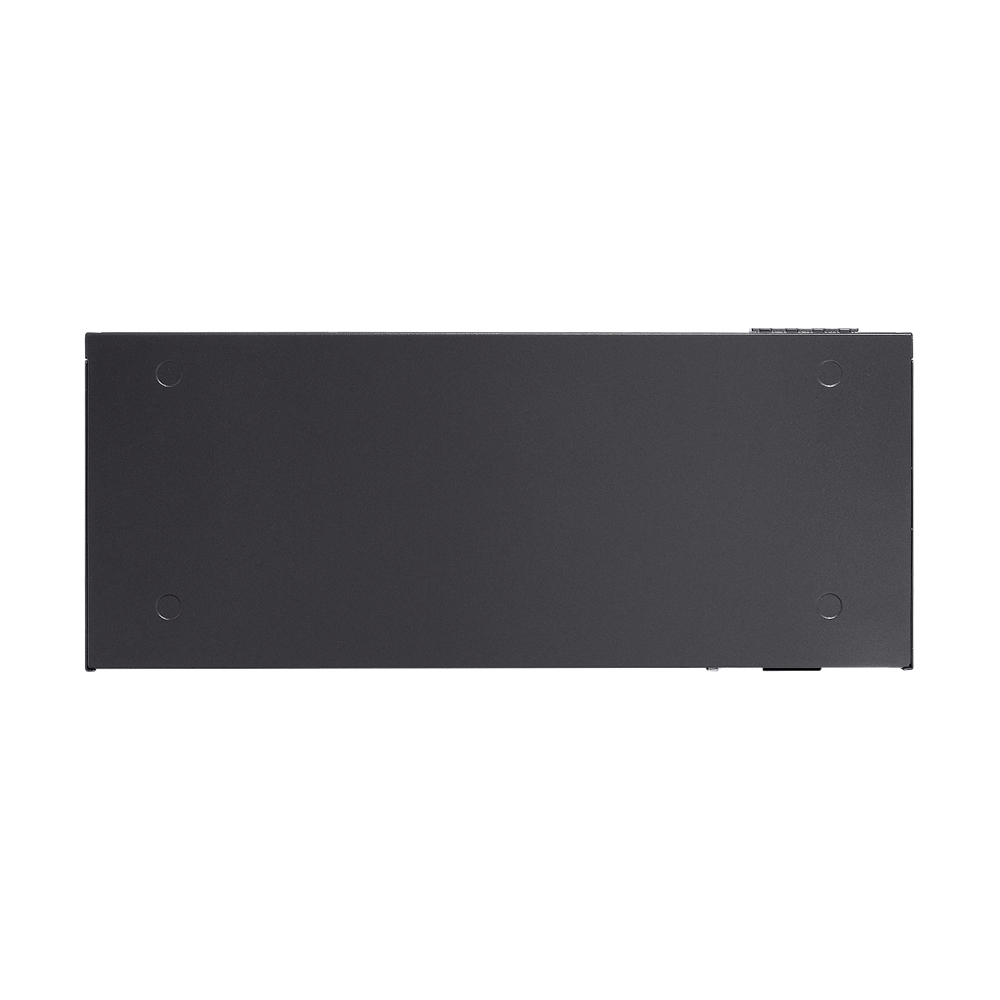

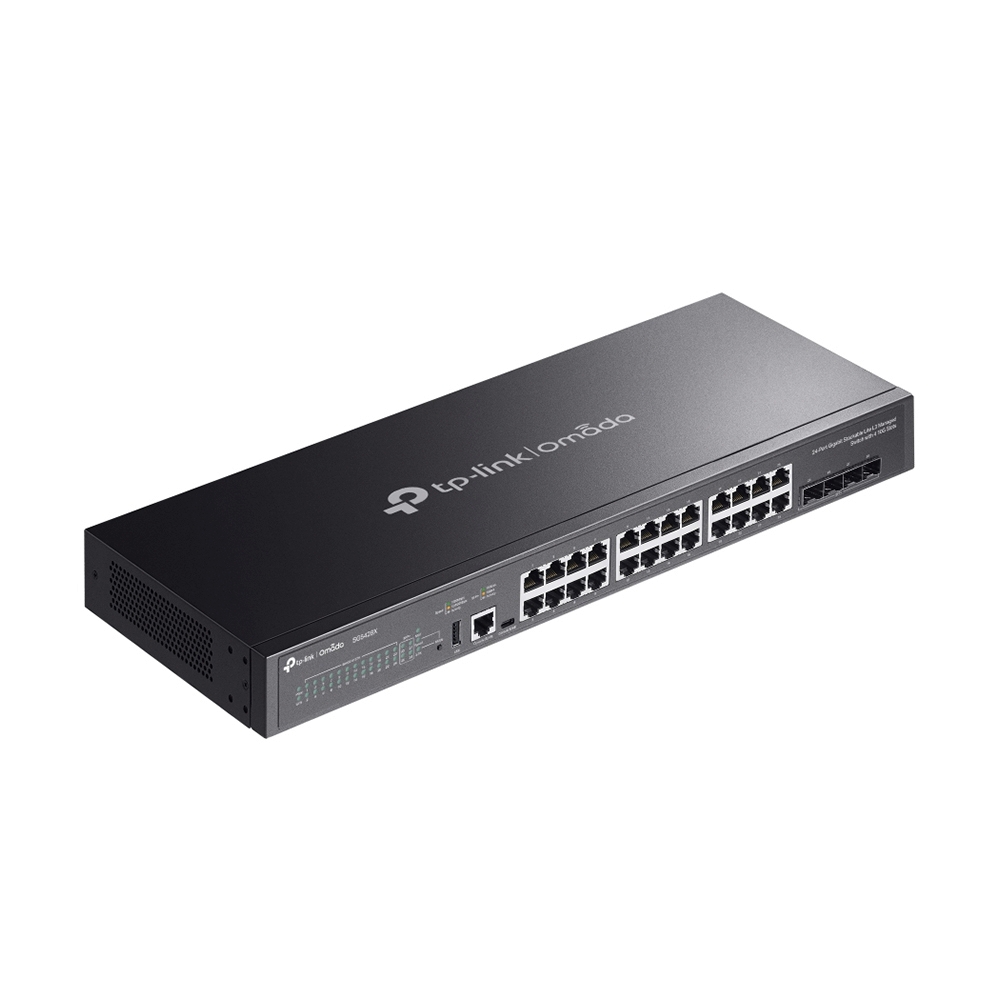

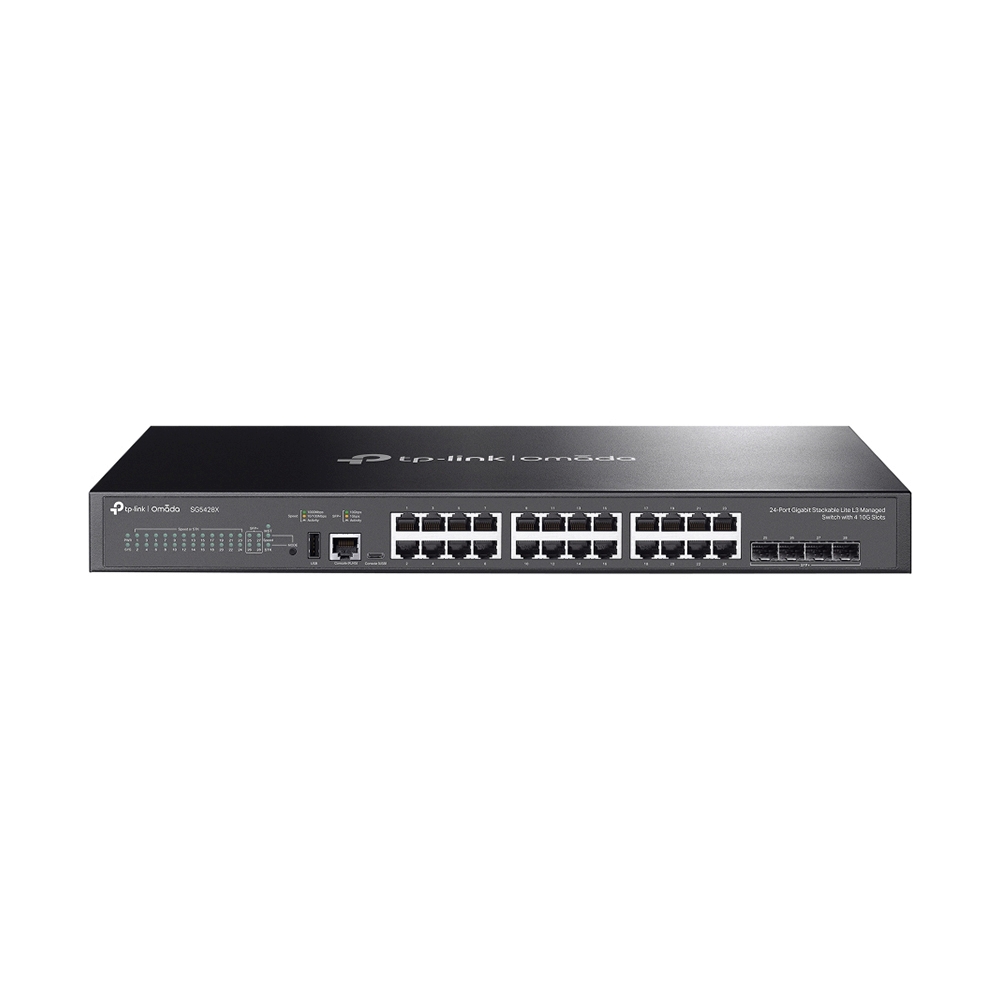

Gigabit Switching Hub 24 Port TP-LINK Omada (SG5428X) (17",+4SFP)

SG5428X

• 24× 10/100/1000 Mbps RJ45 Ports
• 4× 1/10 Gbps SFP+ Slots
• 1× RJ45 Console Port


• 1× USB Type-C Console Port
• 1× USB 2.0 Port

• IEEE 802.1p, IEEE 802.3az, IEEE 802.3ab, IEEE 802.31x, IEEE 802.3x, IEEE 802.3h

• 128 Gbps per Unit

N/A

16 K

• 95.23 Mpps

• 9 KB

• 12 Mbit

N/A

N/A

N/A

• YES

• Web-based GUI
• Command Line Interface (CLI) through console port, telnet
• SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP Auto Install
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• Password Recovery
• SNTP
• System Log
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Centralized cloud management via the Omada SDN controller

• Max 4K VLAN Group (802.1q VLAN)
• 802.1Q Tagged VLAN
• MAC VLAN Entries: 60
• Multicast VLAN
• Management VLAN
• VLAN VPN (QinQ): Max 256 entries
• GVRP
• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
• Voice VLAN
• Private VLAN

• Port Isolation
• CPU-Defend
• ARP Inspection (Dynamic ARP Inspection)
• DoS Defend
• IP-MAC-Port Binding
-1,024 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
• IPv6-MAC
-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
• DHCP Filter
• Static/Dynamic Port Security
- Up to 64 MAC addresses per port
• Broadcast/Multicast/Unknown-unicast Storm Control
- kbps/ratio control mode
• 802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
• AAA (including TACACS+)
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv2
• IP/Port/MAC-based access control

NONE

• Quality of Service
• L3 Features
• L2 and L2+ Features
• VLAN

N/A

• Fanless

• Metal

NONE

• 100-240 V~50/60 Hz

• Max Power Consumption :  19.90 W (110 V/60 Hz)
• Max Heat Dissipation :  67.86 BTU/hr (110 V/60 Hz)

• Operating Temperature: -5 °C to 45 °C (23 °F to 113 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

N/A

• SG5428X Switch
• Power Cord
• Console Cable
• Rackmount Kit
• Rubber Feet
• Quick Installation Guide
