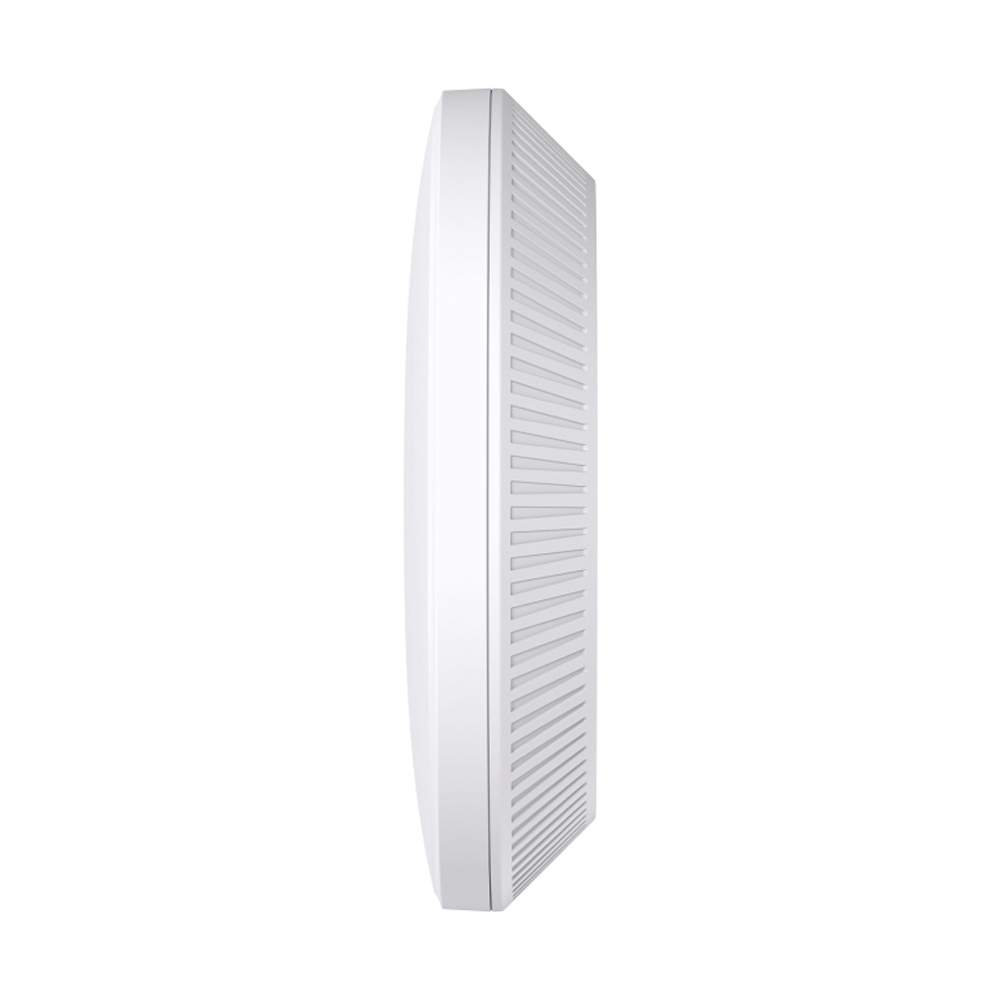

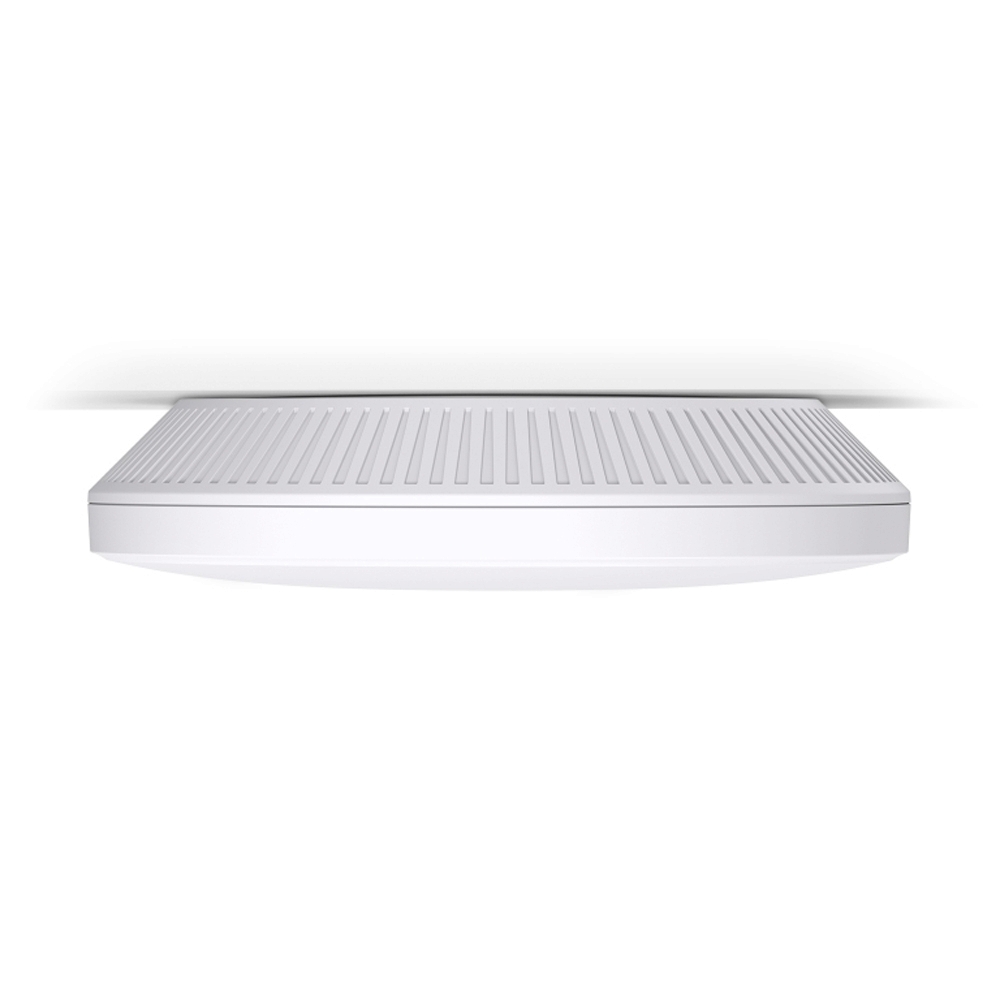

Access Point TP-LINK Omada (EAP723) Wireless BE5000 WIFI7

EAP723

• IEEE 802.11 a/b/g/n/ac/ax/be

• 2.4 GHz: 2× 4.0 dBi
• 5 GHz: 2× 5.0 dBi

• < 25 dBm (2.4GHz)
• < 25 dBm (5GHz, band 1&band 4)
• < 24 dBm (5GHz, band 2&band 3)

• 2.4 GHz and 5 GHz

• Coverage : 140m(1500 ft²)

• 4K-QAM^‡
• Seamless Roaming
• MU-MIMO^‡
• EHT240^‡
• Mesh^?
• OFDMA^‡
• Load Balance
• Band Steering
• Beamforming
• Airtime Fairness
• Multiple SSIDS:16(8 on each band)
• Wireless Schedule
• Reboot Schedule
• QoS(WMM)
• Rate Limit
• Static IP/Dynamic IP
• RADIUS Accounting
• MAC Authentication

N/A

N/A

N/A

• ON/OFF Control

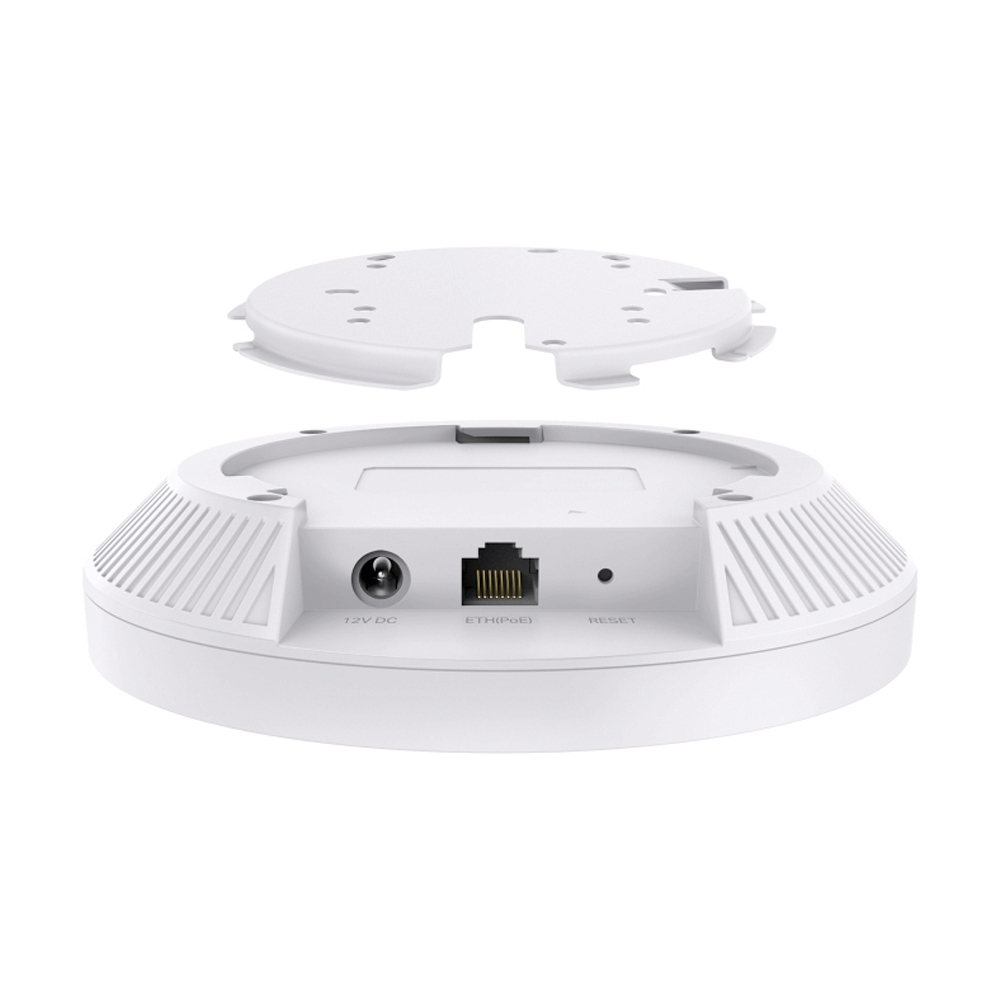

• 1× 2.5G Ethernet Port

NONE

• Reset

N/A

• 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)

• Access Point

• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller

NONE

NONE

NONE

• 240 MHz bandwidth enables many more simultaneous transmissions
• Multi-RUs ensure the high performance of your network
• Advanced Functions: Centralized management, Mesh, and Seamless Roaming

N/A

N/A

• 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)

• Support

• 19.5 W (For PoE)
• 16.8 W (For DC)

• Operating Temperature: 0 °C–40 °C (32 °F–104 °F)
• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
• Operating Humidity: 10%–90% non-condensing
• Storage Humidity: 5%–90% non-condensing;

• CE, FCC, RoHS, IC

• EAP723
• Installation Guide
• Ceiling/Wall Mounting Kit
