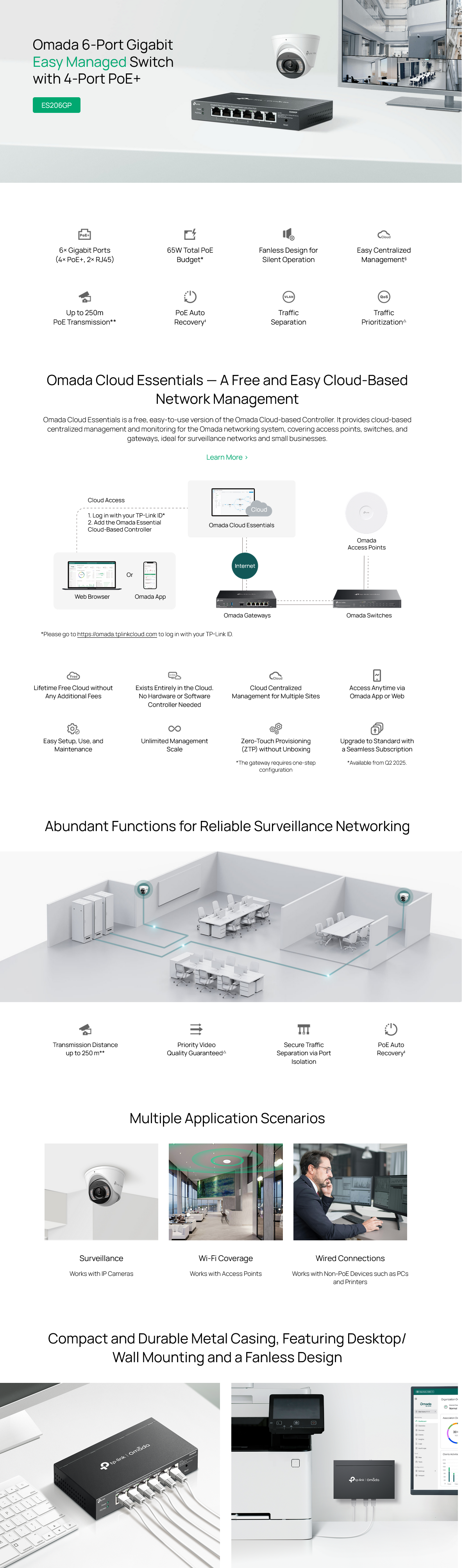

Gigabit Switching Hub 6 Port TP-LINK Omada ES206GP (6'',4 PoE)
- Standards and Protocols : 802.3af PoE and 802.3at PoE+ compliant
- Interface : 6× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3af PoE and 802.3at PoE+)
- Switching Type : Easy Managed Switch
- Switching Capacity : 12 Gbps
- Casing : Metal
- Package Contents
- ES206GP
- Power Adapter
- Power Cord
- Rubber Feet
- Installation Guide
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์
ES206GP
• 6× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3af PoE and 802.3at PoE+)
NONE
• 802.3af PoE and 802.3at PoE+ compliant
• 12 Gbps
• Store-And-Forward
• 8K
• 7.4 Mpps
• 15 KB
• 4 Mbit
N/A
N/A
N/A
• YES
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
• Physical Security Lock
NONE
• Quality of Service
• L2 Features
• L2 Multicast
• VLAN
N/A
• Fanless
• Metal
• Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 4 ports
• PoE Budget: 65W available for all PoE+ ports, 30W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance
• DC Power Adapter (Output: 53.5VDC / 1.31A)
N/A
• Operating Temperature: -5°C~40°C (23°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
• FCC, CE, RoHS
• ES206GP
• Power Adapter
• Power Cord
• Rubber Feet
• Installation Guide
