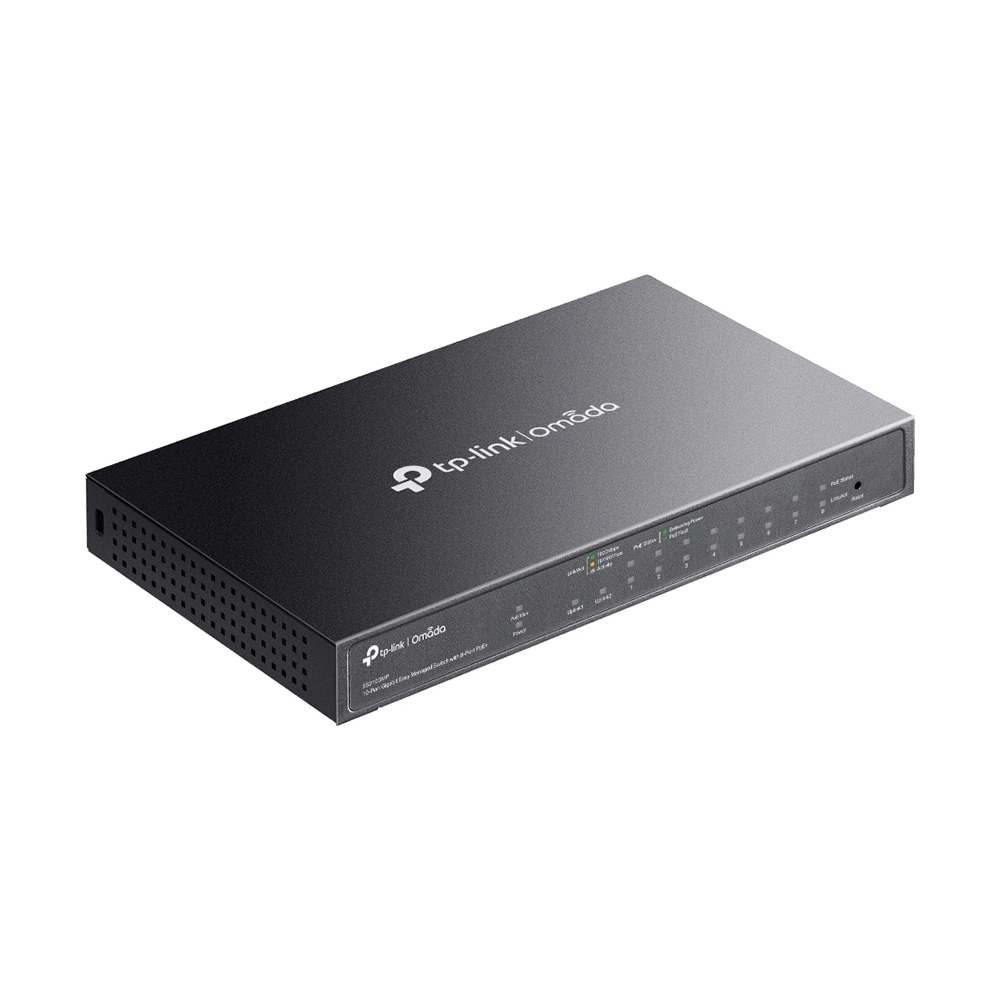

Gigabit Switching Hub 8 Port TP-LINK Omada ES210GMP (8'',8 PoE,+1 SFP)
- Standards and Protocols : 802.3af PoE and 802.3at PoE+ compliant

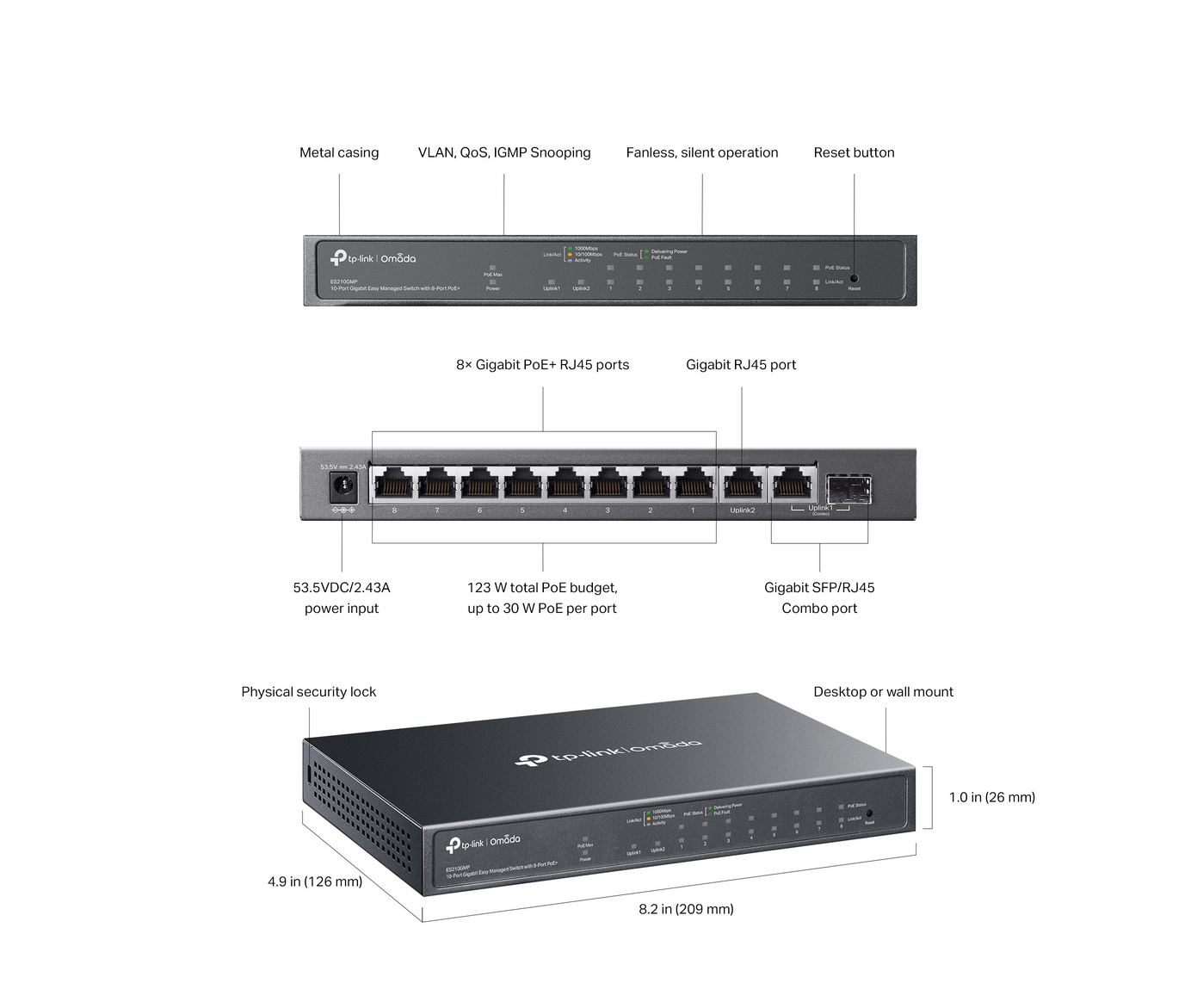

- Interface
- 8× 10/100/1000 Mbps RJ45 Ports (8 PoE ports Power Budget 123 W)
- 1× 10/100/1000 Mbps RJ45 Port
- 1× Gigabit SFP/RJ45 Combo Port
- Switching Type : Easy Managed Switch
- Switching Capacity : 20 Gbps
- Casing : Metal
- Package Contents
- ES210GMP
- Power Adapter
- Installation Guide
- Rubber Feet
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralized Cloud Management via the web or the Omada app†
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Fanless design for silent operation
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์
ES210GMP
• 8× 10/100/1000 Mbps PoE+ RJ45 Ports (8 PoE ports Power Budget 123 W)
• 1× 10/100/1000 Mbps RJ45 Port
• 1× Gigabit SFP/RJ45 Combo Port
NONE
• 802.3af PoE and 802.3at PoE+ compliant
• 20 Gbps
• Store-And-Forward
• 8K
• 14.88 Mpps
• 15 KB
• 4 Mbit
N/A
N/A
N/A
• YES
• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Unified Configuration
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
• Physical Security Lock
NONE
• Quality of Service
• L2 Features
• L2 Multicast
• VLAN
N/A
• Fanless
• Metal
• Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 8 ports
• PoE Budget: 123W available for all PoE+ ports, 30W max per port
• PoE Auto Recovery‡
• Up to 250m PoE transmission distance**
DC Power Adapter (Output: 53.5 VDC/ 2.43 A)
N/A
• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
• FCC, CE, RoHS
• ES210GMP
• Power Adapter
• Installation Guide
• Rubber Feet
