DVR 16CH. HDCVI DAHUA#XVR5116HS-5M-I3
- Analog Camera Input : 16 Ch.
- Video Compression : AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Encoding Resolution : 8-ch 5 MP@(1 fps-12 fps)/ 5M-N@(1 fps-25 fps), others 5M-N@(1 fps-12 fps); 8-ch 4M-N/1080p@(1 fps-25 fps)
- Interface
- 1x SATA port
- 2x USB (1 front USB 2.0 port, 1 rear USB 3.0 port)
- 1x HDMI
- 1x VGA
- 1x (10/100/1000 Mbps Ethernet port, RJ-45)
- 1x RS-485
- Video output : HDMI/VGA independent output
- Capacity : up to 16 TB. This limit varies depending on the environment temperature.
- Supports up to 24-channel IP camera input and each channel can be up to 6 MP. The incoming bandwidth reaches 128 Mbps.
- Supports HDCVI, AHD, TVI, CVBS and IP video input.
- 16-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์

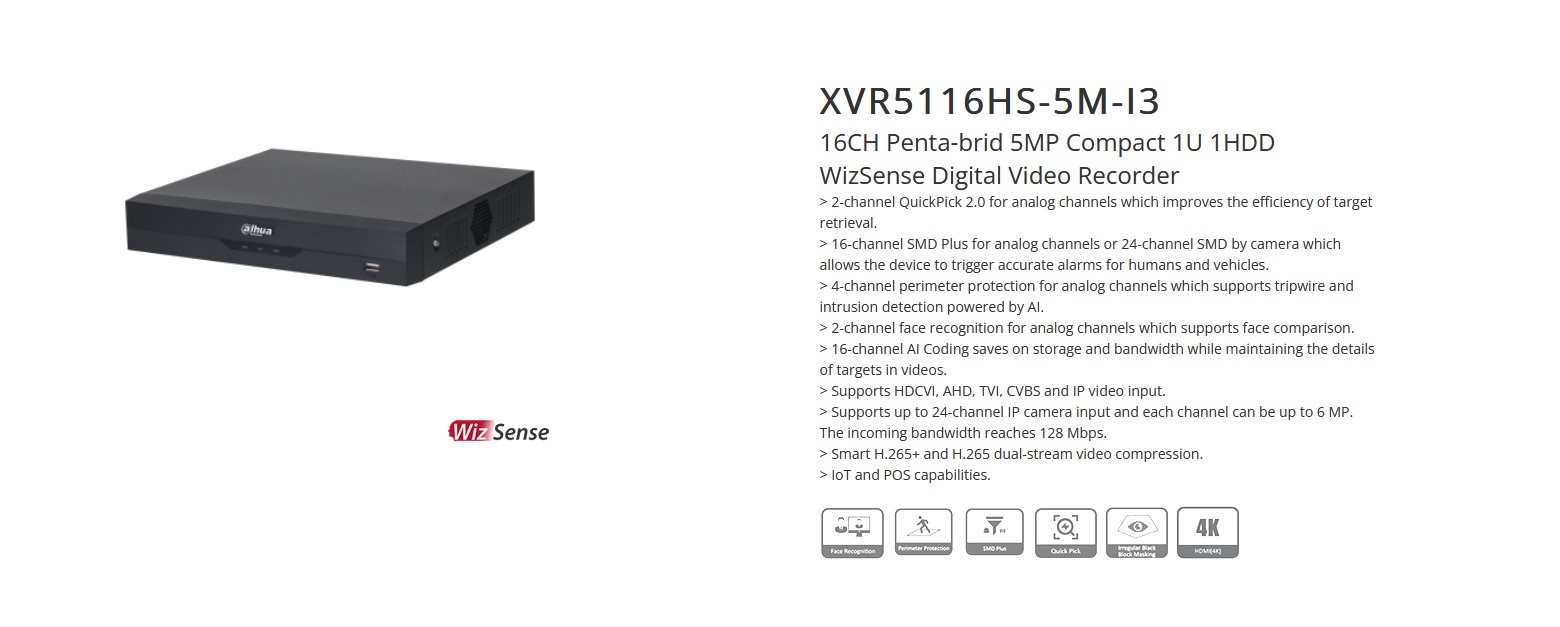

XVR5116HS-5M-I3
• Supports HDCVI, AHD, TVI, CVBS and IP video input
• Analog Camera Input : 16 Ch. (supports HDCVI/AHD/TVI/CVBS auto-detect)
• CVI : 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps.
• TVI : 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
• AHD : 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
• IP Camera Input : Up to 24 channels of IPC access 8 IP channels by default + 16 channels (analog channels are converted to IP channels)
• Video Compression : AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
• Audio Compression : G.711a; G.711u; PCM
• Audio Input : 1-channel RCA / 16-channel BNC (Coaxial Audio)
• HDMI : 3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 1024, 1280 × 720
• VGA : 1920 × 1080, 1280 × 1024, 1280 × 720
• Audio Output : 1-channel RCA
• Record Mode : General; alarm; motion detection; intelligent; POS
• Recording Playback : 1/4/9/16
• Backup Method : USB device and network
• Playback Mode : Instant playback; general playback; event playback; tag playback; smart playback
• Encode Enhancement disabled
- Main stream : Channels 1-4 5M-N@(1 fps–25 fps), others 5M-N@(1 fps–12 fps)
- Channels 1-4 4M-N/1080p@(1 fps–25/30 fps), others 4M-N/1080p@(1 fps–15 fps) 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps)
- Sub stream : D1/CIF@(1 fps–15 fps)
• Encode Enhancement enabled
- Main stream :8-ch 5 MP@(1 fps-12 fps)/ 5M-N@(1 fps-25 fps), others 5M-N@(1 fps-12 fps); 8-ch 4M-N/1080p@(1 fps-25 fps), others 4M-N/1080p@(1 fps-15 fps); 1080N/720p/960H/D1 CIF@(1 fps-25/30 fps)
- Sub stream : D1/CIF@(1 fps-15 fps);It changes to D1/CIF@(1 fps-12 fps) when Main stream is 5 MP/5M-N.
• Network Protocol : HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; • Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
• Mobile Phone Access : iOS; Android
• Interoperability : ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
• Browser : Chrome; IE; Safari; Edge; Firefox
• 1x (10/100/1000 Mbps Ethernet port, RJ-45)
• 1x VGA
• 1x HDMI
• 1x RS-485
• 1X SATA
• 2x USB (1 front USB 2.0 port, 1 rear USB 3.0 port)
• up to 16 TB. This limit varies depending on the environment temperature.
• 12 VDC, 2 A
• <12 W (without HDD)
• Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
• Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Operating Humidity : 10%–90% (RH), non-condensing
• ONVIF 24.06 (Profile T; Profile S; Profile G); CGI; SDK
