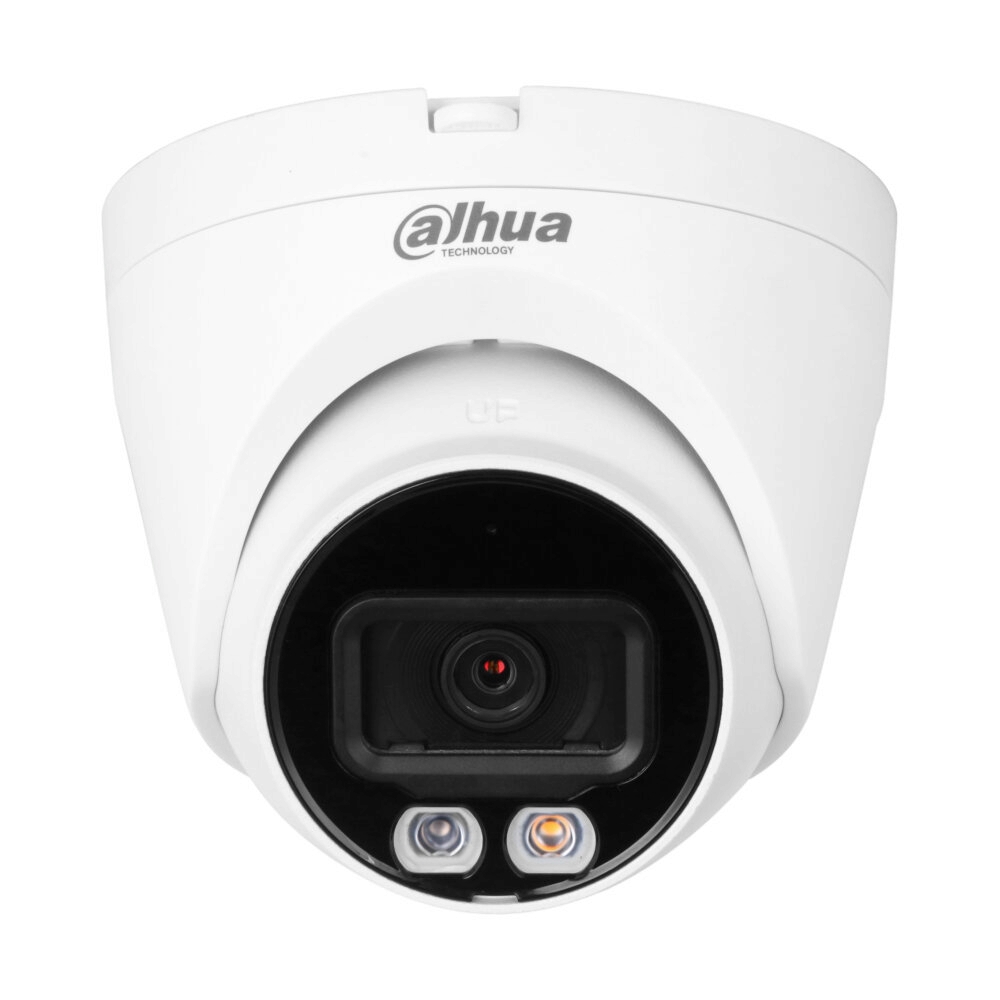

กล้องวงจรปิด 3.6mm IP Camera DAHUA HDW1239V-A-IL

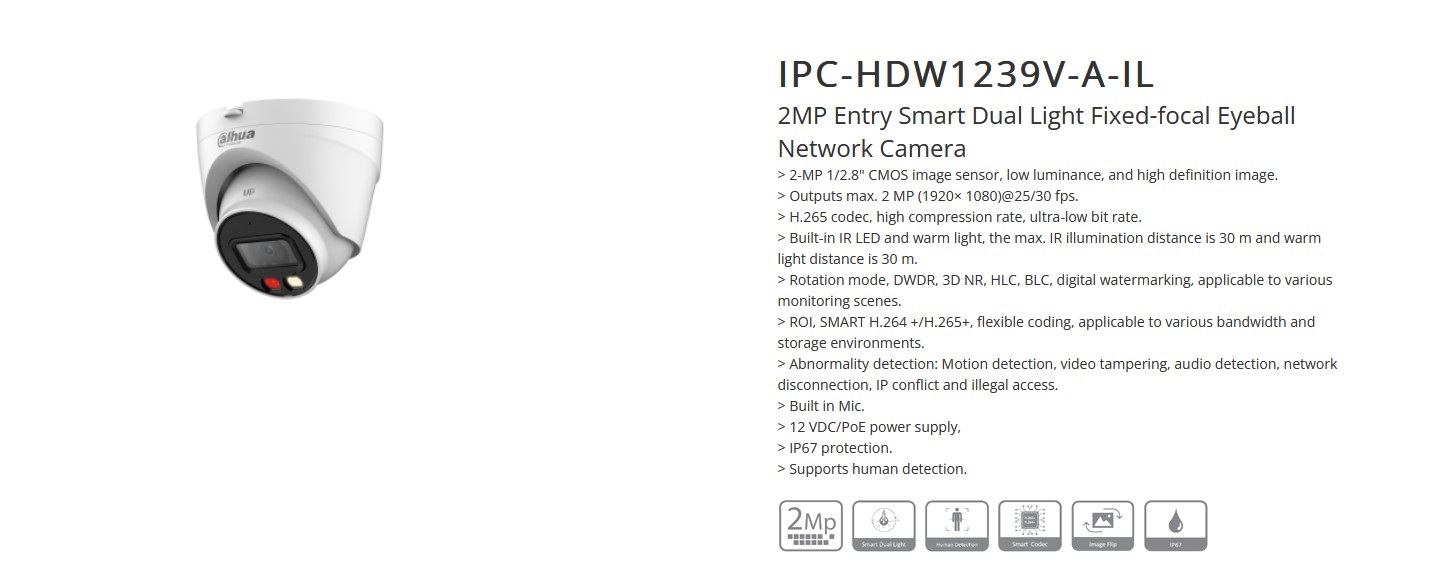

HDW1239V-A-IL

• 2MP , 1/2.8" CMOS

• 3.6mm

• M12

• 0.005 [email protected] (Color,30 IRE)
• 0.0005 [email protected] (B/W,30 IRE)
• 0 lux (Illuminator on)

• 3.6 mm: 0.8 m (2.62 ft)

N/A

• H: 88°; V: 44°; D: 105°

• Pan: 0°–360°
• Tilt: 0°–78°
• Rotation: 0°–360

• Auto/Manual 1/3 s–1/100,000 s

• 3D NR

• 30m

• Auto(ICR)/Color/B/W

• >56 d

• DWDR

• 1080p (1920 ×1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

• H.265 codec, high compression rate, ultra-low bit rate.

• Main stream: 1920 × 1080@(1–25/30 fps)
• Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

• 6 (Total bandwidth: 24 M)

N/A

• 1x RJ-45 (10/100 Base-T

N/A

• Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception

• ONVIF (Profile S; Profile T); CGI

• IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

• Built-in IR LED and warm light, the max. IR illumination distance is 30 m and warm light distance is 30 m.
• Rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
• ROI, SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.

• 12 VDC/PoE (802.3af)

• Basic: 1.8 W (12 VDC); 2.3 W (PoE)
• Max. (H.265 + intelligence on+ WDR + illuminator intensity): 4.5 W (12 VDC); 5.6 W (PoE)

• Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity : ≤95%
• Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity : ≤95%

• IP67

N/A
