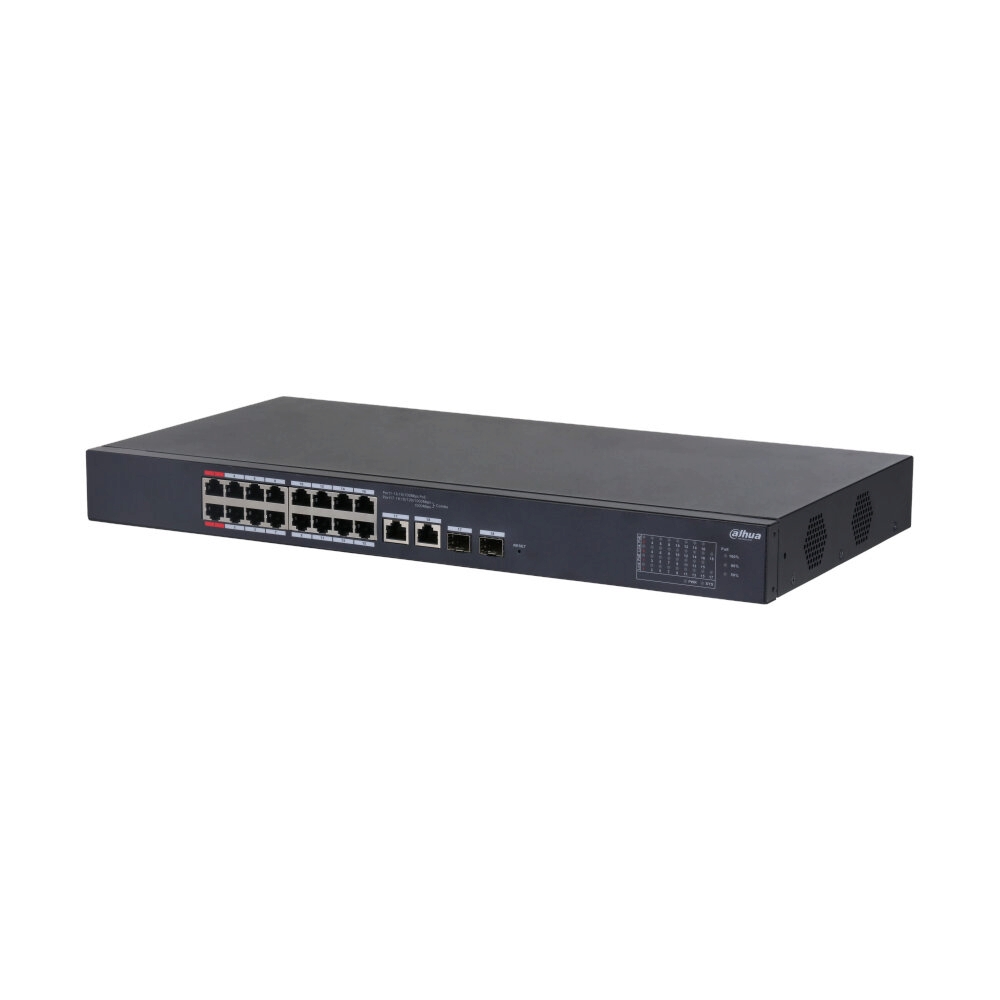

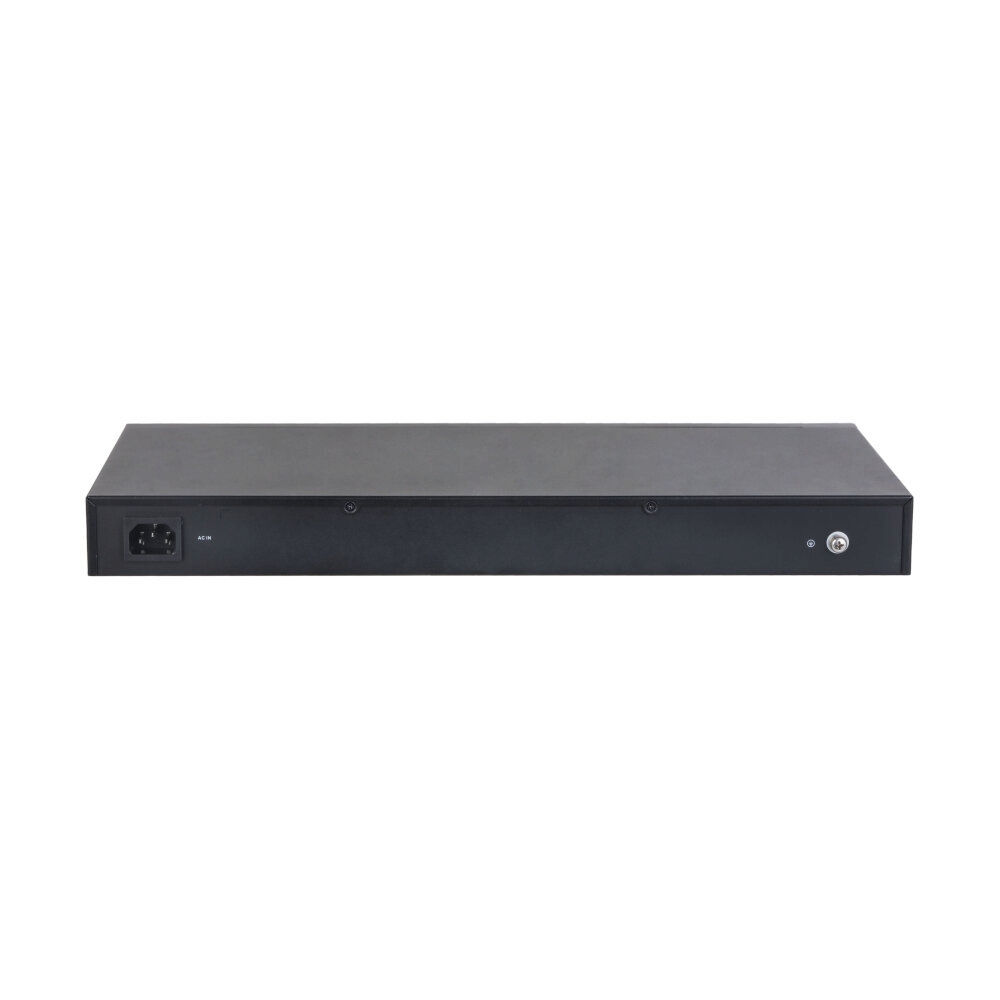

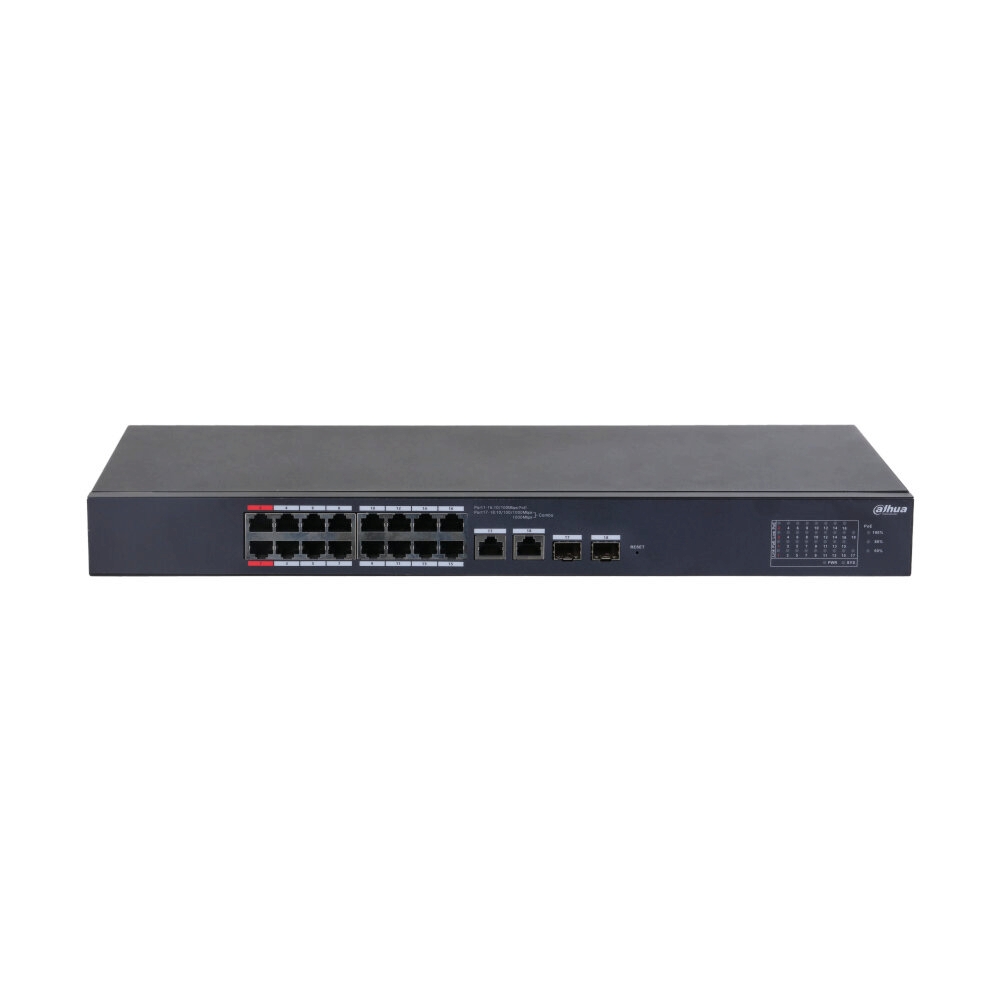

Switching Hub DAHUA (CS4218-16ET-240)16Port (16)
- Standards and Protocols : IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt
- Interface
- 16x 10/100/1000 Mbps PoE (265W)
- 2x 10/100/1000 Mbps Combo
- 2x SFP Combo
- Switching Type : Layer 2 switching
- Switching Capacity : 7.2 Gbps
- Casing : Sheet metal
- Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE.
- A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof.
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์
CS4218-16ET-240
• 16x 10/100/1000 Mbps PoE (265W)
• 2x 10/100/1000 Mbps Combo
• 2x SFP Combo
NONE
• IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt
• 7.2 Gbps
N/A
N/A
• 5.36 Mpps
• 15K Byte
• 4 Mbit
N/A
N/A
N/A
• YES
• Web management
• App management
• Port-based VLAN
N/A
N/A
• DHCP Function : DHCP Client
• 87.10 years
N/A
• Sheet metal
• PoE Power PoE : Port 1-2 ≤ 90 W, Port 3-16 ≤ 30 W, total ≤ 240 W
• PoE Pin Assignment : 1,2,4,5?V+?,3,6,7,8?V-?
• Built-in power supply: 100-240 VDC, 47-63 Hz, max 4 A
• Idling: ≤6 W ; Full load: 265 W
• Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
• Operating Humidity : 5%–95% (RH), non-condensing
• Storage Temperature : –40 °C to +70 °C (–40 °F to +158 °F)
• Storage Humidity : 5%–95% (RH), non-condensing
N/A
N/A
