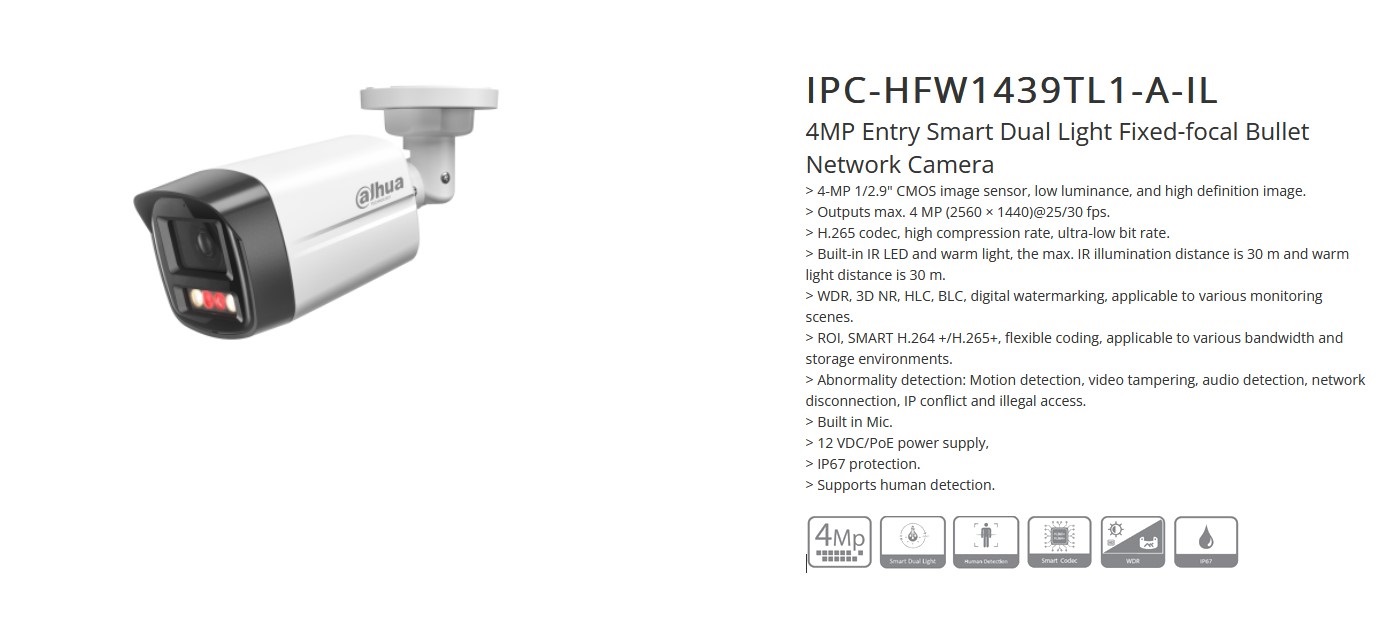

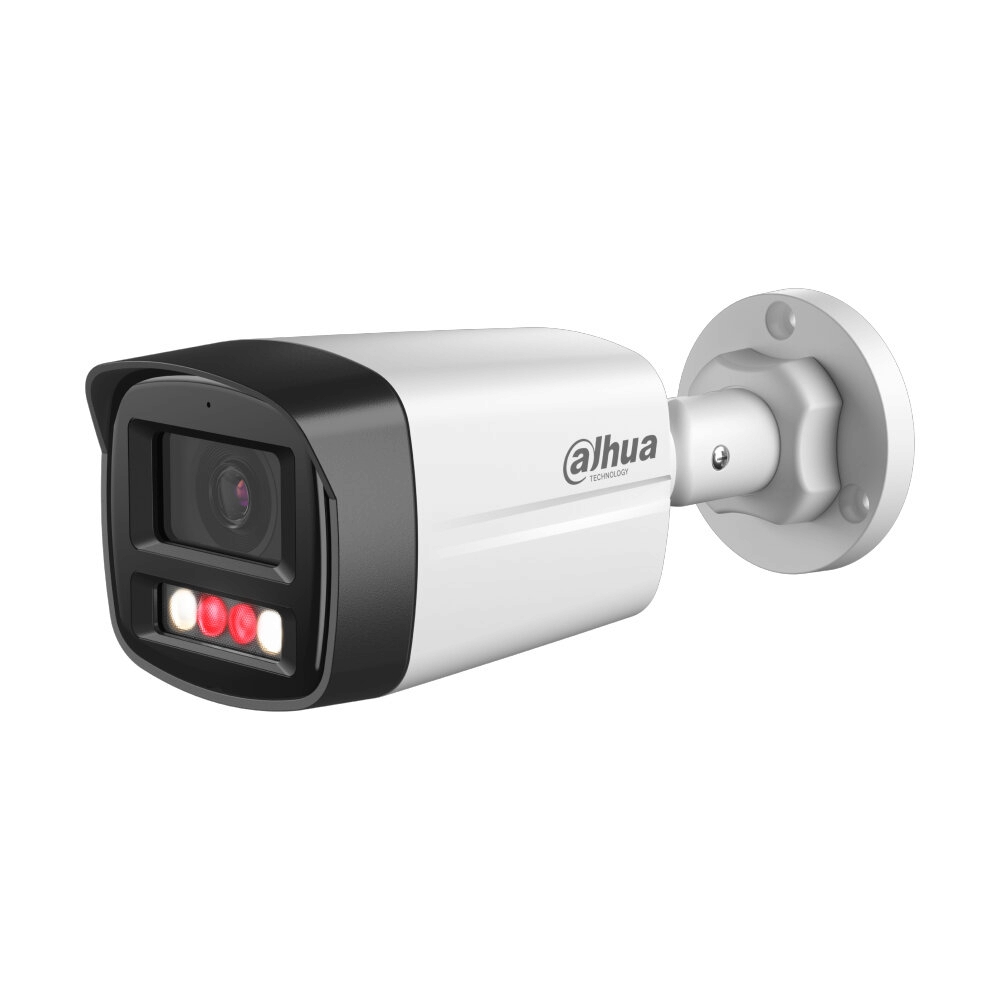

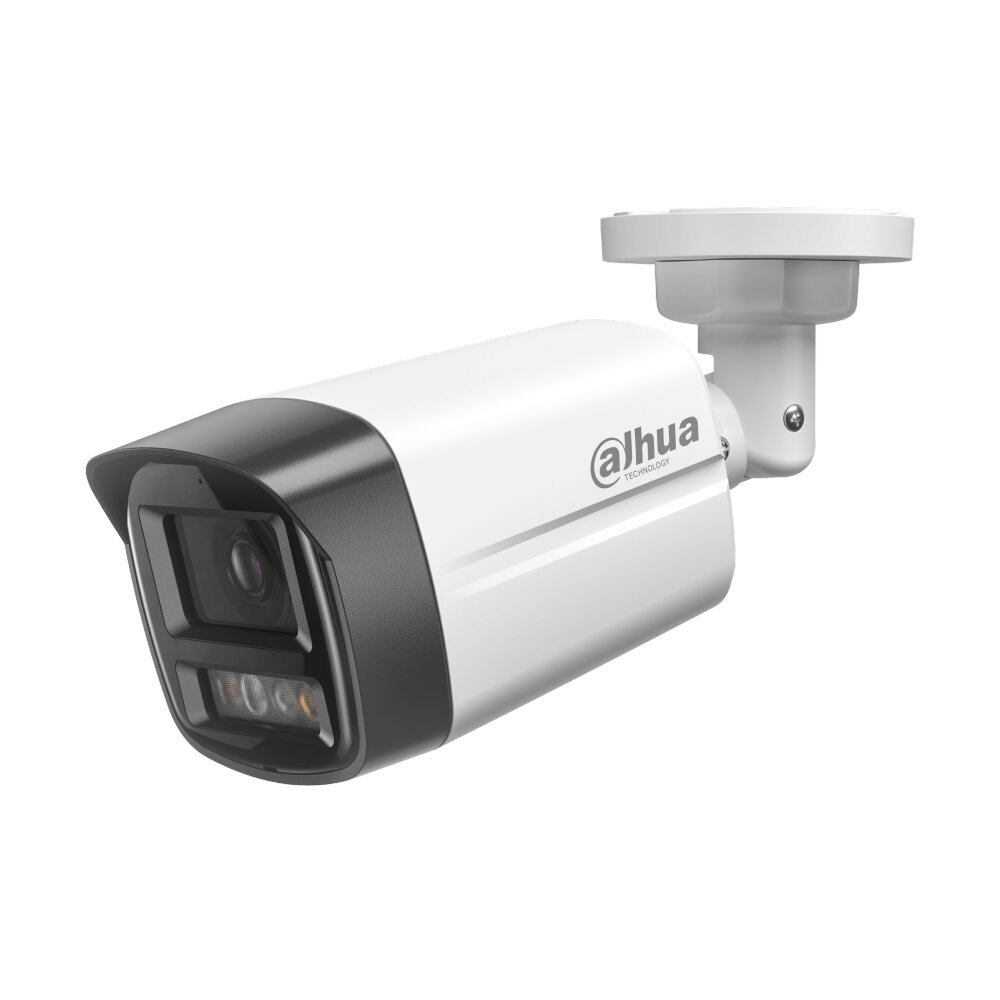

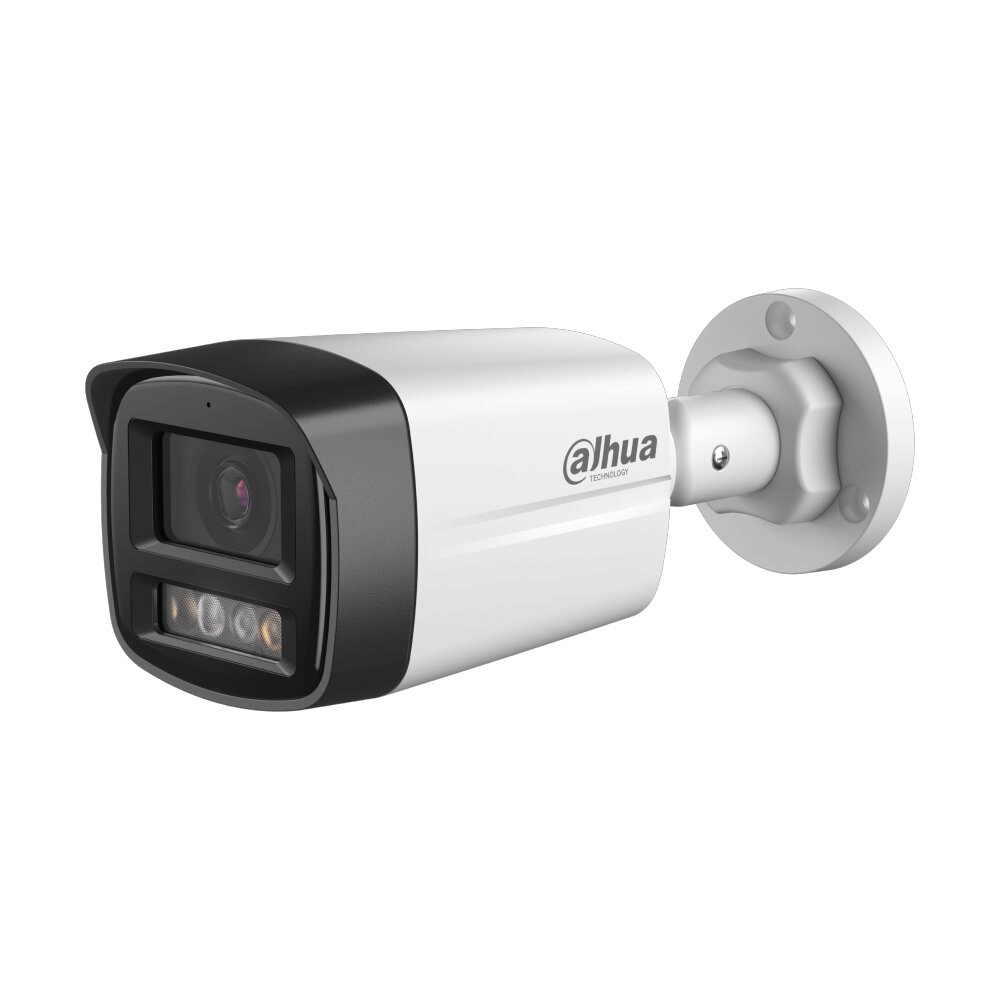

กล้องวงจรปิด 3.6mm IP Camera DAHUA HFW1439TL1-A-IL
- Image Sensor : 4MP , 1/2.9" CMOS
- Max. Resolution: 2560 (H) × 1440 (V)
- Lens Type : 3.6mm
- Video Output : Network Camera
- IR Distance : 30m
- Frame Rate
- Main stream : 2560 × 1440@(1–25/30 fps)
- Sub stream : 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
- Day/Night Mode : Auto(ICR)/Color/B/W
- Audio Port : Built-in mic
- Protection : IP67
- Casing Material : Metal+plastic
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์
HFW1439TL1-A-IL
• 4MP , 1/2.9" CMOS
• 3.6mm
• M12
• 3.6 mm: H: 78°; V: 41°; D: 94°
N/A
• H: 78°; V: 41°; D: 94°
• Pan: 0°–360°
• Tilt: 0°–90°
• Rotation: 0°–360°
• Auto/Manual 1/3 s–1/100,000 s
• 0.006 [email protected] (Color,30 IRE)
• 0.0006 [email protected] (B/W,30 IRE)
• 0 lux (Illuminator on)
• 3D NR
• 30m
• Auto(ICR)/Color/B/W
• >56 dB
• 120 dB
• 2560 (H) × 1440 (V)
• H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
• Main stream : 2560 × 1440@(1–25/30 fps)
• Sub stream : 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
• 6 (Total bandwidth: 24 M)
• FTP
• 1x RJ-45 (10/100 Base-T)
N/A
• Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio detection; SMD (human); security exception
• ONVIF (Profile S; Profile T); CGI
• IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P
• Supports human detection
• 12 VDC/PoE (802.3af)
• Basic: 2 W (12 VDC); 2.9 W (PoE)
• Max. (H.265 + intelligence on+ WDR + illuminator intensity): 6.4 W (12 VDC); 7.7 W (PoE)
• Operating Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Operating Humidity : ≤95%
• Storage Temperature : –40 °C to +60 °C (–40 °F to +140 °F)
• Storage Humidity : ≤95%
• IP67
N/A
