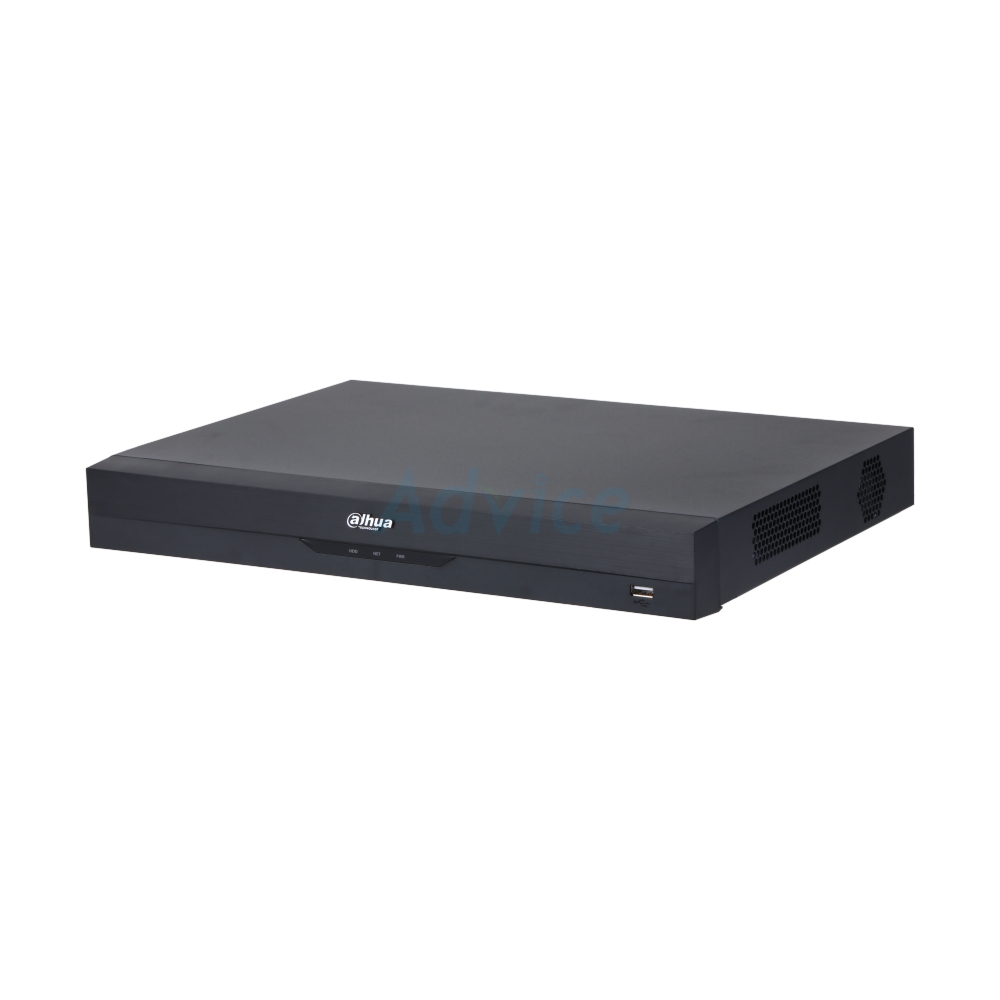

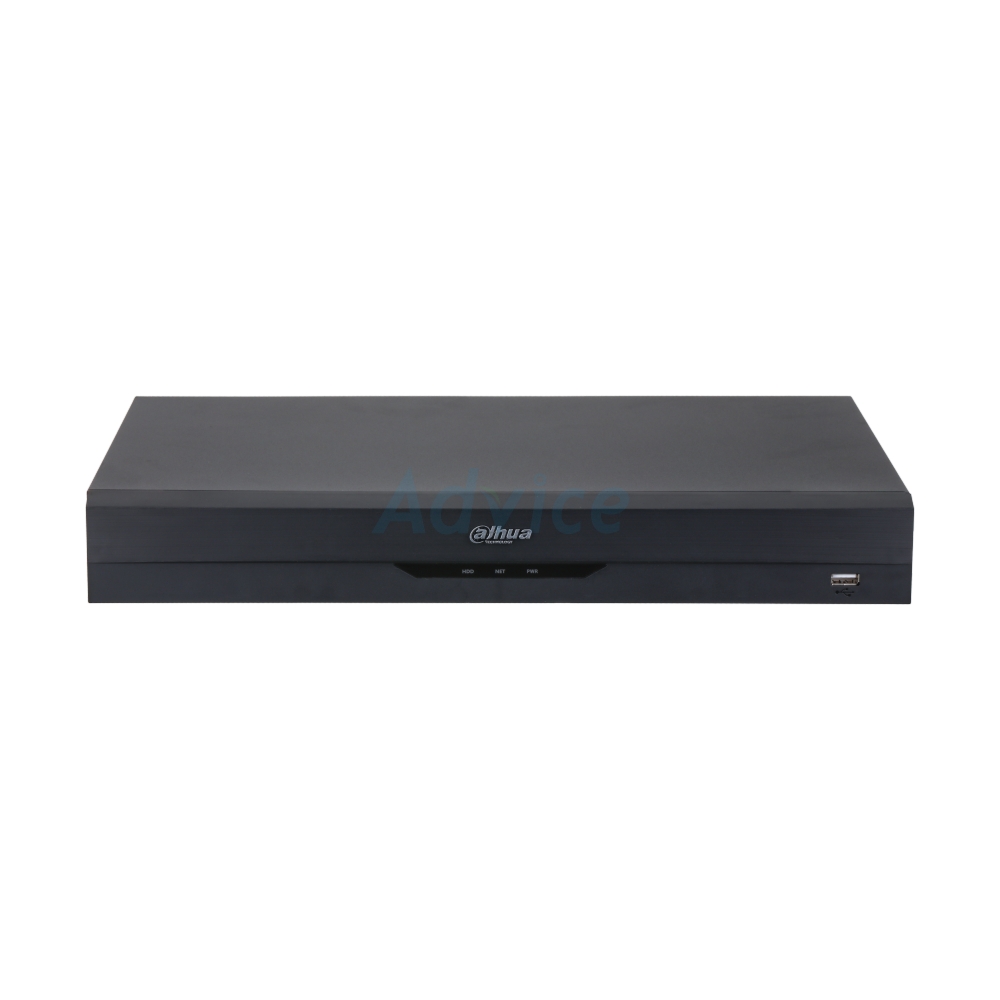

เครื่องบันทึก DVR 16CH. HDCVI DAHUA XVR5216AN-5M-I3/T
- Analog Camera Input : 16 Ch.
- Video Compression : AI Coding Smart H.265+; H.265; Smart H.264+; H.264
- Encoding Resolution
- Main stream : the 1st, 5th, 9th, 13th channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps), the 1st, 5th, 9th, 13th channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps) , the 1st, 5th, 9th, 13th channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps)
- Sub stream : 960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps)

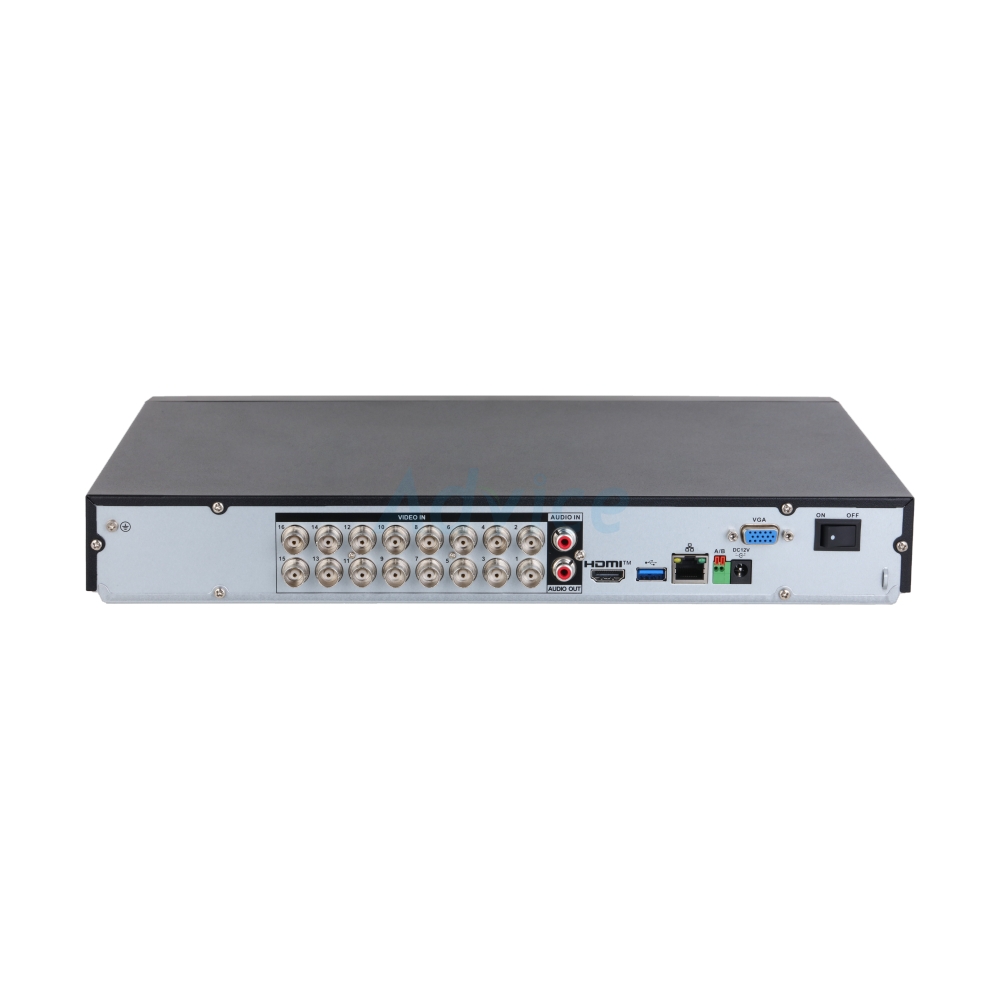

- Interface
- 1x (10/100/1000 Mbps Ethernet port, RJ-45)
- 1x Audio Input
- 1x Audio Output
- 1x RS-485
- 2x USB (1 front USB 2.0 port, 1 rear USB 3.0 port)
- 1x VGA
- 1x HDMI
- 2x SATA
- Video output : HDMI/VGA independent output
- Capacity : up to 16 TB. This limit varies depending on the environment temperature.
ข้อมูลผลิตภัณฑ์
XVR5216AN-5M-I3/T
• Supports HDCVI, AHD, TVI, CVBS and IP video input.
• Analog Camera Input : 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
• CVI : 4K@25/30 fps; [email protected]/15 fps; 6 MP@20 fps; 5 MP@25 fps; 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps; 720p@50/60 fps
• TVI : 4K@15 fps; 5 MP(2560 x 1944)@20 fps; 5 MP(2960 x 1665)@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps
• AHD : 4K@15 fps; 5 MP@20 fps; 4 MP@25/30 fps; 3 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps
• IP Camera Input : 32 channels of IPC access16 IP channels by default + 16 channels (analog channels are converted to IP channels)
• Two-way Talk : Coaxial two-way talk: 16-channel BNC
• Third-party Camera Access : Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
• HDMI : 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
• VGA : 1920 × 1080, 1280 × 1024, 1280 × 720
• Audio Output : 1-channel RCA
• Record Mode : General alarm; motion detection; intelligent; POS
• Recording Playback : 1/4/9/16
• Backup Method : USB device and network
• Playback Mode : Instant playback; general playback; event playback; tag playback; smart playback
• Main stream
- the 1st, 5th, 9th, 13th channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps);
- the 1st, 5th, 9th, 13th channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps);
- the 1st, 5th, 9th, 13th channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps);
- the 1st, 5th, 9th, 13th channel 4 MP/3 MP@(1 fps–25/30 fps), 4 MP/3 MP@(1 fps–15 fps);
- 4K/6 MP@(1 fps–10 fps); 4K-N/5 MP@(1 fps-15 fps); 1080p/720p/960H/D1/CIF@(1 fps–25/30 fps)
• Sub stream: 960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps)
• Network Protocol : HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
• Mobile Phone Access : iOS; Android
• Interoperability : ONVIF 25.06 (Profile T; Profile S; Profile G); CGI; SDK
• Browser : Chrome; IE; Safari; Edge; Firefox
• 1x (10/100/1000 Mbps Ethernet port, RJ-45)
• 1x Audio Input
• 1x Audio Output
• 1x RS-485
• 2x USB (1 front USB 2.0 port, 1 rear USB 3.0 port)
• 1x VGA
• 1x HDMI
• 2x SATA
• up to 16 TB. This limit varies depending on the environment temperature.
• 12 VDC, 5 A
• < 15 W (without HDD)
• Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
• Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Operating Humidity : 10%–90% (RH), non-condensing
• ONVIF 25.06 (Profile T; Profile S; Profile G); CGI; SDK
