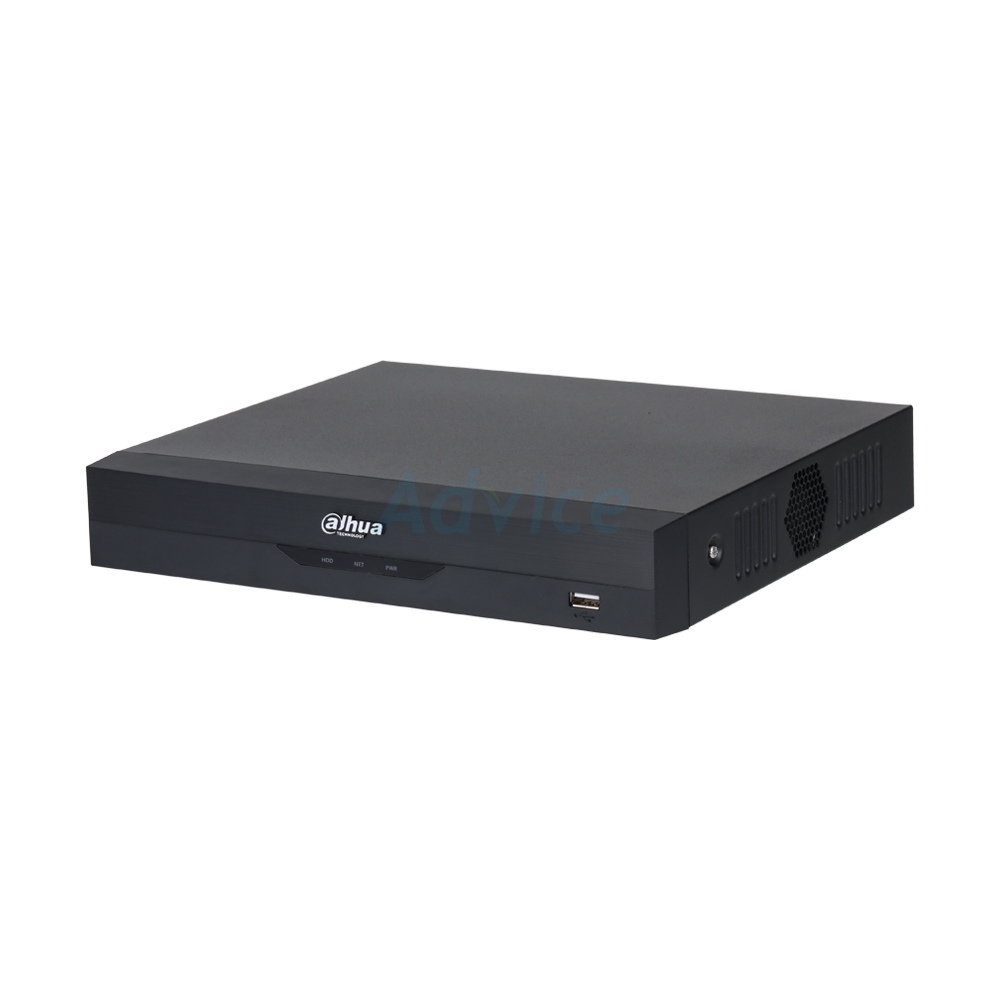

DVR 8CH. HDCVI DAHUA#XVR5108HS-5M-I3/T
- Analog Camera Input : 8 Ch.
- Video Compression : AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Encoding Resolution
- Main stream : 4-ch 5 MP@(1 fps-12 fps)/5M-N@(1 fps-25 fps), others 5M-N@(1 fps-12 fps); 4-ch 4M-N/1080p@(1 fps-25fps), others 4M-N@(1 fps-15 fps)/1080p@(1 fps-12 fps); 1080N/720p/960H/D1/CIF@(1 fps-25/30 fps)
- Sub stream : D1/CIF@(1 fps-15 fps)

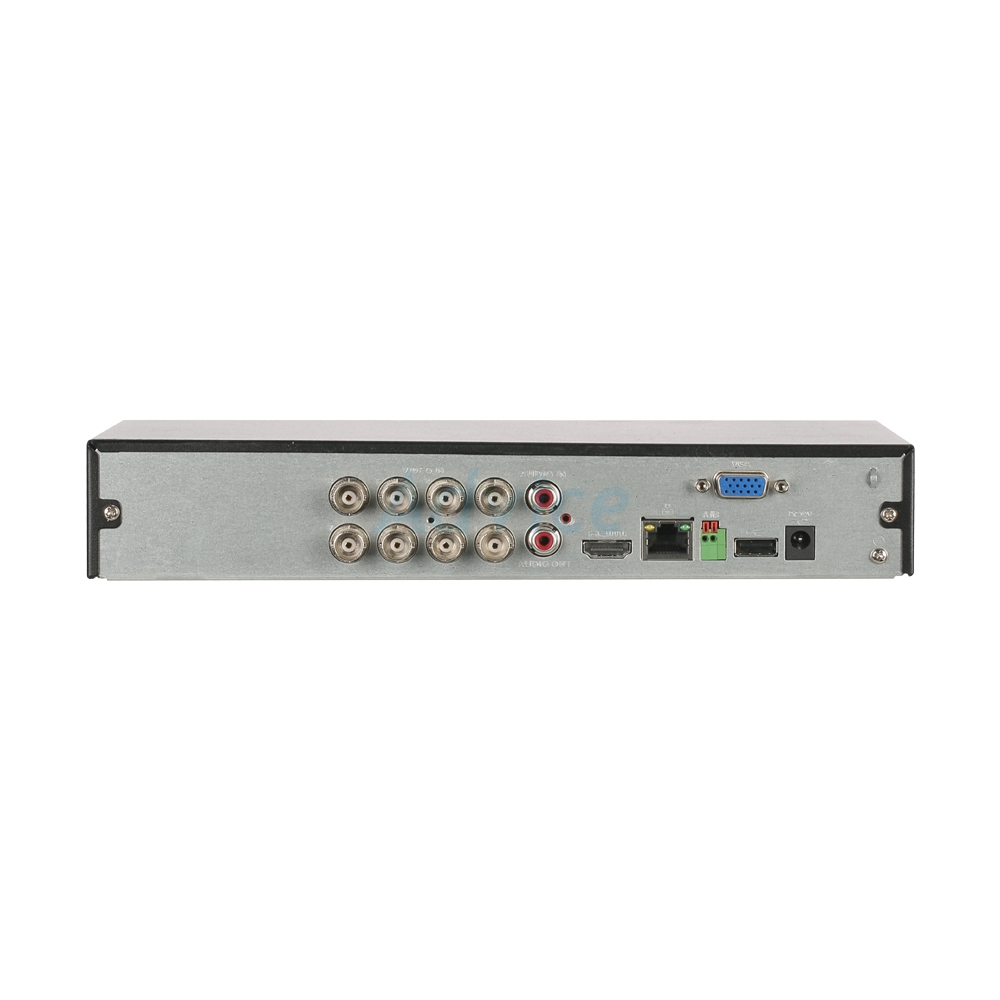

- Interface
- 1x (10/100 Mbps Ethernet port, RJ-45)
- 1x Audio Input
- 1x Audio Output
- 1x RS-485
- 2x USB (1 front USB 2.0 port, 1 rear USB 3.0 port)
- 1x VGA
- 1x HDMI
- 1x SATA
- Video output : HDMI/VGA independent output
- Capacity : up to 16 TB. This limit varies depending on the environment temperature.
- 8-channel two-way talk over coaxial cable allows for seamless communication between the camera, client and recorder.
- 4-channel AcuPick for analog channels which improves the efficiency of target retrieval.
- 8-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
- 2-channel face recognition for analog channels which supports face comparison.
- 8-channel SMD Plus for analog channels or 12-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
- 8-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
ข้อมูลผลิตภัณฑ์
XVR5108HS-5M-I3/T
• Supports HDCVI, AHD, TVI, CVBS and IP video input.
• Analog Camera Input : 8 BNC ports
• Camera Input
- CVI : 5 MP@25 fps; 5 MP@20 fps, 5 MP@10/12.5 fps, 4 MP@25/30 fps, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30fps.
- TVI : 5 MP(2560 × 1944)@20 fps, 5 MP(2960 × 1665)@20/25 fps, 4 MP@25/30 fps, 1080p@25/30 fps, 720p@25/30 fps.
- AHD : 5 MP@20 fps, 4 MP@25/30 fps, 1080p@25/30 fps, 720p@25/30 fps.
• IP Camera Input : Up to 12 channels of IPC access 4 IP channels by default + 8 channels (analog channels are converted to IP channels)
• Audio Input : 1-channel RCA , 8-channel BNC (Coaxial Audio)
• Two-way Talk : Coaxial two-way talk: 8-channel BNC
• HDMI : 2560 × 1440, 1920 × 1080, 1280 × 1024, 1280 × 720
• VGA : 1920 × 1080, 1280 × 1024, 1280 × 720
• Third-party Camera Access : Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
• Audio Output : 1-channel RCA
• Record Mode : General, alarm, motion detection, intelligent
• Recording Playback : 1/4/9
• Backup Method : USB device and network
• Playback Mode : Instant playback, general playback, event playback, tag playback, smart playback
• Encode Enhancement disabled
- Main stream : Channels 1-2 5M-N@(1 fps –25 fps), others 5M-N@(1 fps –12 fps), Channels 1-2 4M-N/1080p@(1 fps–25/30 fps), others 4M-N/1080p@(1 fps –15 fps), 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps)
- Sub stream : D1/CIF@(1 fps–15 fps)
• Encode Enhancement enabled
- Main stream : 4-ch 5 MP@(1 fps-12 fps)/5M-N@(1 fps-25 fps), others 5M-N@(1 fps-12 fps); 4-ch 4M-N/1080p@(1 fps-25 fps), others 4M-N@(1 fps-15 fps)/1080p@(1 fps-12 fps); 1080N/720p/960H/- D1/CIF@(1 fps-25/30 fps)
• Sub stream : D1/CIF@(1 fps-15 fps)
• It changes to D1/CIF@(1 fps-7 fps) when Main stream is 5 MP/5M-N/4M-N/1080p.
N/A
• Network Protocol : HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
• Mobile Phone Access : iOS; Android
• Interoperability : ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK
• Browser : Chrome, IE, Safari, Edge, Firefox
• 1x (10/100 Mbps Ethernet port, RJ-45)
• 1x Audio Input
• 1x Audio Output
• 1x RS-485
• 2x USB (1 front USB 2.0 port, 1 rear USB 3.0 port)
• 1x VGA
• 1x HDMI
• 1x SATA
• up to 16 TB. This limit varies depending on the environment temperature.
• 12 VDC,2 A
• <7 W (without HDD)
• Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
• Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Operating Humidity : 10%–90% (RH), non-condensing
• ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK
