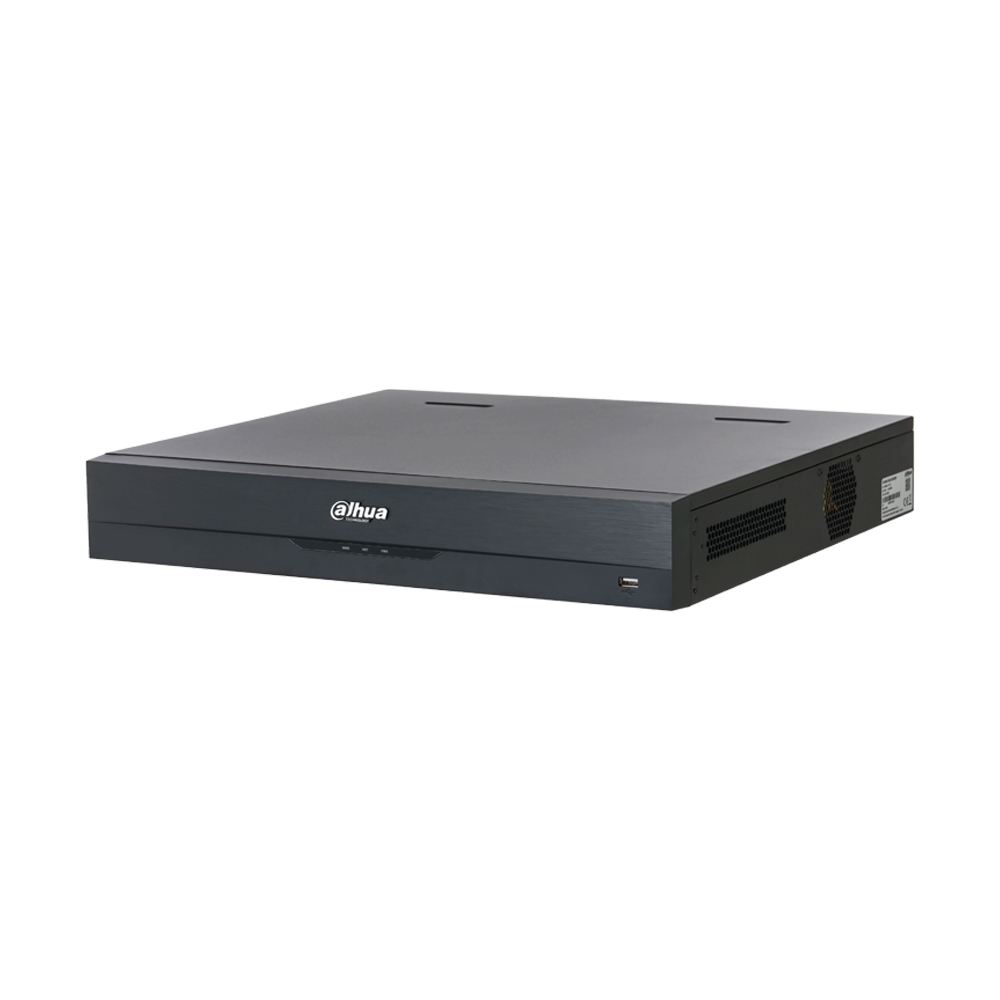

เครื่องบันทึก NVR 32CH. DAHUA NVR5432-EI2

NVR5432-EI2

• IP Video Input : 32Ch.
• Resolution : 32 MP;24 MP;16 MP;12 MP;8 MP;6 MP;5 MP;4 MP;3 MP;1080p;720p;960p;D1;CIF;QCIF
• Video Compression : Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
• Audio Compression : G.711a; G.711u; PCM; G726

• 2 VGA, 2 HDMI
• VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
• HDMI: 7680×4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
• Heterogeneous video source output for HDMI1 and HDMI2
• Simultaneous video source output for VGA1 and HDMI1
• Simultaneous video source output for VGA2 and HDMI2
• Multi-screen Display : Main Screen: 1/4/8/9/16/25/36 / Sub Screen: 1/4/8/9/16

• AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 5-channel 16 MP@30 fps; 6-channel 12 MP@30 fps; 10-channel 8 MP@30 fps; 13-channel 6 MP@30 fps; 16-channel 5 MP@30 fps; 20-channel 4 MP@30 fps; 32-channel 1080p@30 fps
• AI enabled: 1-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel 6 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps; 32-channel 1080p@30 fps

• Network Protocol : HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); iSCSI
• Mobile Phone Access : iOS; Android
• Browser : Chrome; IE; Safari; Edge; Firefox
• Network Mode : Multi-address; load balance; fault tolerance; link aggregation
• AI disabled: 448 Mbps incoming, 448 Mbps recording and 448 Mbps outgoing
• AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing

• ONVIF 25.06 (Profile T; Profile S; Profile G; Profile M); CGI; SDK

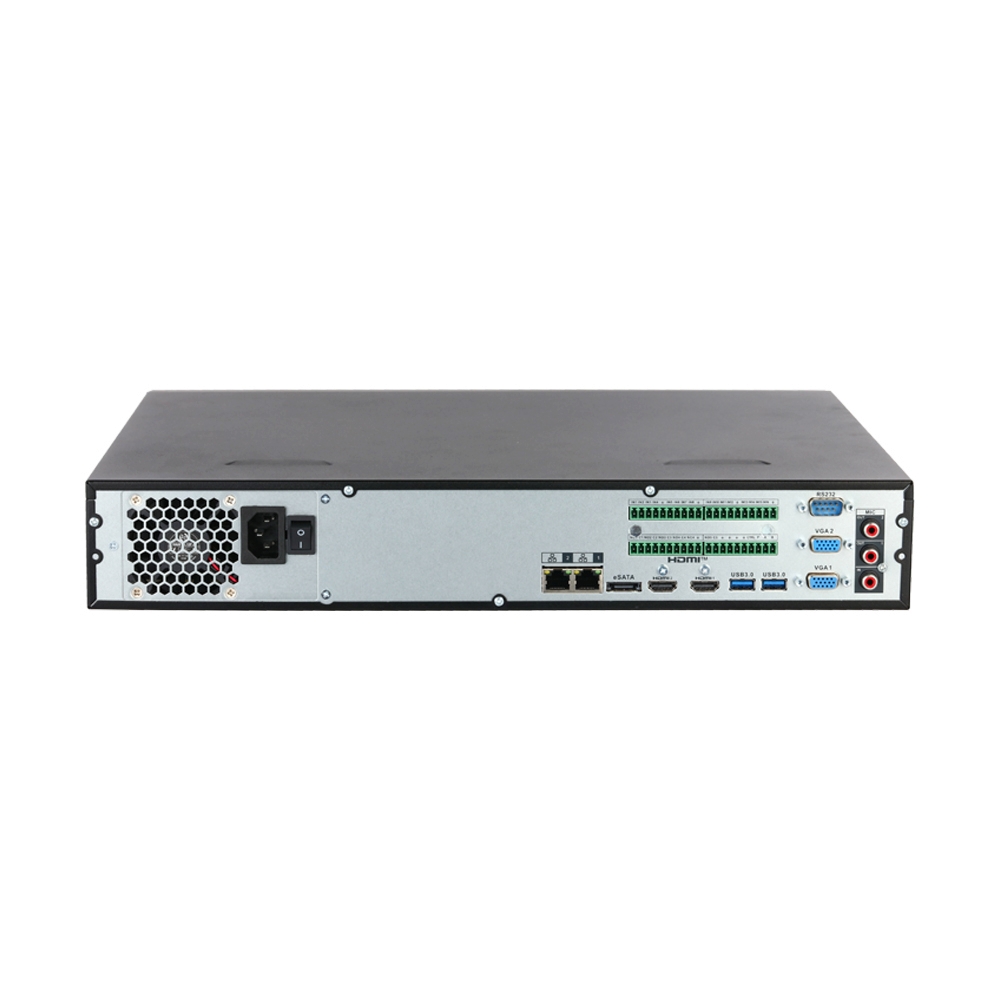

• 4x SATA port
• 1x eSATA
• 3x (1 front USB 2.0 port, 2 rear USB 3.0 ports)
• 2x HDMI
• 2x VGA
• 2x (10/100/1000 Mbps Ethernet port, RJ-45)
• 1x RS-485
• 1x RS-232
• 1x channel RCA
• 2x channel RCA
• 16x Alarm Output channels
• 6x channels (1-channel 12 V 1 A output?

• Up to 20TB. This limit varies depending on the environment temperature.

• 100–240 VAC, 50/60 Hz

• Total output of NVR is ≤ 13 W (without HDD)

NONE

• AI by Recorder : Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; AcuPick
• AI by Camera : Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map; PPE detection; smart object detection; smart sound detection; AcuPick
• AcuPick Performance of AI by Recorder (Number of Channels) : 4 channels
• AcuPick Performance of AI by Camera (Number of Channels) : All channels (32 targets/s)

• Perimeter Performance AI by Recorder (Number of Channels) : 8 channels, 10 IVS rules for each channel
• Perimeter Performance of AI by Camera (Number of Channels) : All channels (32 targets/s)

• Face Attributes : Gender; age group; glasses; expressions; face mask; beard
• Face Detection Performance of AI by Recorder (Number of Channels) : 4 channels (up to 12 face images/s each channel)
• Face Detection Performance of AI by Camera (Number of Channels) : All channels (32 targets/s)

• Face Database Capacity : Up to 20 face databases with 30,000 images, with a total capacity of 3.75 GB. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
Face Recognition Performance of AI by Recorder (Number of Channels)
• 1. 24-channel FD (by camera) + FR (by recorder), image stream: 24 face images/s
• 2. 4-channe FD (by recorder) + FR (by recorder), video stream: 24 face images/s
• Face Recognition Performance of AI by Camera (Number of Channels) : All channels (32 targets/s)

• Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
• Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Operating Humidity : 10%–93% (RH), non-condensing
