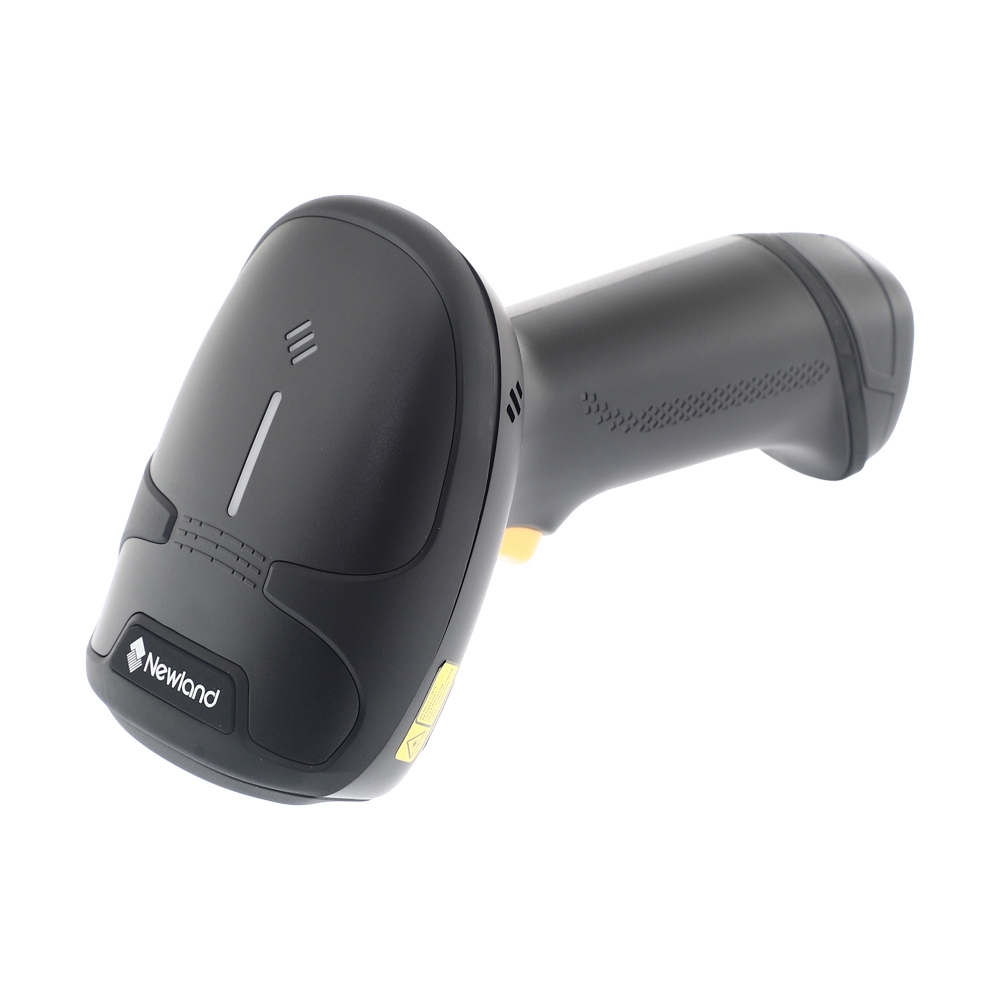

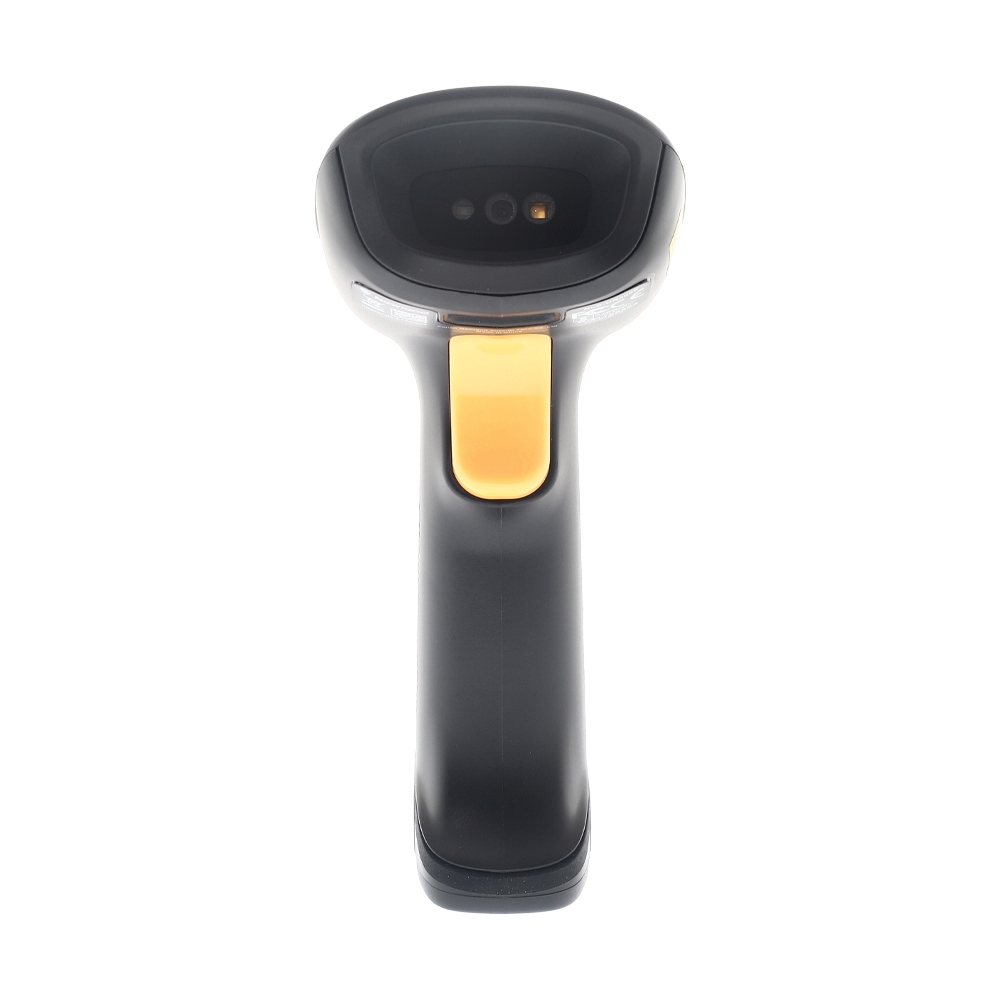

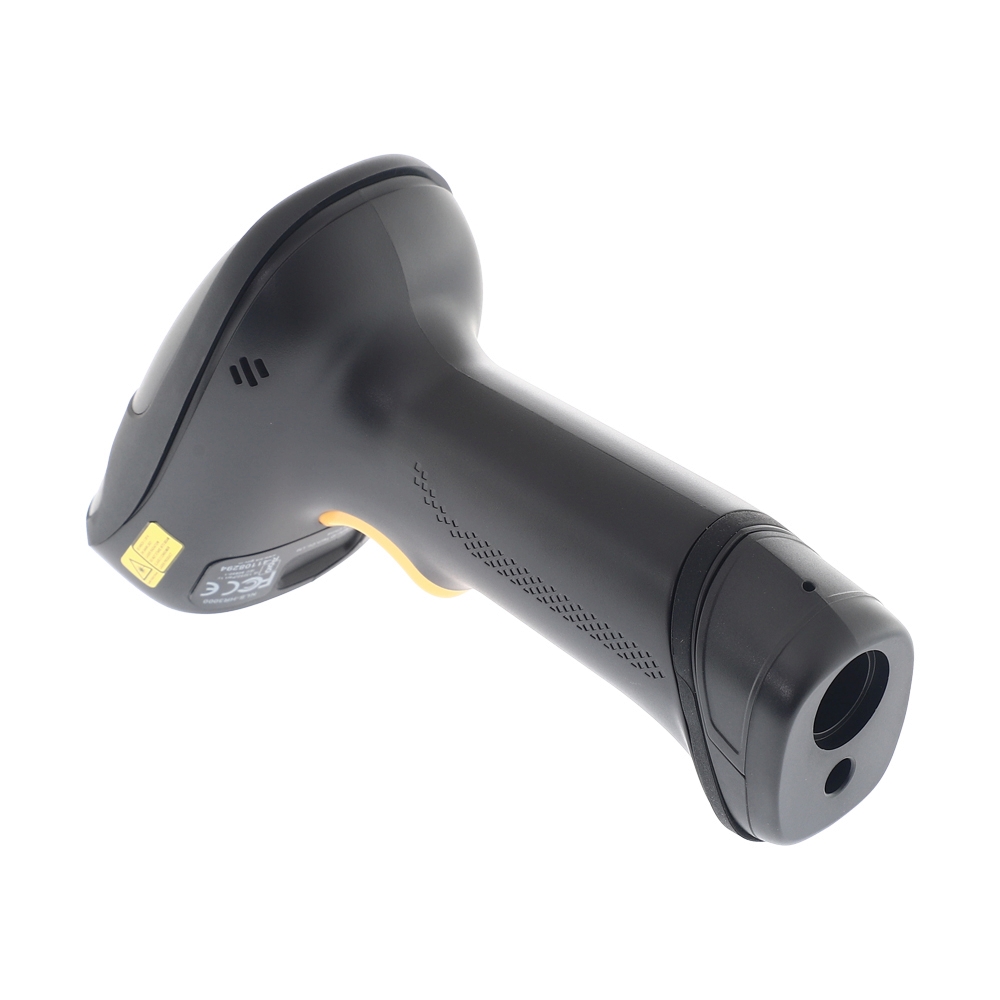

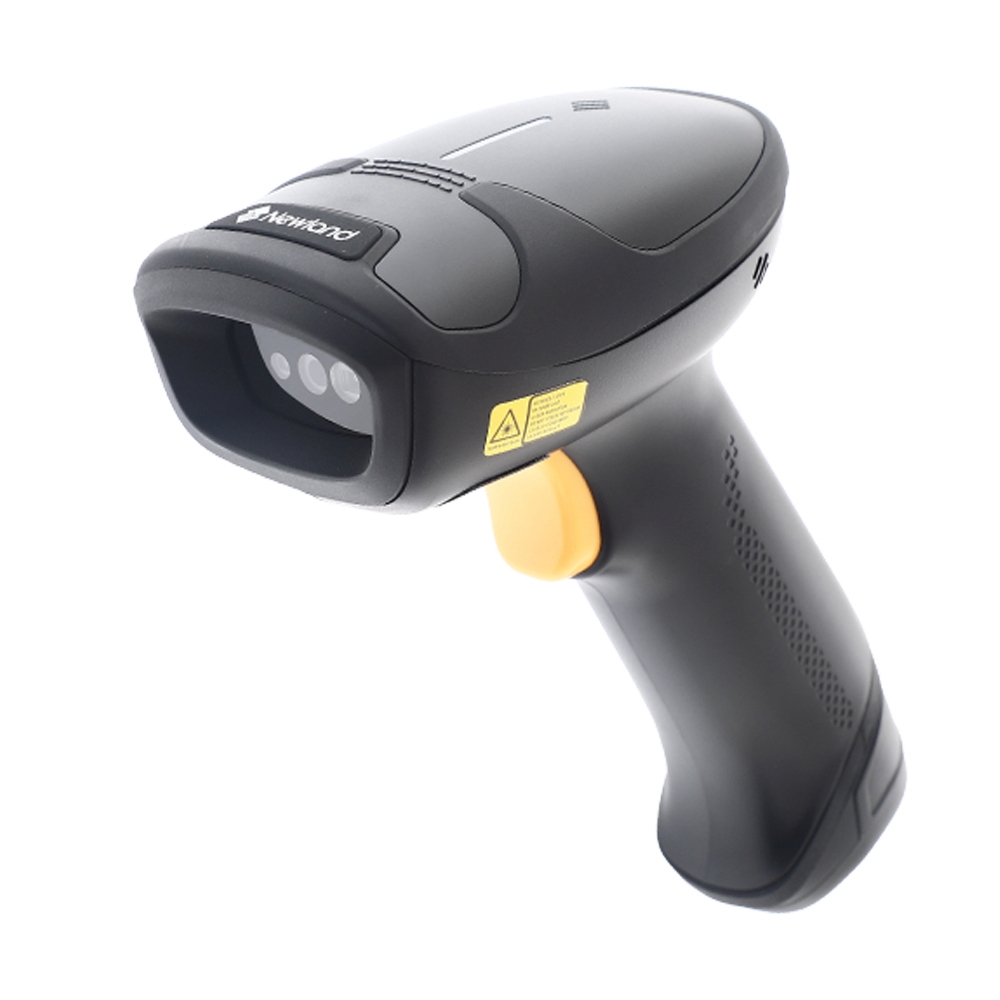

Barcode Scanner NEWLAND NLS-HR3000-USG
- Support Barcode Type : 1D, 2D
- Interface : USB
- Scan Rate : 60 fps
- Sensor Resolution : 1280 x 800 CMOS, ≥3mil
- Trigger Mode : Handheld, Continuous, Auto-Induction
- High-performance versatile decoding capability
- The scanner allows customizing scanned data with ease and provides supporting software to address diverse application needs.
- Supports Digimarc digital watermark technology, enabling faster, more seamless checkouts and enhanced scanning efficiency.
- Superior Scanning Range HR3000 offers excellent depth of field, delivering a flexible scanning experience across a wide range of applications
- IP52-rated seal and 1.5-meter drop resistance, the HR3000 is built to withstand demanding operational environments.
ข้อมูลผลิตภัณฑ์
NLS-HR3000 -USG
1D, 2D, Postal, OCR
USB
Illumination : White LED
Aiming : Laser
1280 x 800 (megapixel) CMOS
≥3mil
60 fps
Pitch: ±60°, Skew: ±60°, Roll: 360°
Horizontal 48°, Vertical 30°
EAN-13: 35mm-500mm (13mil)
Code 39: 40mm-290mm (5mil)
PDF 417: 40mm-200mm (6.7mil)
Data Matrix: 35mm-220mm (10mil)
QR Code : 15mm-200mm (10mil)
15%
1D : Code 11, Code 128, Code39, GS1-128(UCC/ENA-128), AIM 128, ISBT 128,Codabar, Code 93,
UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix
2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5,China Post 25, MSI-Plessey, Plessey,
GS1Databar(RSS), Code 49, Code 16K
2D : PDF417, QR Code, Micro QR, Data Matrix, Aztec, Maxi Code, Chinese Sensible Code, GM Code,
Micro PDF417, Code One.
OCR : Passport OCR, Chinese ID Card, China Travel Permit OCR
Postal : USPS Postnet, USPS Intelligent Mail, Royal Mail, USPS Planet, KIX Post, Australian Postal,Japan post.
Handheld, Continuous, Auto-Induction
Beep, LED, Vibration
Operating Voltage : 5VDC±5%
Rated Power Consumption : 1175mW (typical)
Current@5VDC : Operating:235mA (typical), 260mA (max.), Idle:100mA
Operating Temperature : -20°C to 60°C (-4°F to 140°F)
Storage Temperature : -40°C to 70°C (-40°F to 158°F)
Humidity : 5%~95% (non-condensing)
ESD : ±15 KV (air discharge); ±8 KV (contact discharge)
Drop : 1.5m
Sealing : IP52
High-performance versatile decoding capability
Powerful Data Editing Capability
Support for Digimarc
Superior Scanning Range
Durable Construction
1 x Barcode Scanner

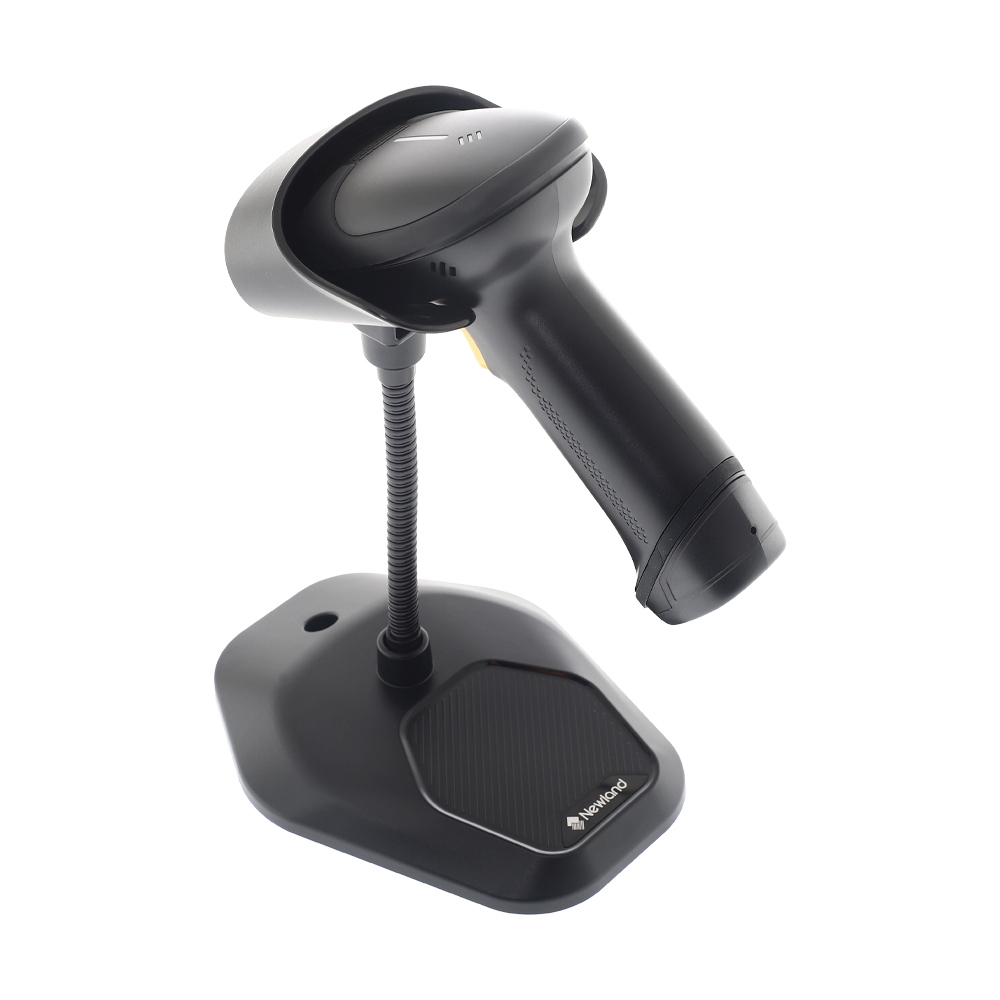

1 x Stand

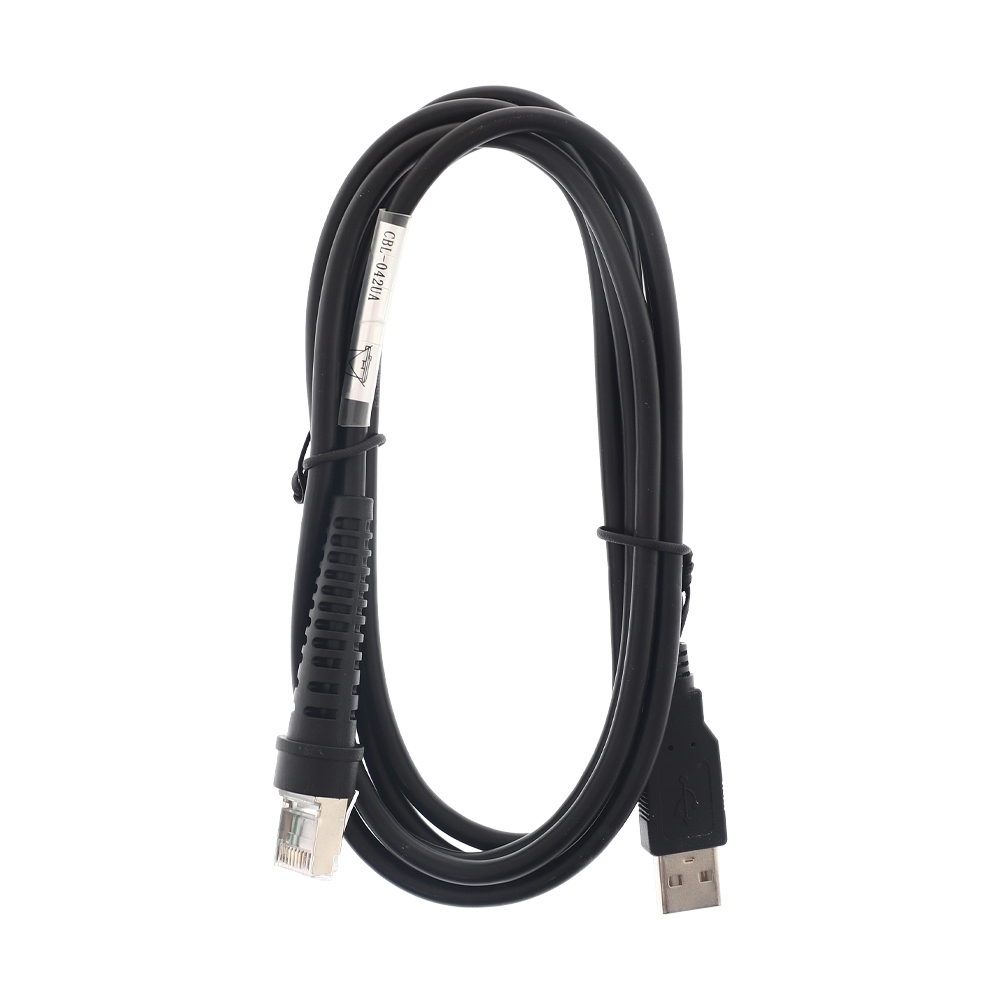

1 x USB Cable (2m)
1 x Quick Start
