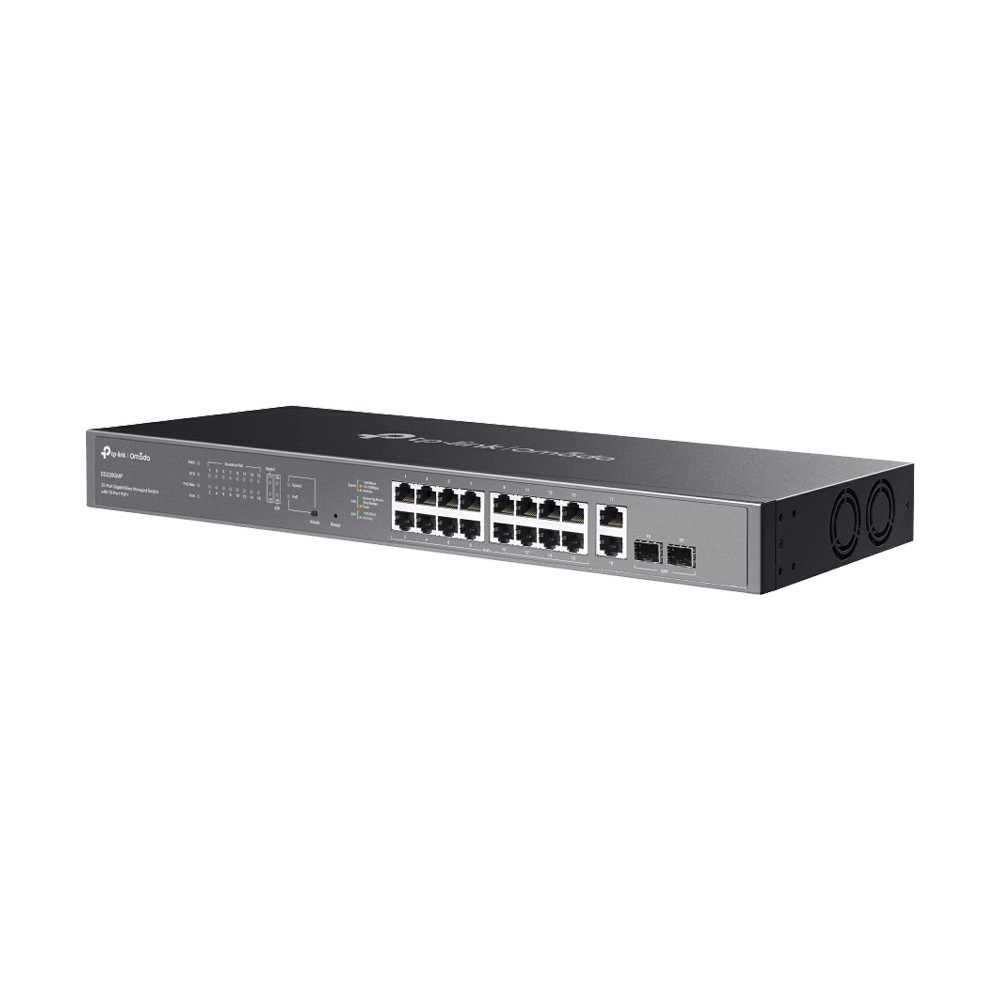

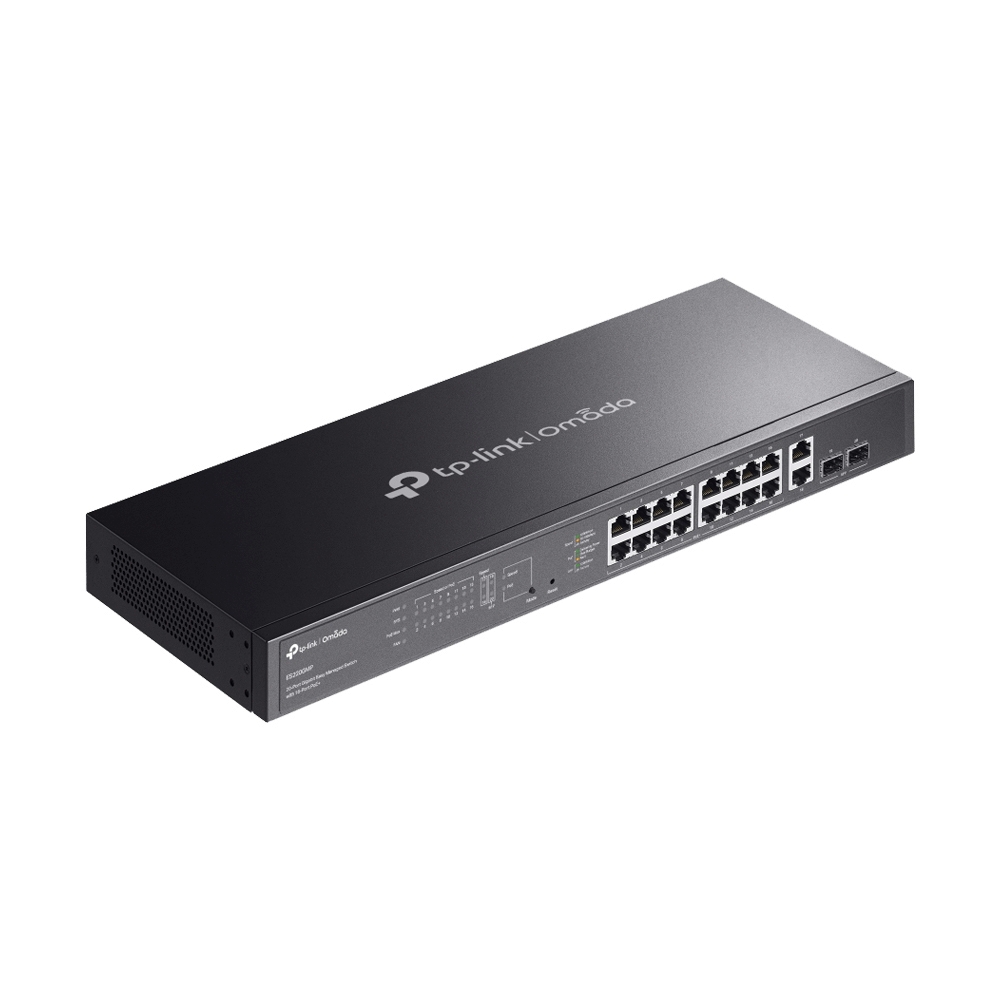

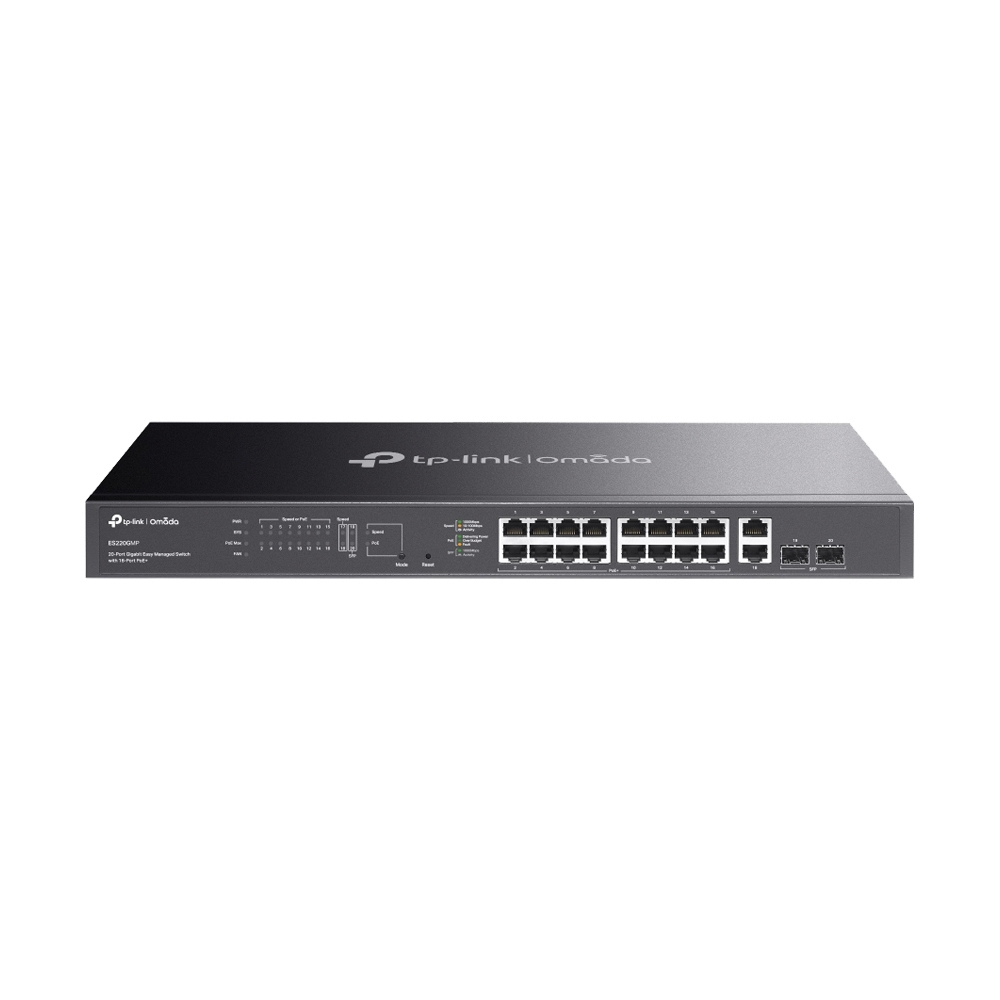

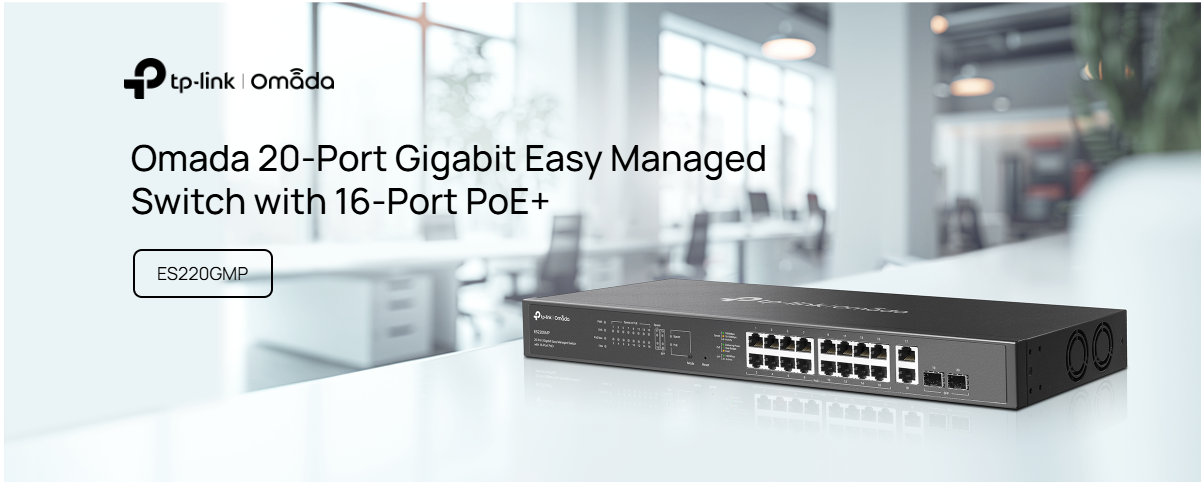

Gigabit Switching Hub TP-LINK TL-ES220GMP (17" 16 PoE + 2 RJ45 + 2 SFP)

TL-ES220GMP

• 16× 10/100/1000 Mbps PoE+ (Power Budget 250W)
• 2× 10/100/1000 Mbps RJ45 Port
• 2× Gigabit SFP Slot

NONE

• IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at, 802.1p, 802.1Q, 802.1ab

• 40Gbps

• Store-And-Forward

• 8K

• 29.76 Mpps

• 15 KB

• 4 Mbit

N/A

N/A

N/A

• YES

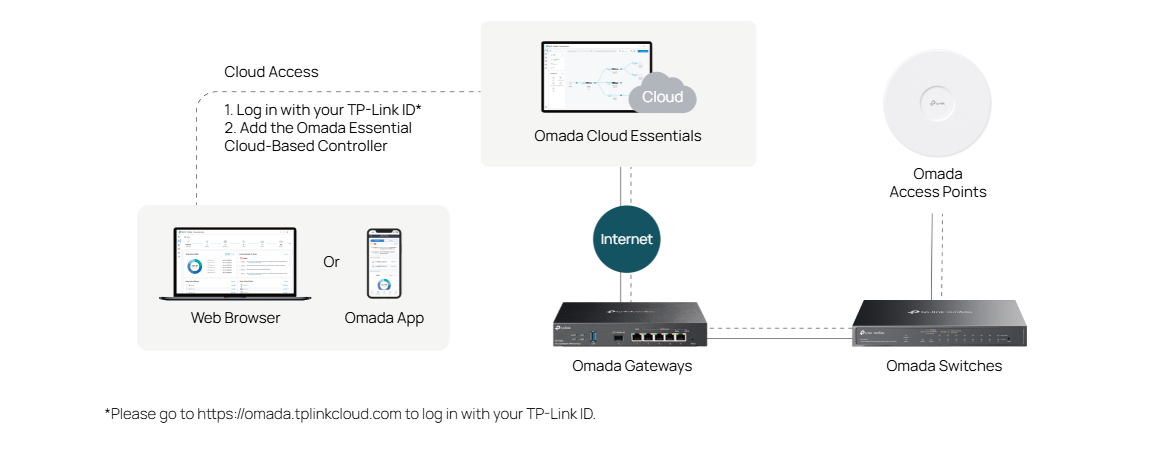

• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Unified Configuration

• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID

N/A

NONE

• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control : 802.3x Flow Control
• Mirroring : Port Mirroring , One-to-One, Many-to-One, Ingress/Egress/Both
• Port Statistics : Port Mirror Status, Traffic Statistics
• 802.1ab LLDP
• IGMP Snooping : IGMP v1/v2/v3 Snooping, Fast Leave

N/A

• 2

• Metal

• Standard: 802.3af PoE and 802.3at PoE+ compliant
• PoE Ports: 16 ports
• PoE Budget: 250W available for all PoE+ ports, 30W max per port
• Fast PoE & Perpetual PoE
• PoE Auto Recovery

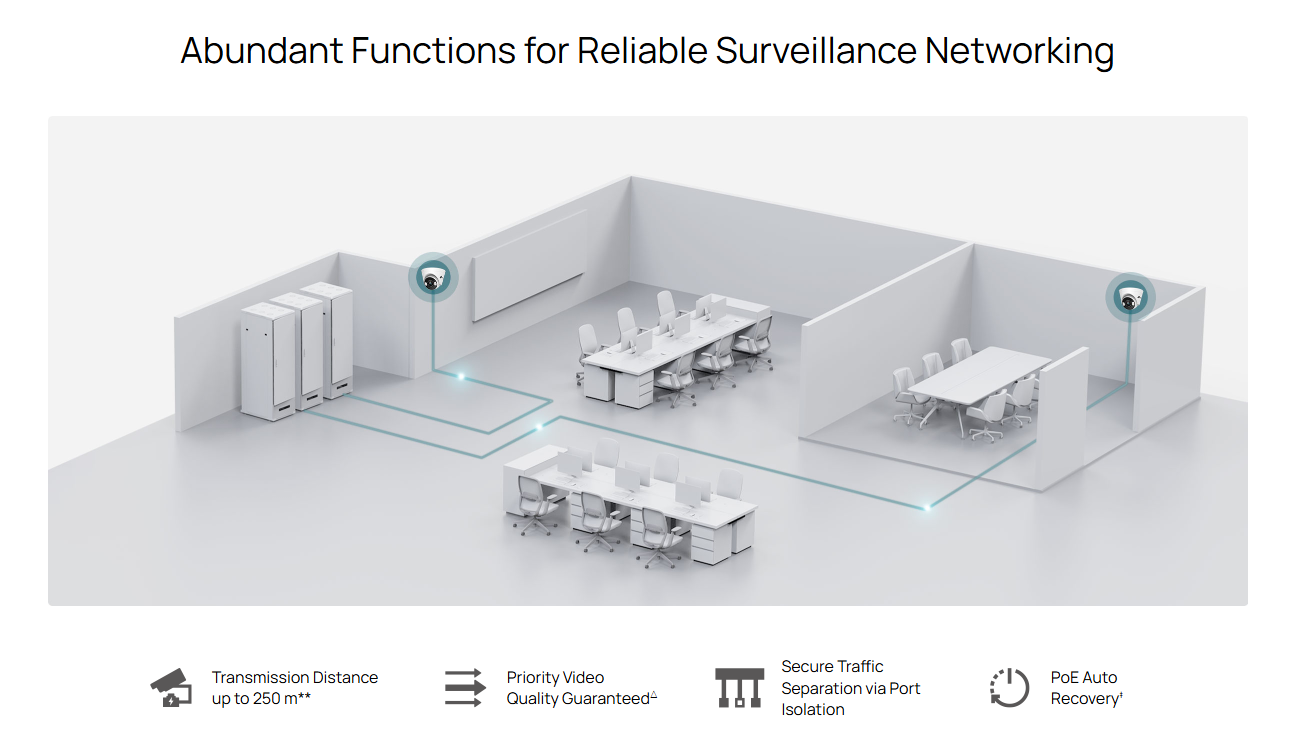

• Up to 250m PoE transmission distance

• 100–240V AC, 50/60Hz

N/A

• Operating Temperature: -5°C~50°C (23°F~122°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

FCC, CE, RoHS

• ES220GMP
• Power Cord
• Mounting Brackets
• Rubber Feet
• Screws
• Installation Guide
