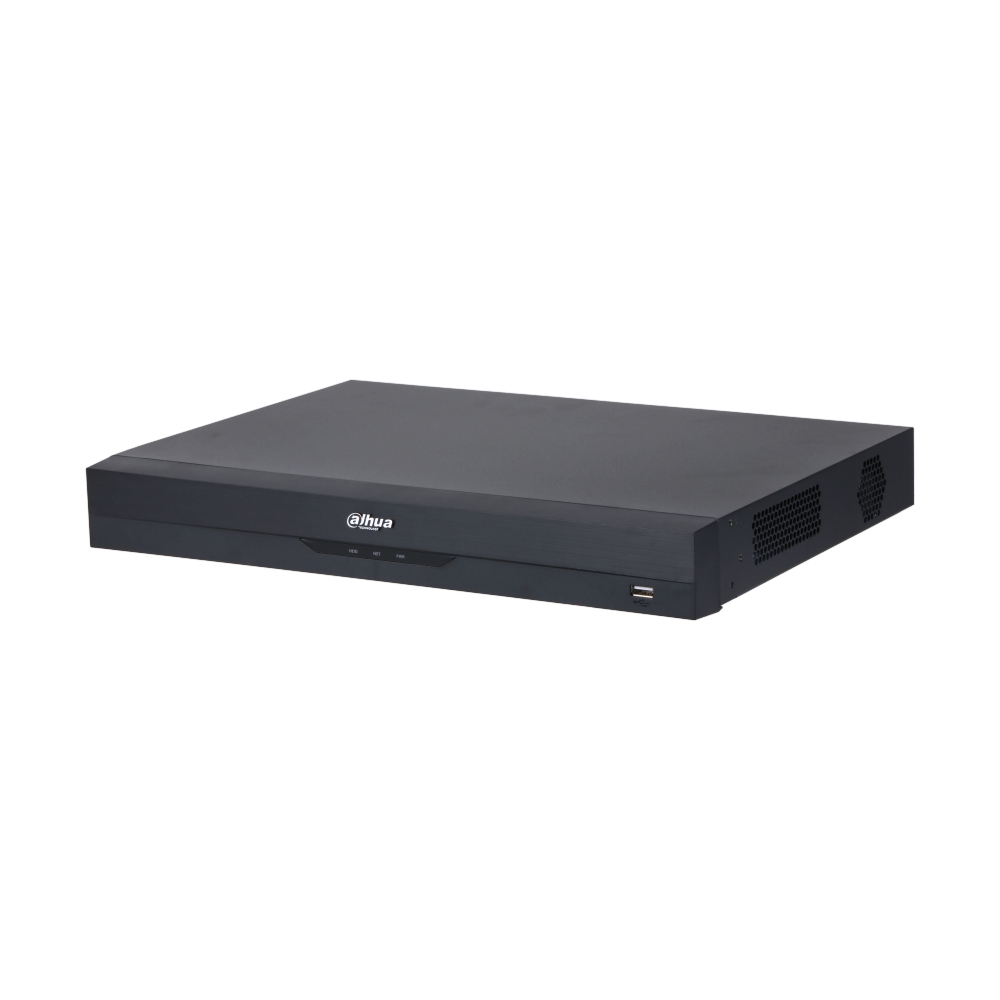

เครื่องบันทึก NVR 16CH. DAHUA NVR5216-EI2

NVR5216-EI2

• Video Input : 16CH
• Video compression : Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
• Resolution : 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, 960p, D1, CIF, QCIF
• Audio Compression :  G.711a; G.711u; PCM; G726
• Audio Input : 1-channel RCA
• Alarm  Input : 4 channels

• VGA : 1920 × 1080, 1280 × 1024, 1280 × 720
• HDMI : 7680×4320, 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
• Audio Output : 1-channel RCA
• Alarm Output : 2 channels

• AI disabled: 2-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 5-channel 16 MP@30 fps; 6-channel 12 MP@30 fps; 10-channel 8 MP@30 fps; 13-channel 6 MP@30 fps; 16-channel 5 MP@30 fps
• AI enabled: 1-channel 32 MP@25 fps; 2-channel 24 MP@25 fps; 4-channel 16 MP@30 fps; 5-channel 12 MP@30 fps; 8-channel 8 MP@30 fps; 10-channel 6 MP@30 fps; 12-channel 5 MP@30 fps; 16-channel 4 MP@30 fps

• Network Protocol : HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; FTP; SFTP; DHCP; DNS; SMTP; UPnP; DDNS; SNMP; Alarm Server; IP Search (Supports IP camera, DVR, NVS, etc.); Multicast; P2P; Auto Registration; iSCSI
• Mobile Phone Access : iOS; Android
• Interoperability : ONVIF 24.12(Profile T; Profile S; Profile G; Profile M); CGI; SDK
• Browser : Chrome; IE; Safari; Edge; Firefox

• ONVIF 24.12(Profile T; Profile S; Profile G; Profile M); CGI; SDK

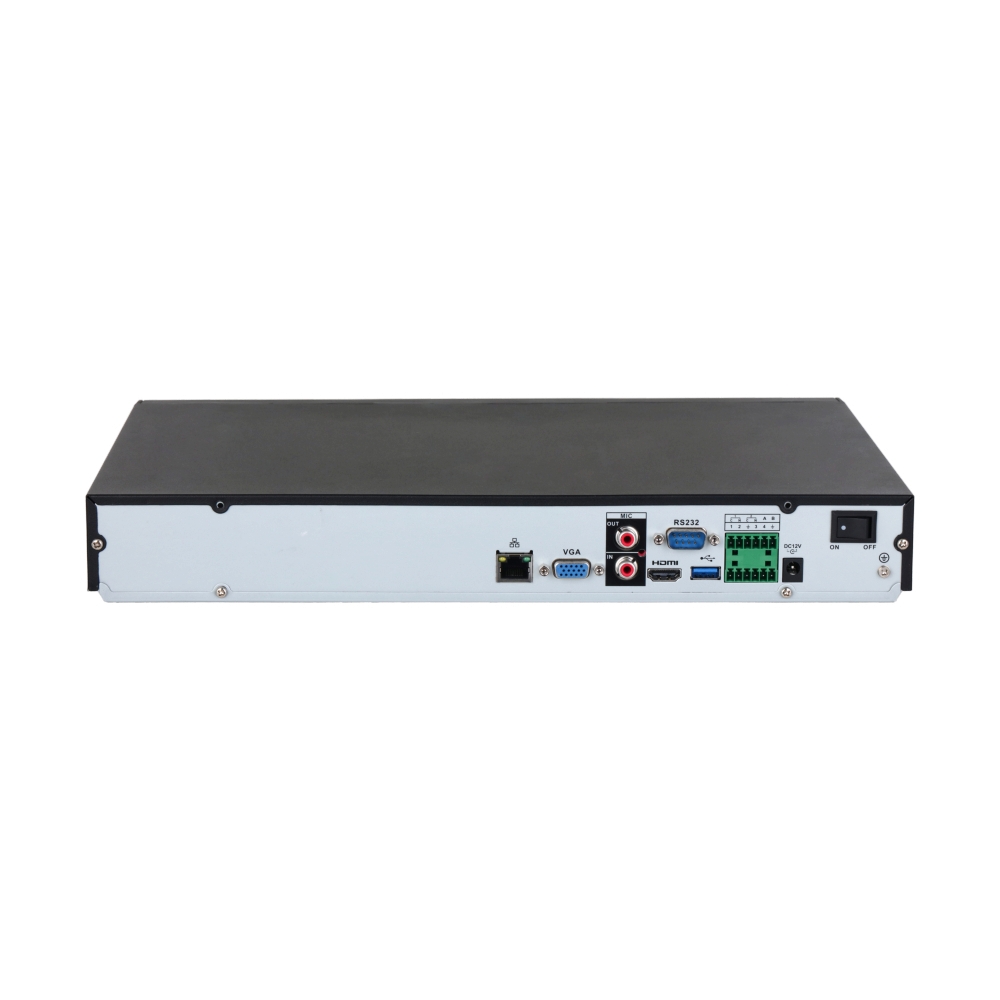

• 2x SATA port
• 2x (1 front USB 2.0 port, 1 rear USB 3.0 port)
• 1x HDMI
• 1x VGA
• 1x (10/100/1000 Mbps Ethernet port, RJ-45)
• 1x RS-232
• 1x RS-485

• up to 20TB. This limit varies depending on the environment temperature.

• 12 VDC, 4 A

• Total output of NVR is ≤ 10 W (without HDD)

NONE

• AI by Recorder : Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD Plus; AcuPick
• AI by Camera : Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map; PPE detection; smart object detection; smart sound detection; AcuPick
• AcuPick Performance of AI by Recorder (Number of Channels) : 4 channels
• AcuPick Performance of AI by Camera (Number of Channels) : All channels (32 targets/s)

• Perimeter Performance AI by Recorder (Number of Channels) : 8 channels, 10 IVS rules for each channel
• Perimeter Performance of AI by Camera (Number of Channels) : All channels (32 targets/s)

• Face Attributes : Gender; age group; glasses; expressions; face mask; beard
• Face Detection Performance of AI by Recorder (Number of Channels) : 4 channels (up to 12 face images/s each channel)
• Face Detection Performance of AI by Camera (Number of Channels) : All channels (32 targets/s)

• Face Database Capacity : Up to 20 face databases with 30,000 images, with a total capacity of 3.75 GB. Name, gender, birthday, address, credential type, credential No., countries & regions and state can be added to each face image.
• Face Recognition Performance of AI by Recorder (Number of Channels) : 1. 16-channel FD (by camera) + FR (by recorder), image stream: 24 face images/s
2. 4-channel FD (by recorder) + FR (by recorder), video stream: 24 face images/s
• Face Recognition Performance of AI by Camera (Number of Channels) : All channels (32 targets/s)

• Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
• Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Operating Humidity : 10%–93% (RH), non-condensing

N/A
