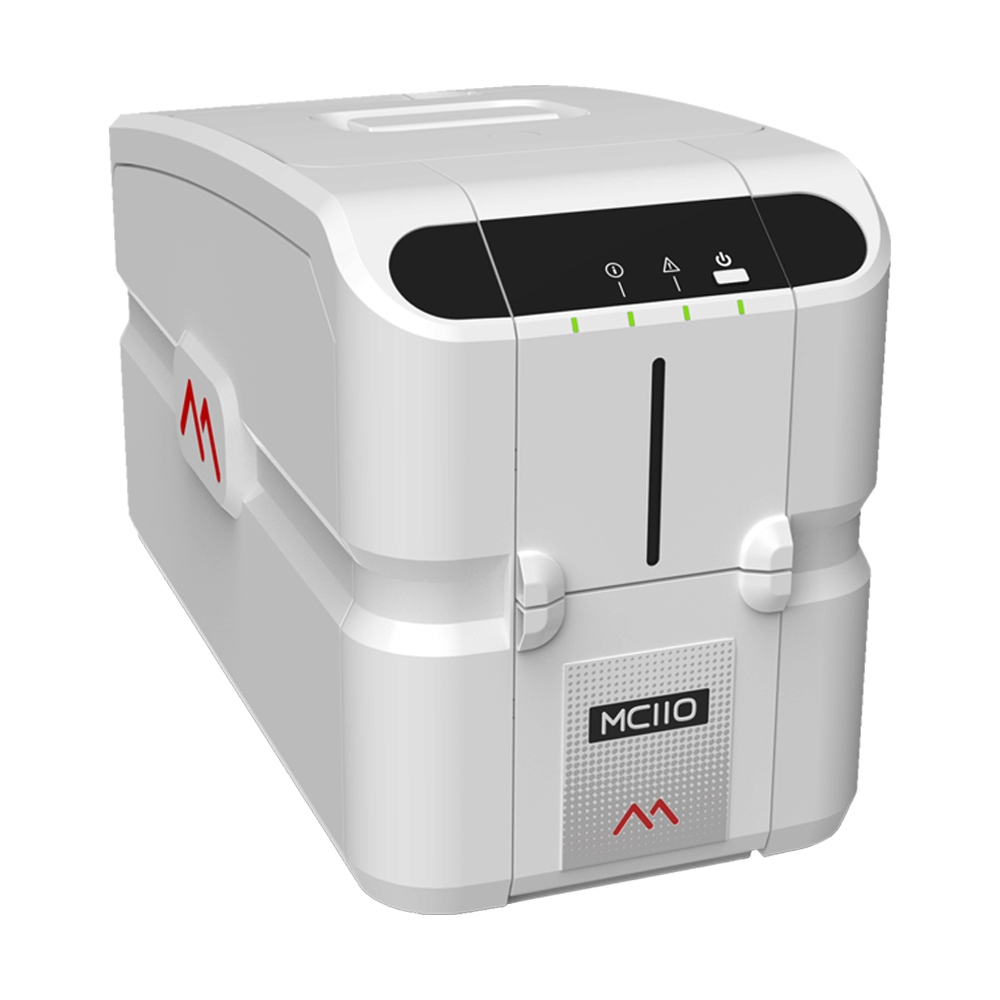

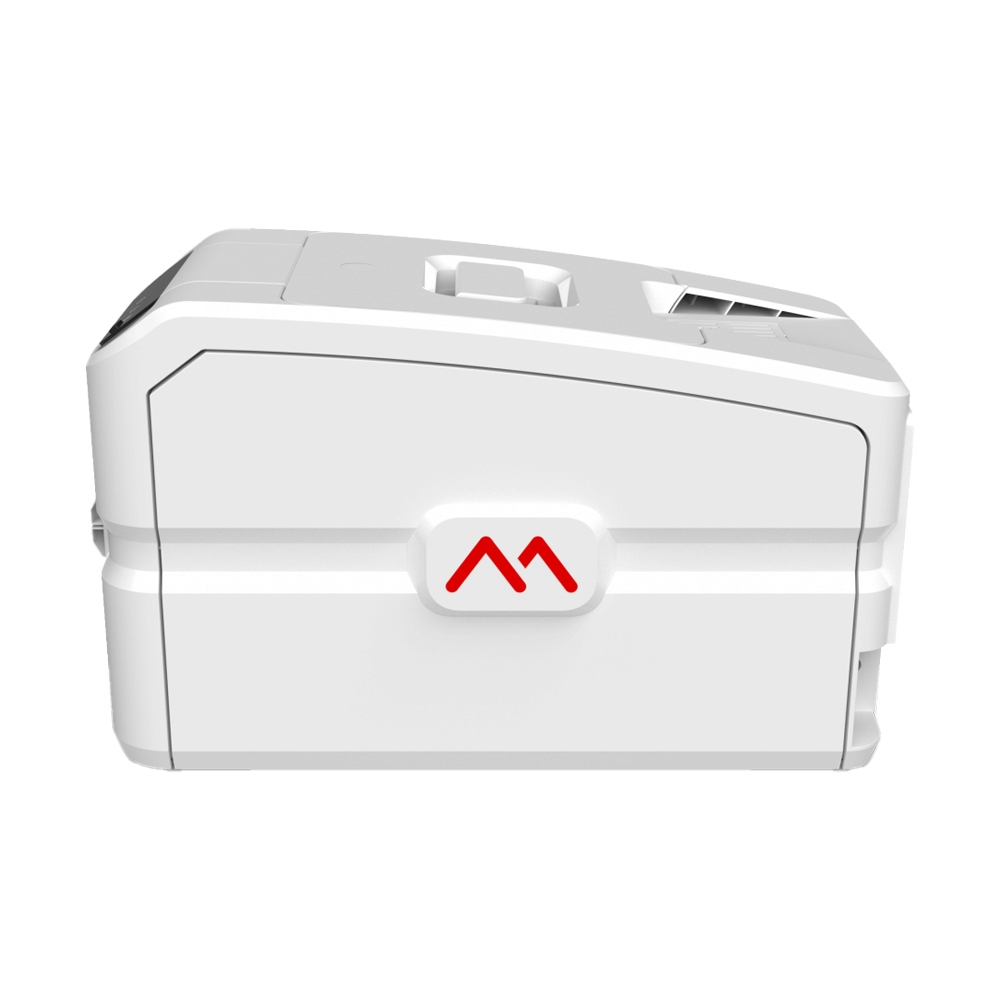

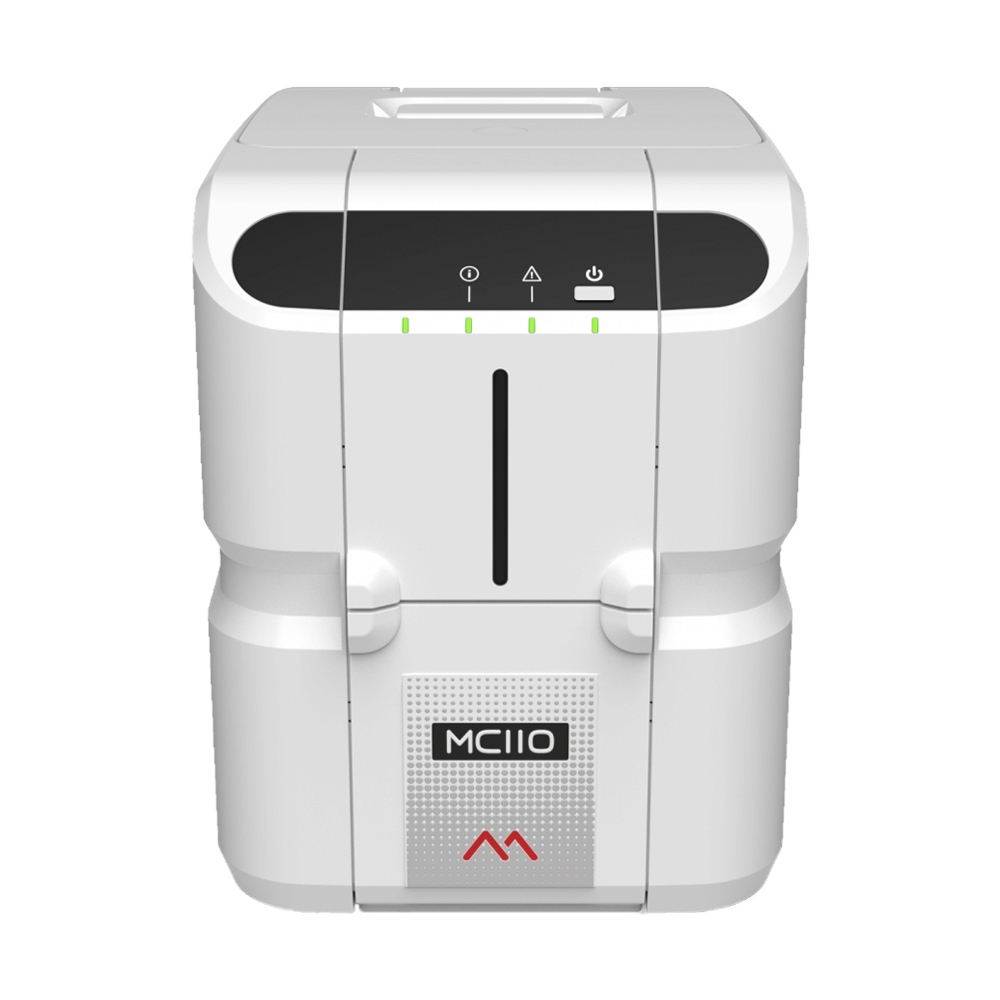

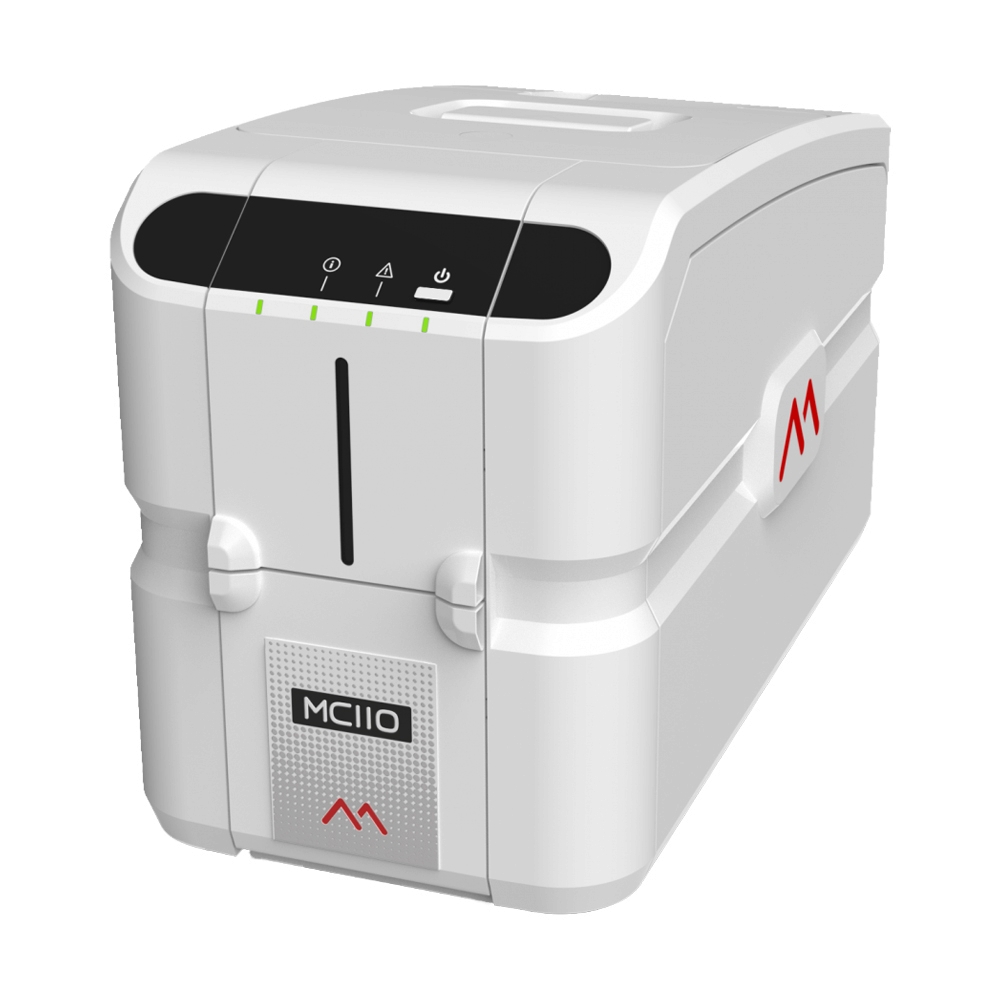

เครื่องพิมพ์บัตรพลาสติก MATICA MC-110
- High quality 300dpi printing
- Up to 150 color cards per hour
- Single to dual-sided upgrade
- Robust, reliable build quality
- Smart card encoding option
ข้อมูลผลิตภัณฑ์
MC-110
Direct-to-card
Dye-sublimation
150 cph (YMCKO single-side)
700 cph (monochrome printing)
300 x 300 dpi (11.8 dots/mm)
128 MB
USB 2.0
XPS Windows driver (not EDIsecure®) compatible with Windows® (32/64 bits)
XP SP3, Vista, W7, W8, W10, W22 as a standard driver supplied with the printer
EDIsecure® driver to facilitate integration and service bureau
MacOS : from Mavericks 10.9 to Ventura 13.1
SDK Available for system integrators upon request
100 cards (0.76 mm / 30 mil thickness)
30 cards (front)
Card format : ISO CR80, ISO 7810
53.98 mm x 85.60 mm / 3.370" x 2.125"
Material : PVC, PVC Composite, Rewritable cards. Polycarbonate, PET, ABS (varnished) – crosscheck with ribbons portfolio
Card thickness : 0,25 – 1,25 mm / 10 – 50 mils
ChromXpertTM ribbon program
YMCKO (250 prints) : PR20305301
YMCKO-K (200 prints) : PR20319302
ymc-KO (400 prints, half panel) : PR20319303
KO (600 prints) : PR20305304
Monochrome K (up to 2000 prints) : PR20314305
Monochrome: White, Red, Green, Blue (up to 1000 prints) : Also available
Cleaning kit : PR20309610
Auto-switching external power supply unit with interchangeable power cords
Input : 220-240 volts AC, 50-60 Hz, 1.6 A
Output : 24 volts DC, 3.0 A
Temperature : Min/max operating 15° / 40 °C (59° / 104 °F)
Humidity : 20% to 65% without condensation
Encoding options
Smart card contact chip
ISO 7816-1, 2 (excluding appendix B), 3, 4 PCSC and EMV compliant
Smart card contactless
ISO 14443A/B MIFARE®, MIFARE DESFire® iCLASS® ICODE, ISO 14443 A&B, ISO 15693 and ISO 7816
Power supply
Power cord
USB cable
Cleaning card
Cleaning swab
Quick start guide
