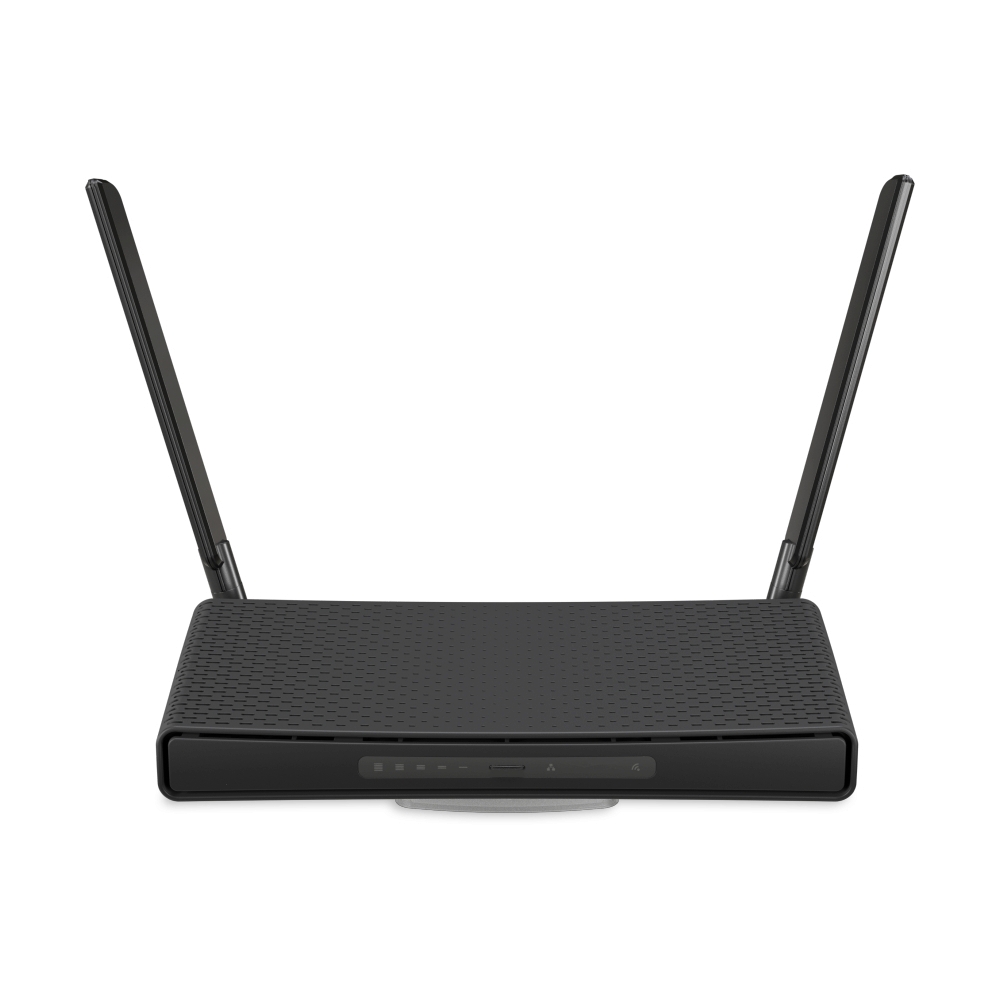

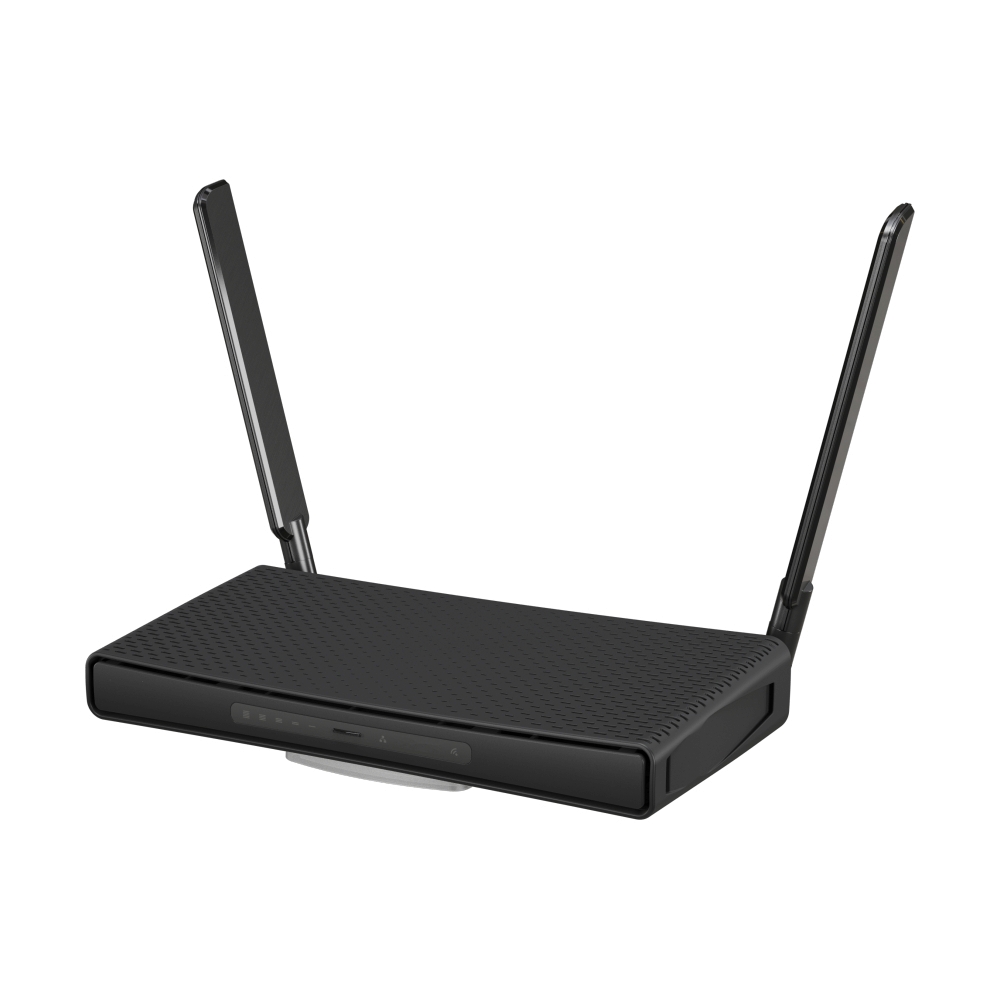

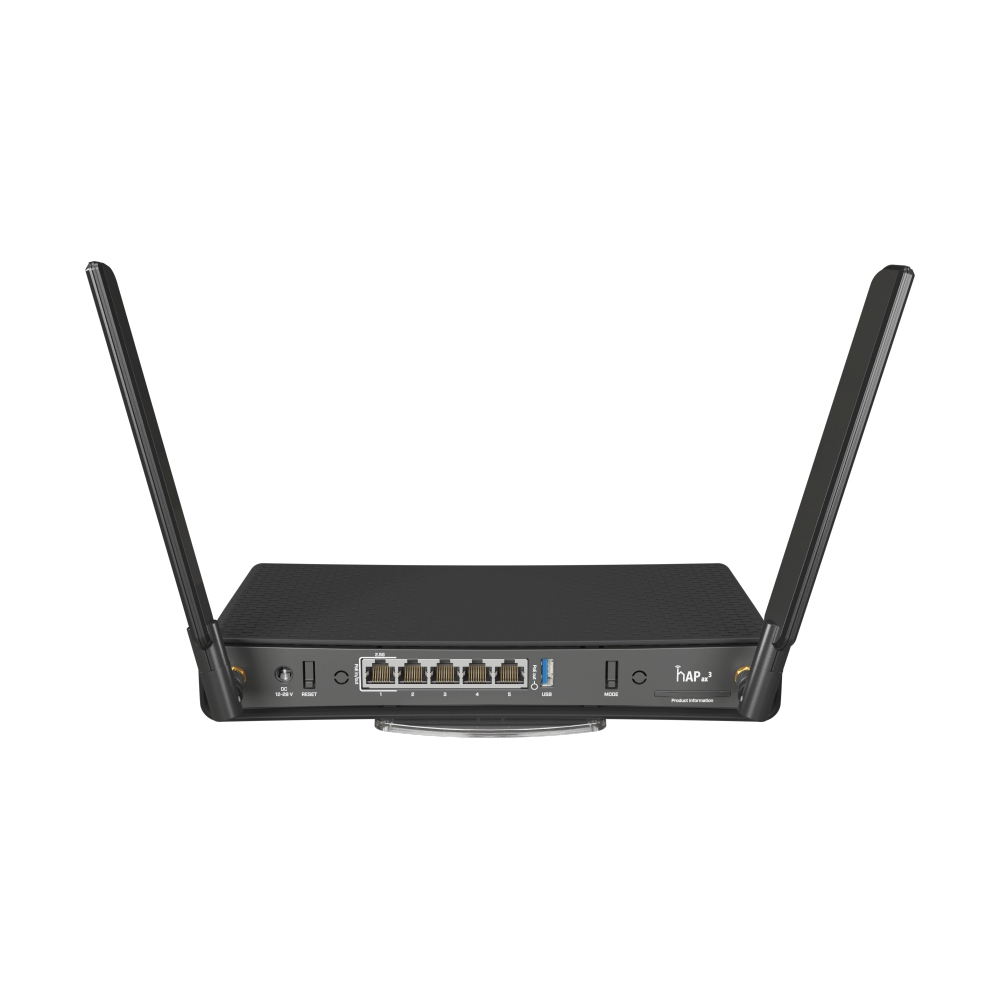

Router Board MIKROTIK (C53UiG+5HPaxD2HPaxD)

C53UiG+5HPaxD2HPaxD

• 802.11a/n/ac/ax

• Antenna gain dBi for 2.4 GHz : 3.3
• Antenna gain dBi for 5 GHz : 5.5

N/A

• 2.4 GHz
• 5 GHz

N/A

• WPA3 advanced encryption

• Architecture : ARM 64bit
• CPU : IPQ-6010
• CPU nominal frequency : auto (864 - 1800) MHz
• CPU Threads count : 4
• Switch chip model : IPQ-6010

• 4

• Size of RAM : 1GB
• Storage size : 128 MB

N/A

• 4x 10/100/1000 Ethernet ports (PoE-out)
• 1x 2.5G Ethernet ports (PoE-in/out)

• 1X  USB 3.0

N/A

N/A

• Wireless 2.4 GHz Max data rate : 574 Mbit/s
• Wireless 5 GHz Max data rate : 1200 Mbit/s

N/A

• WinBox
• WebFig
• Command Line Interface
• MikroTik App

• YES

• YES

NONE

• Ethernet Ports : 1x 2.5G ethernet PoE-In/Out, 4x 1G ethernet
• Wireless Standard : 802.11ax + Wave 2
• Wireless Feature : Strong Dual-Band, Dual-Chain wireless
• USB Port : USB 3 port for storage & file sharing
• CPU : Powerful 1.8 GHz ARM CPU

N/A

N/A

• 12-28 V

• PoE in : Passive PoE
• Cooling type : Passive
• PoE in input Voltage : 18-28 V
• PoE-out ports : Ether 1
• PoE out : Passive PoE
• Low voltage PoE-Out current limit : 0.625 A
• Max total out (A) : 0.625 A
• Total output current : 0.625
• Total output power : 15

• Max power consumption : 38 W
• Max power consumption without attachments : 15 W

• -40°C to 70°C

• CE, FCC, IC, EAC, ROHS

• 24V 1.5A power adapter
• HGO indoor antenna kit
• K-47 wall mount set
• hAP case base
