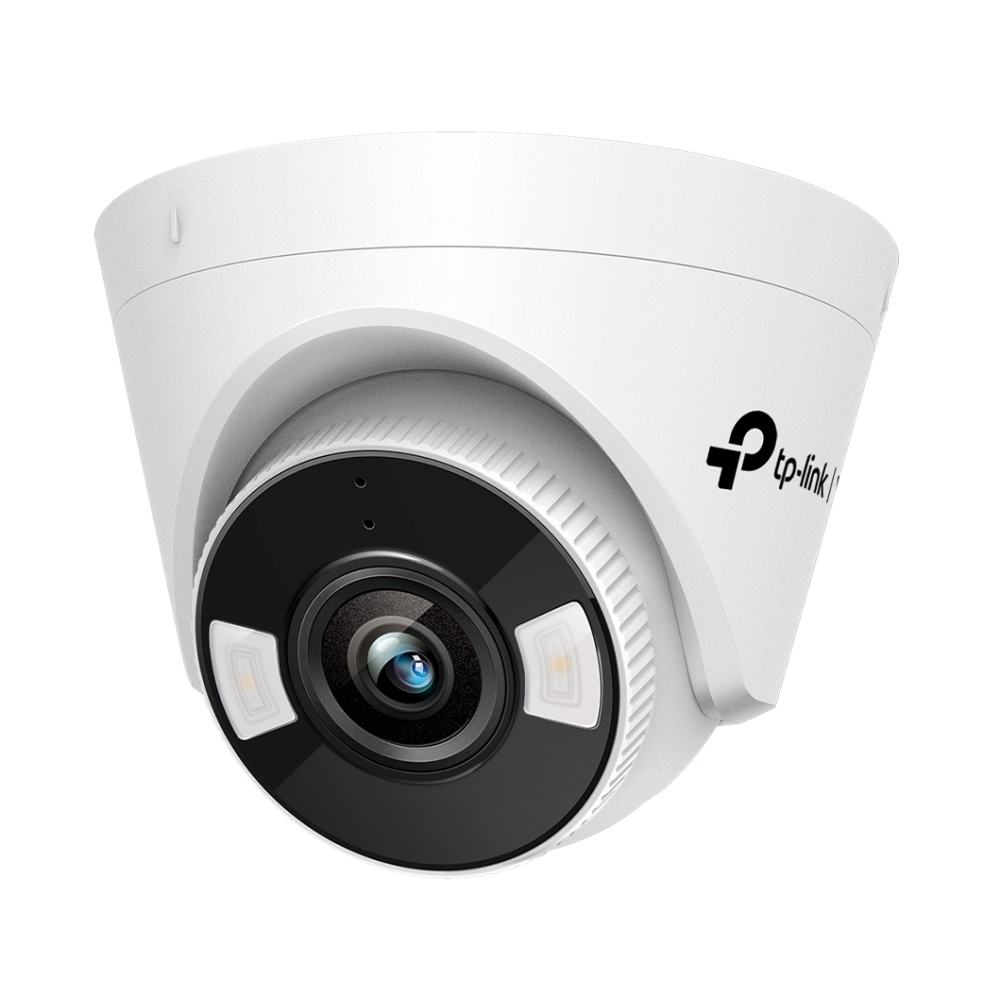

กล้องวงจรปิด 4mm IP Camera VIGI C430
- Image Sensor : 3MP , 1/2.8” Progressive Scan CMOS
- Max. Resolution : 2304 x 1296
- Lens Type : 4mm
- Video Output : Network Camera
- IR Distance : 30m
- Frame Rate : Up to 25fps
- Day/Night Mode : Full-Color
- Audio Port : built-in mic
- Casing Material : Plastic
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์
VIGI C430
• 3MP , 1/2.8” Progressive Scan CMOS
• 4mm
• M12
• 0.005 Lux; 0 Lux with IR/White Light
N/A
N/A
• Horizontal FOV: 84.4°, Vertical FOV: 44.3°, Diagonal FOV: 100.6°
(Manual)
• Pan: 0° to 360°
• Tilt: 0° to 85°
• Rotate: 0° to 360°
• 1/3 to 1/10000 s
N/A
• 30m
• Full-Color
N/A
• YES
• 2304 x 1296
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
Main Stream
• Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream
• Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• Resolution: 704x576, 640x480, 352x288, 320x240
N/A
NONE
• 1x RJ45 10/100M Self-Adaptive Ethernet Port, PoE
N/A
N/A
• YES
• TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP, DNS, RTSP
• NTP
• UPnP
• SSL/TLS
• FTP/SFTP
• RTP
• IPv4
• IPv6
• ARP
• Human & Vehicle Classification
• Smart Detection
• Smart Video Coding
• 12V DC ± 5%
• PoE: 802.3af/at, class 0. Max. 6 W
• Max. 5.5 W, 5.5mm Coaxial Power Plug
• Operating Temperature : -30 °C to 60 °C (-22 °F to 140 °F)
• Storage Temperature : -40 °C to 60 °C (-40 °F to 140 °F)
• Operating Humidity : 95% or Less (Non-Condensing)
• Storage Humidity : 95% or Less (Non-Condensing)
NONE
• VIGI Network Camera
• Quick Start Guide
• Mounting Accessories
