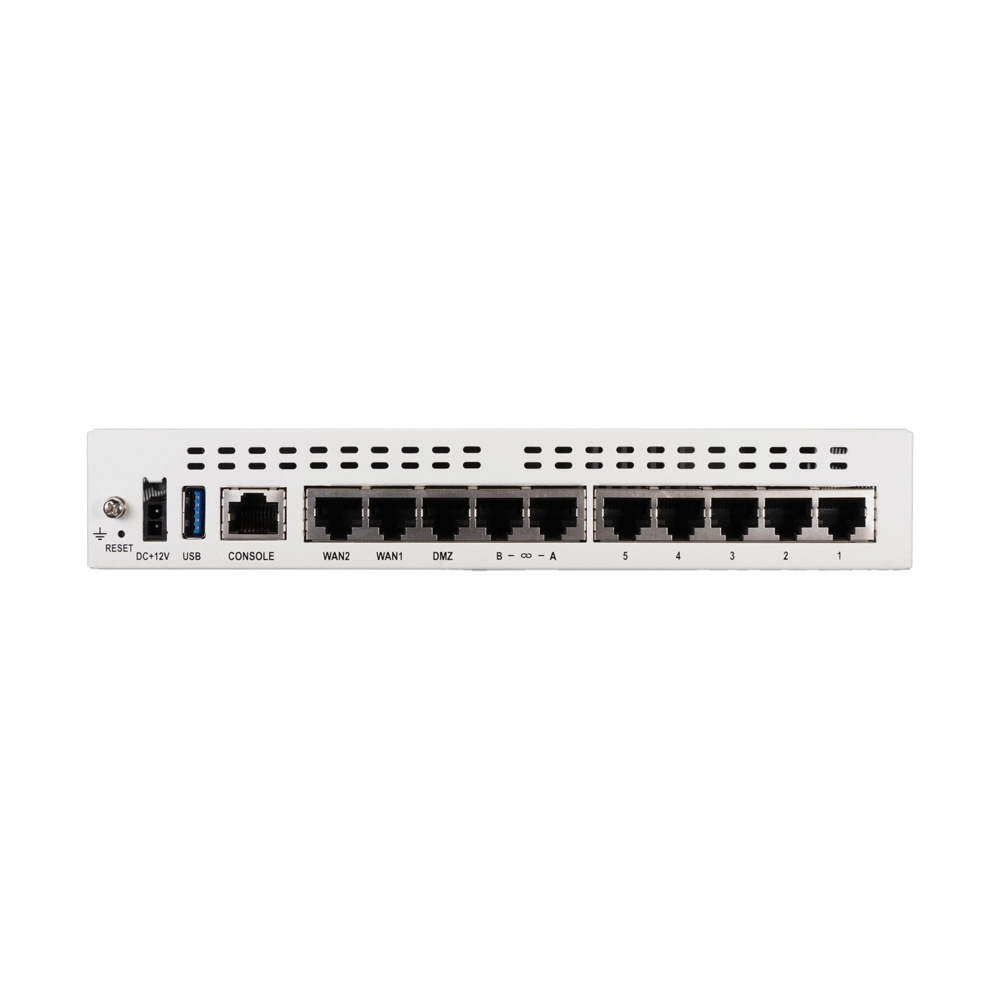

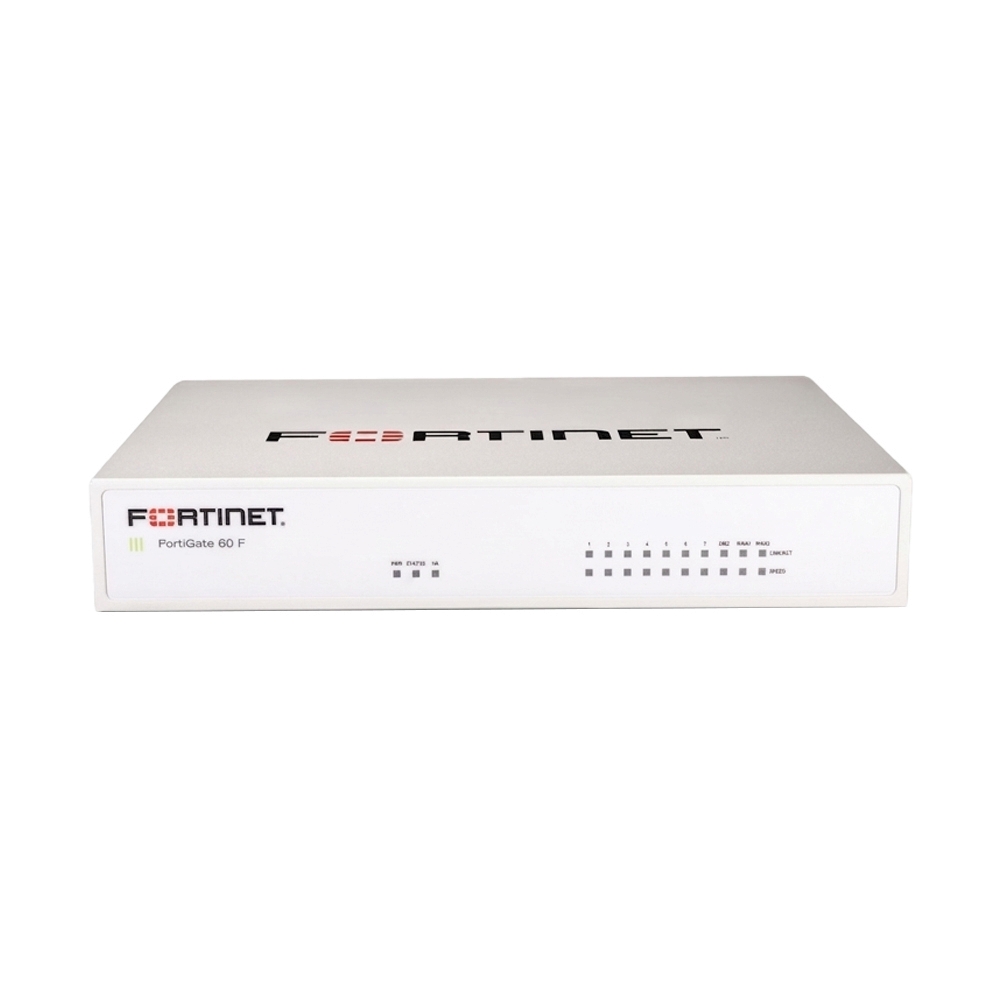

Firewall FortiGate 60F (FG-60F-BDL-950-12)

60F (FG-60F-BDL-950-12)

N/A

NONE

• YES

• 1x Console Port
• 2x GE RJ45 WAN Ports
• 1x GE RJ45 DMZ Port
• 2x GE RJ45 FortiLink Ports
• 5x GE RJ45 Internal Ports

• 1x USB Port

• IPS Throughput : 1.4 Gbps
• NGFW Throughput : 1 Gbps
• Threat Protection Throughput : 700 Mbps

• IPsec VPN Throughput (512 byte) : 6.5 Gbps
• Gateway-to-Gateway IPsec VPN Tunnels : 200
• Client-to-Gateway IPsec VPN Tunnels : 500
• SSL-VPN Throughput : 900 Mbps
• Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 200
• SSL Inspection Throughput (IPS, avg. HTTPS) : 630 Mbps
• SSL Inspection CPS (IPS, avg. HTTPS) : 400
• SSL Inspection Concurrent Session (IPS, avg. HTTPS) : 55,000
• Application Control Throughput (HTTP 64K) : 1.8 Gbps
• CAPWAP Throughput (HTTP 64K) : 8 Gbps
• Virtual Domains (Default / Maximum) : 10 / 10
• Maximum Number of FortiSwitches Supported : 24
• Maximum Number of FortiAPs (Total / Tunnel Mode) : 64 / 32
Maximum Number of FortiTokens : 500
High Availability Configurations : Active-Active, Active-Passive, Clustering

• Management Options : FortiManager, FortiCloud, Web UI (HTTPS), Command Line Interface (CLI / Console)
• Management Ports : 1x Console Port (RJ45), 1x USB Port

• Firewall Throughput (1518 / 512 / 64 byte UDP packets) : 10 / 10 / 6 Gbps
• Firewall Latency (64 byte UDP packets) : 3.3 μs
• Firewall Throughput (Packets Per Second) : 9 Mpps
Concurrent Sessions (TCP) : 700,000
New Sessions/Second (TCP) : 35,000
Firewall Policies : 2,000

• IPsec VPN Throughput (512 byte) : 6.5 Gbps
• Gateway-to-Gateway IPsec VPN Tunnels : 200
• Client-to-Gateway IPsec VPN Tunnels : 500
• SSL-VPN Throughput : 900 Mbps
• Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) : 200

• YES

• Threat Protection : IPS (1.4 Gbps), NGFW (1 Gbps), Threat Protection (700 Mbps), Application Control (1.8 Gbps)
• Internal Storage : 1x 128 GB SSD
• High Performance Hardware : ประมวลผลด้วย SoC4 (System-on-a-Chip 4) Hardware Acceleration
• Security Fabric Integration : รองรับ FortiLink จัดการ FortiSwitch (สูงสุด 24 เครื่อง) และ FortiAP (สูงสุด 64 เครื่อง)

• FortiOS

N/A

• Power Rating : 12Vdc, 3A
• Maximum Current : 100Vac/1.0A, 240Vac/0.6A

NONE

• 17.2 W / 18.7 W

• Operating Temperature : 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -31°F to 158°F (-35°C to 70°C)
• Humidity : 10% to 90% non-condensing

• USGv6/IPv6

N/A
