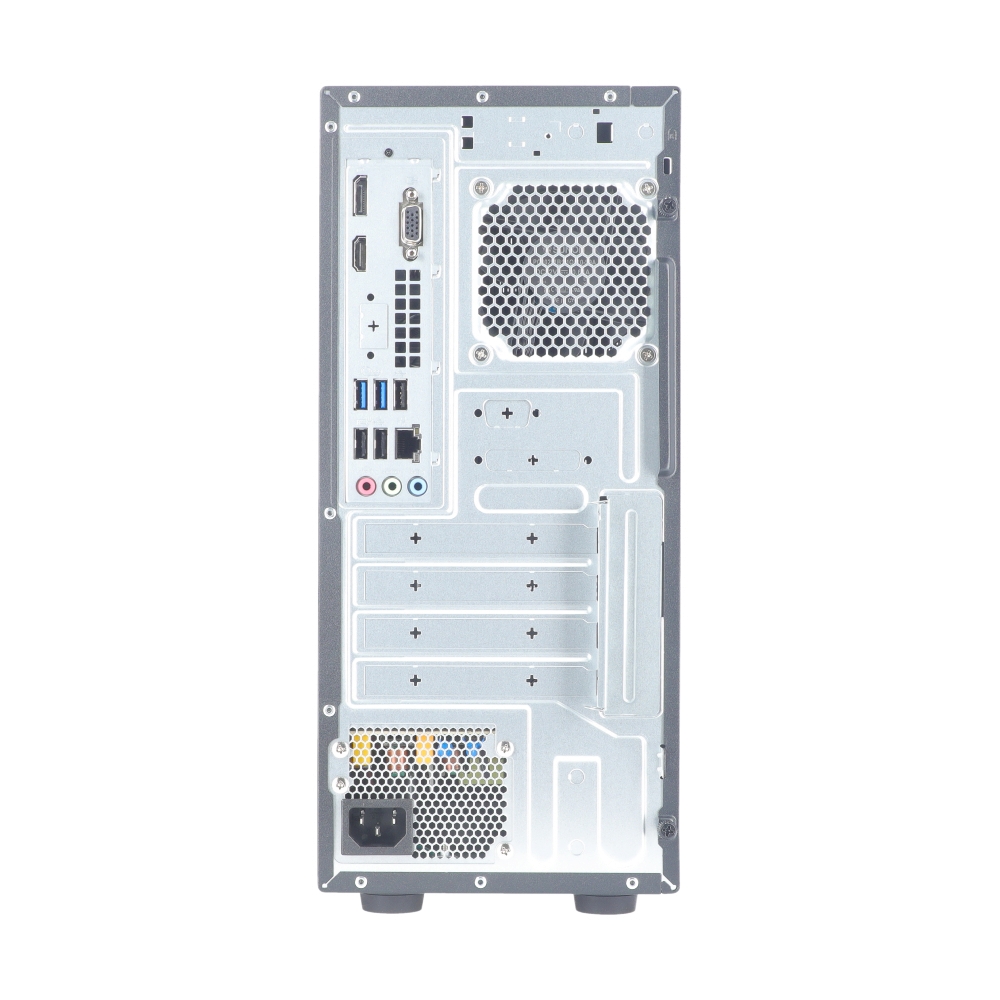

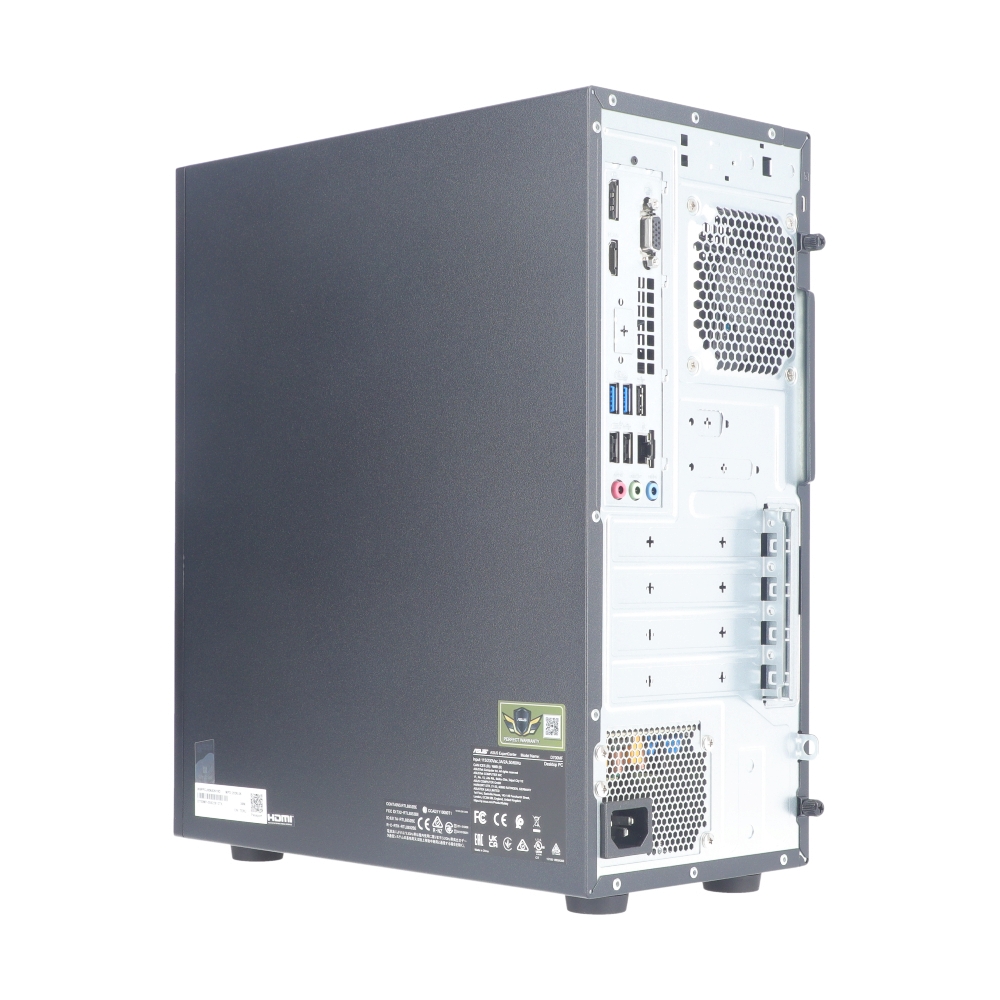

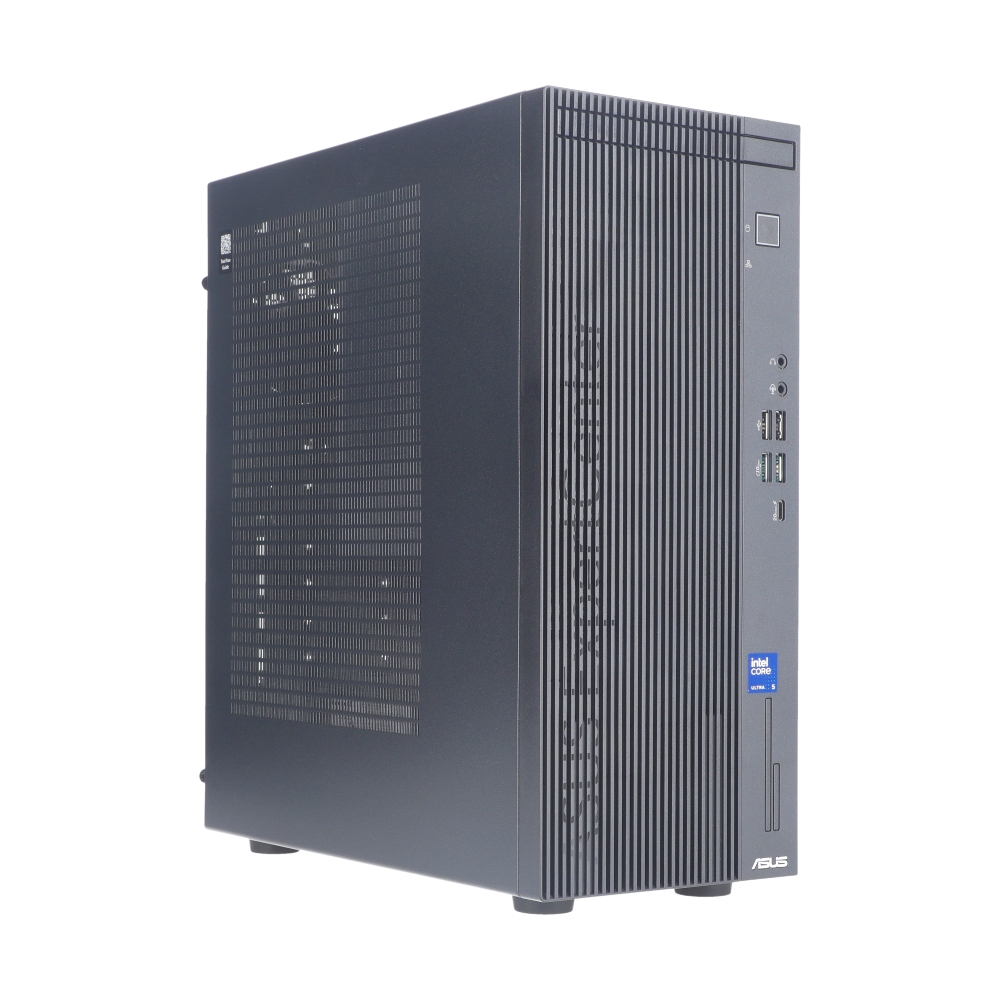

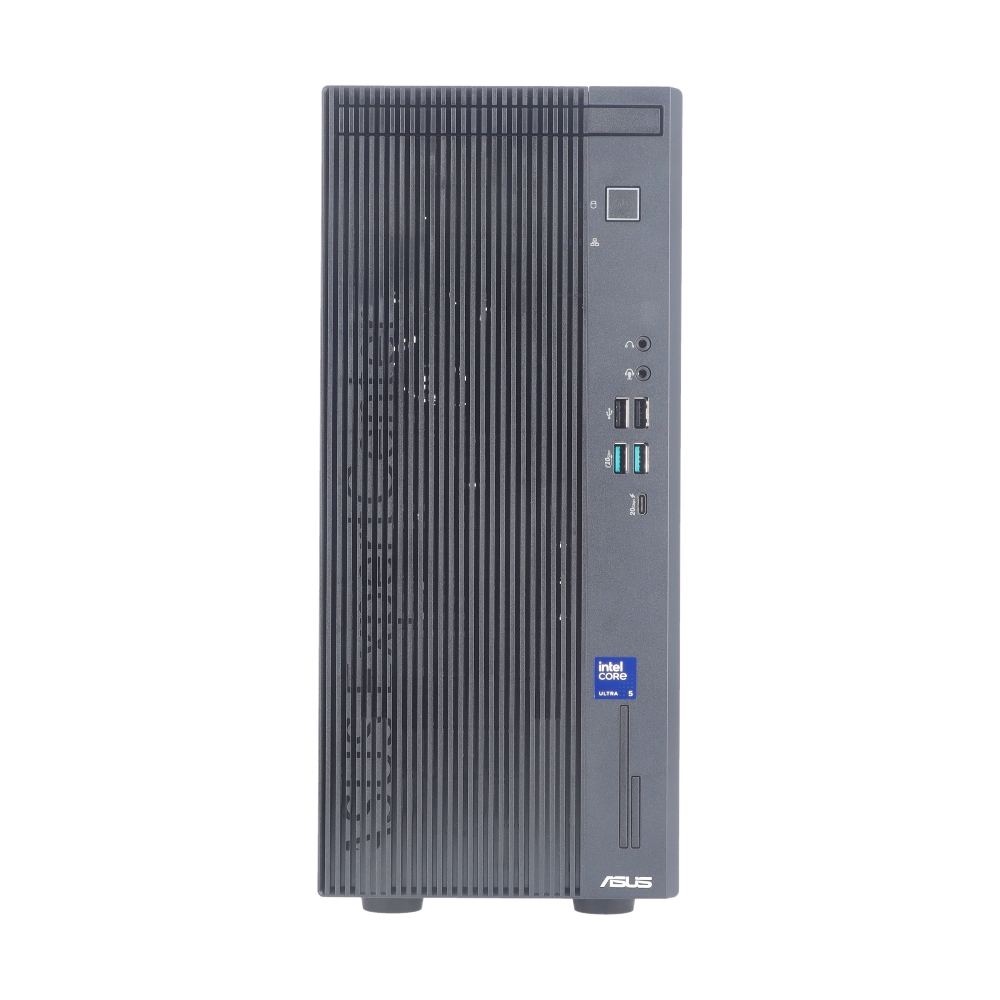

Desktop Asus ExpertCenter D700MF-005225127X (90PF05D1-M025R0)

ExpertCenter D700 Mini Tower (D700MF-005225127X)

Intel Core Ultra 5 processor 225 (3.3GHz up to 4.9GHz, 10C/10T, 20MB Intel Smart Cache)

Intel AI Boost (Up to 13 TOPS)

Intel B860 Chipset

Integrate Graphics : Intel Graphics

16GB (1x 16GB) DDR5-5600 U-DIMM

4x DDR5 U-DIMM slots

Up to 128GB

512GB M.2 2280 NVMe PCIe 4.0 SSD

1x M.2 2280 connector for storage
1x M.2 2280/2230 connector for storage

• One M.2 2230 connector for Wi-Fi (Occupied)
• One PCIe® 3.0 x 1
• One PCIe® 4.0 x 16

Front I/O Ports
1x USB 3.2 Gen 2x2 Type-C (20 Gbps)
2x USB 3.2 Gen 2 Type-A (10 Gbps)
2x USB 2.0 Type-A (480 Mbps)

Rear I/O Ports
2x USB 3.2 Gen 1 Type-A (5 Gbps)
3x USB 2.0 Type-A (480 Mbps)
1x Displayport 1.4
1x HDMI 1.4
1x VGA Port

None

High Definition 7.1 Channel Audio

Front I/O Ports
1x 3.5mm combo audio jack
1x Headphone

Rear I/O Ports
1x 7.1 channel audio (microphone, line-out, Line-in)

10/100/1000 LAN

Wi-Fi 6 (802.11ax)

Bluetooth 5.4

None

180W power supply (80+ Bronze, peak 228W)

Yes

Yes

Windows 11 Pro

N/A
