ข้อมูลสินค้าเครื่องบันทึก NVR 32CH. HIKVISION DS-7732NXI-K4(E)(STD)

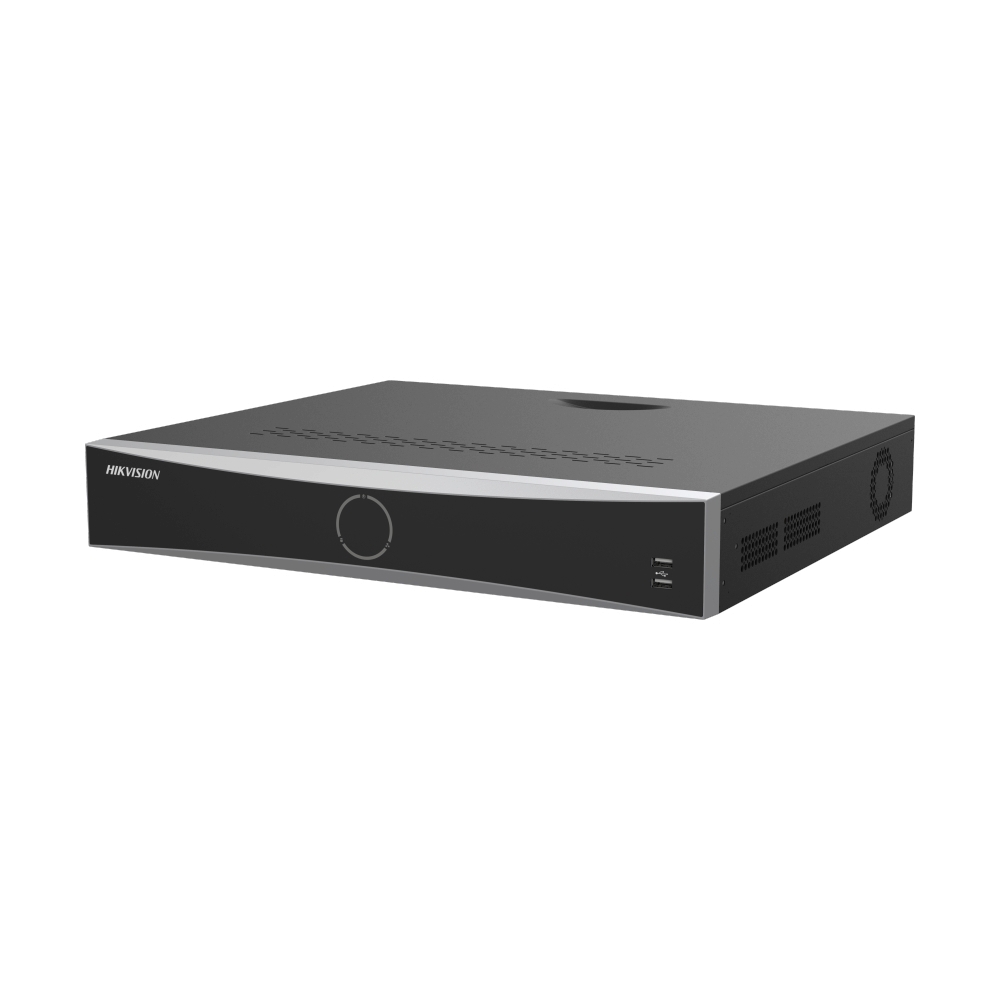

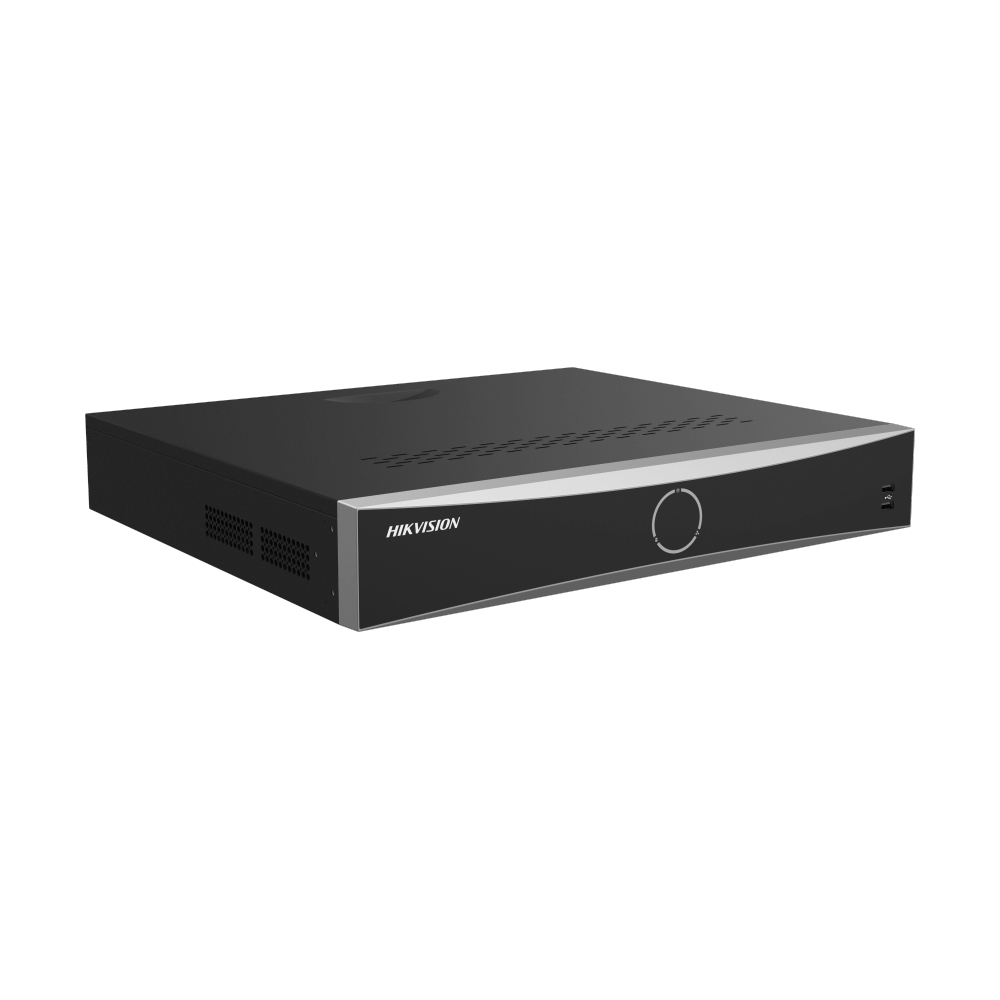

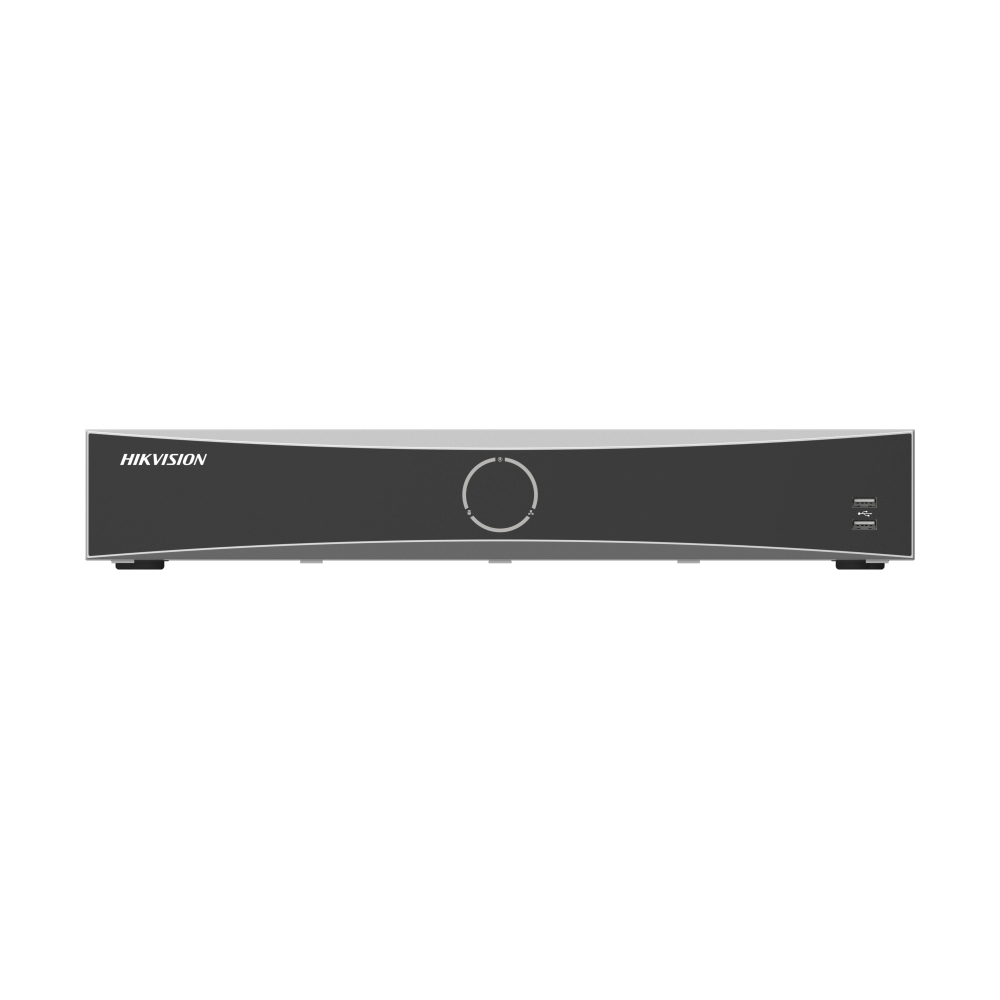

เครื่องบันทึก NVR 32CH. HIKVISION DS-7732NXI-K4(E)(STD)
HIKVISION

เครื่องบันทึก NVR 32CH. HIKVISION DS-7732NXI-K4(E)(STD)

ประกัน 3 ปี
รหัสสินค้า: A0184833
  • IP Video Input : 32 Ch.
  • Video Compression : H.265+/H.265/H.264+/H.264
  • Encoding Resolution : 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Interface
    • 4 xSATA interfaces
    • 1x eSATA interface;NA
    • 3x USB (Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0)
    • 2x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
    • 2x RS-485 (half-duplex)
    • 1x RS-232
  • Video output : HDMI/VGA independent output
  • Capacity  : Up to 16 TB capacity for each HDD
คำค้นหาNVR32CHHIKVISIONDS-7732NXI-K4(E)(STD)เครื่องบันทึกDVR / NVRDVRNVRเครื่องบันทึกภาพจากกล้องวงจรปิดระบบบันทึกภาพ32ch
ราคาหน้าร้าน ฿13,900

ข้อมูลผลิตภัณฑ์

BrandHIKVISION
Model

DS-7732NXI-K4(E)(STD)

Video/Audio input

• IP Video Input : 32 Ch.
• IP Speaker Input : 4 Ch.
• Incoming Bandwidth : 256 Mbps

Video/Audio output

• HDMI Output : 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output : 1-ch, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode : HDMI/VGA independent output
• Audio Output : 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input )
• Outgoing Bandwidth : 160 Mbps

Decoding

• Decoding Format : H.265, H.265+, H.264, H264+
• Recording Resolution : 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback : 16-ch
Decoding Capability
• AI on: 2-channel 12 MP@30 fps, 4-channel 8 MP@30 fps, 5-channel 6 MP@30 fps, 8-channel 4 MP@30 fps, 10-channel 3 MP@30fps, 16-channel 2 MP@30fps
• AI off: 3-channel 12 MP@30 fps, 5-channel 8 MP@30 fps, 6-channel 6 MP@30 fps, 10-channel 4 MP@30 fps, 13-channel 3 MP@30fps, 20-channel 2 MP@30fps
• Stream Type : Video, Video and Audio
• Audio Compression : G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2

Network

• Remote Connection : 128
• Compatible Browser : IE 11, Chrome 91, Firefox 88, Safari 12, Edge 91,or above version
• Network Protocol : TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

ONVIF

• ONVIF (profile S/G); SDK; ISAPI

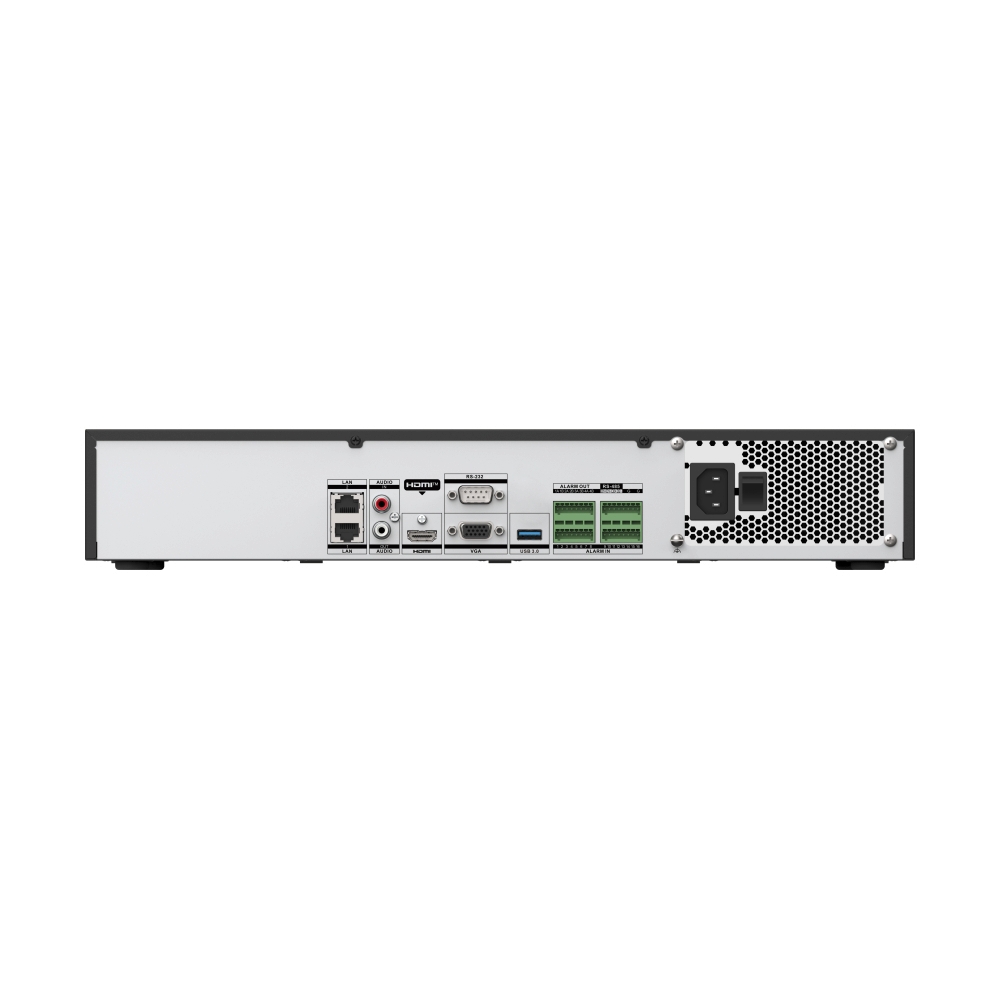

Interface

• 4 xSATA interfaces
• 1x eSATA interface;NA
• 3x USB (Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0)
• 2x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
• 2x RS-485 (half-duplex)
• 1x RS-232

Storage

• Up to 16 TB capacity for each HDD

Power Supply

• 100 to 240 VAC, 50 to 60Hz

Power Consumption

• ≤ 50 W (without HDD)

PoE

NONE

AI

• Facial recognition, perimeter protection, motion detection 2.0, AcuSearch
• Facial recognition, perimeter protection, motion detection2.0, ANPR

Perimeter Protection

• Video analysis (HD network camera, H.264/H.265) for human and vehicle recognition to reduce false alarm.
• Up to 4 MP: 2-ch
• 8 MP to 5 MP: 1-ch

Face Detection

• Facial Detection And Analytics: Face picture comparison, human face capture, face picture search • Performance: Up to 4 MP: 2-ch; 8 MP to 5 MP: 1-ch

Face Recognition

• Face Picture Comparison: 8-ch

Working Environment

• Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity : 10 to 90 %

Package Contents

N/A
