ข้อมูลสินค้าGigabit Switching Hub 8 Port D-LINK DGS-108 V.F1 (5")
D-LINK

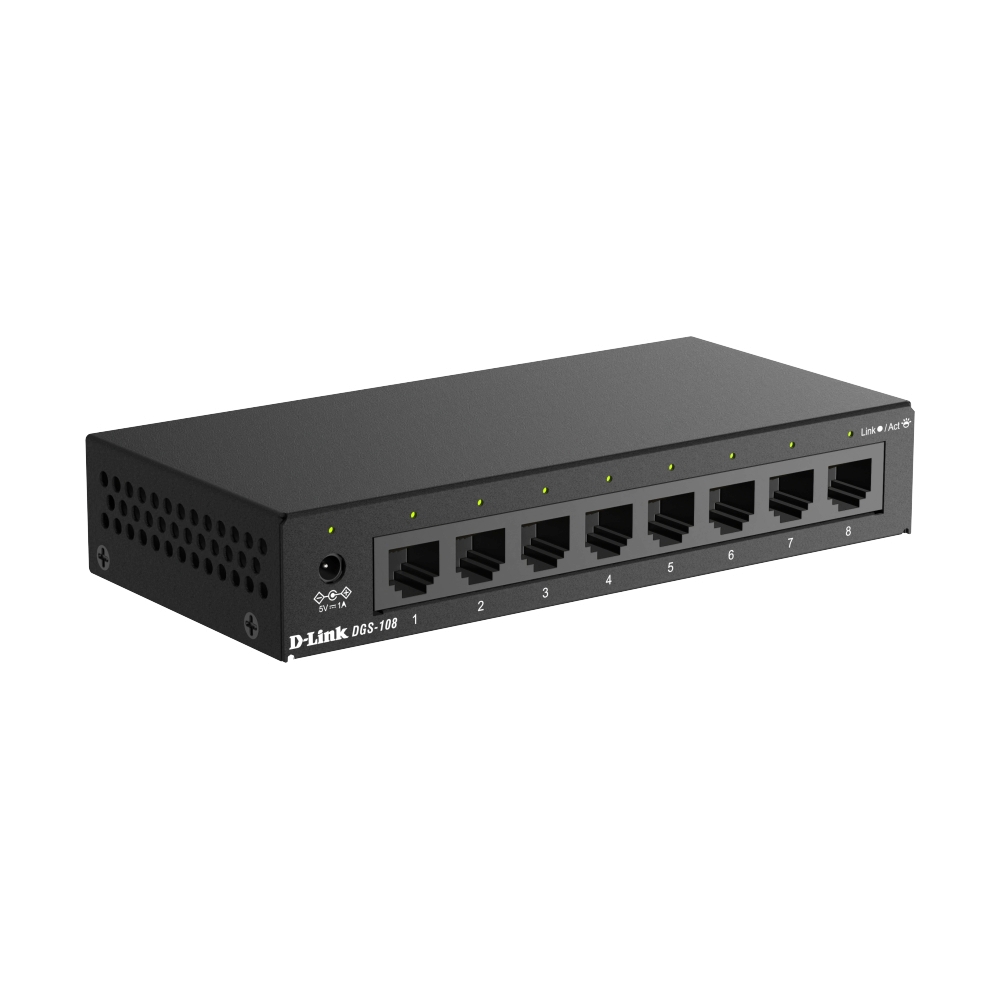

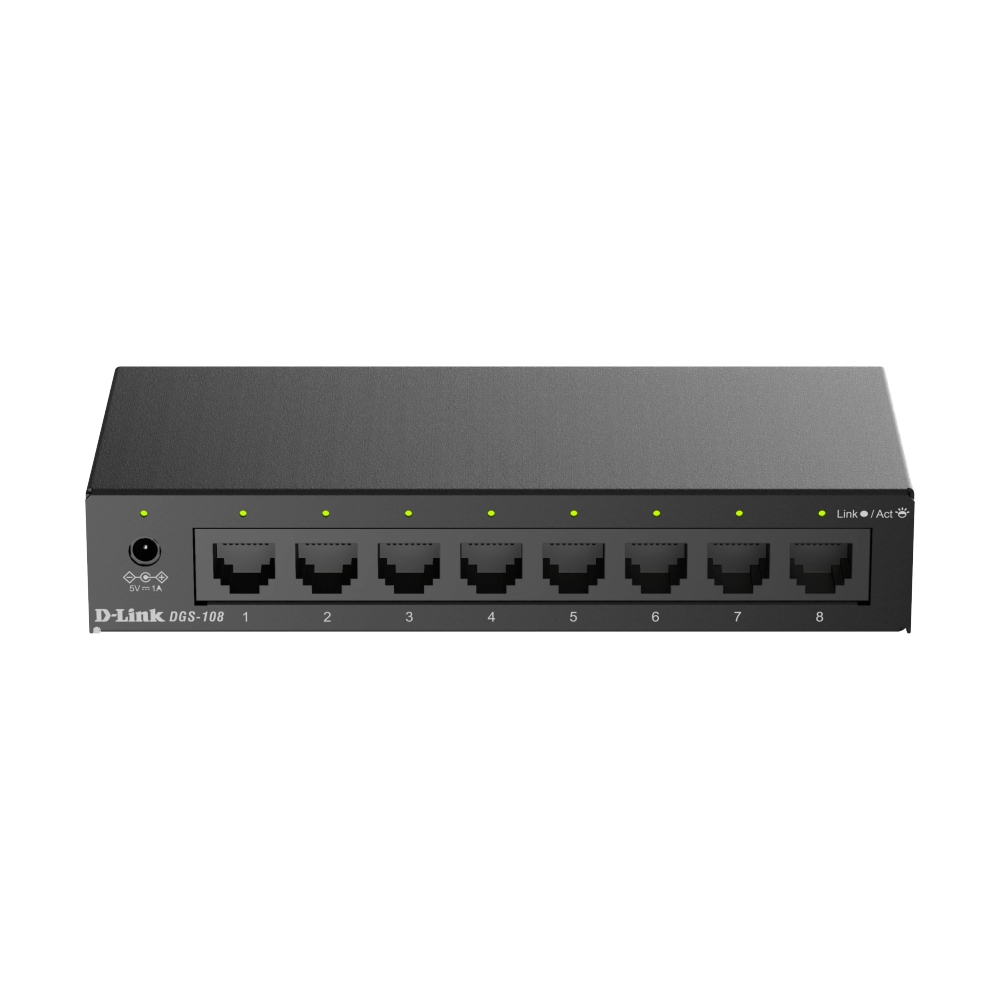

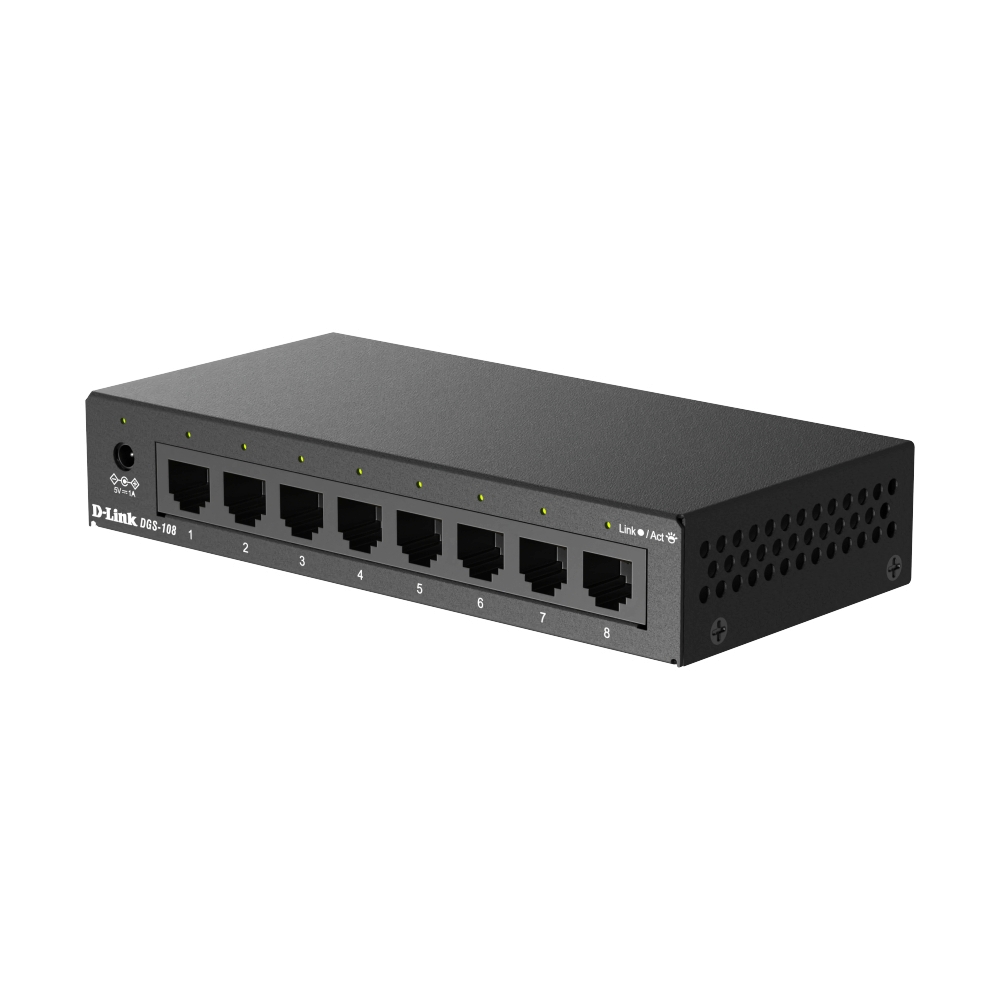

Gigabit Switching Hub 8 Port D-LINK DGS-108 V.F1 (5")
ประกัน LT.
รหัสสินค้า: A0185733
- Standards and Protocols : IEEE 802.3/802.3u/ 802.3ab/802.3x, 802.1p, 802.3az
- Interface : 8 x 10/100/1000 Mbps LAN ports
- Switching Type : Unmanaged
- Switching Capacity : 16Gbps
- Casing : Metal
- Energy efficient
- Fanless
- Plug & Play Installation
ราคาหน้าร้าน ฿900
ข้อมูลผลิตภัณฑ์
BrandD-LINK
Model
DGS-108 V.F1
Network Interface
• 8x 10/100/1000 Mbps LAN ports
USB Port
NONE
Standards and Protocols
• IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1p QoS
• IEEE 802.3az Energy-Efficient Ethernet (EEE)
Switching Capacity
• 16 Gbps
Transmission Method
• Store-and-forward
MAC Address Table
• 8K
Forwarding Rate
• 11.9 Mpps
Jumbo Frame
N/A
Buffer Architecture
• 4 Mbits
CPU
N/A
CPU Memory
N/A
Flash Memory
N/A
LED Indicators
• Power (per unit)
• Link/Activity (per port)
Management
NONE
VLAN
N/A
Security
N/A
Firewall
N/A
MTBF
• 698,372 hours
Fan Quantity
NOHNE
Material
• Metal
PoE
NONE
Power Supply
• DC 5V / 1A
Power Consumption
• 2.96 W
Environment
Temperature
• Operating: 0 to 40 °C (32 to 104 °F)
• Storage: -40 to 70 °C (-40 to 158 °F)
Humidity
• Operating: 10% to 90% RH
• Storage: 5% to 90% RH
Certifications
• Safety : LVD
• EMI/EMC : CE Class B
Package Contents
• 8-Port 10/100/1000Mbps Desktop Switch
• Power Adapter
• Installation Guide
