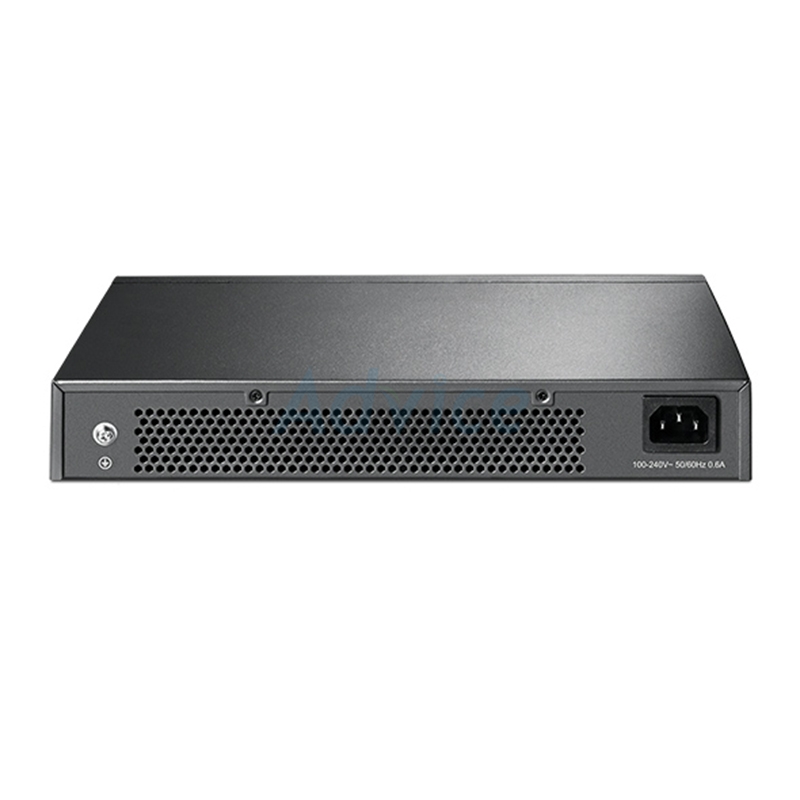

Gigabit Switching Hub TP-LINK (TL-SG1024DE) 24 Port (11'')
- Standards and Protocols : IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
- Interface : 24x 10/100/1000Mbps RJ45 Ports ( AUTO Negotiation/AUTO MDI/MDIX )
- Switching Type : Layer 2 switches
- Switching Capacity : 48Gbps
- Casing : Steel
- Package Contents
- TL-SG1024DE
- Power Cord
- Quick Start Guide
- Resource CD
- Rackmount Kit
- Rubber Feet
- Provides network monitoring, traffic prioritization and VLAN features
- Innovative energy-efficient technology reduces power output by up to 18%
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and management utility simplify configuration
ข้อมูลผลิตภัณฑ์
TL-SG1024DE
24 x 10/100/1000Mbps RJ45 Ports
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p
48Gbps
Store-And-Forward
8K
35.7Mpps
9KB
Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Fanless
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100-240VAC, 50/60Hz
Maximum : 14.86W (220V/50Hz)
Operating Temperature : 0°C~40°C (32°F~104°F)
Storage Temperature : -40°C~70°C (-40°F~158°F)
Operating Humidity : 10%~90% non-condensing
Storage Humidity : 5%~90% non-condensing
FCC, CE, RoHS
TL-SG1024DE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
