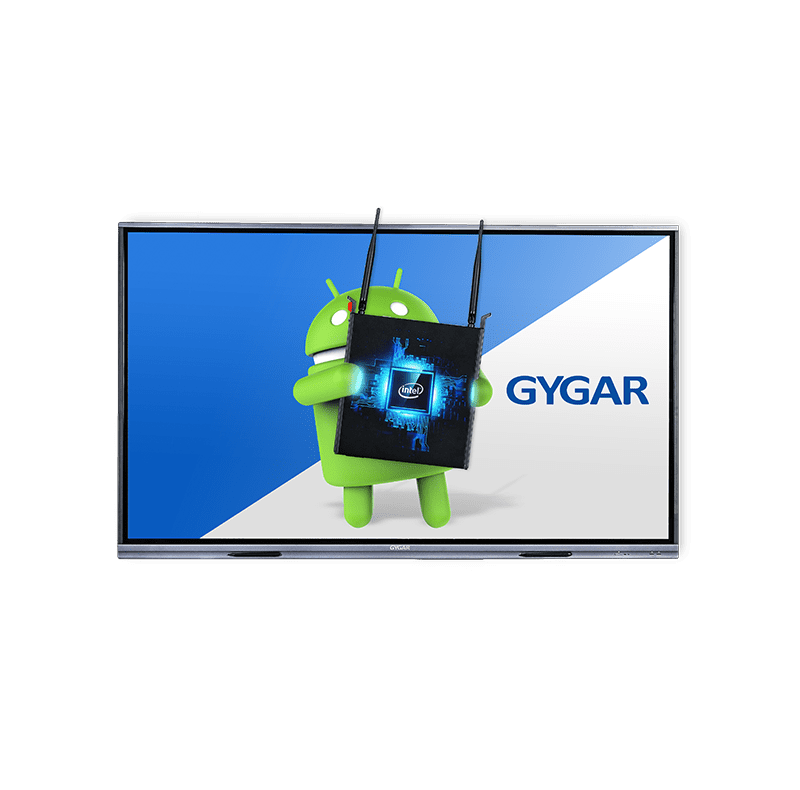

INTERACTIVE LED TOUCH SCREEN GYGAR IPG-86GA (4K)

IPG-86G

• Display Backlight : DLED
• Panel Type : ADS
• Refresh Rate : 60Hz
• Viewing Angle : 178° (H/V)
• NTSC : 72%
• Life time (working hours/day) : 50,000 hours
• VESA Mount : 800 x600 mm

Tempered Glass

1895.04 x 1065.96mm

86"

16:9

3840 x 2160@60Hz

1.07B (10bits)

350cd/m2

Contrast :1200:1
Dynamic Contrast Ratio : 5000:1

8ms

N/A

Inputs
3 x HDMI ( 4K@60Hz )
1x Port VGA
4 x USB3.0(Public Type-A)
1x Port USB 2.0
1 x Port USB Type-C
1x Audio (Aux 3.5)
1x RJ 45 in
Output
1x DP Out
1x HDMI Out
1x SPDIF Out
2x Port Touch Out
1x Port AUDIO OUT
1x Port RS232
1x Port RJ45 OUT

2CH 16W

• Touch Tool :Finger :Passive infrared pen, Active infrared pen
• Touch point / IR Touch Point Speed : 20 Points Touch / 100 points per sec (100 Hz)
• Writing Display : Writing double colors with double pens simultaneously
• Interpolation Resolution : 32768 x 32768
• System : Windows7/8/10/11/Linux/Mac/Android/Chrome

OS System Version : Android 9.0
CPU : ARM Cortex Quad Core A73
RAM / ROM : 4GB / 32 GB
GPU : Mail G52
Pc Module Type : Compatible with Windows7/8/10/11
CPU :Intel@ Core i5 Gen10
Graphics : Intel@ UHD Graphics 630
RAM : DDR4 8GB
SSD : 256GB
Wifi : Ax200 (2.4GHz)

100 – 240 V~ 50 / 60 Hz

Overall Power(Max.) : 450 W
Standby Power : ≤ 0.5 W

Operation Temperature : 0°C – 40°C
Operation Humidity : 10% – 90% RH
Storage Temperature :-20°C -60°C
Storage Humidity : 10% – 90% RH
