ข้อมูลสินค้าSwitching Hub 4 Port HIKVISION DS-3E1106HP-EI (6",4 PoE)

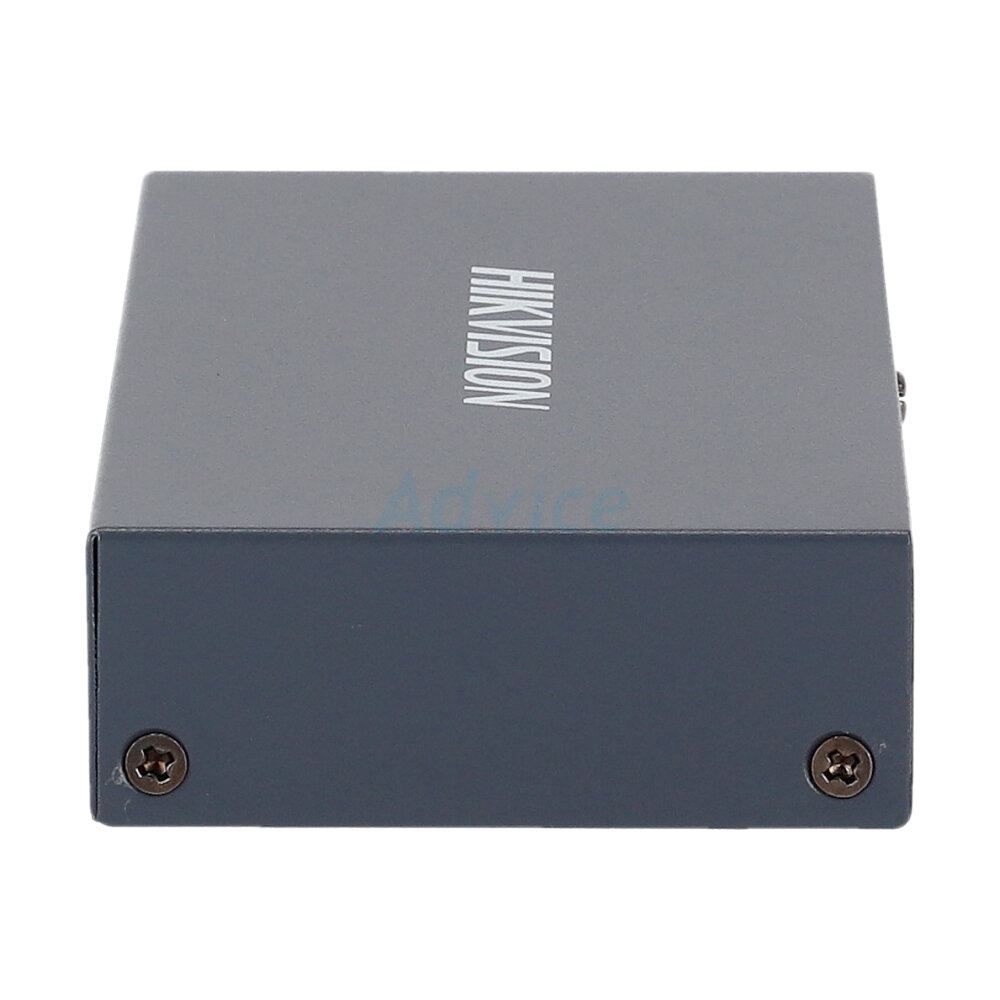

Switching Hub 4 Port HIKVISION DS-3E1106HP-EI (6",4 PoE)
HIKVISION

Switching Hub 4 Port HIKVISION DS-3E1106HP-EI (6",4 PoE)

ประกัน 3 ปี
รหัสสินค้า: A0158630
  • Standards and Protocols : IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
  • Interface
    • 4× 10/100 Mbps PoE port 8 PoE ports Power Budget 60 W)
    • 2× 10/100 Mbps PoE port
  • Switching Type : Smart Managed
  • Switching Capacity : 1.2 Gbps
  • Casing : Metal
  • Package Contents
    • DS-3E1106HP-EI

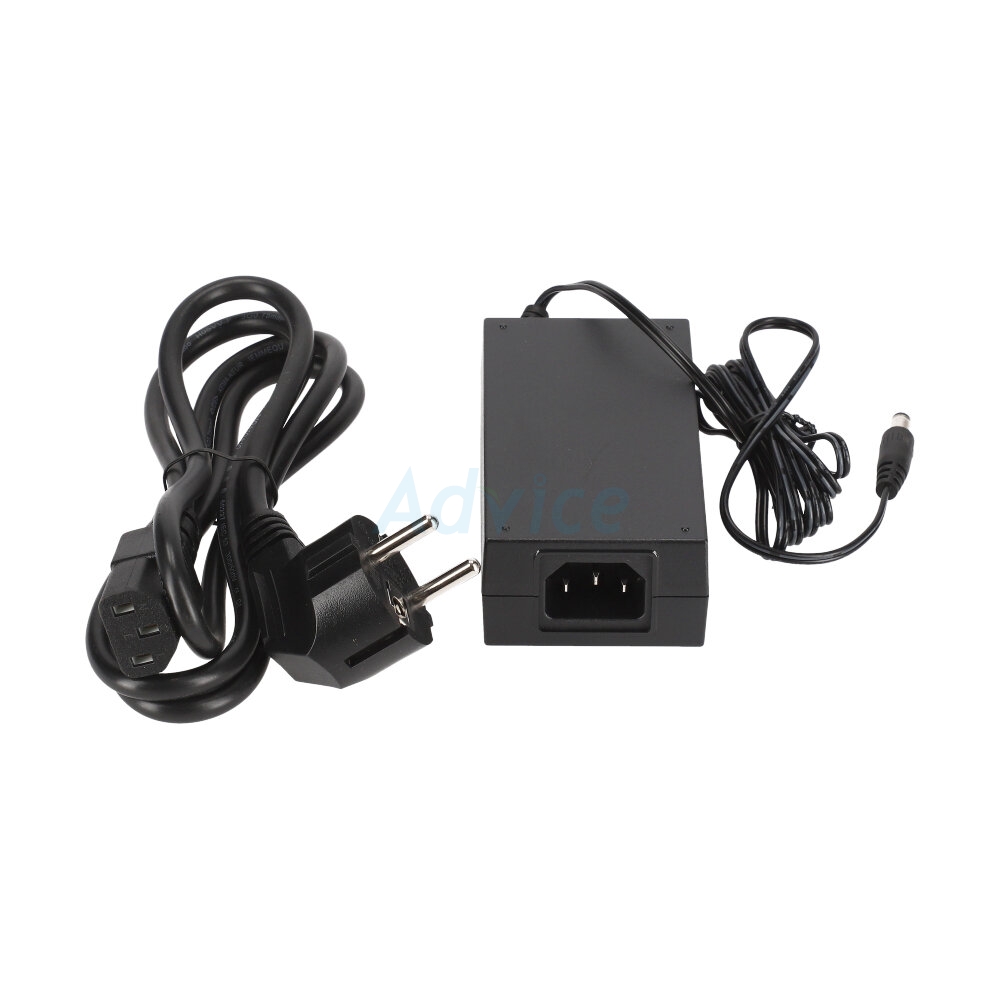

    • Power Adapter
  • Network topology management, and alarm push
  • 6 KV surge protection for PoE ports
  • Up to 300 m long-range transmission
  • AF/AT camera can reach up to 300 m in extend mode
คำค้นหาSwitchingHubHIKVISION(DS-3E1106HP-EI)4 PortPoE
ราคาหน้าร้าน ฿1,050

ข้อมูลผลิตภัณฑ์

BrandHIKVISION
Model

DS-3E1106HP-EI

Network Interface

4× 10/100 Mbps PoE port
2× 10/100 Mbps RJ45 port

Standards and Protocols

IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt

Switching Capacity

1.2 Gbps

MAC Address Table

2 K

Forwarding Rate

0.90 Mpps

Material

Metal

PoE

Max. Port Power : 60 W,30 W
PoE Power Budget : 60 W

Power Supply

48 VDC, 1.35 A

Power Consumption

Power Consumption in Idle : 2 W
Max. Power Consumption : 65 W

Environment

Operating Temperature : 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature : -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity : 5% to 95% (no condensation)
Relative Humidity : 5% to 95% (no condensation)

Certifications

UL (UL 60950-1)
CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)
CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017)
