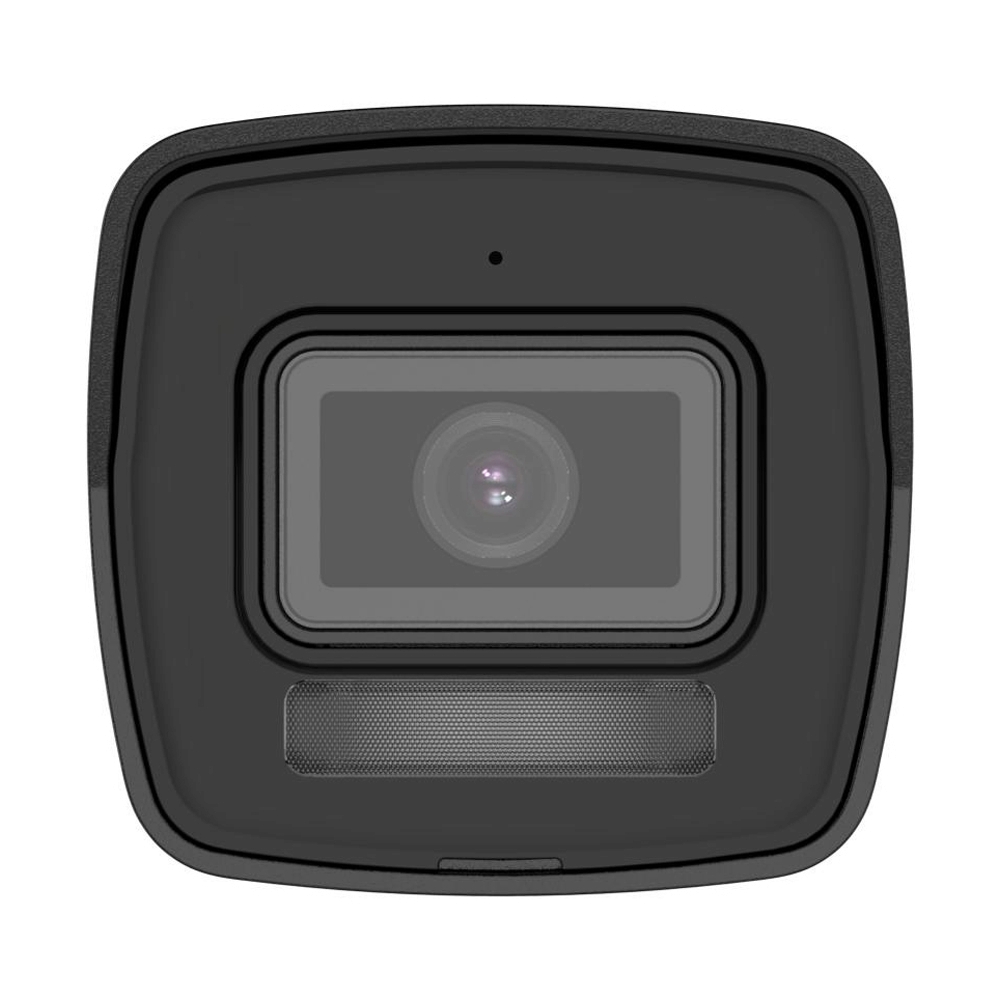

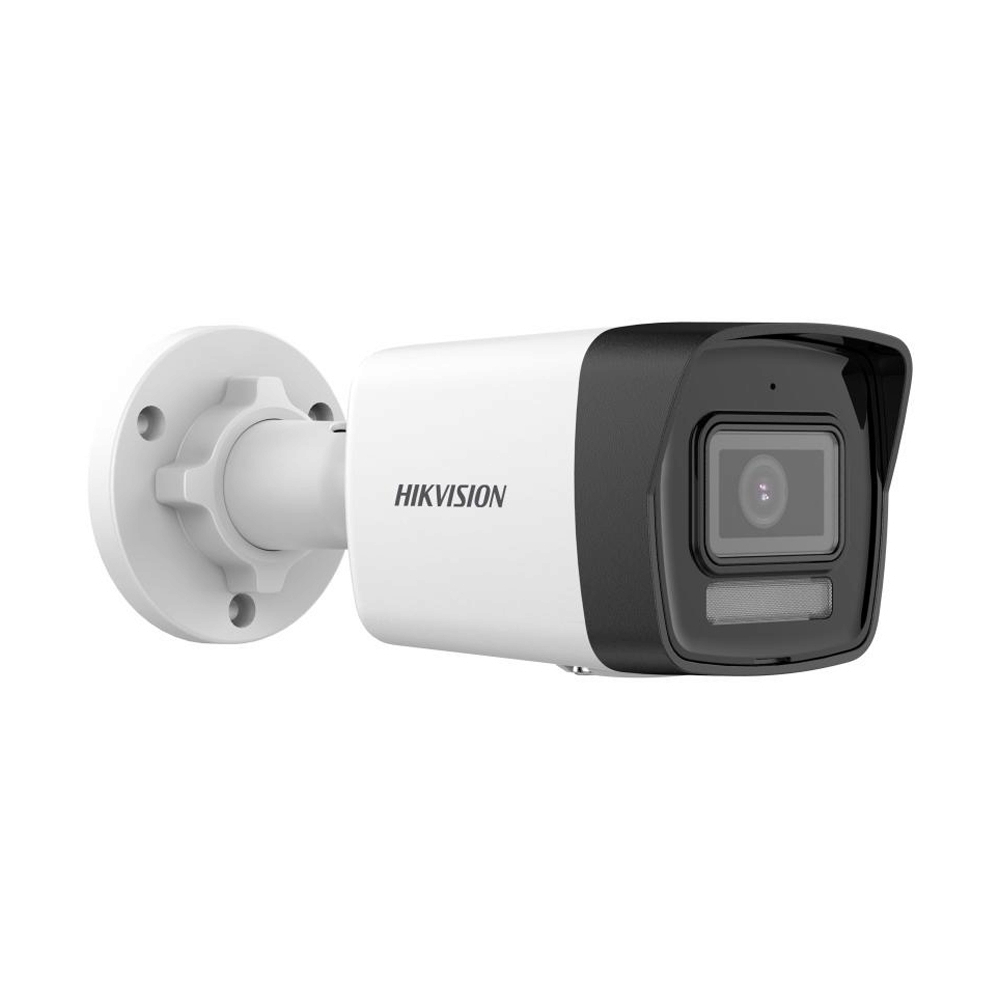

CCTV 4mm IP Camera HIKVISION#DS-2CD1023G2-LIU

2CD1023G2-LIU

1/2.9" Progressive Scan CMOS

4mm

M12

N/A

N/A

horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°

Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

1/3 s to 1/100,000 s

Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

N/A

30m

IR cut filter

N/A

Digital WDR

1920 × 1080

Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG

Main Stream : 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
                       60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream : 50 Hz: 25 fps (640 × 480, 640 × 360)
                       60 Hz: 30 fps (640 × 480, 640 × 360)

Up to 32 users
3 user levels: administrator, operator, and user

Support on-board storage up to 512 GB (SD card slot) (Optional)

1x RJ45 10 M/100 M self-adaptive Ethernet port

N/A

Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception

NONE

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

Heartbeat,anti-banding,mirror,password protection,password reset via email

12 VDC ± 25%, 0.4 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection

max: 6.5 W

Storage Conditions  : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating : Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

IP67

N/A
