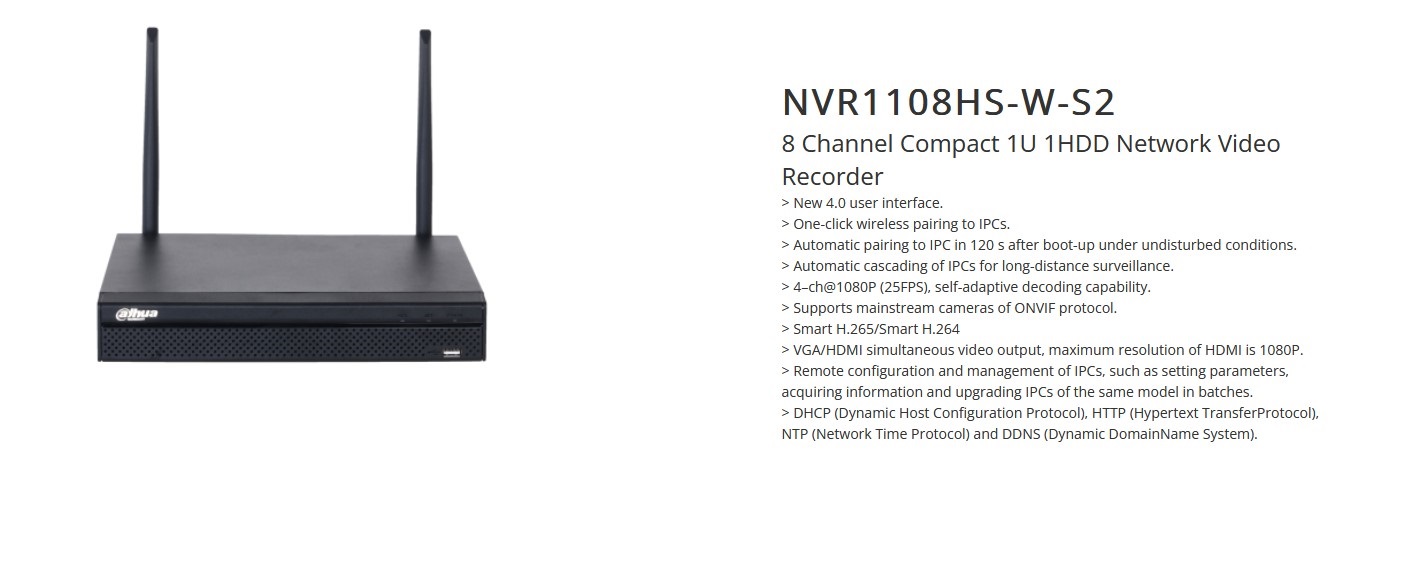

เครื่องบันทึก NVR 8CH. DAHUA NVR1108HS-W-S2
- Access Channel : 8 channels
- Video Compression : Smart H.265; H.265; Smart H.264; H.264; MJPEG
- Encoding Resolution : 1-channel 6 MP@25 fps; 1-channel 5 MP@25 fps; 2-channel 4 MP@25 fps; 2-channel 3 MP@25 fps; 4-channel 1080p@25 fps
- Interface
- 1× RJ-45, 10/100 Mbps self-adaptive Ethernet port
- 1x SATA Port
- 2x USB (1 front USB 2.0 port, 1 rear USB 2.0 port)
- 1x HDMI
- 1x VGA
- Video output : 1 HDMI, 1 VGA
- Capacity : up to 16 TB. The maximum HDD capacity varies with environment temperature
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์
NVR1108HS-W-S2
• Access Channel : 8 channels
• Video Compression : Smart H.265; H.265; Smart H.264; H.264; MJPEG
• Audio input : 1CH
• Audio Compression : PCM; G711A; G711U; G726
• HDMI output : 1080P/720P
• VGA output : 1080P/720P
• Audio output : 1CH
• Resolution : 6 MP; 5 MP; 4 MP; 3 MP; 2 MP; 720p; D1
• Decoding Capability : 1-channel 6 MP@25 fps; 1-channel 5 MP@25 fps; 2-channel 4 MP@25 fps; 2-channel 3 MP@25 fps; 4-channel 1080p@25 fps
• Multi-screen Display : 1, 4, 8, 9 views
• Multi-channel Playback : Up to 8 channels
• Network Protocol : HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server; P2P
• Mobile Phone Access : Android; iOS
• Interoperability : ONVIF (profile T/S/G); CGI; SDK
• Browser : Chrome; IE 9 or later; Firefox
• Wi-Fi Standard : 802.11b/g/n
• Frequency Range : 2400–2483.5 MHz
• ONVIF (profile T/S/G); CGI; SDK
• 2 x USB Ports
• 1 x SATA Port
• 1 x Network Port
• 1 x RCA In
• 1 x RCA Out
• 1 x HDMI Port
• 1 x VGA Port
• 1 x Power Por
• Up to 16 TB. The maximum HDD capacity varies with environment temperature
• 12 VDC, 1.5 A
• Total output of NVR is ≤ 10 W (without HDD)
NONE
• Operating Temperature : –10 °C to + 45 °C (+ 14 °F to +113 °F)
• Operating Humidity : 10%–93% (RH)
