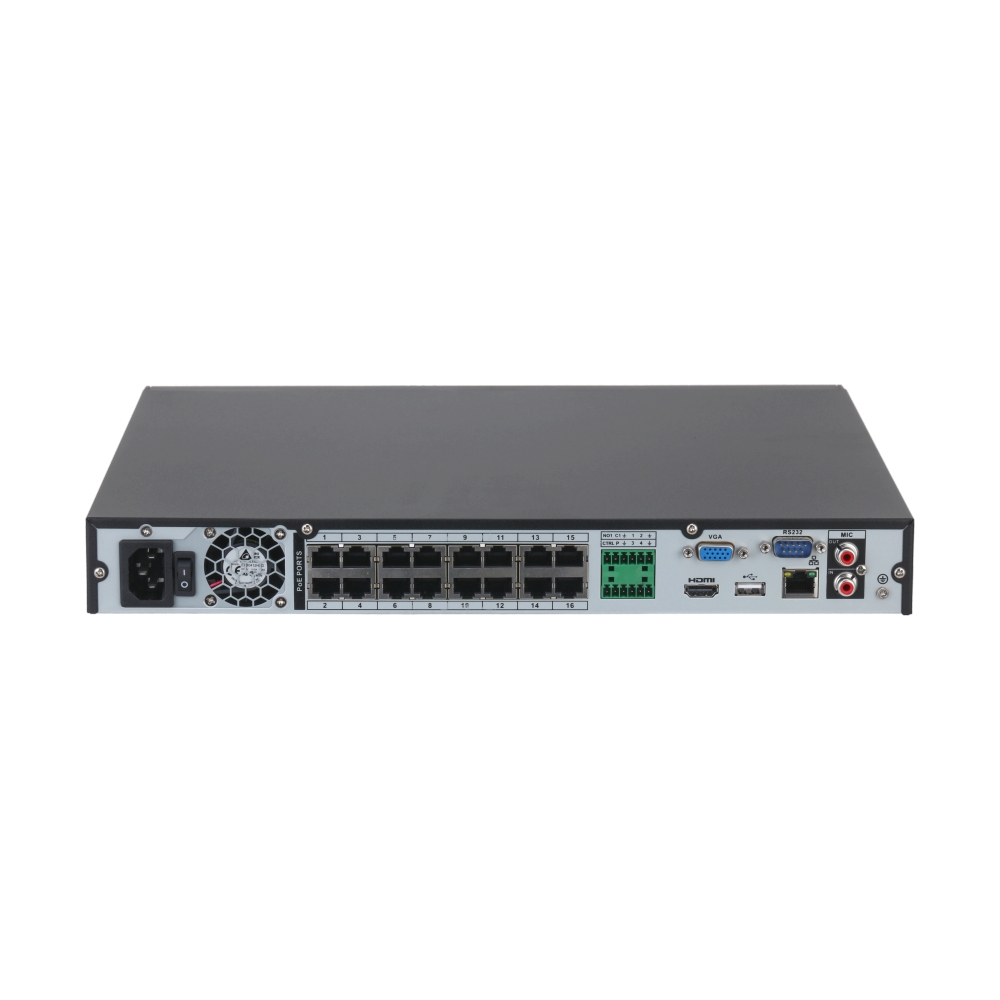

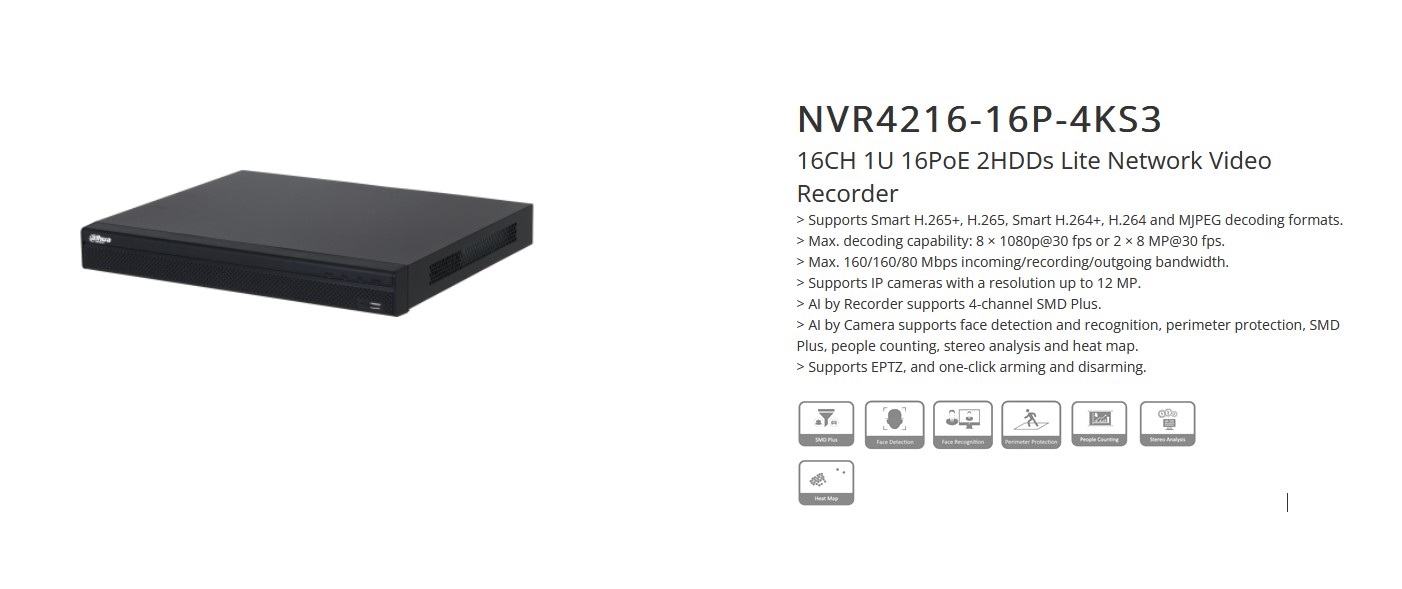

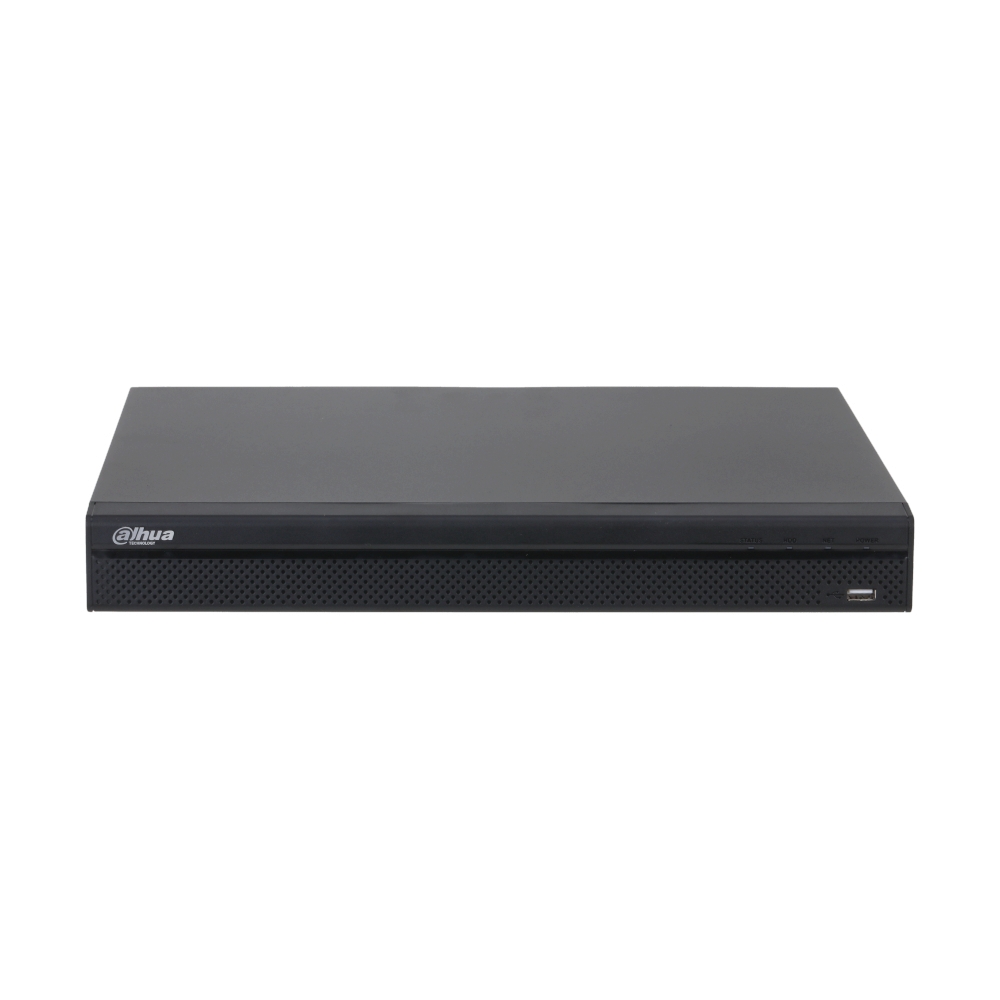

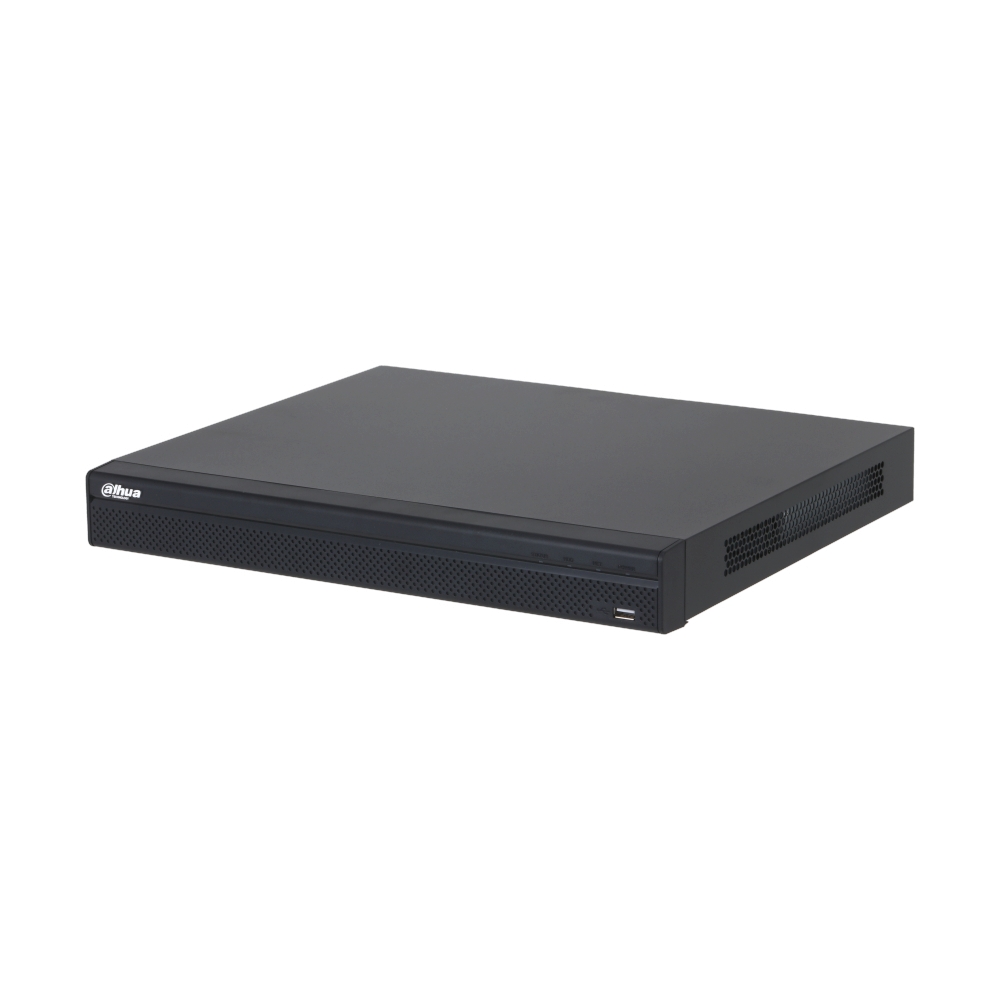

เครื่องบันทึก NVR 16CH. DAHUA NVR4216-16P-4KS3
- IP Video Input : 16CH
- Video Compression : Smart H.265+; H.265; Smart H.264+; H.264
- Encoding Resolution : 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/ 720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
- Interface
- 2x SATA port
- 2x USB (1 front USB 2.0 port, 1 rear USB 2.0 port)
- 1x HDMI
- 1x VGA
- 1x 10/100/1000 Mbps Ethernet port, RJ-45
- 16x RJ-45 10/100 Mbps PoE , IEEE 802.3 af/at
- 1x RS-232
- Video output : HDMI/VGA independent output
- Capacity : Up to 20 TB capacity for each HDD
- Max. decoding capability: 8 × 1080p@30 fps or 2 × 8 MP@30 fps.
- Supports EPTZ, and one-click arming and disarming.
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์
NVR4216-16P-4KS3
• IP Video Input : 16Ch.
• Video Compression : Smart H.265+; H.265; Smart H.264+; H.264
• Simultaneous : HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
- VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
• Heterogeneous : HDMI: 1920 × 1080, 1280 × 1024, 1280 × 720
- VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
• Multi-screen Display : Main Screen: 1/4/8/9/16 Sub Screen: 1/4/8/9/16
• Resolution : 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF; QCIF
• Multi-channel Playback : Up to 16 channels
• Record Mode : General, motion detection; intelligent; alarm
• Backup Method : USB device and network
• Playback Mode : Instant playback, general playback, event playback, tag playback, smart playback
• Network Protocol: HTTP; HTTPS; TCP/IP; IPv4; IPv6; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.); RTSP;
• Mobile Phone Access : iOS; Android
• Interoperability : ONVIF 22.12(Profile T; Profile S; Profile G); CGI; SDK
• Browser : Chrome; IE; Safari; Edge; Firefox
• Network Bandwidth : AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
• ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Hanwha
• 2x SATA ports
• 2x USB (1 front USB 2.0 port, 1 rear USB 2.0 port)
• 1x (10/100/1000 Mbps Ethernet port, RJ-45)
• 16x ports, 10/100 Mbps, IEEE 802.3 af/at
• 1x RS232
• 1x HDMI
• 1x VGA
• 2x channels (1-channel 12 V 1 A output)
• up to 20 TB. This limit varies depending on the environment temperature.
• 100–240 VAC, 50/60 Hz
• Total output of NVR is <10 W(without HDD) Total output power of PoE is 130W,the maximum output power of a single port is 25.5W
• Total output power of PoE is 130W
• Operating Temperature : –10 °C to +55 °C (14 °F to +131 °F)
• Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Operating Humidity : 10%–93% (RH), non-condensing
