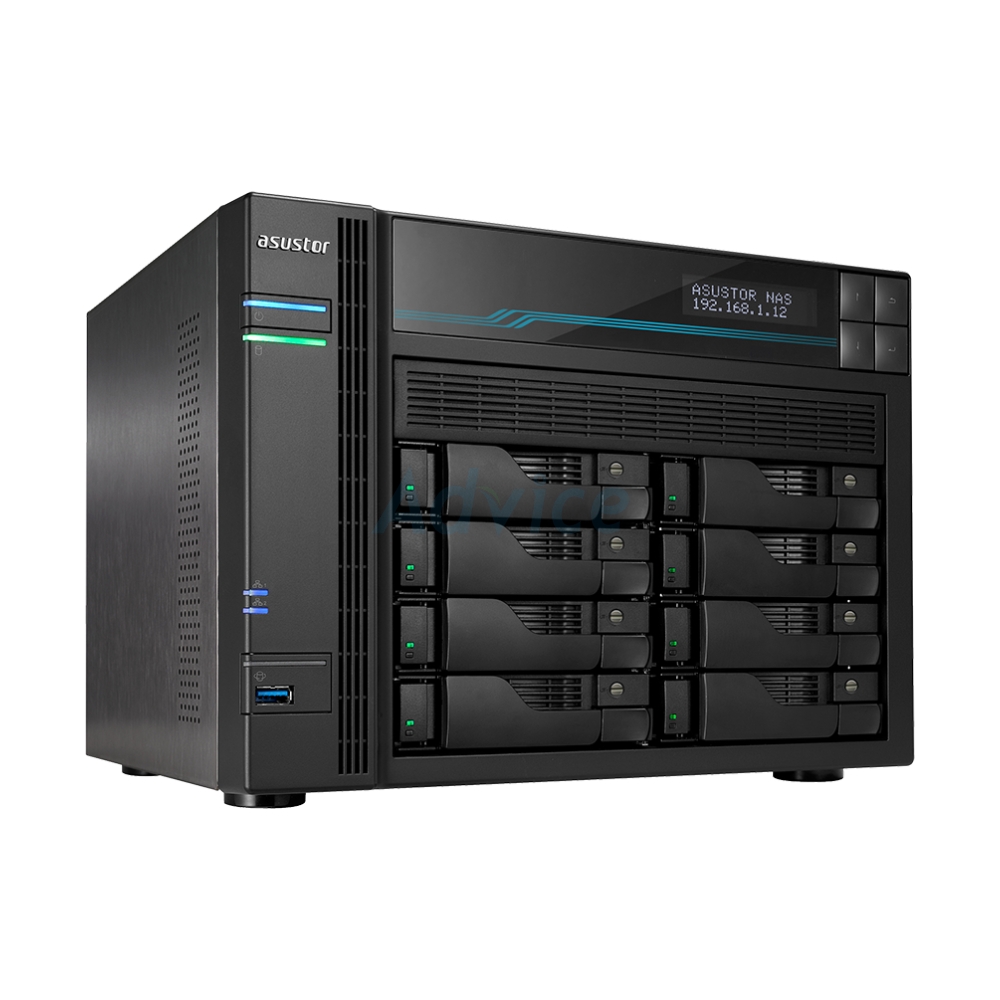

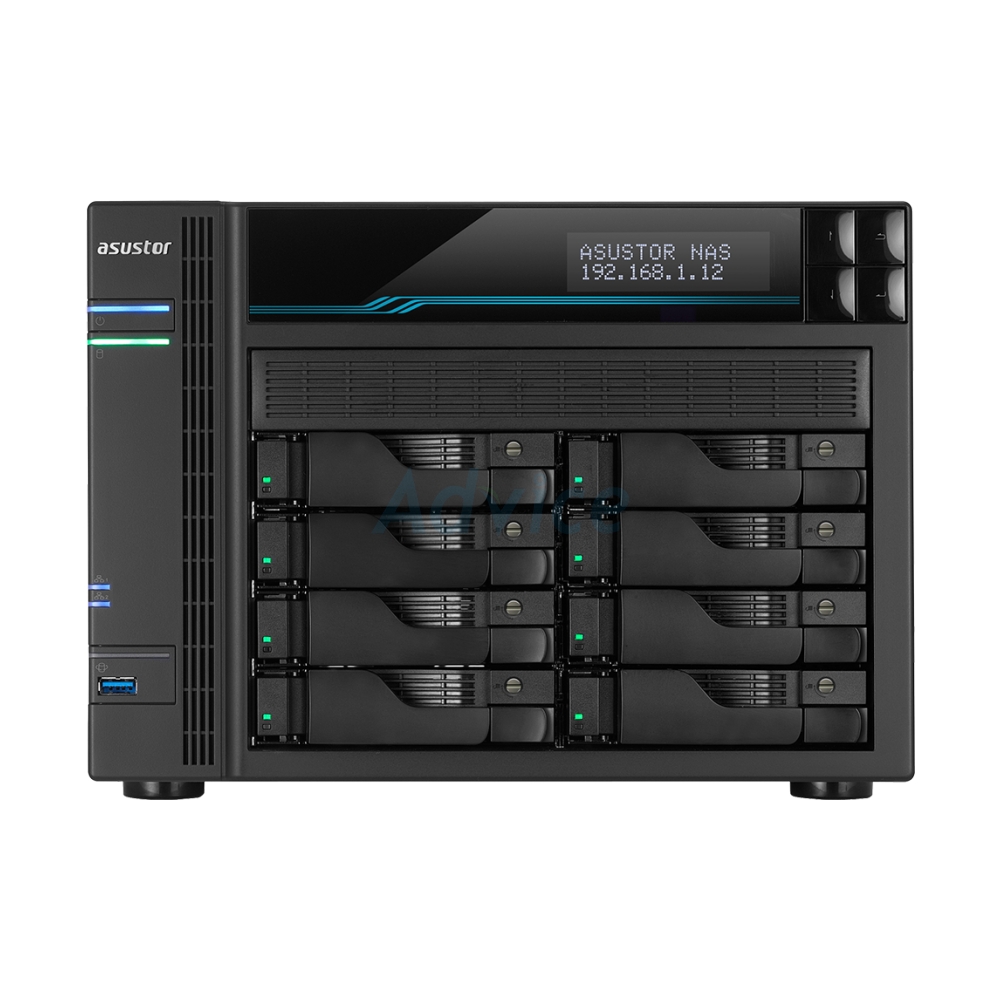

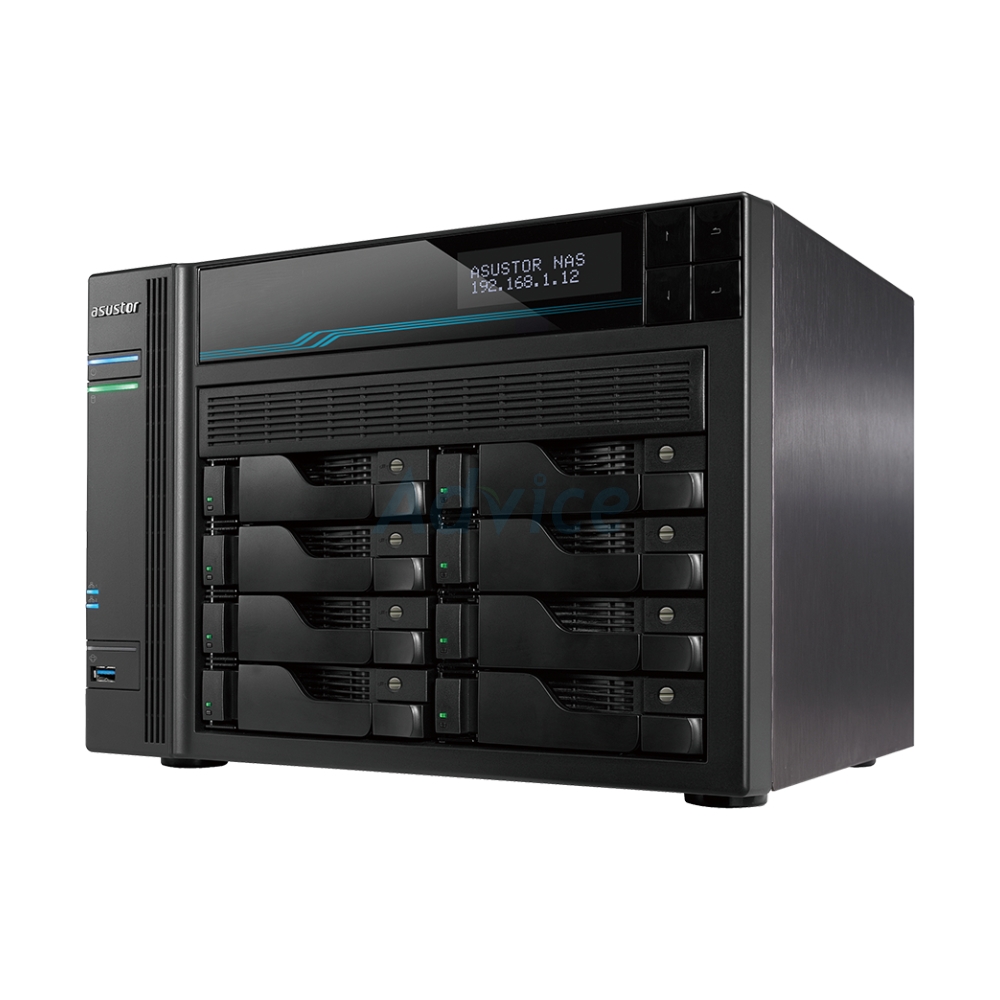

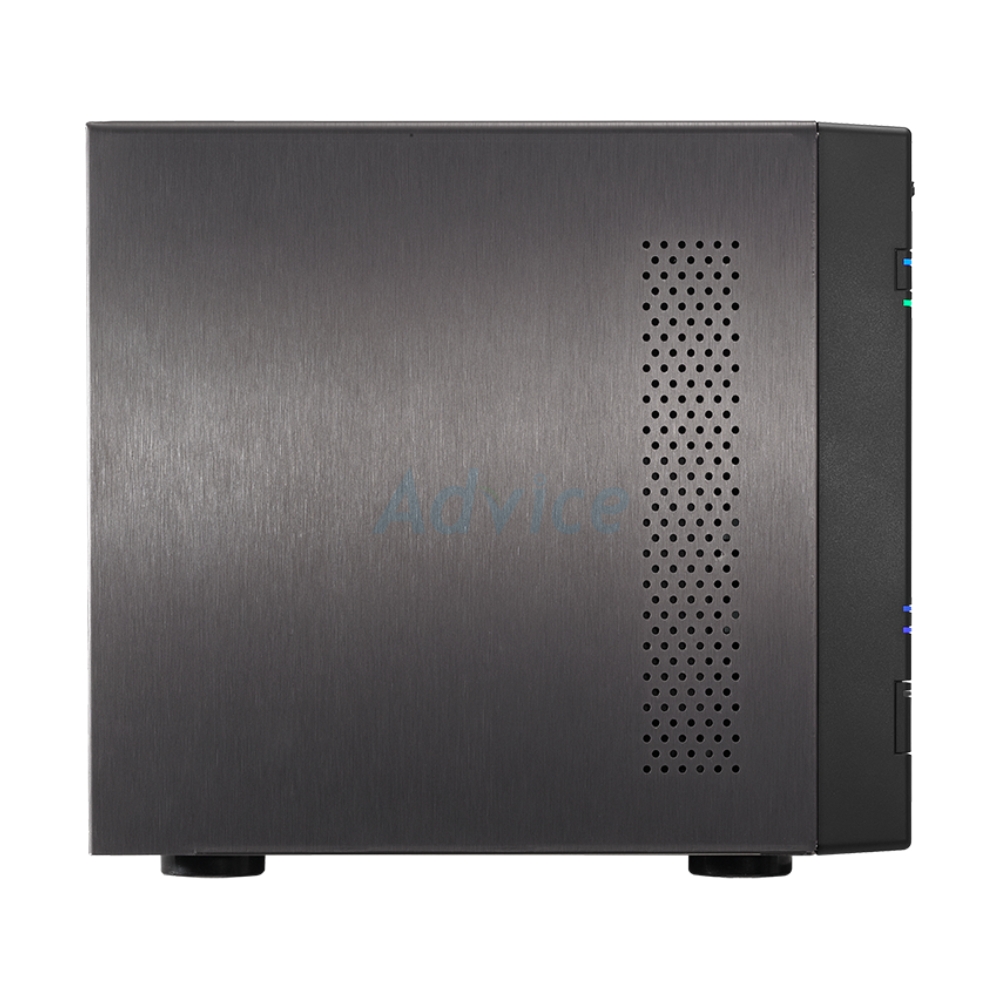

NAS Asustor (AST-AS6508T, Without HDD.)

AST-AS6508T

• CPU Model : Intel ATOM C3538
• CPU Architecture : x64 64-bit
• CPU Frequency : Quad-Core 2.1GHz

• ADM

• 8GB SO-DIMM DDR4

• Total Memory Slots : 2
• Memory Expandable up to : 64GB (2x 32GB)

• Drive Bays : 8
• M.2 Drive Slots : 2

• 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
• M.2 2280 NVMe, M.2 2280 SATA , M.2 2260 SATA 3, M.2 2242 SATA 3

• 2x USB 3.2 Gen 1

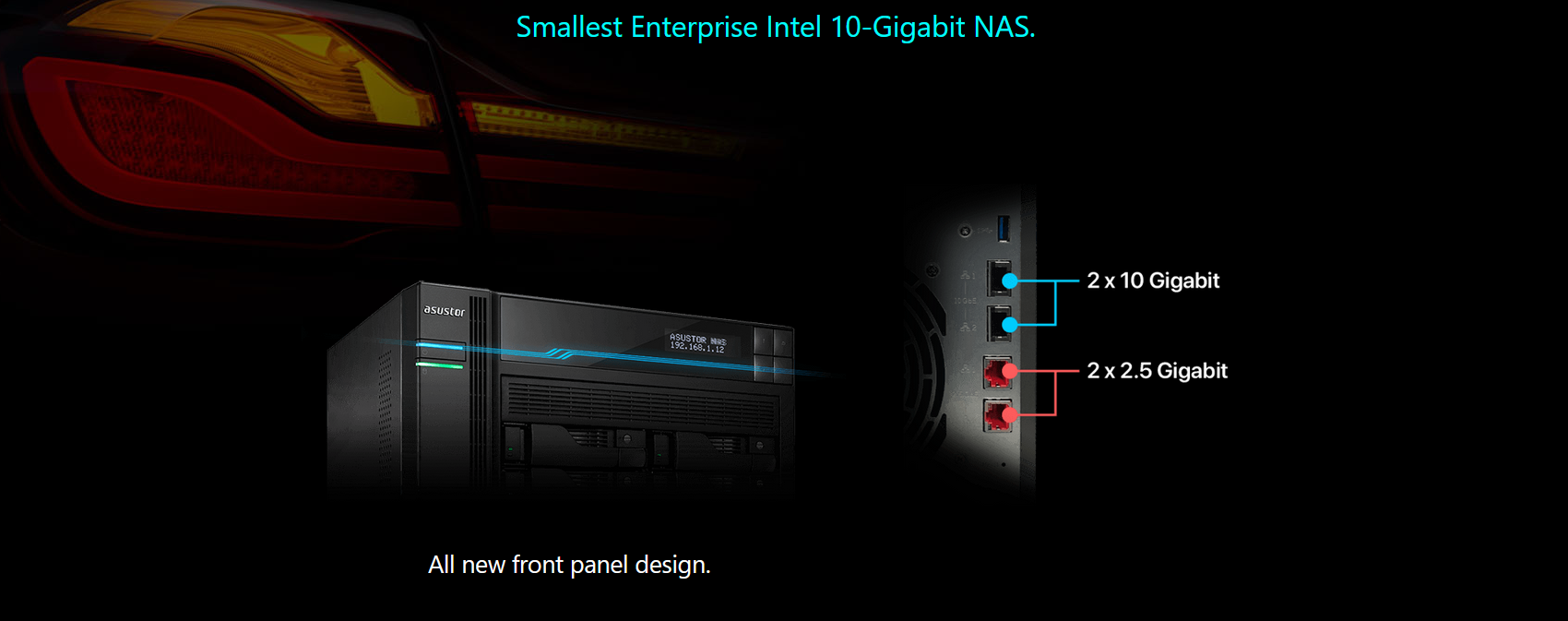

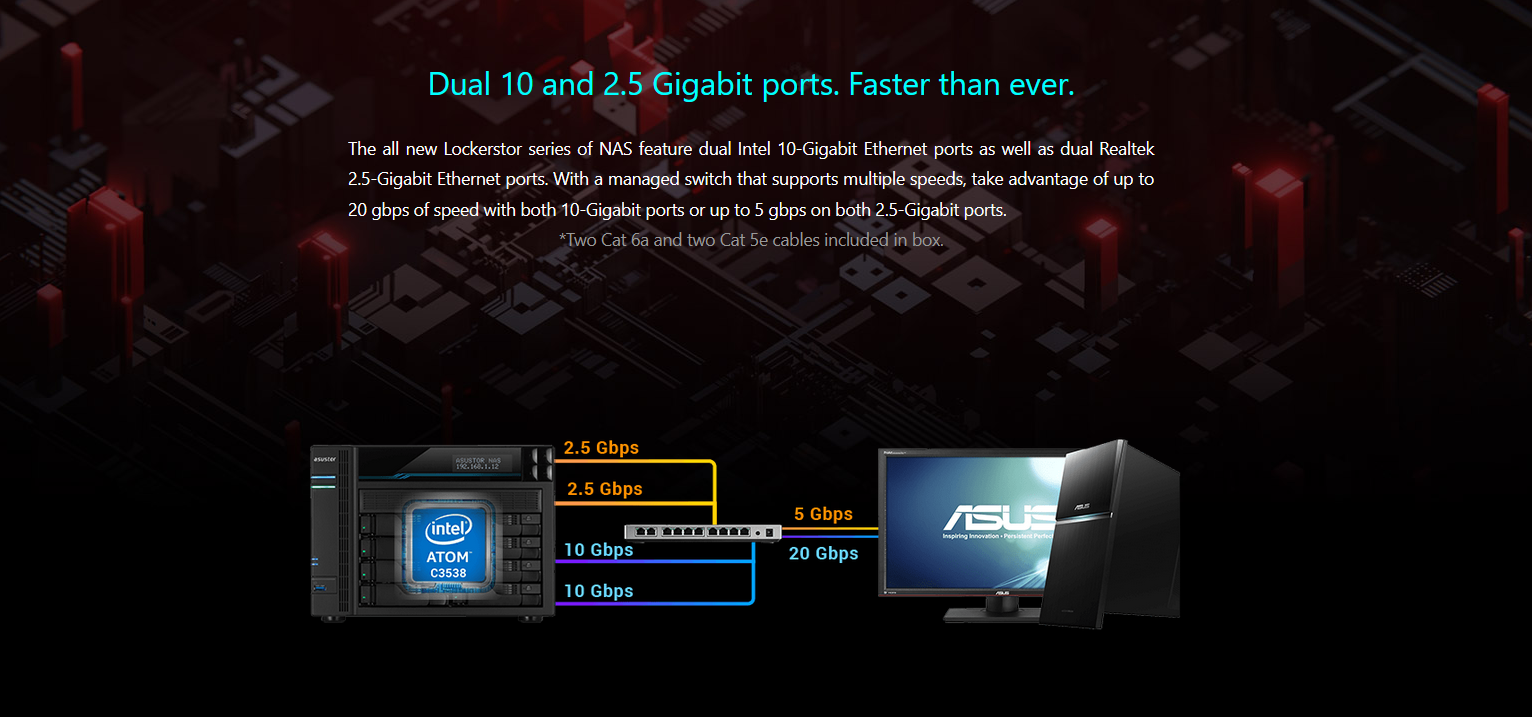

• 2x 10 Gigabit Ethernet(10G/1G)
• 2x 2.5 Gigabit Ethernet (2.5G/1G/100M)

• 8x SATA HDD
• 2x M.2 2280 NVMe PCIe 3.0 x2

N/A

• YES

N/A

N/A

• Single
• JBOD
• RAID 0
• RAID 1
• RAID 5
• RAID 6
• RAID 10

• AES 256-Bit Encryption
• Firewall: Prevent Unauthorized Access
• Alert Notifications: E-mail, SMS
• Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
• Built-in Hardware Encryption Engine
• RAID Scrubbing: detects the integrity and consistency of RAID 5 and RAID 6 drive data.

• Windows 10, 11, Server 2016, Server 2019, Server 2022
• macOS
• UNIX, Linux, and BSD

• Web-based File Management
• ISO File Mounting
• Share Links
• Task Monitor
• Browse Files on Local PC
• Thumbnail Previews
• Data Access via External Optical Drive
• Supports video playback

• Internal Disk: EXT4 ,Btrfs
• External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs

• SMB/CIFS
• AFP
• NFS
• FTP
• FTPS
• SFTP
• WebDAV
• iSCSI/IP-SAN
• Rsync

N/A

• รองรับ Harddrive SATA ขนาด 3.5" 8 ลูก
• รองรับได้เพิ่มเติม 128TB ด้วย AS6004U
• รองรับ Wake on LAN และ Wake on WAN

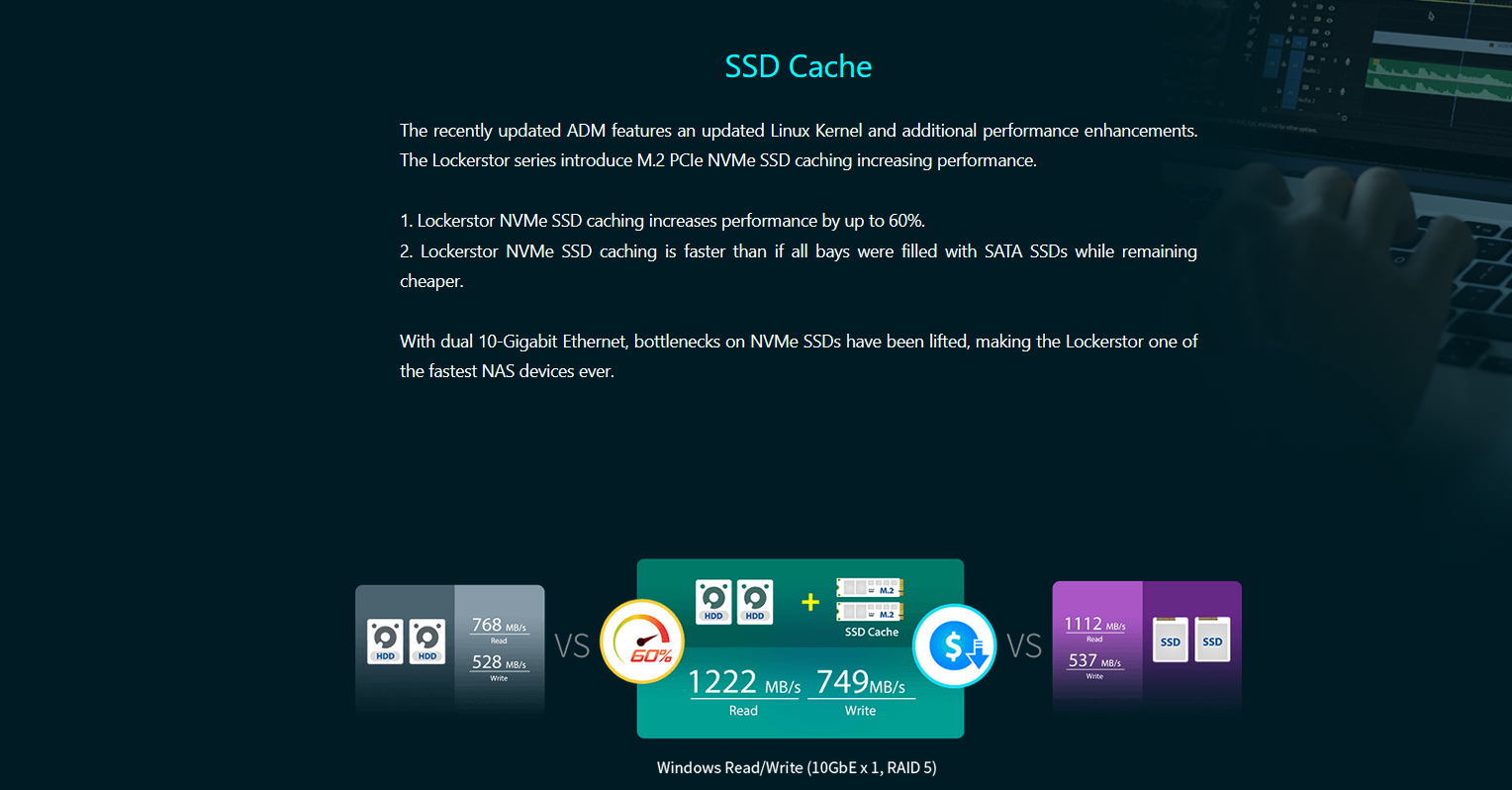

• ติดตั้ง M.2 NVMe SSD ได้สองช่อง สำหรับการทำ SSD Caching เพื่อเพิ่มประสิทธิภาพ

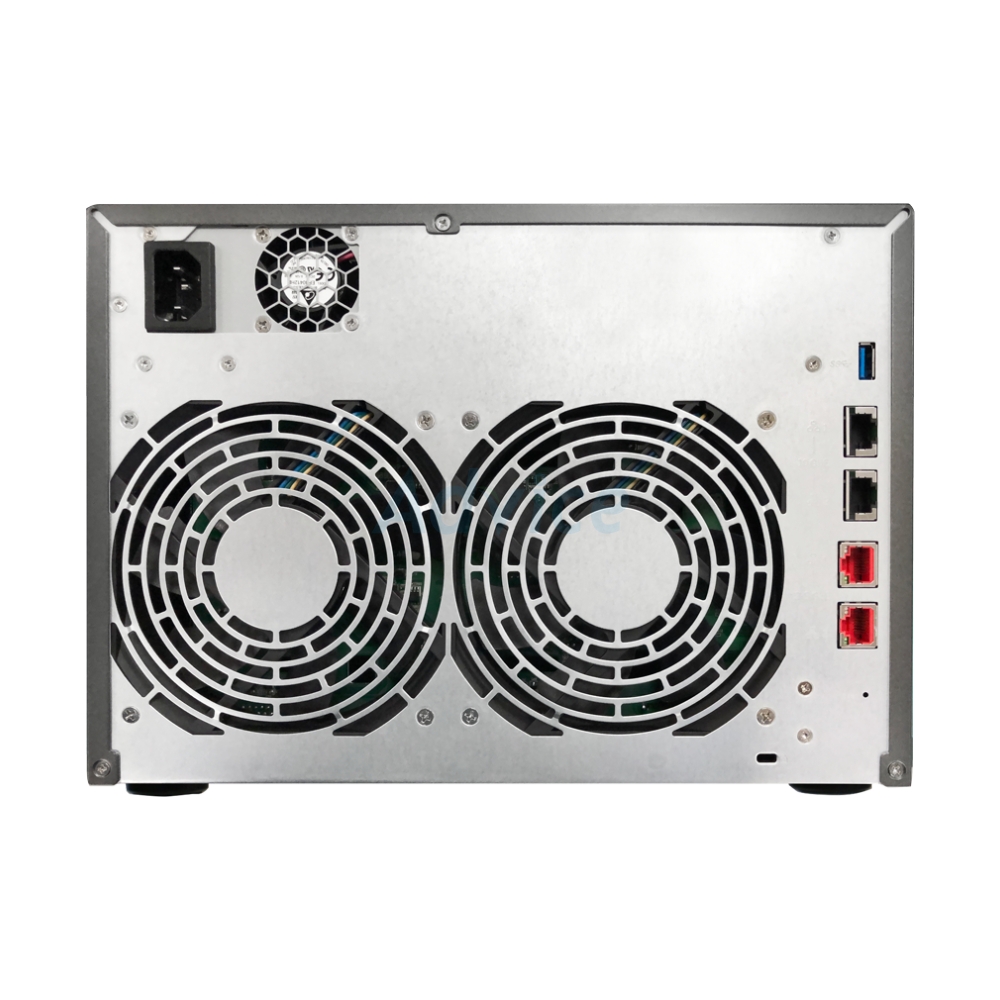

• 2x 120mm

• 100V to 240V AC

• 66.9W (Operation)
• 37.2W (Disk Hibernation)

• Operation Temperature : 0°C~40°C (32°F~104°F)
• Storage Temperature : -20°C~70°C (-4°F~158°F)
• Humidity : 5% to 95% RH

• FCC, CE, VCCI, BSMI, C-TICK

• 1x AS6508T Unit
• 1x AC Power Cord
• 2x RJ-45 LAN Cable(Cat 5e)
• 2x 10GbE LAN Cable(Cat 6a)
• 32x Flat Head Screw (for 3.5" HDD)
• 32x Flat Head Screw (for 2.5" HDD)

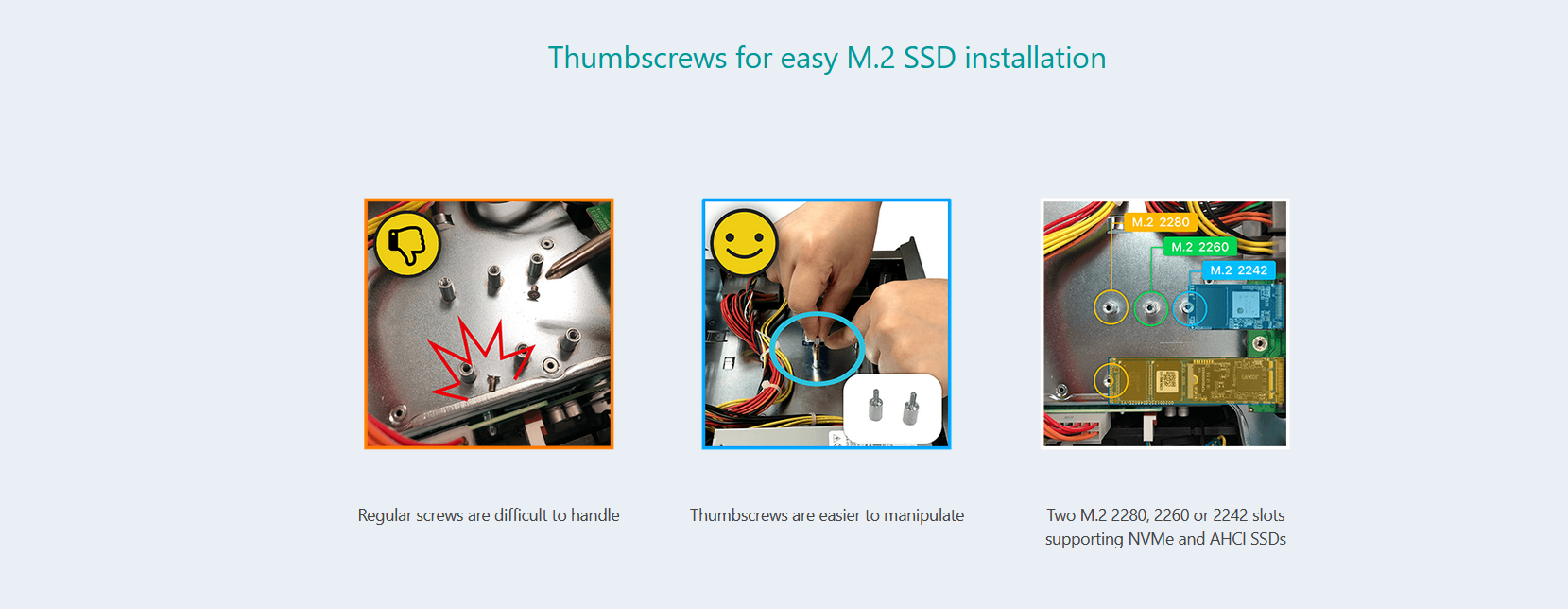

• 2x M.2 thumbscrews
