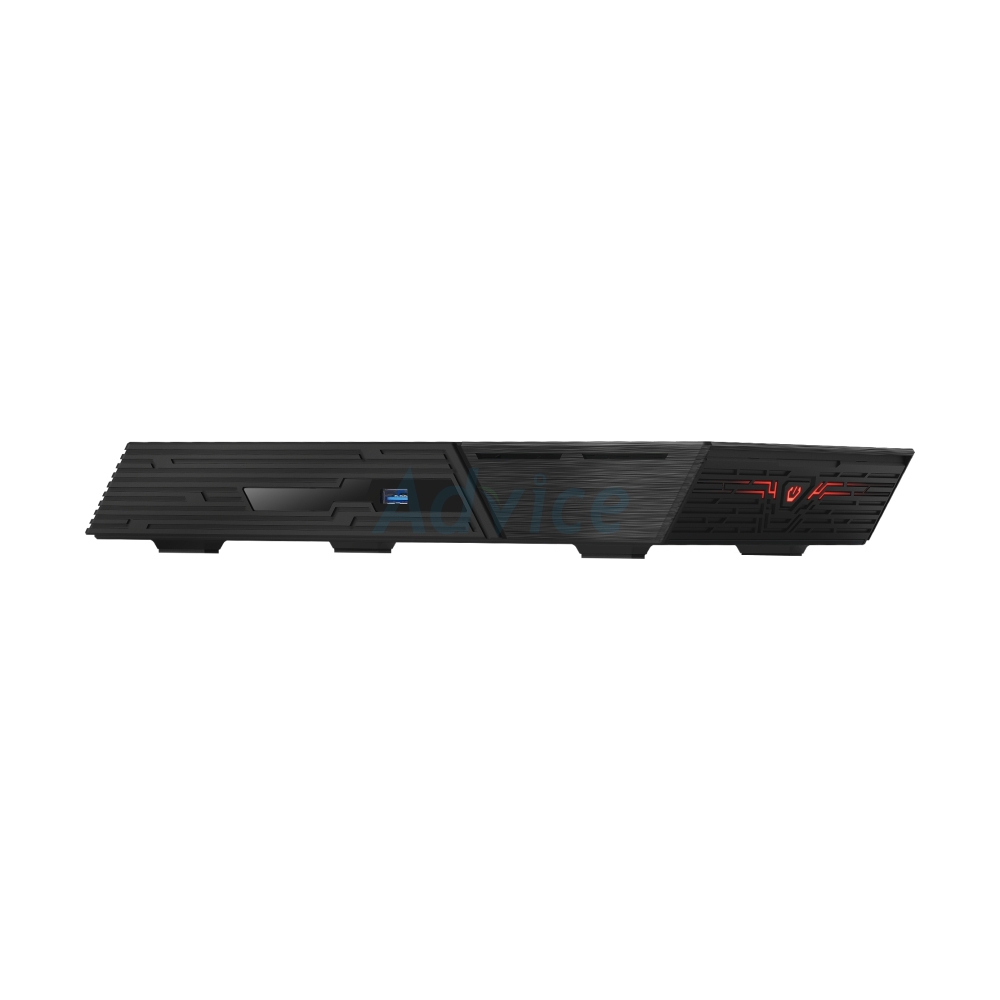

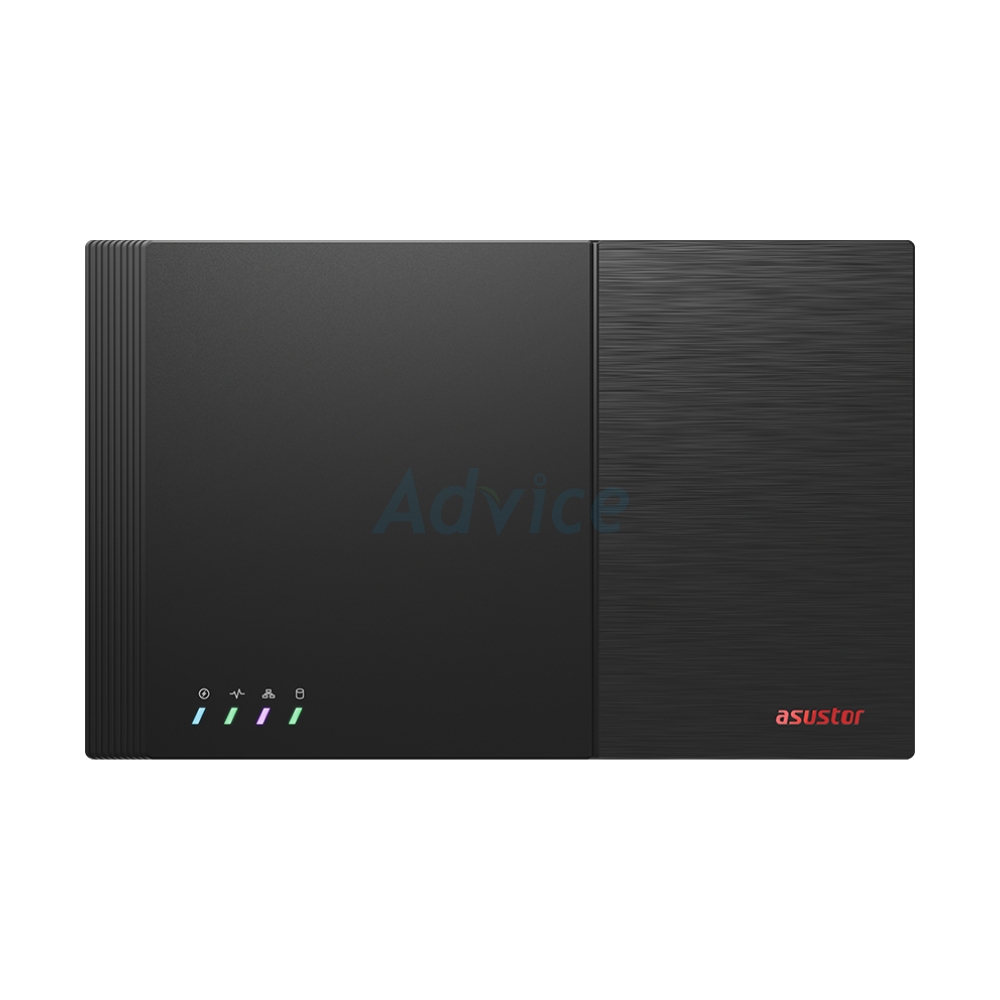

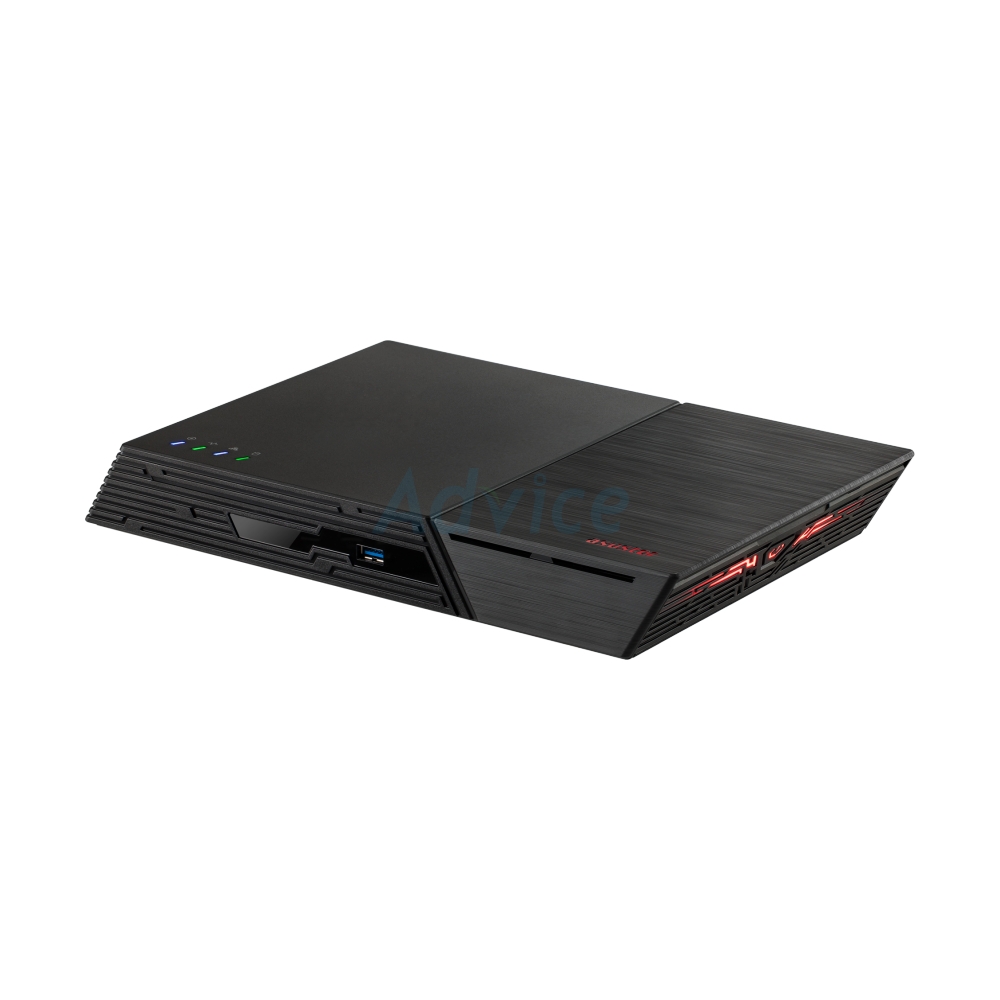

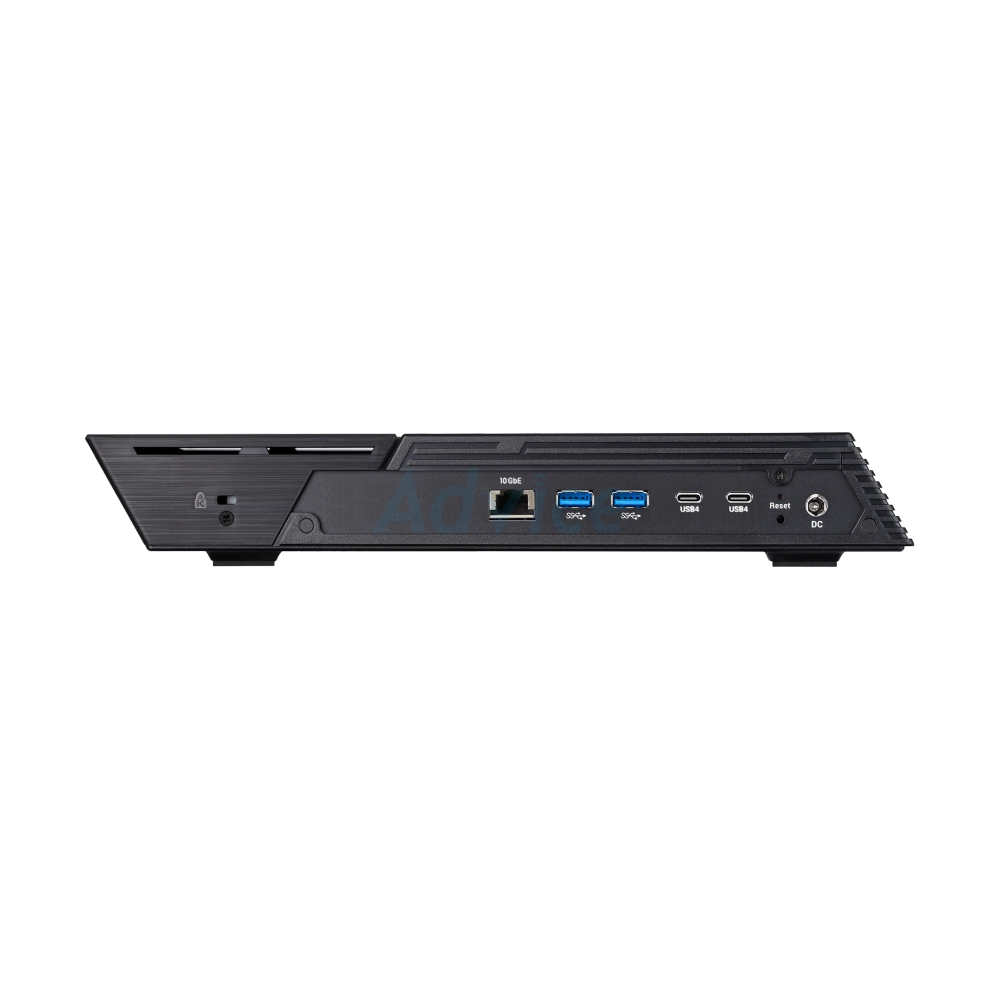

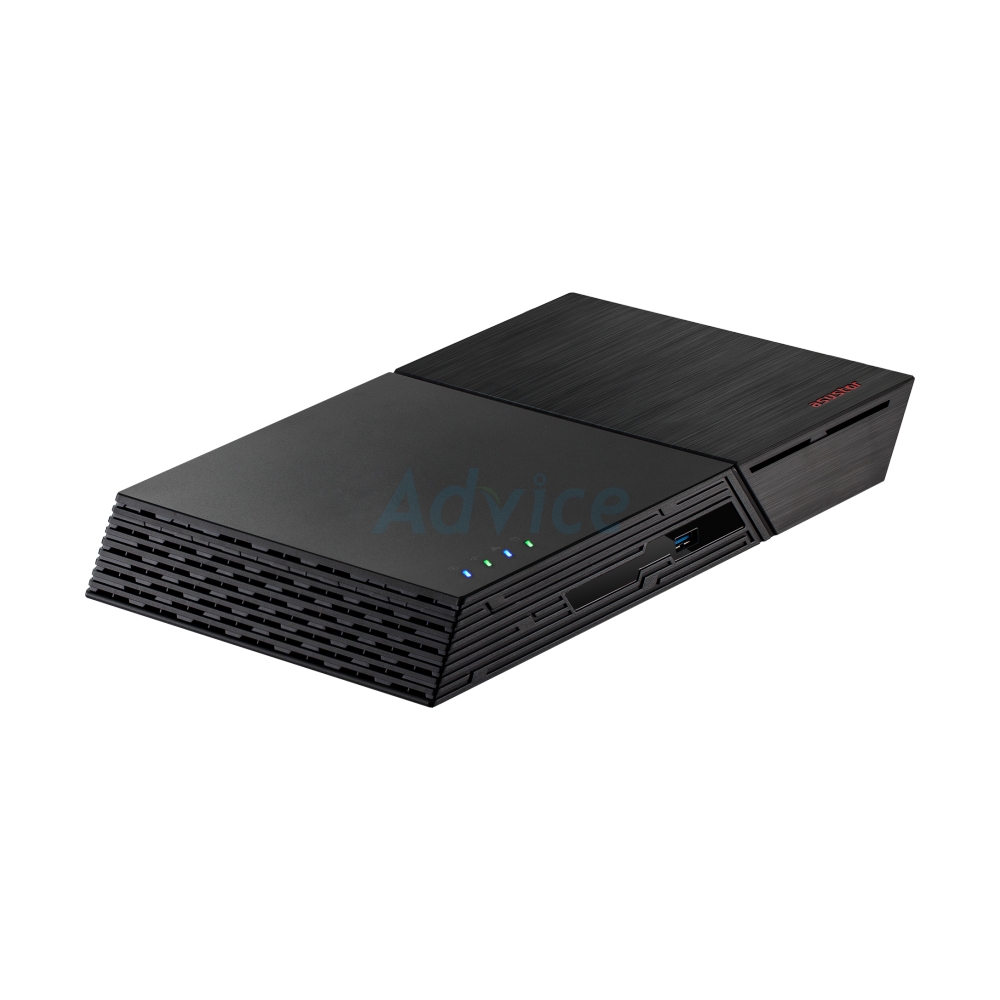

NAS Asustor (AST-FS6806X, Without HDD.)

AST-FS6806X

• Quad-Core 2.3GHz (burst up 3.80 GHz)

• ADM

• 8GB DDR5-4800 SO-DIMM

• Total Memory Slots : 2
• Memory Expandable up to : 64GB

• 6

• 6x  M.2 2280 NVMe

• 3x USB 3.2 Gen 2 ( 10Gbps ) Type-A
• 2x USB4 ports (20Gbps per channel, 40Gbps per port)

• 1x 10 Gigabit Ethernet (10G/2.5G/1G/100M)

• 1x PCIe 4.0 x4
• 3x PCIe 4.0 x2
• 2x PCIe 4.0 x1

NONE

N/A

N/A

N/A

• Single
• JBOD
• RAID 0
• RAID 1
• RAID 5
• RAID 6
• RAID 10

• AES 256-Bit Encryption
• Firewall: Prevent Unauthorized Access
• Alert Notifications: E-mail, SMS
• Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH
• Built-in Hardware Encryption Engine: AS10/11/31/32/33/40/52/53/54/6/61/62/63/64/65/66/67/70/71/FS67 Series
• RAID Scrubbing: detects the integrity and consistency of RAID 5 and RAID 6 drive data.

• Windows 10, 11, Server 2016, Server 2019, Server 2022
• macOS
• UNIX, Linux, and BSD

• Web-based File Management
• ISO File Mounting
• Share Links
• Task Monitor
• Browse Files on Local PC
• Thumbnail Previews
• Data Access via External Optical Drive
• Supports video playback

• Internal Drive: EXT4 ,Btrfs
• External Drive: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs

• SMB / CIFS
• AFP
• NFS
• FTP และ FTPS
• SFTP
• WebDAV
• iSCSI / IP-SAN

N/A

• เน้นความเร็วสูงสุด และ ความเสถียรระดับองค์กร เหมาะสำหรับงาน 4K/8K Editing และ Virtualization

• 1x 80mm

• 100V to 240V AC

• 17.9 W (Operation)
• 1.2 W (Sleep Mode)

• Operation Temperature : 0°C~40°C (32°F~104°F)
• Storage Temperature :  -20°C~70°C (-4°F~158°F)

• FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA

• 1x AST-FS6806X Unit
• 1x AC Power Cord
• 1x AC Power Adapter
• 2x 10GbE LAN Cable(Cat 6a)
• Power Cord Tie
• Quick Installation Guide
