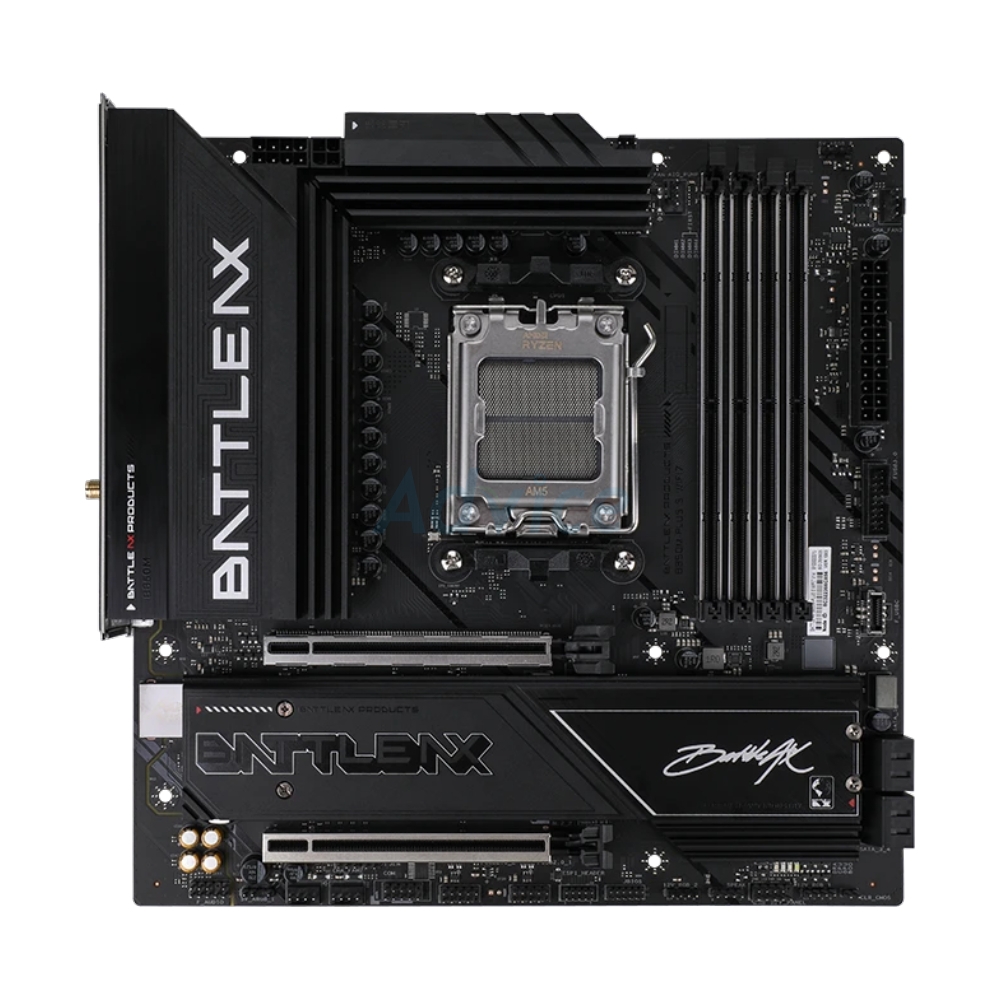

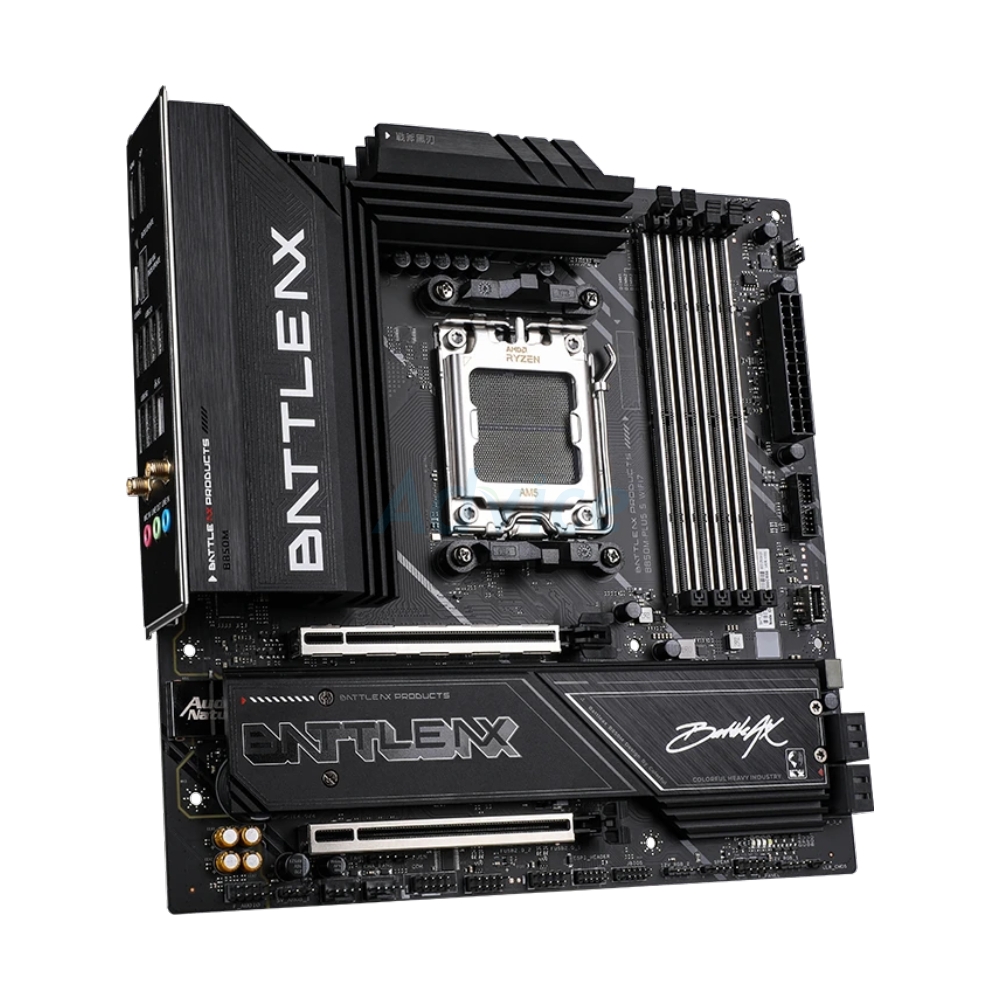

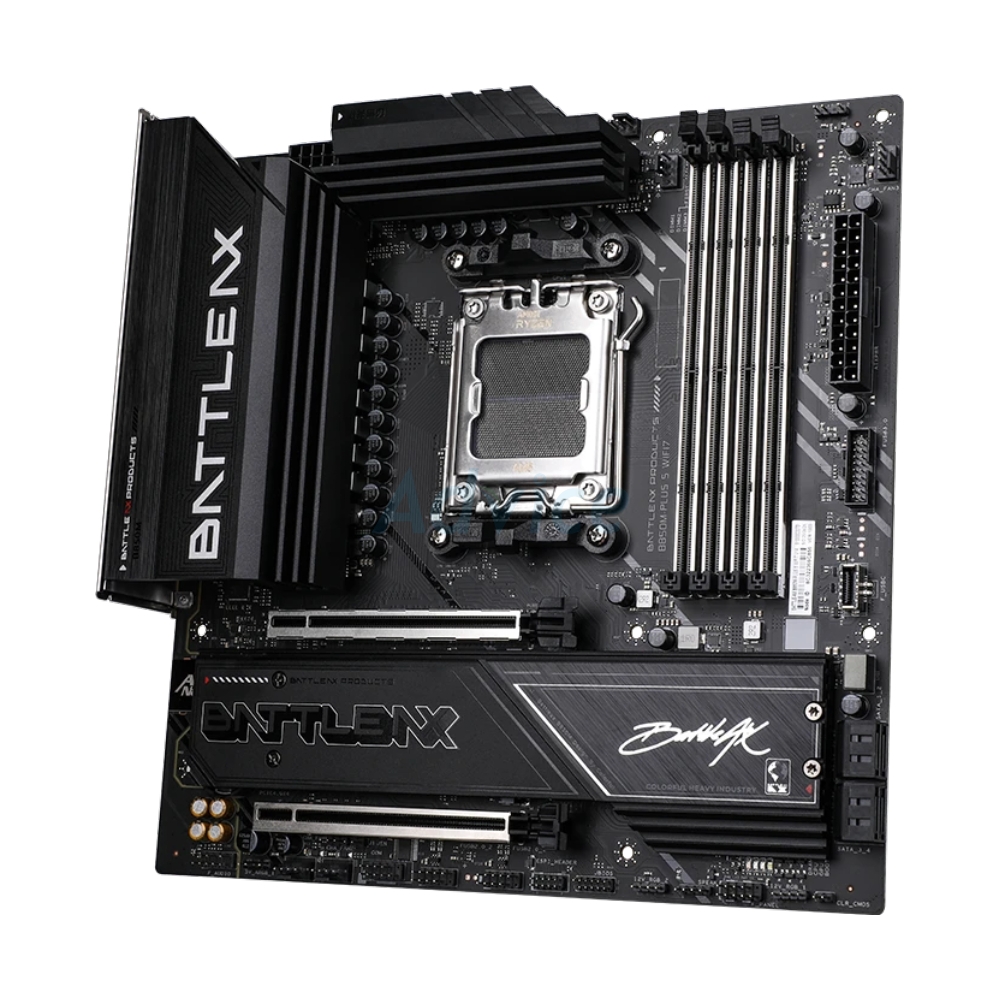

MAINBOARD (AM5) COLORFUL BATTLE-AX B850M-PLUS S WIFI7 V14 DDR5

BATTLE-AX B850M-PLUS S WIFI7 V14

Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard
(*Please visit the Colorful official website www.colorful.cn for the latest processor support list)

AMD

AM5

AMD B850

4 DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory)

- Support DDR5-8000 (OC)/7800 (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400(OC)/5200 (OC)/5000MHz memory

- Support Extreme Memory Profile (XMP) memory technology
- Support EXtended Profiles for Overclocking (EXPO) memory technology
- Supports dual channel memory technology

(* Please visit www.colorful.cn for the latest memory compatibility list)

8000

1 x DP 1.2 interface, supporting up to 4K 60Hz resolution
1 x HDMI 1.4 interface, supporting up to 4K 30Hz resolution

N/A

Realtek ALC897 high fidelity decoding chip, Support up to 5.1 channels

1 × PCIe 5.0 x16 slot
1 × PCIe x16 slot (supports PCIe 4.0 x4 specification)

PCIe 5.0

2 x M.2 slots and 4 x SATA 6Gb/s hard disk interfaces in total, supports creating RAID 0, RAID 1, RAID 10 disk arrays with SATA or M.2 NVMe hard disk devices

1 x M.2_1 slot: supports 2242/2280 specification M.2 SSD (PCIe 5.0/4.0 x4, CPU channel)
1 x M.2_2 slot: supports 2242/2260/2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel)

(*Whether PCIe 5.0 is supported depends on the CPU of the motherboard)

4 x SATA 6Gb/s hard disk interfacesPCIe 5.0

NVMe

2

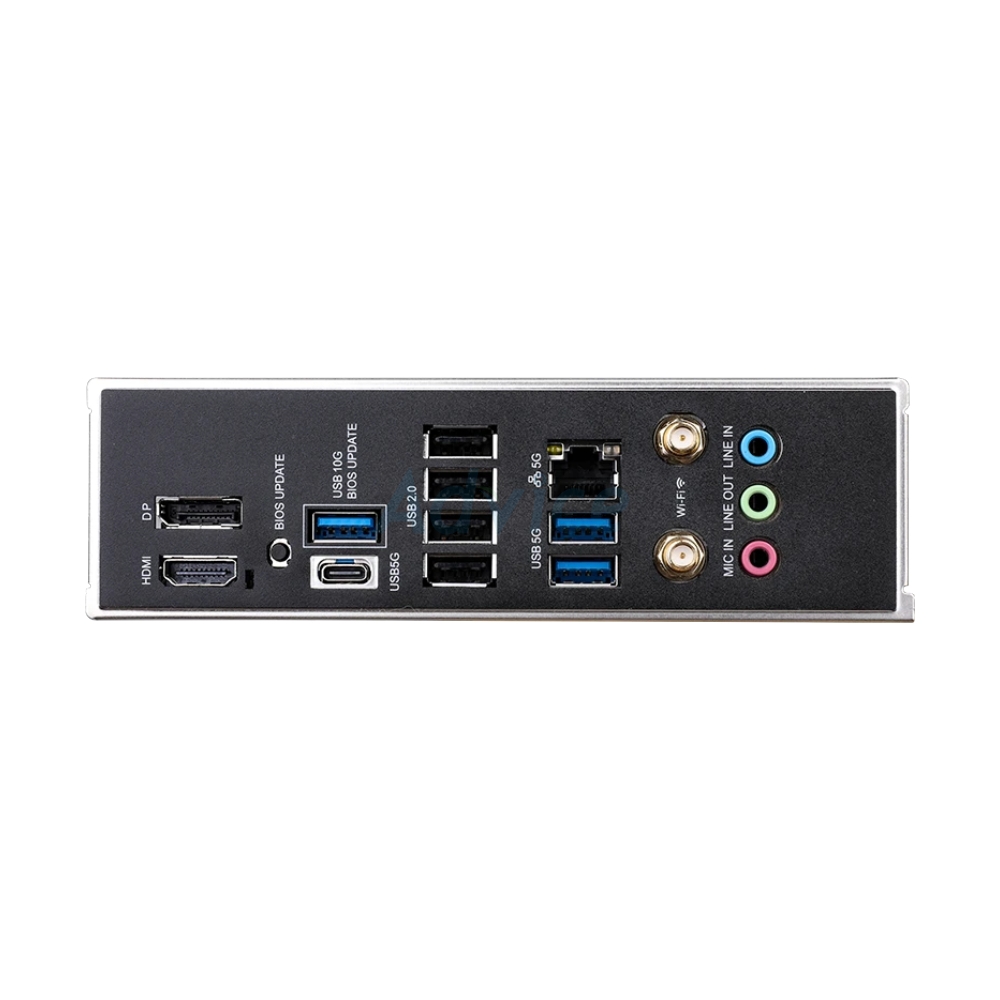

Back Panel
4 × USB 2.0 interfaces
2 × USB 3.2 Gen 1 5Gbps Type-A interfaces
1 × USB 3.2 Gen 2 10Gbps Type-A interface
1 × USB 3.2 Gen 1 5Gbps Type-C interface

Internal
2 × USB 2.0 pins can be expanded to 4 USB 2.0 Type-A interfaces
1 × USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A port
1 x USB 3.2 Gen 1 Type-C slot can be expanded 1 USB 3.2 Gen 1 Type-C port

1 × CPU fan pin
3 × System fan pins
1 × Water cooling pump pin
2 × USB 2.0 pins can be expanded to 4 USB 2.0 Type-A interfaces
1 × USB 3.2 Gen 1 pin can be expanded to 2 USB 3.2 Gen 1 Type-A port
1 x USB 3.2 Gen 1 Type-C slot can be expanded 1 USB 3.2 Gen 1 Type-C port
2 × 5V 3-pin ARGB pins
2 × 12V 4-pin RGB pins
1 × Front audio pin
1 × Front panel pin
1 × Speaker pin
1 × COM port pin
1 × Clear CMOS jumper
1 × BIOS burner pin
1 × POST card pin

4 × USB 2.0 interfaces
2 × USB 3.2 Gen 1 5Gbps Type-A interfaces
1 × USB 3.2 Gen 2 10Gbps Type-A interface
1 × USB 3.2 Gen 1 5Gbps Type-C interface
1 × DP 1.2 interface, supporting up to 4K 60Hz resolution
1 × HDMI 1.4 interface, supporting up to 4K 30Hz resolution
1 × 5G network interface
2 × Wi-Fi 7 antenna interfaces
1 × BIOS update button
3 ×Audio interfaces (audio input/audio output/microphone)

5 Gb network (RTL8126-CG)

MT7925 WiFi 7 wireless network card, Bluetooth 5.4

- Wi-Fi functionality may vary depending on the operating system.
- For Windows 11, Wi-Fi 7 requires version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
- For Windows 10, please note that no drivers are available. For more information, refer to the Wi-Fi chipset vendor's website.
- Wi-Fi 6GHz frequency band and bandwidth regulations may vary by country/region.
- Bluetooth® versions are subject to change; please refer to the Wi-Fi module manufacturer's website for the latest instructions.

Micro ATX

CPU fan speed controllable, system fan speed controllable
CPU temperature monitoring, System temperature monitoring, and each group voltage monitoring

256M UEFI, support multiple languages

Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot

N/A

Windows 11

N/A
