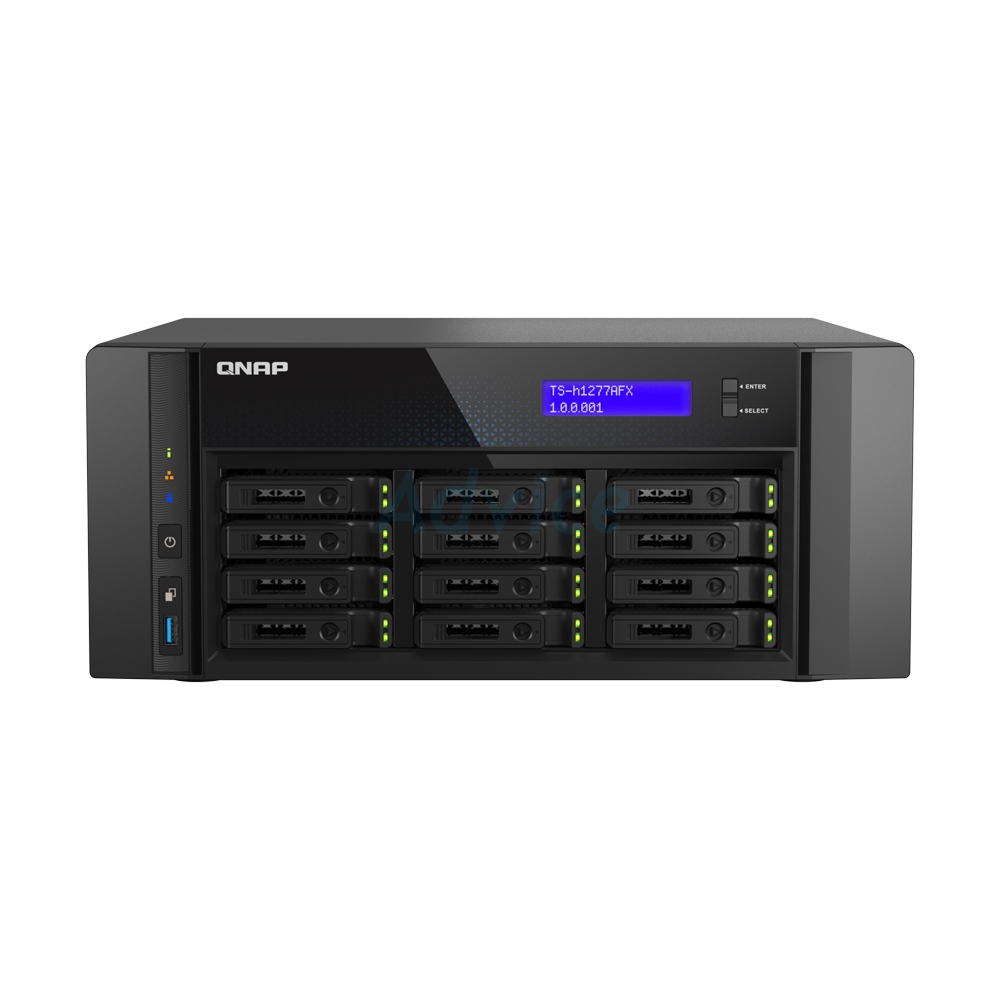

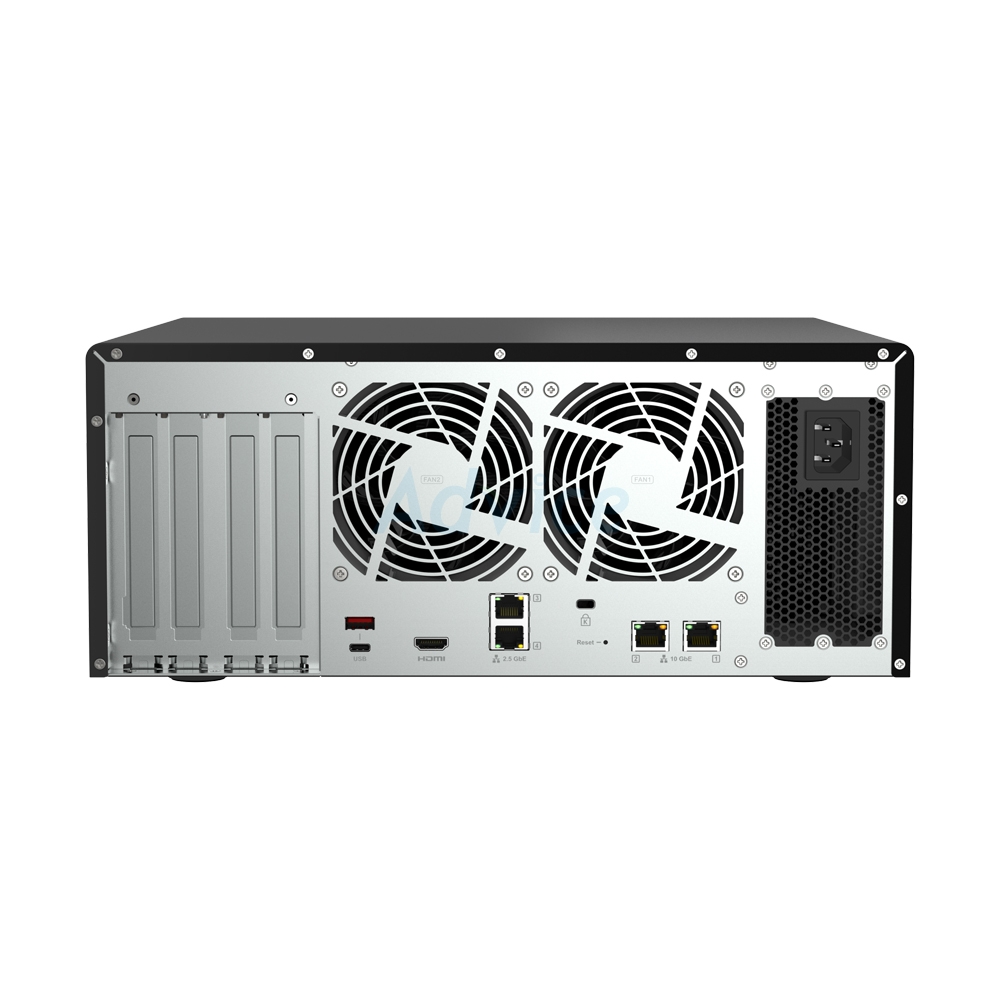

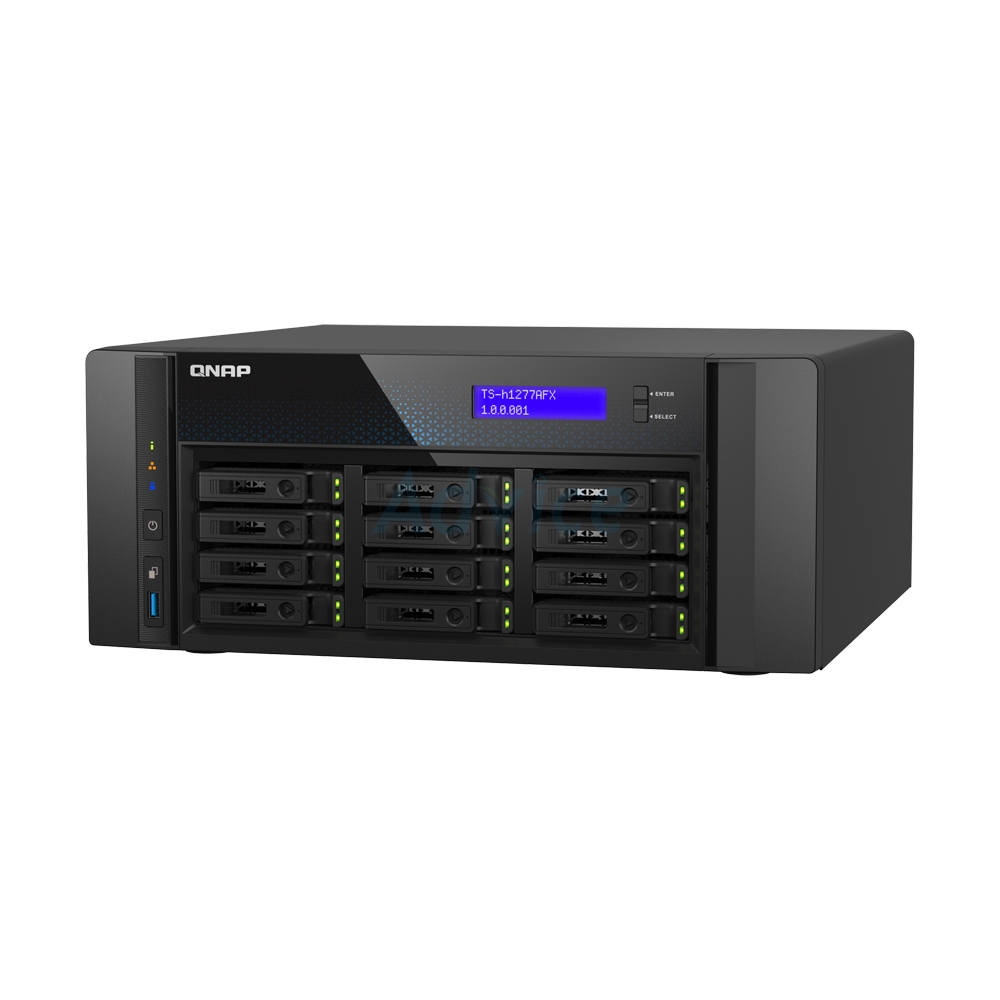

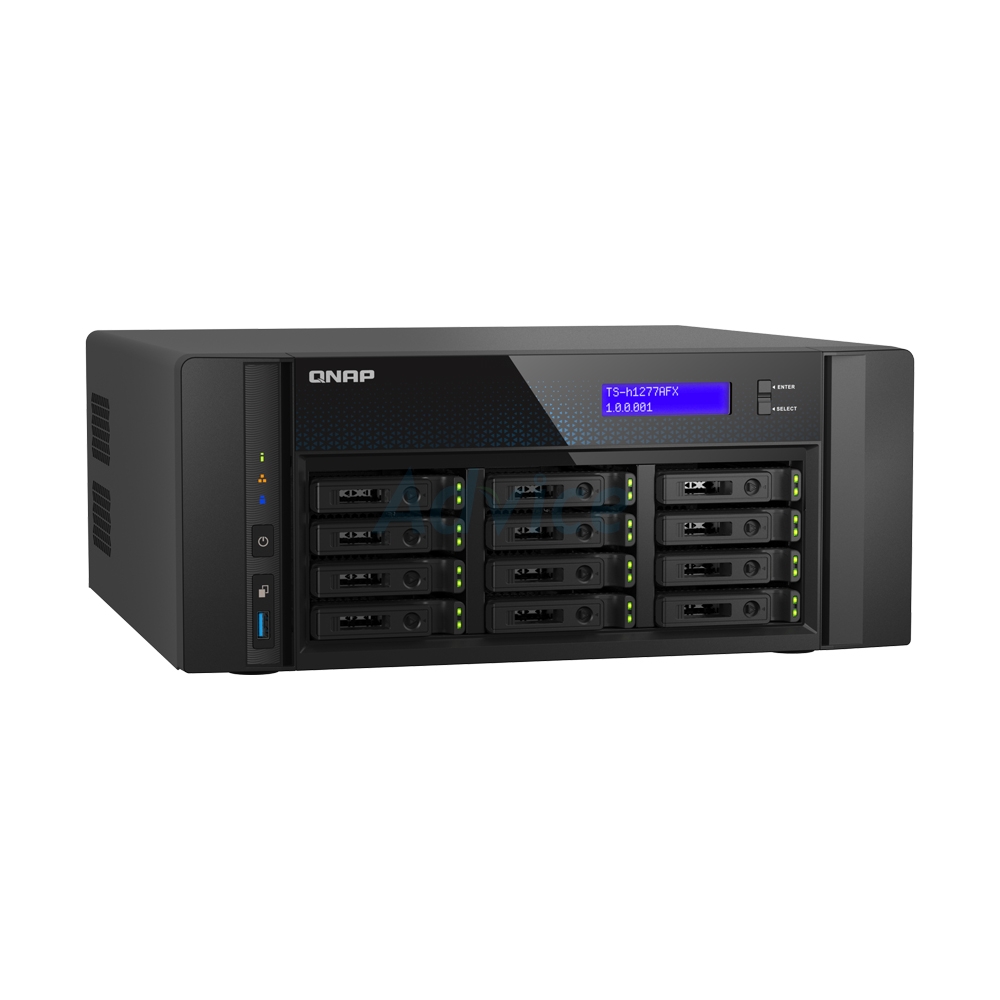

NAS QNAP (TS-h1277AFX-R7-32G, Without HDD.)

TS-h1277AFX-R7-32G

• AMD Ryzen™ 7 9000 Series 8C/16T 3.8 GHz, up to 5.5 GHz
• CPU Architecture : 64-bit x86
• Graphic Processors : AMD Radeon iGPU

• QTS

• 32 GB UDIMM DDR5 ECC

• 4x DDR5 UDIMM
• Maximum Memory : 192 GB (4 x 48GB)

• 12

• 12x 2.5" SATA 6Gb/s

• 2x USB 3.2 (1x Type-C with DPI included , 1x Type-A) (10Gb/s)
• 1x USB 3.2 Gen 1 port

• 2x (2.5G/1G/100M/10M)
• 2x 10GBASE-T (10G/5G/2.5G/1G/100M)

• 2x M.2 2280 PCIe Gen 5 x2
• 3x PCIe Gen 4 x 4 (Slot 3 Gen 4 x 8 )
• 1x HDMI™ 1.4b ( up to 3840 x 2160 @ 30Hz )

NONE

• Power/Status, LAN, USB, SSD1-12

• Power, Reset, USB Auto Copy

N/A

• 8-bay (and more): Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, 60, Triple Mirror, Triple Parity
• 6-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, 50, Triple Mirror, Triple Parity
• 4-bay: Single, RAID 0 (Stripe), 1, 5, 6, 10, Triple Mirror, Triple Parity
• 3-bay: Single, RAID 0 (Stripe), 1, 5, Triple Mirror, Triple Parity
• 2-bay: Single, RAID 0 (Stripe), 1

• Domain Security
• Security Counselor

• Apple Mac OS 10.10 or later
• Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
• IBM AIX 7, Solaris 10 or later UNIX
• Microsoft Windows 7, 8, 10, and 11
• Microsoft Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019, 2022, and 2025

• User customization, Central

• File sharing across Windows, Mac, and Linux/UNIX
• Microsoft networking (CIFS/SMB)
• Apple networking (AFP)
• NFS version 2/3/4/4.1 services

N/A

N/A

• หน่วยความจำ DDR5
• 3x PCIe Gen 4 Expansion
• Dual 2.5GbE & Dual 10GBASE-T Multi-Gig
• GPU ในตัวสำหรับกราฟิก

• 2x 92mm, 12VDC

• Minimum 500W, 100-240V

• Power Consumption: Disk Standby Mode : 69.01 W
• Power Consumption: Operating Mode, Typical : 102.54 W

• Operating Temperature : 0 - 40 °C (32°F - 104°F)
• Storage Temperature : -20 - 70°C (-4°F - 158°F)

N/A

• 1x TS-h1277AFX
• 1x Ethernet Cable
• 1x 10GBASE-T Ethernet cable
• 1x Power Cord
• 48x Flat head screw (for 2.5" HDD)
• 2x Drive tray keys
• Quick Installation Guide (QIG)
