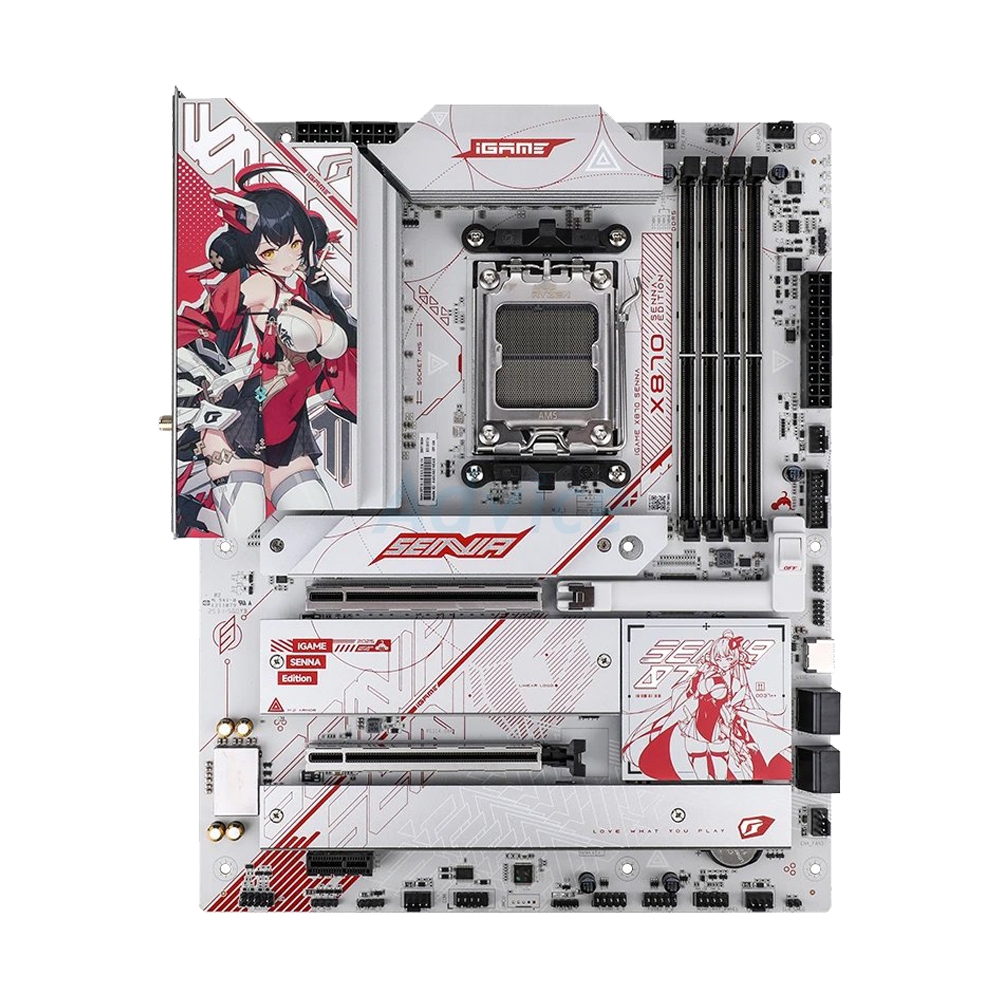

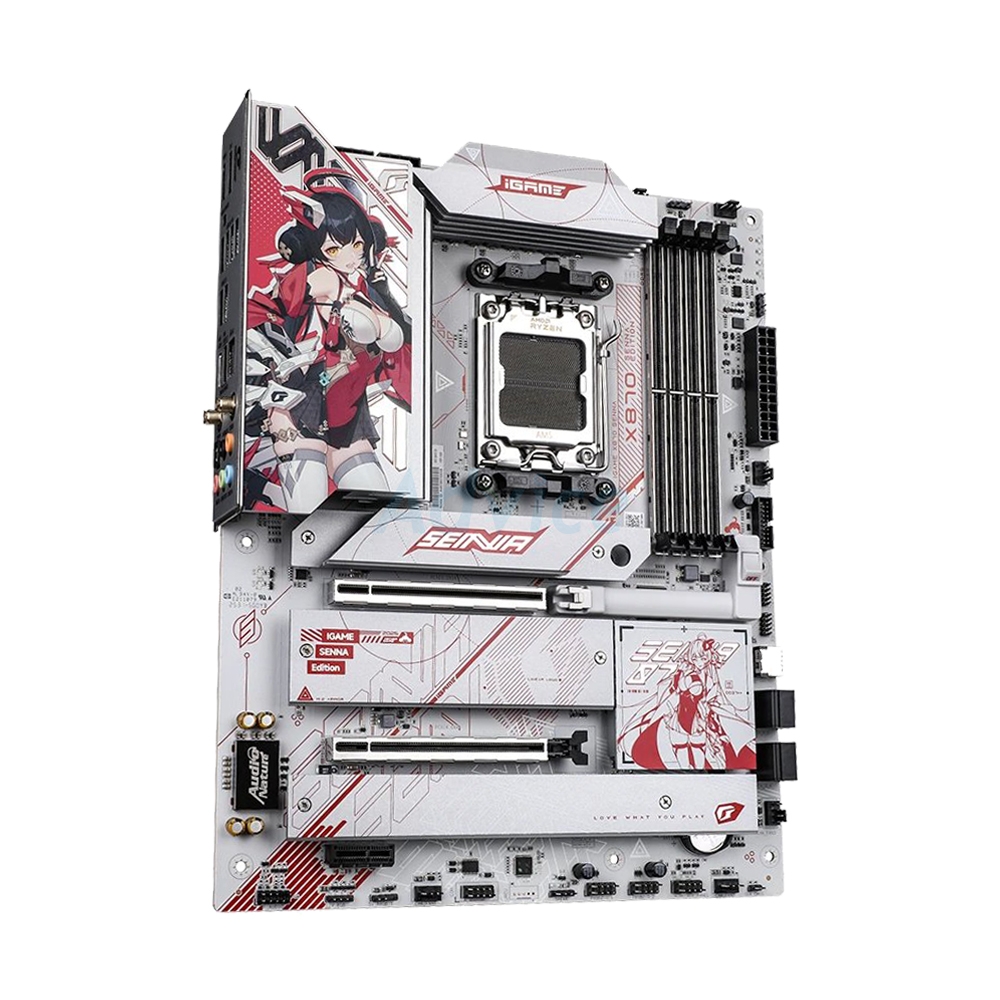

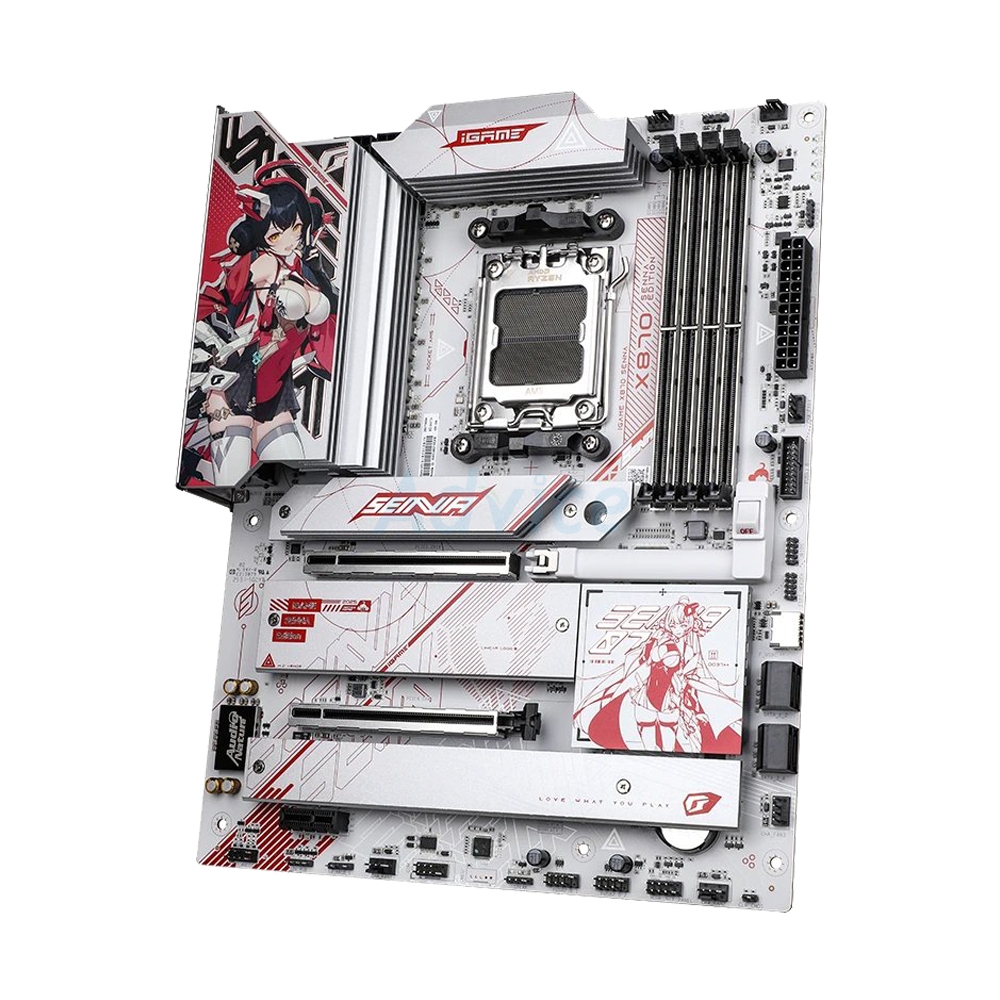

MAINBOARD (AM5) COLORFUL IGAME X870 SENNA V14 DDR5
- Support CPU : AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
- Form Factor : ATX
- Chipset : AMD X870 Chipset
- Memory Channel : Dual Channel DDR5 4DIMM
- Memory Support : up to 8200(O.C.)
- Memory MAX : 192GB
- M.2 Slot : 3 slots
- SATA III 6G : 4 ports
- PCIe 5.0x16 : 1 slot
- Lan Port : 5 Gigabit LAN
- Wireless : Wi-Fi 7
- The iGame series features a custom Senna heatsink with a full-cover condenser for enhanced heat dissipation.
- Features a 14+2+1 phase enhanced power design (Dr MOS 80A).
- Supports iGame Center lighting control software for simultaneous adjustment of radiator, fan, and memory lighting.
- The I/O backplane supports one-click BIOS upgrades.
ข้อมูลผลิตภัณฑ์
IGAME X870 SENNA V14 DDR5
Supports AMD Ryzen 7000/8000/9000 series processors that fit the AMD AM5 slot of the motherboard
(*Please visit the Colorful official website www.colorful.cn for the latest processor support list)
AMD
AM5
AMD X870
4 x DDR5 memory sockets are provided, which can support up to 192 GB of memory (a single socket can support up to 48 GB of memory)
- Support DDR5-8200 (OC)/8000 (OC)/7800 (OC)/7600 (OC)/7400 (OC)/7200 (OC)/7000 (OC)/6800 (OC)/6600 (OC)/6400 (OC)/6200 (OC)/6000 (OC)/5800 (OC)/5600 (OC)/5400(OC)/5200 (OC)/5000MHz memory
- Support Extreme Memory Profile (XMP) memory technology
- Support EXtended Profiles for Overclocking (EXPO) memory technology
- Supports dual channel memory technology
(* Please visit www.colorful.cn for the latest memory compatibility list)
8200
1 x DP 1.2 interface, up to 4K 60Hz resolution
1 x HDMI 2.0 interface, up to 4K 60Hz resolution
None
Realtek ALC1220 high-fidelity decoding chip, supporting 7.1 channels
1 x PCIe 5.0 x16 slot
1 x PCIe x16 slot (supports PCIe 4.0 x4 specification)
1 x PCIe 3.0 x1 slot
(* When PCIe 4.0 x4 slot is connected to a device, M.2.3 slot will be shielded)
PCIe 5.0
3 x M.2 slots interfaces
- M.2_1 slot: Supports 2242/2260/2280/22110 M.2 SSDs (PCIe 5.0/4.0 x4, CPU channel)
- M.2_2 slot: Supports 2242/2260/2280/22110 M.2 SSDs (PCIe 5.0/4.0 x4, CPU channel)
- M.2_3 slot: Supports 2242/2260/2280/22110 M.2 SSDs (PCIe 4.0 x4, Chipset channel)
(*When a device is connected to the PCIe 4.0 x4 slot, the M.2_3 slot will be blocked)
(*PCIe 5.0 support depends on the motherboard's CPU)
4 x SATA 6Gb/s hard drive
Supports creating RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using M.2 NVMe hard drives.
Ryzen 9000 Series: RAID 0/1/5/10
Ryzen 8000 Series: RAID 0/1
Ryzen 7000 Series: RAID 0/1/10
*Supported RAID configurations depend on the CPU paired with the motherboard.
NVMe
3
On board :
2 x USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces
1 x USB 3.2 Gen 1 Pin expandable with 2 USB 3.2 Gen 1 5Gbps Type-A interfaces
1 x USB 3.2 Gen 2 Type-C Slot expandable with 1 USB 3.2 Gen 2 10Gbps Type-C interface
Rear I/O:
2 x USB 2.0 interfaces
4 x USB 3.2 Gen 1 5Gbps Type-A interfaces
1 x USB 3.2 Gen 2 10Gbps Type-A interface
1 x USB 4 40Gbps Type-C interface (supports video output, up to 4K 60Hz resolution)
2 x USB 2.0 pins expandable 4 USB 2.0 Type-A interfaces
1 x USB 3.2 Gen 1 Pin expandable with 2 USB 3.2 Gen 1 5Gbps Type-A interfaces
1 x USB 3.2 Gen 2 Type-C Slot expandable with 1 USB 3.2 Gen 2 10Gbps Type-C interface
1 x CPU fan pin
4 x System fan pins
1 x Water-cooled pump pin
3 x 5V 3-pin ARGB pins
1 x 12V 4-pin RGB pin
1 x Front audio pin
1 x Front panel pin
1 x Speaker pin
1 x COM port pin
1 x Clear CMOS jumper
1 x BIOS burner pin
1 x POST card pin

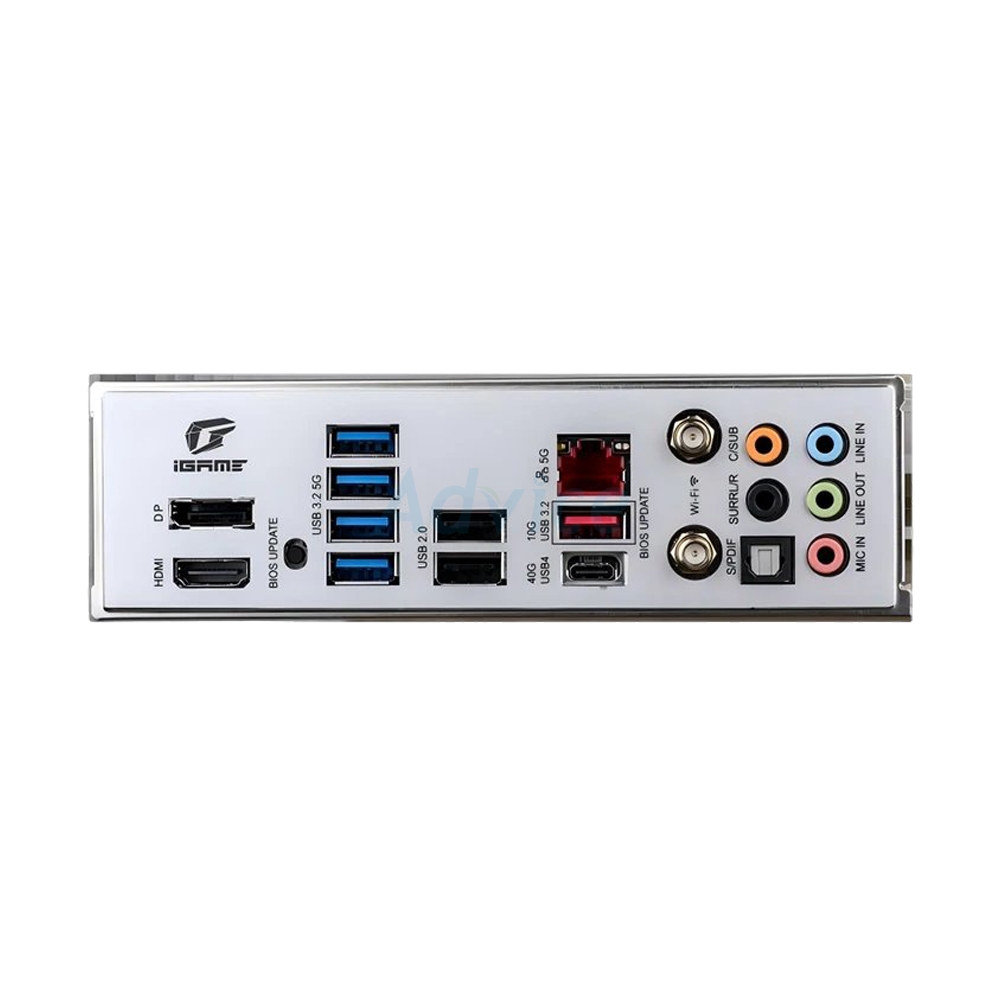

2 x USB 2.0 interfaces
4 x USB 3.2 Gen 1 5Gbps Type-A interfaces
1 x USB 3.2 Gen 2 10Gbps Type-A interface
1 x USB 4 40Gbps Type-C interface (supports video output, up to 4K 60Hz resolution)
1 x DP 1.2 interface, up to 4K 60Hz resolution
1 x HDMI 2.0 interface, up to 4K 60Hz resolution
1 x 5G network interface
2 x Wi Fi 7 antenna interfaces
5 x Audio interfaces (audio input/output/microphone)
1 x S/PDIF audio interface
1 x BIOS update button
RTL8126-CG 5Gbit network card
MT7925 WiFi 7 wireless network card, Bluetooth 5.4
- Wi-Fi functionality may vary depending on the operating system.
- For Windows 11, Wi-Fi 7 requires version 24H2 or later for full functionality. Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
- For Windows 10, please note that no drivers are available. For more information, refer to the Wi-Fi chipset vendor's website.
- Wi-Fi 6GHz frequency band and bandwidth regulations may vary by country/region.
- Bluetooth® versions are subject to change; please refer to the Wi-Fi module manufacturer's website for the latest instructions.
ATX
CPU fan speed is controllable, system fan speed is controllable, CPU temperature monitoring, system temperature monitoring, and each group of voltage monitoring
256M UEFI, support multiple languages
Support S3/S4 wake-up, network S5 wake-up, support USB wake-up, support timing boot, call boot
N/A
Windows 11
N/A
