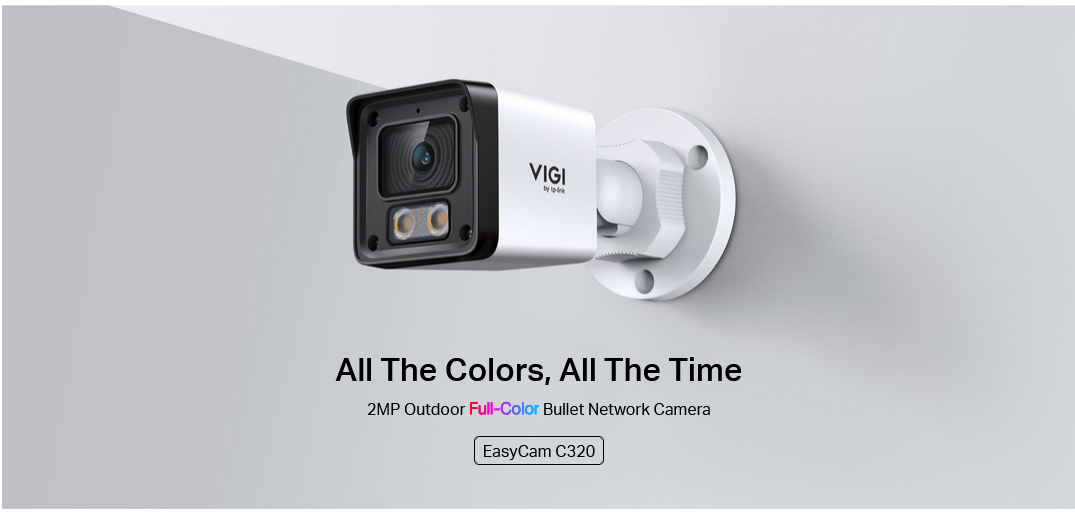

CCTV 2.8mm IP Camera VIGI#EasyCam 320

EasyCam 320

• 2MP , 1/3” Progressive Scan CMOS

• 2.8mm

• M12*P 0.5

• 0.01 Lux; 0 Lux with IR/White light

• Detect : 154.2 ft (47 m)
• Observe : 62.3 ft (19 m)
• Recognize : 29.5 ft (9 m)
• Identify : 16.4 ft (5 m)

N/A

• Horizontal FOV: 98.8°
• Vertical FOV: 53.5°
• Diagonal FOV: 117°

• Pan : 0° to 360°
• Tilt : 0° to 90°
• Rotation : 0° to 360°

• 1/3 to 1/10000 s

N/A

• 30m

• Full-Color

N/A

• DWDR

• 1920x1080, 1280x960, 1280x720

• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264

• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

N/A

NONE

• 1x RJ45 10/100M Self-Adaptive Ethernet Port, PoE

NONE

• Sending Email
• Send to Alarm Server
• Upload to FTP
• Message Push

• Yes

• TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP

• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• People Detection
• Vehicle Detection

• PoE: 802.3af, class 0

• Max. 7.1 W

• Operating Temperature : -30 °C to 60 °C (-22 °F to 140 °F)
• Storage Temperature : -40 °C to 60 °C (-40 °F to 140 °F)
• Operating Humidity : 95% or Less (Non-Condensing)
• Storage Humidity : 95% or Less (Non-Condensing)

• IP67

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
