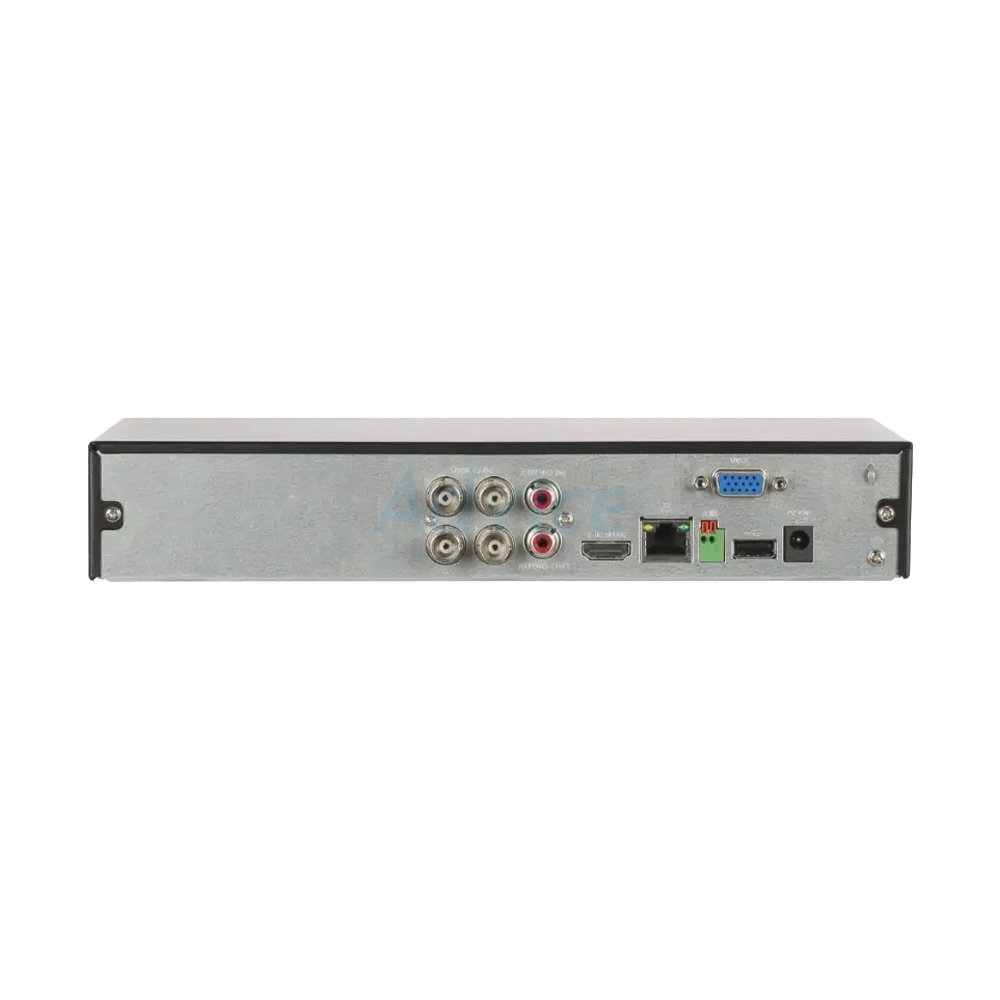

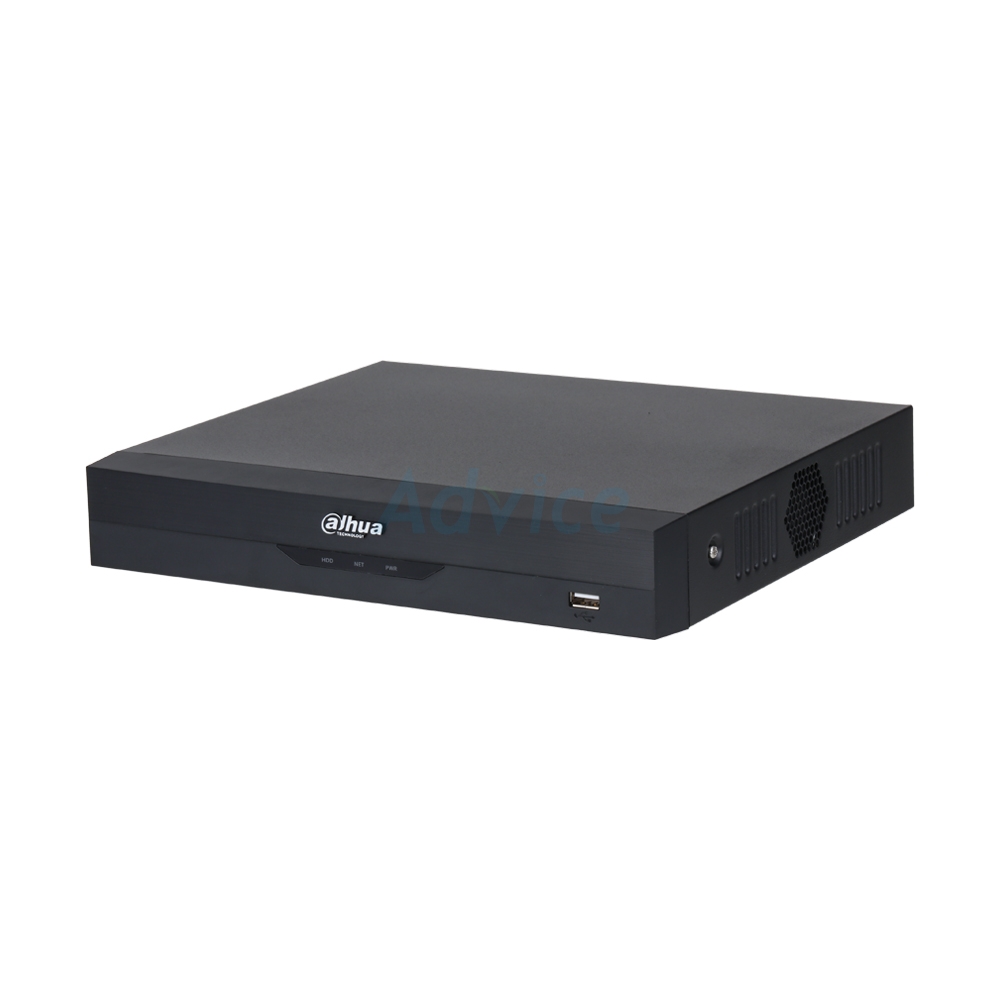

เครื่องบันทึก DVR 4CH. HDCVI DAHUA XVR5104HS-5M-I3/T
- Analog Camera Input : 4 Ch.
- Video Compression : AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
- Encoding Resolution
- Main stream : Channels 1-2 5M-N@(1 fps–25 fps), others 5M-N@(1fps–12 fps) , Channels 1-2 4M-N/1080p@(1 fps–25/30 fps), others 4M-N/1080p@(1 fps–15 fps), 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps)
- Sub stream : D1/CIF@(1 fps–15 fps)
- Interface
- 1x (10/100 Mbps Ethernet port, RJ-45)
- 1x Audio Input
- 1x Audio Output
- 1x RS-485
- 2x USB (1 front USB 2.0 port, 1 rear USB 3.0 port)
- 1x VGA
- 1x HDMI
- 1x SATA
- Video output : HDMI/VGA independent output
- Capacity : up to 16 TB. This limit varies depending on the environment temperature.
- 4-channel two-way talk over coaxial cable allows for seamlesscommunication between the camera, client and recorder.
- 4-channel AcuPick for analog channels which improves theefficiency of target retrieval.
- 4-channel perimeter protection for analog channels which supports tripwire and intrusion detection powered by AI.
- 2-channel face recognition for analog channels which supports face comparison.
- 4-channel SMD Plus for analog channels or 6-channel SMD by camera which allows the device to trigger accurate alarms for humans and vehicles.
- 4-channel AI Coding saves on storage and bandwidth while maintaining the details of targets in videos.
ข้อมูลผลิตภัณฑ์
XVR5104HS-5M-I3/T
• Supports HDCVI, AHD, TVI, CVBS and IP video input.
• Analog Camera Input : 4 BNC ports
• Camera Input
- CVI: 5 MP@25 fps, 5 MP@20 fps, 5 MP@10/12.5 fps, 4 MP@25/30 fps, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30fps
- TVI: 5 MP(2560 × 1944)@20 fps, 5 MP(2960 × 1665)@20/25 fps, 4 MP@25/30 fps, 1080p@25/30 fps, 720p@25/30 fps
- AHD: 5 MP@20 fps, 4 MP@25/30 fps, 1080p@25/30 fps, 720p@25/30 fps.
• IP Camera Input : Up to 6 channels of IPC access 2 IP channels by default + 4 channels (analog channels are converted to IP channels)
• Audio Input : 1-channel RCA 4-channel BNC (Coaxial Audio)
• Two-way Talk : Coaxial two-way talk: 4-channel BNC
• HDMI : 3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 1024, 1280 × 720
• VGA : 1920 × 1080, 1280 × 1024, 1280 × 720
• Video Bit Rate : 32 kbps–6144 kbps
• Third-party Camera Access : Panasonic, Sony, Hanwha; Axis, Arecont, ONVIF
• Audio Output : 1-channel RCA
• Record Mode : General, alarm, motion detection, intelligent
• Recording : Playback 1/4
• Backup Method : USB device and network
• Playback Mode : Instant playback, general playback, event playback, tag playback, smart playback
• Encode Enhancement disabled
- Main stream : Channels 1-2 5M-N@(1 fps–25 fps), others 5M-N@(1fps–12 fps) , Channels 1-2 4M-N/1080p@(1 fps–25/30 fps), others 4M-N/1080p@(1 fps–15 fps), 1080N/720p/960H/D1/CIF@(1 fps–25/30 fps)
- Sub stream: D1/CIF@(1 fps–15 fps)
• Encode Enhancement enabled
- Main stream : 5 MP@(1 fps-12 fps); 5M-N/4M-N/1080p@(1 fps-25 fps), 1080N/720p/960H/D1/CIF@(1 fps-30 fps)
- Sub stream: D1/CIF@(1 fps-15 fps);
• It changes to D1/CIF@(1 fps-7 fps) when Main stream is
N/A
• Network Protocol : HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP; Alarm Server, P2P, Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
• Mobile Phone Access : iOS, Android
• Interoperability : ONVIF 24.12 (Profile T, Profile S;, Profile G) CGI, SDK
• Browser Chrome : IE, Safari, Edge, Firefox
• 1x (10/100 Mbps Ethernet port, RJ-45)
• 1x Audio Input
• 1x Audio Output
• 1x RS-485
• 2x USB (1 front USB 2.0 port, 1 rear USB 3.0 port)
• 1x VGA
• 1x HDMI
• 1x SATA
• up to 16 TB. This limit varies depending on the environment temperature.
• 12 VDC, 1.5 A
• <5 W (without HDD
• Operating Temperature : –10 °C to +55 °C (+14 °F to +131 °F)
• Storage Temperature : –20 °C to +60 °C (–4 °F to +140 °F)
• Operating Humidity : 10%–90% (RH), non-condensing
• ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK
