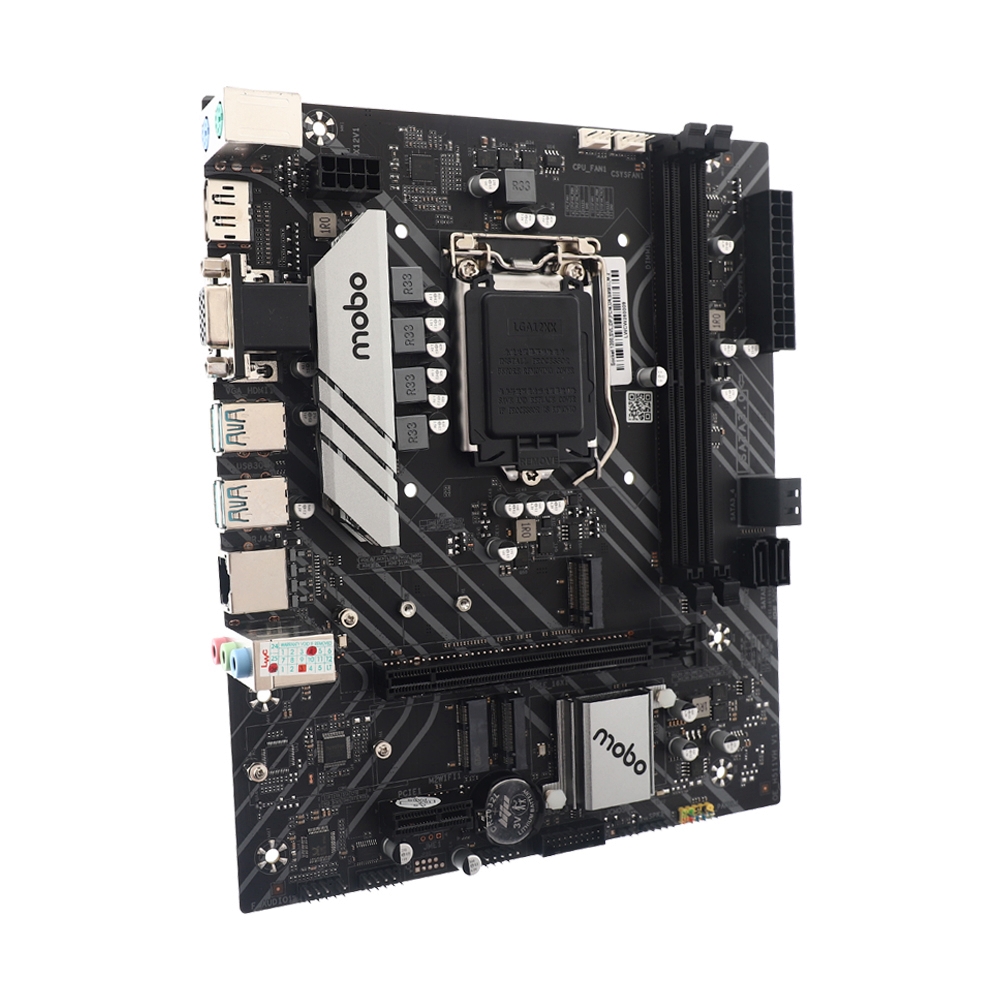

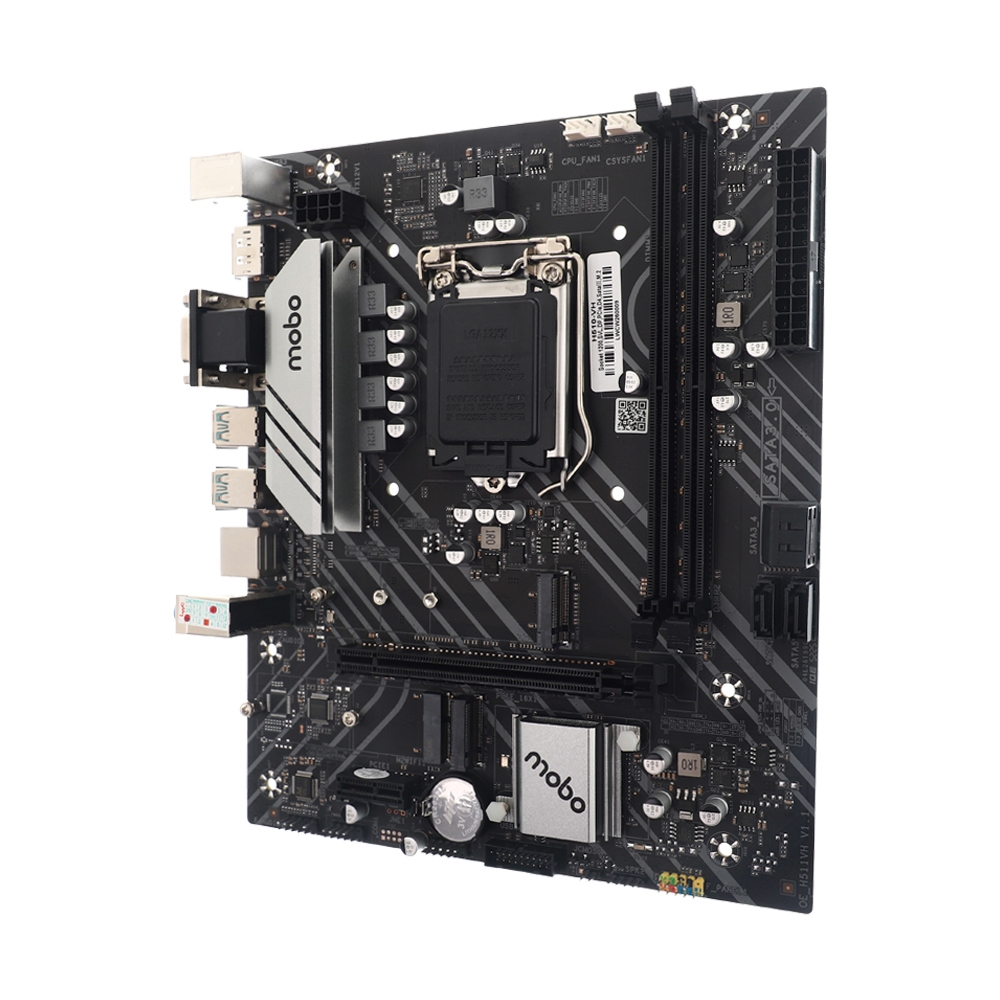

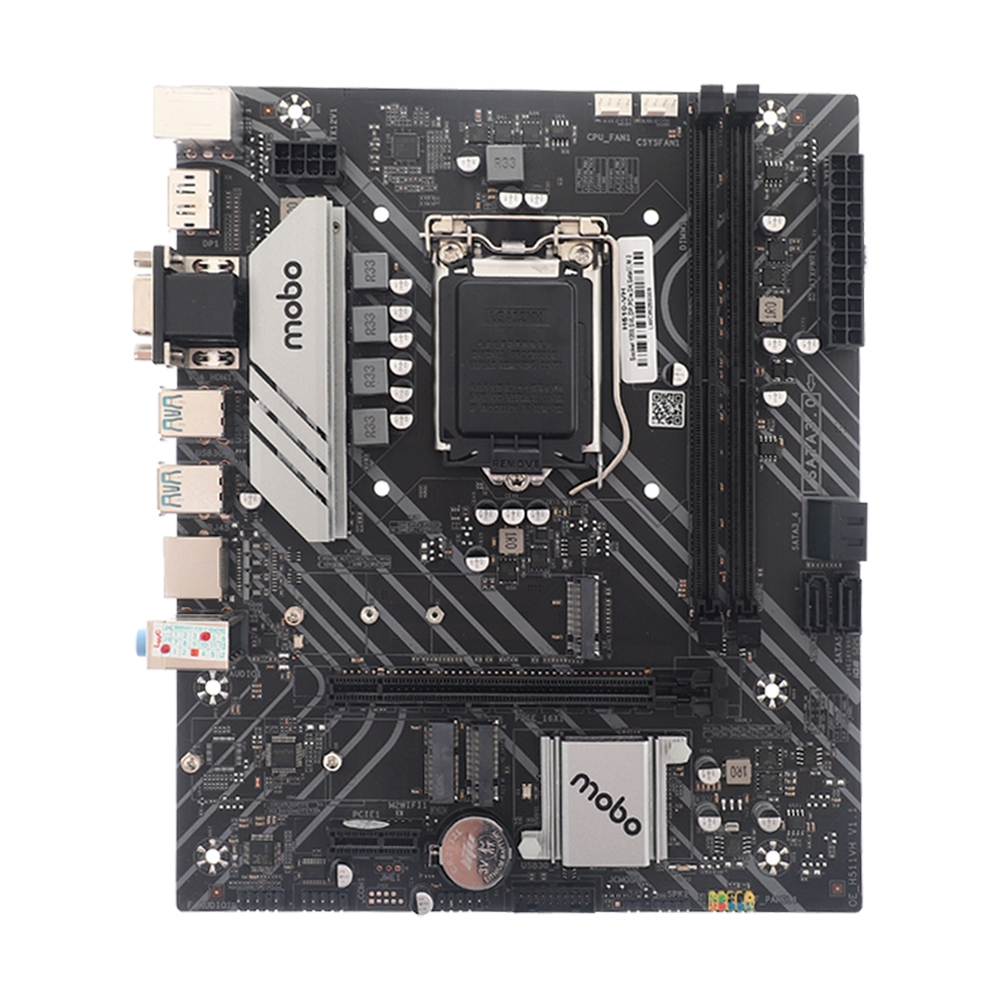

MAINBOARD (1200) LONGWELL H510-VH DDR4
- Support CPU : 10th / 11th Gen Intel Core Processors, Pentium and Celeron Processors
- Form Factor : Micro ATX
- Chipset : Intel H470/Q470 Chipset
- Memory Channel : Dual Channel DDR4 2DIMM
- Memory Support : up to 3200
- Memory MAX : 64GB
- M.2 Slot : 1 slot
- SATA III 6G : 4 ports
- PCIe 3.0x16 : 1 slot
- Lan Port : 1 Gigabit LAN
ข้อมูลผลิตภัณฑ์
H510-VH
Support for 10th and 11th Generation Intel® Core™ i9 processors
Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors
Intel® Pentium® processors/Intel® Celeron® processors in the LGA1200 package
Intel
1200
H470, Q470
Memory Support 2 x DDR4 DIMM sockets supporting up to 64 GB of system memory
Dual channel memory architecture
Support for DDR4 3200/2933/2666/2400/2133 MHz memory modules
3200
1 x HDMI port
1 x VGA port
1 x DISPLAY port
None
Audio Realtek® ALC897 codec
High Definition Audio
1 x PCI Express 3.0 x16 slot
1 x PCI Express x1 slot
1 x M.2 WIFI
PCIe 3.0
1 x M.2 PCIe Gen3
Supports M.2 Type 2242/2260/2280 SSD module
4 x SATA 6Gb/s connectors
NVMe
1
4 x USB 3.0 ports
1 x USB 3.0 Internal headers
1 x USB 2.0 Internal headers
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x USB 3.0 headers
1 x USB 2.0 headers
1 x Clear CMOS jumper

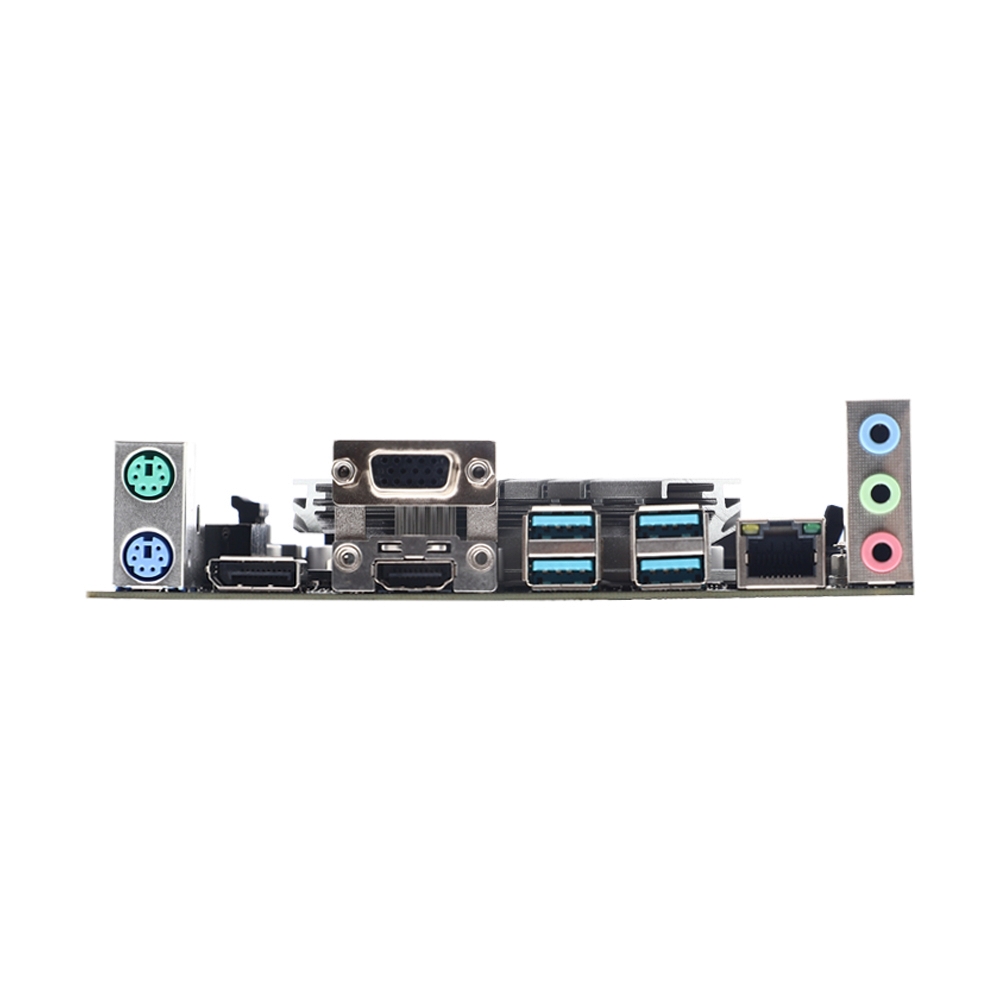

2 x PS.2 keyboard/mouse port
1 x HDMI port
1 x VGA port
1 x DISPLAY port
4 x USB 3.0 ports
1 x Lan port
3 x audio connector
10/100/1000 Mb/s auto negotiation Half/Full duplex capability
Realtek® RTL8111H
None
Micro ATX
N/A
N/A
Support UEFI mode
N/A
Win 10-11
1 x SATA cable
1 x I/O Rear Panel
1 x User Manual
