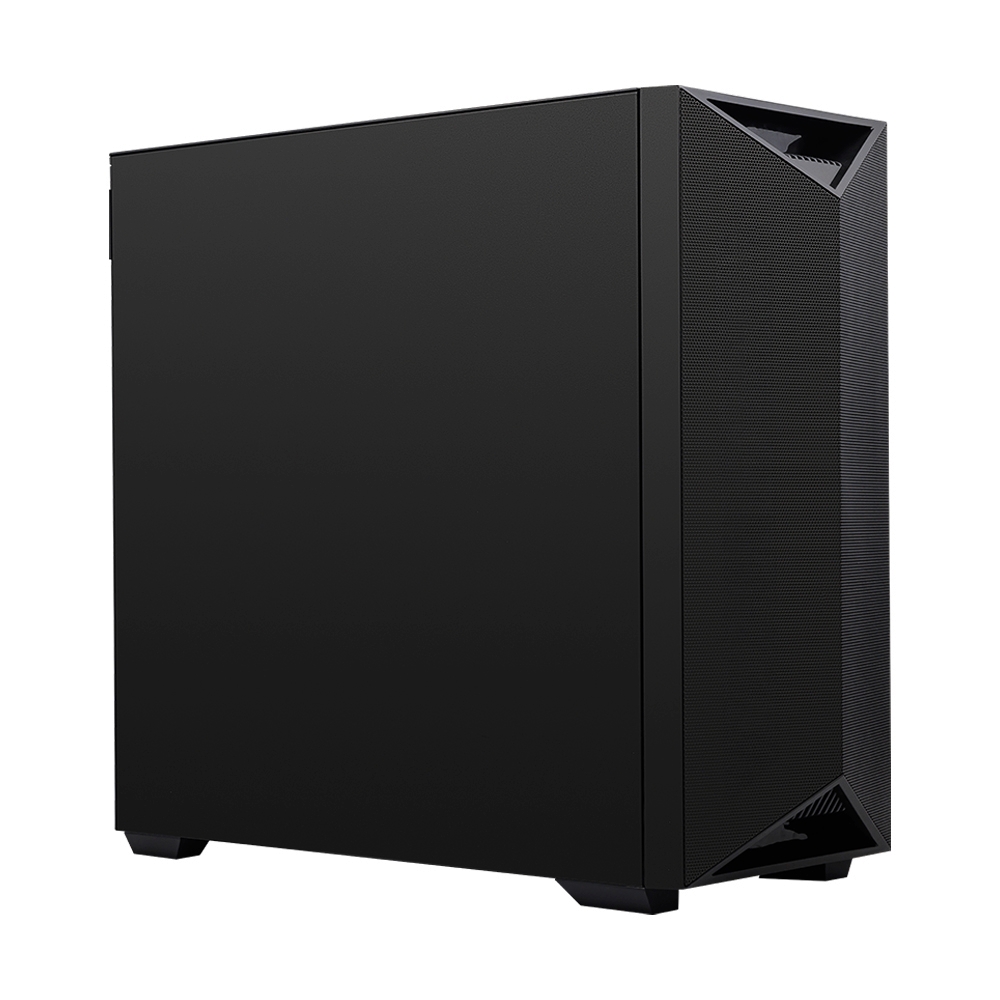

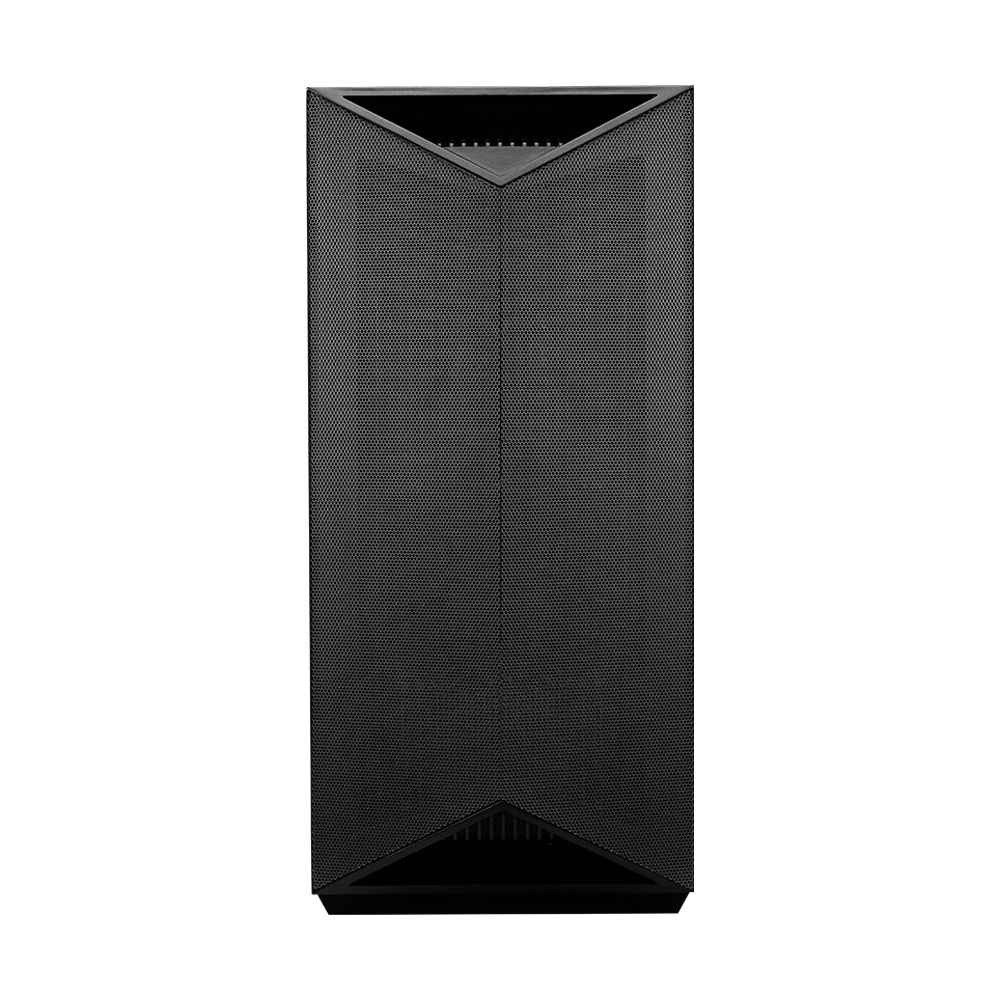

AI Workstation MSI XpertStation WS300 (WS300T60L)

XpertStation WS300 (WS300T60L)

Single NVIDIA Grace™ CPU Superchip with 72 Arm® Neoverse V2 cores

NVIDIA Blackwell Ultra GPU

NVIDIA GB300 Grace Blackwell Superchip

Single NVIDIA Blackwell Ultra GPU

748 GB of Coherent Memory
• CPU Memory 496GB LPDDR5X
• GPU Memory 252GB HBM3e

N/A

N/A

4TB (2x 2TB) PCIe 5.0 x4 NVMe M.2 SSD (RAID 1)

2x 2280 PCIe 5.0 x4 NVMe M.2 ports (Filled with boot drives, connected to the CPU) (Occupied)
2x 2280 PCIe 6.0 x4 NVMe M.2 ports (Open and available for expansion, connected to the CX8)

One PCIe 5.0 x16 FHFL double wide slot (for display adapter graphics card)
Two PCIe 5.0 x16 FHFL single wide slots with x8 signals
One PCIe 2.0 x1 2230 M.2 for WiFi/BT

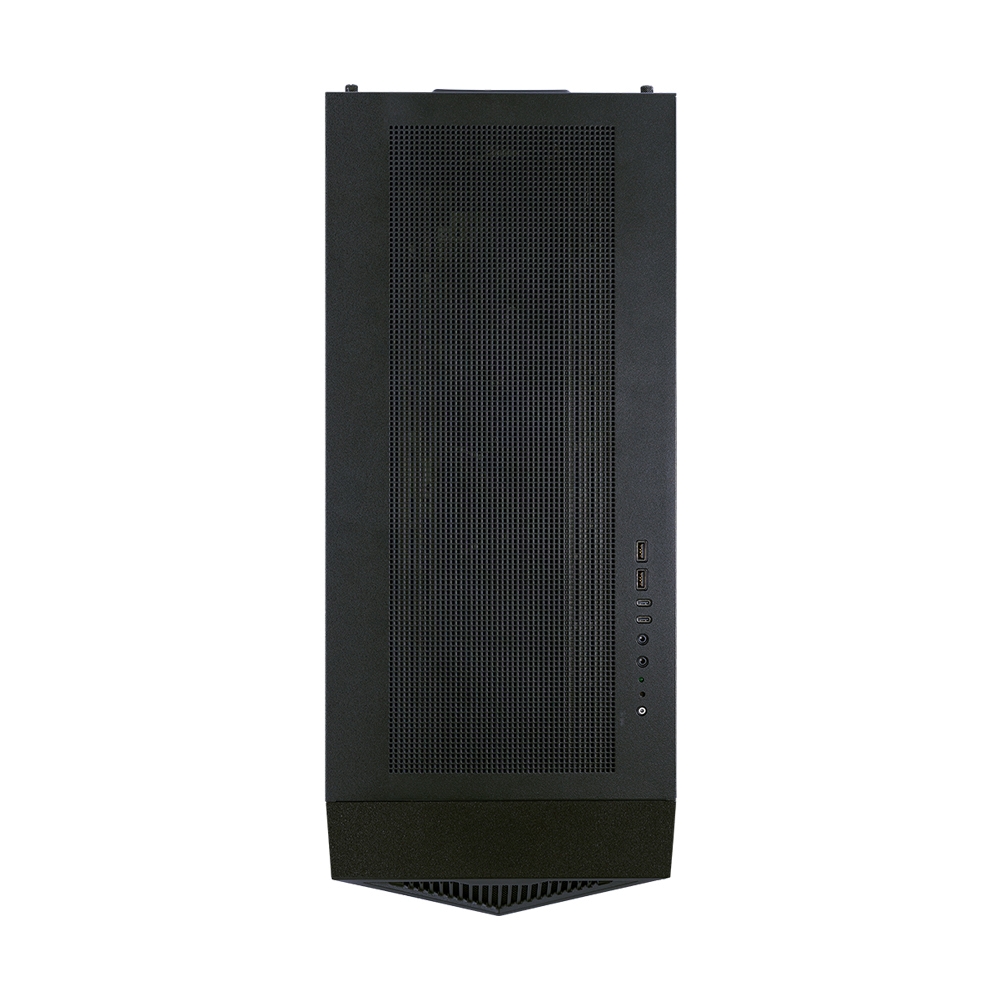

Front I/O
2x USB Type C ports
2x USB3.0 Type A ports

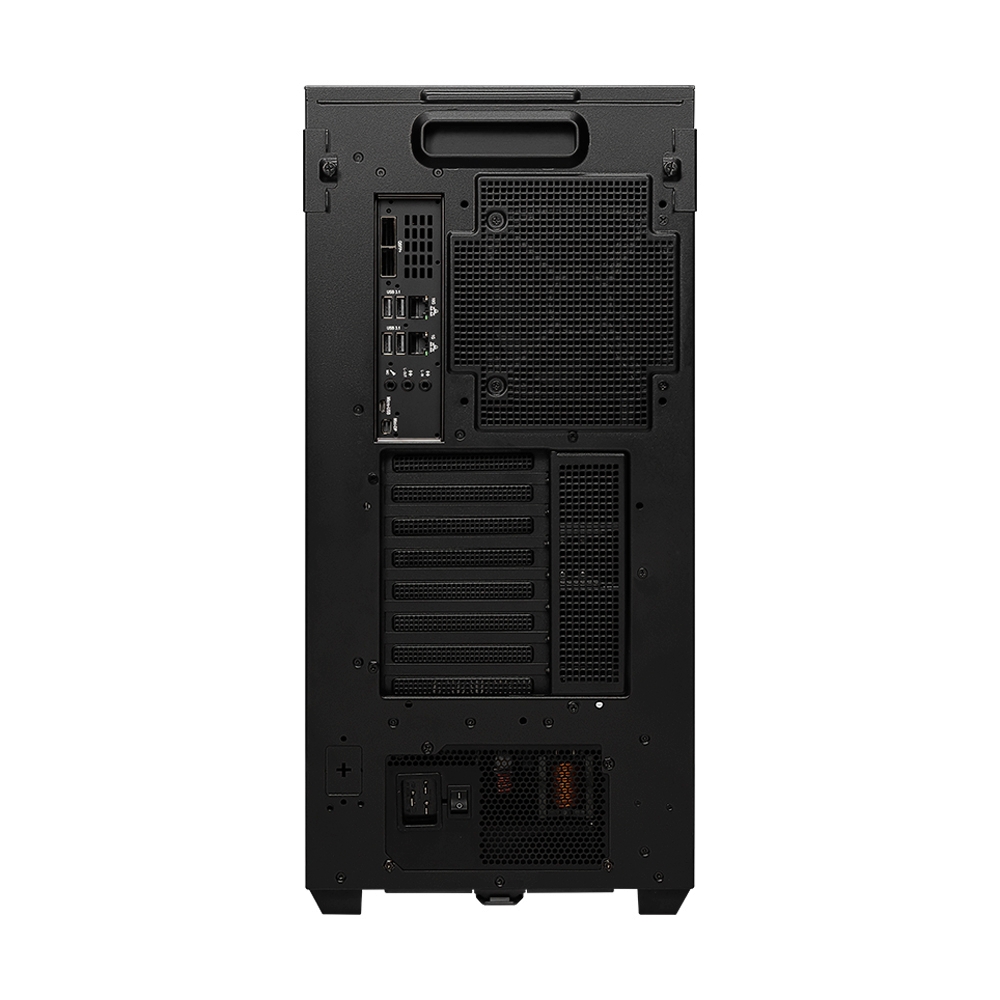

Rear I/O
1x 1000Base-T Dedicated Server Management Port
2x QSFP112 ports
1x 10GBase-T Ethernet port
4x USB3.1 Type A ports
1x Mini DP port
1x Micro USB COM port

None

N/A

Front I/O
1x 2-way Audio

Rear I/O
1x 2 ch audio port

2x QSFP112 ports with NVIDIA ConnectX-8 SuperNICs
1x 10GBase-T Ethernet port with Marvell AQC113

N/A

N/A

N/A

1600W ATX 80 PLUS Titanium

N/A

N/A

NVIDIA DGX OS (Based on Ubuntu 24.04 LTS)

Server Management:
• 1000Base-T Dedicated Server Management Port
• MGX BMC Management Module with BMC
