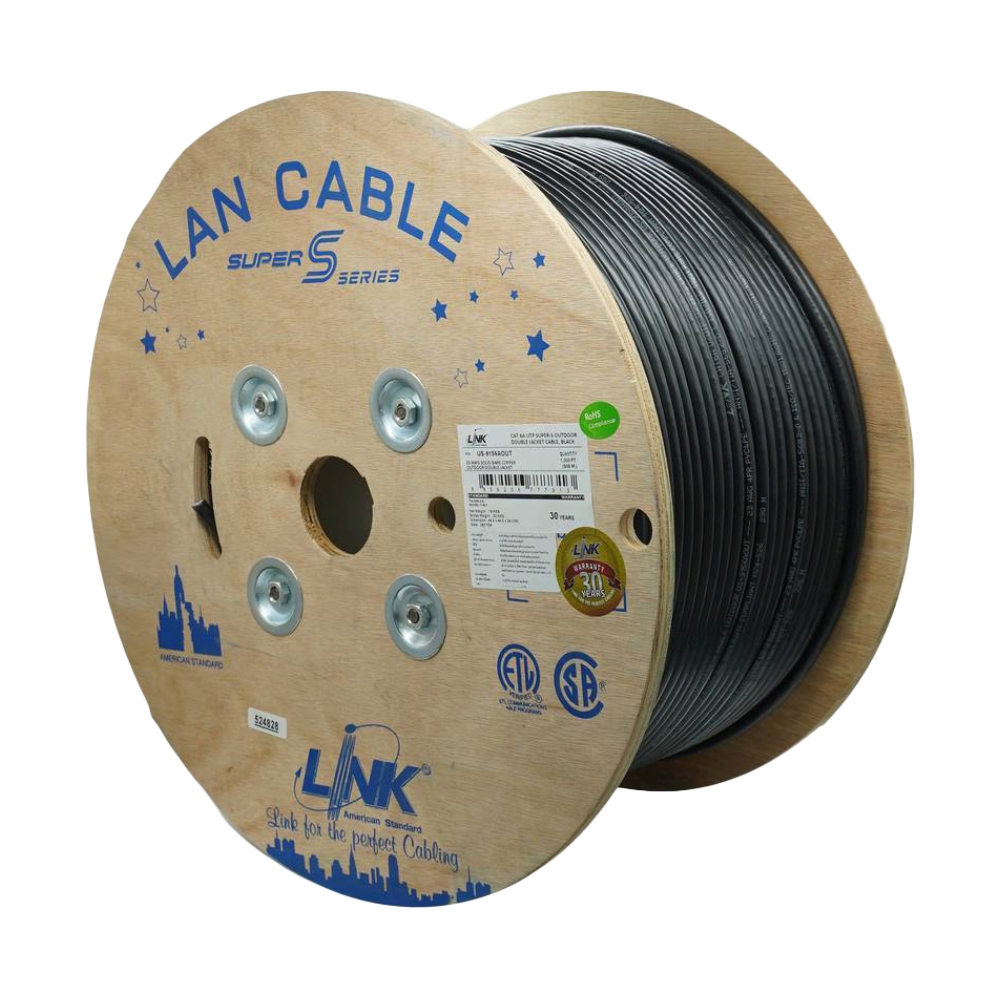

สายแลน CAT6A (305m/Box) LINK (US-9156AOUT)

US-9156AOUT

• ANSI/TIA-568.2-E Category 6A
• ANSI/TIA-568.2-D Category 6A
• ANSI/TIA-568-C.2 Category 6A
• ISO/IEC 11801:2017 class EA
• EN 50173-1 Category 6A
• EN 50288-11-1
• IEC 61156-5
• UL 444/NEC 800
• RoHS Compliant
• IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (Type4)

• CAT6A

• RJ45

• 305m/Roll

• Material Solid bare copper
• No. of Conductor 4 Pairs (8 wires)

NONE

NONE

• 23 AWG

• 2.5G/5G BASE-T (IEEE 802.3bz)
• 10G BASE-T (IEEE 802.3an 10Gigabit Ethernet)
• 1000 BASE-T (IEEE 802.3ab Gigabit Ethernet)
• 1000 BASE-TX (TIA/EIA-854)
• 100 BASE-TX (IEEE 802.3u Fast Ethernet)
• 10 BASE-T (IEEE 802.3i Ethernet)

Inner Jacket
• Material FR-PVC
• Thickness 0.50±0.05 mm
• Diameter 7.20±0.2 mm
Color Black
• Outer Jacket
• Material UV-Proof, PE
• Thickness 0.50±0.05 mm
• Color Black

• 100 ± 5 Ohms, 1 MHz to 500 MHz

• CMX

• ≤9.38 Ohms Max./100m

• Installation/Operation -20°C to 75°C
• Storage -20°C to 80°C
