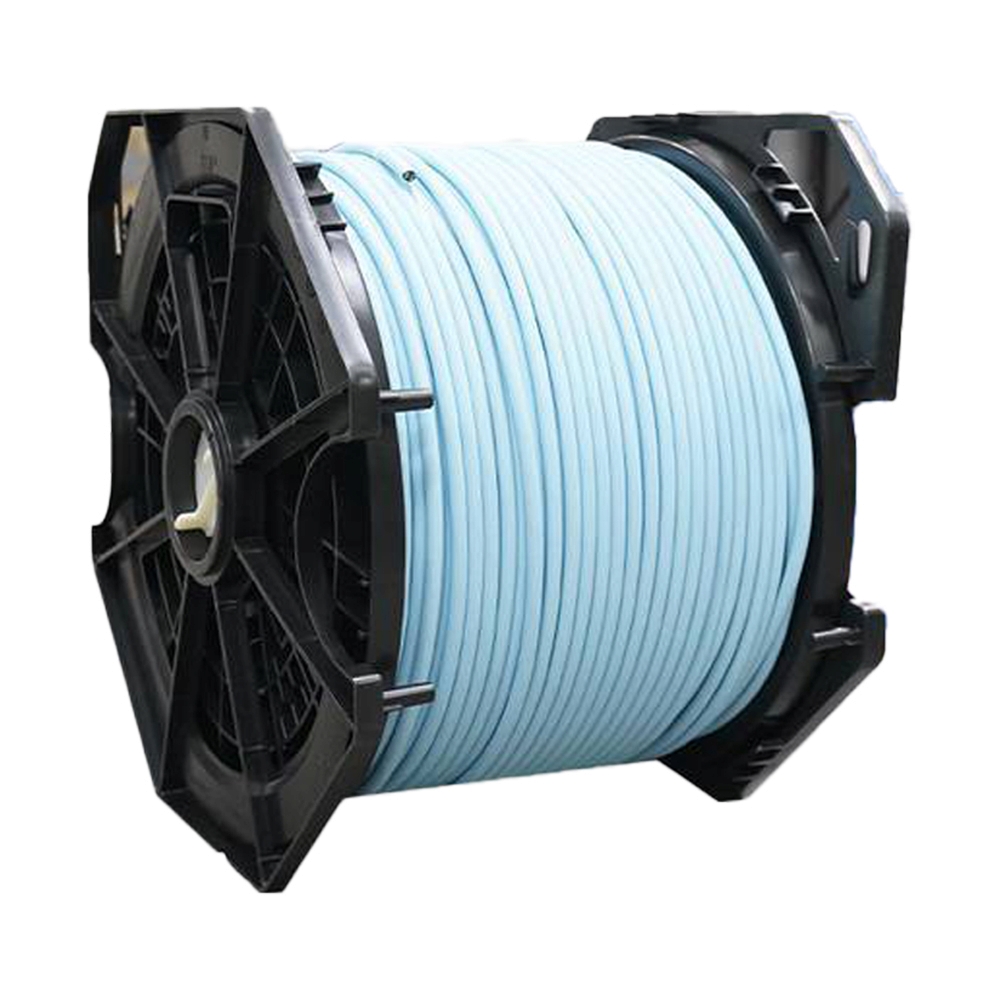

สายแลน CAT6A (305m/Box) LINK (US-9156ALSZH)
- CAT6A UTP Cable (305m/Roll)
- Color : Aqua Blue
- Conductor Material : Solid bare copper
- Jacket Material : FR-LSZH
- Size : 23AWG
- Construction : 1/0.57±0.01 mm
- Bandwidth : 500 MHz
ข้อมูลผลิตภัณฑ์
US-9156ALSZH
• ANSI/TIA-568.2-E Category 6A
• ANSI/TIA-568.2-D Category 6A
• ANSI/TIA-568-C.2 Category 6A
• ISO/IEC 11801:2017 class EA
• EN 50173-1 Category 6A
• EN 50288-11-1
• IEC 61156-5
• IEC 60332-1
• IEC 60754-1, IEC 60754-2
• IEC 61034-1, IEC 61034-2
• UL 444/NEC 800
• 3P Verified to Category 6A
• RoHS Compliant
• IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (Type4)
• CAT6A
• RJ45
• 305m/Roll
• Material Solid bare copper
• No. of Conductor 4 Pairs (8 wires)
NONE
NONE
• 23 AWG
• 2.5G/5G BASE-T (IEEE 802.3bz)
• 10G BASE-T (IEEE 802.3an 10Gigabit Ethernet)
• 1000 BASE-T (IEEE 802.3ab Gigabit Ethernet)
• 1000 BASE-TX (TIA/EIA-854)
• 100 BASE-TX (IEEE 802.3u Fast Ethernet)
• 10 BASE-T (IEEE 802.3i Ethernet)
• Material Lead-free, FR-LSZH
• Thickness 0.55±0.05 mm
• Color Aqua Blue
• 100 ± 5 Ohms, 1 MHz to 500 MHz
• LSZH (Low Smoke Zero Halogen)
• ≤9.38 Ohms Max./100m
• Installation/Operation -20°C to 75°C
• Storage -20°C to 80°C
• Intertek Certification no. 106507740CRT-002
