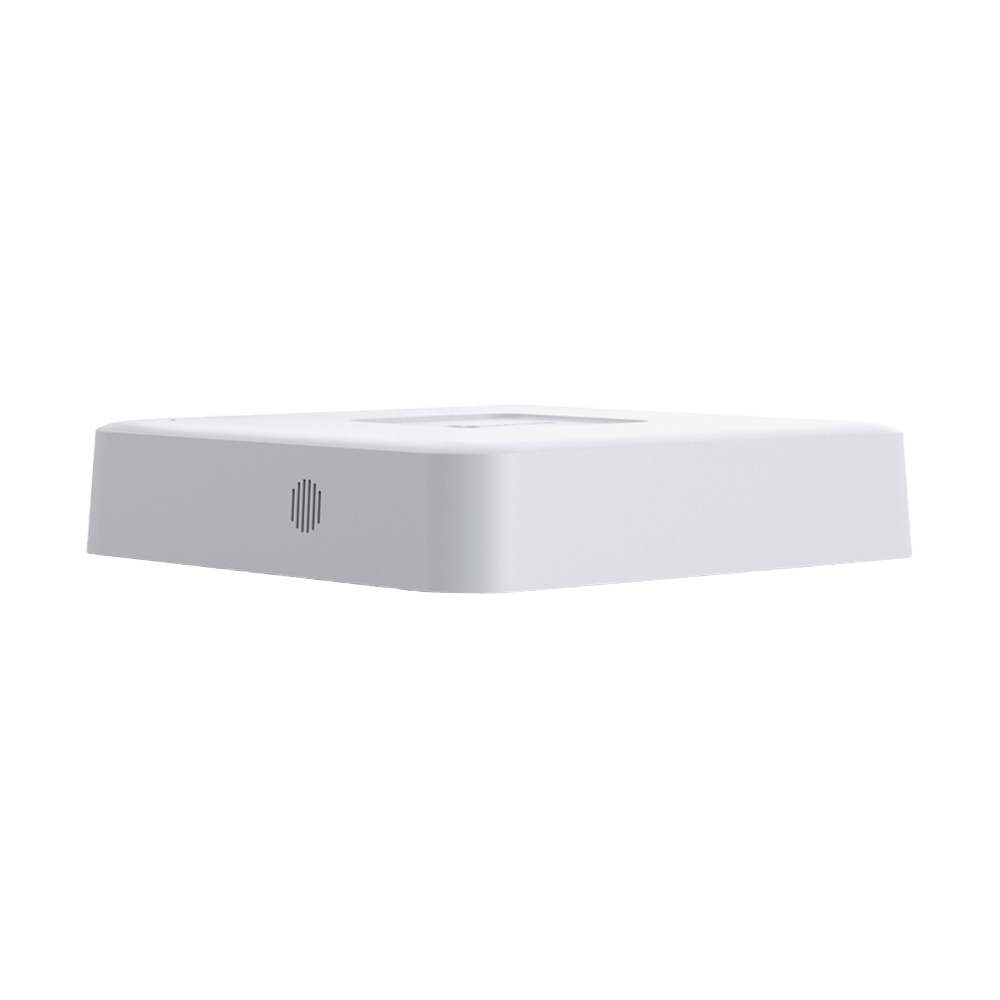

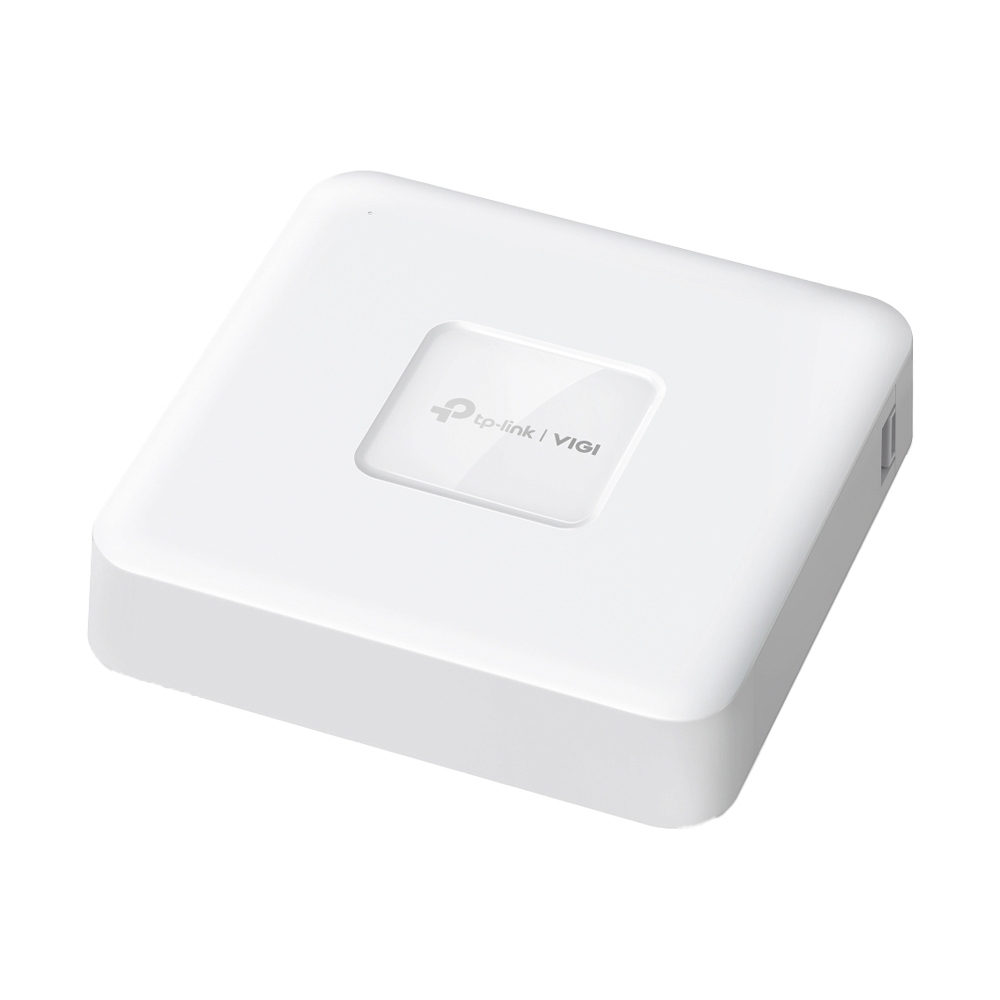

เครื่องบันทึก NVR 4CH. VIGI NVR1104H-4P
- IP Video Input : 4Ch.
- Video Compression : H.265+/H.265/ H.264+/H.264
- Encoding Resolution : 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

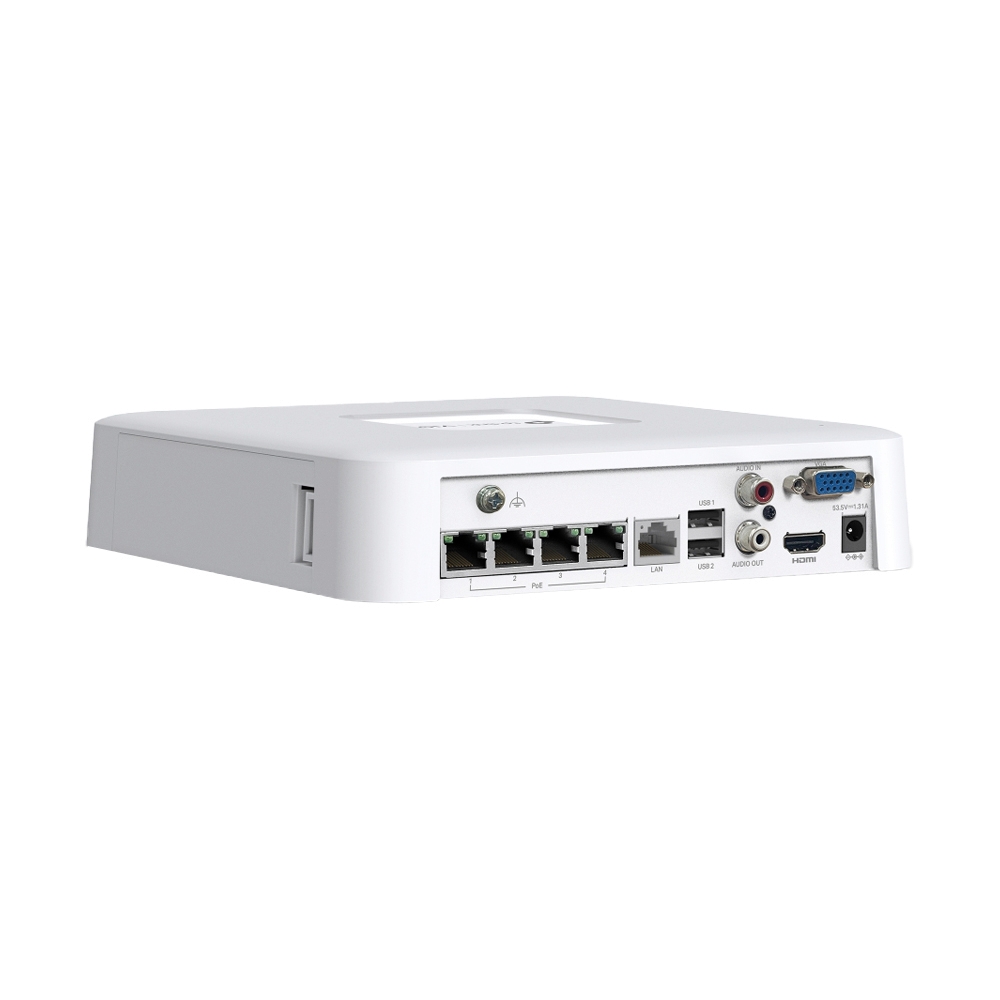

- Interface
- 1x RJ-45 10/100/1000 Mbps
- 4x RJ-45 10/100 Mbps Ports PoE+ 53W
- 1x SATA Interfaces
- 2x USB 2.0
- 1x RCA Input
- 1x RCA Output
- 1x Real-time Audio Output
- 1x HDMI
- 1x VGA
- Video output : HDMI,VGA
- Capacity : Up to 16 TB Capacity for Each HDD
รายละเอียดสินค้า
ข้อมูลผลิตภัณฑ์
NVR1104H-4P
• IP Video Input : 4 Ch.
• Outgoing Bandwidth : 80 Mbps
• HDMI Output Resolution : 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• VGA Output Resolution : 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• Multi-View Display : 1/4
• Outgoing Bandwidth : 60 Mbps
• Audio Compression : G.711A/G.711U/G.726
• Video Compression : H.265+/H.265/ H.264+/H.264
• Record Resolution : 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous Playback : 4-Channel
• Capability : 25fps 2-ch @ 8MP, 4-ch @ 4MP , 30fps 4-ch @ 4MP, 3-ch @ 5MP
• Protocol : TCP/IP, DHCP, DNS, NTP, UPnP
• Mobile Phone Access : Android, iOS
• Incoming Bandwith : 80 Mbps
• Outgoing Bandwidth : 60 Mbps
• Web Browser : Chrome (57+), Firefox (52+), Edge (91+)
• Interoperability : ONVIF, CGI
• ONVIF, CGI
• 1x RJ-45 10/100/1000 Mbps
• 4x RJ-45 10/100 Mbps Ports PoE+ 53W
• 1x SATA Interfaces
• 2x USB 2.0
• 1x RCA Input
• 1x RCA Output
• 1x Real-time Audio Output
• 1x HDMI
• 1x VGA
• Up to 16 TB Capacity for Each HDD
• 53.5V DC/1.31A
• 4.82 W (without disk)
• Standard : 802.3at/af Compliant
• Interface : 1- 4, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
• PoE Budget : 53 W Available for All PoE+ Ports, 30 W Max per Port
• Storage Temperature : -40–70 °C
• Storage Humidity : 0%~90% RH Non-Condensing
• VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse
• Quick Installation Guide
