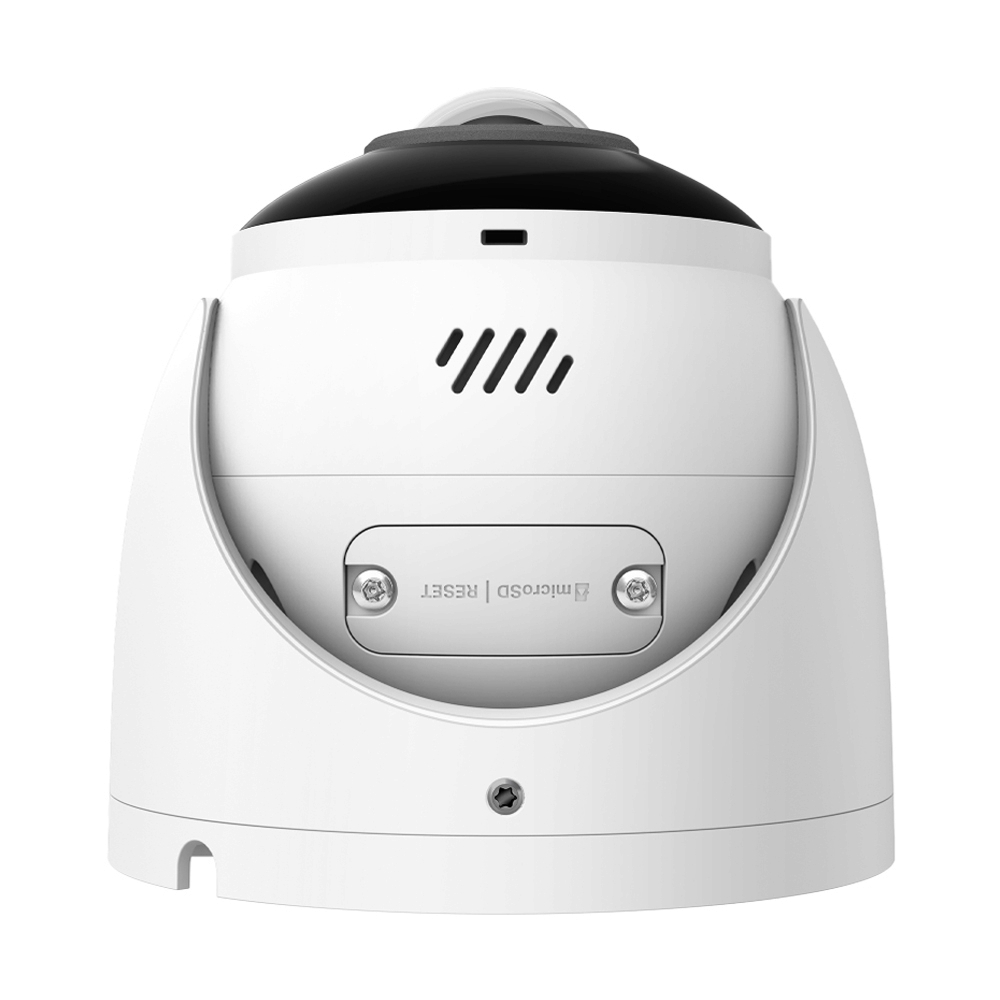

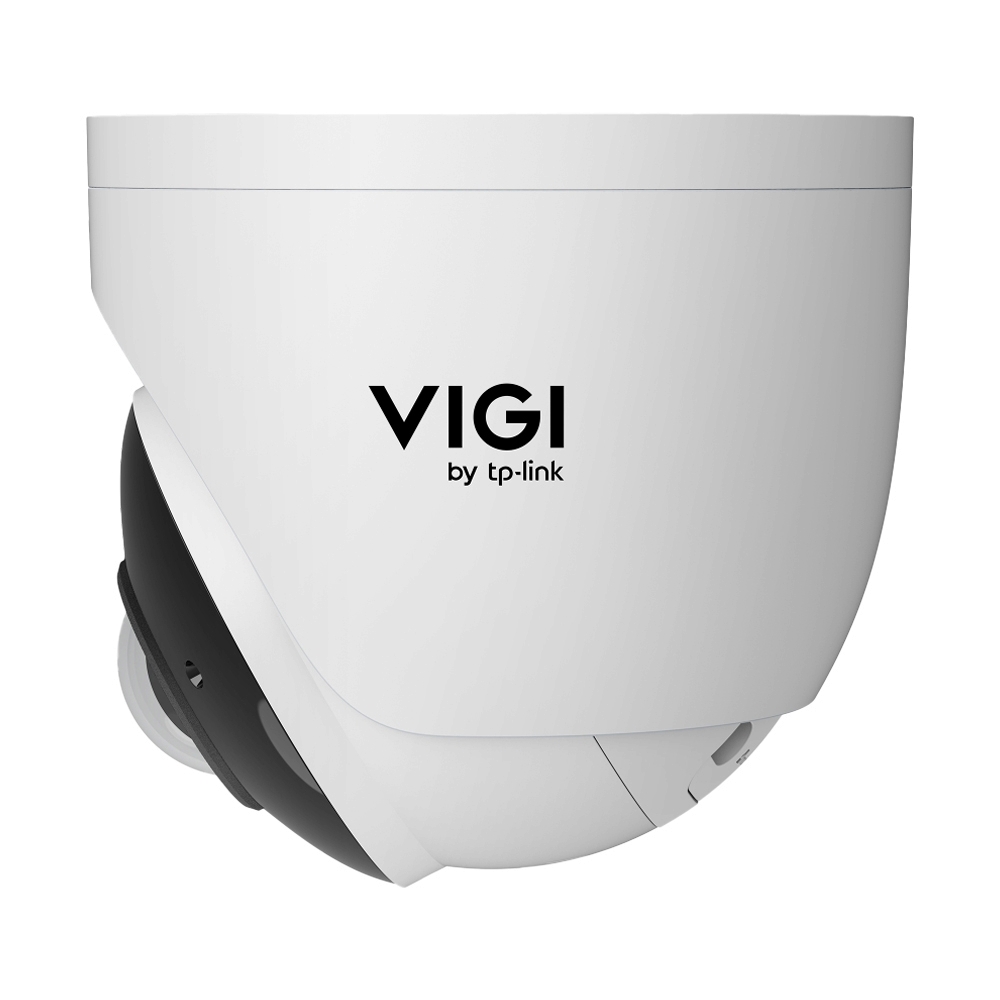

กล้องวงจรปิด 1.65mm IP Camera VIGI Insight S485Pi

VIGI Insight S485Pi

• 8MP , 1/2.7” Progressive Scan CMOS

• 1.65mm

• M12

• 0.005 Lux; 0 Lux with IR Light

N/A

N/A

• Horizontal FOV: 180°
• Vertical FOV: 86°
• Diagonal FOV: 180°

• Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° (Manual)

• 1/3 to 1/10000 s

• 20m

• IR Cut Filter

N/A

• YES

• 3840 x 2160

• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264

Main Stream
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Sub-Stream
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

N/A

• Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB

• 1x RJ45 10/100M Self-Adaptive Ethernet Port, PoE

• YES

• Alarm Input Device
• Alarm Output Device
• Send to Alarm Server
• Active Defence-Sound Alarm
• Active Defence-Light Alarm
• Email Alarm

• YES

• TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, 802.1x

• Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

• 12V DC ± 5%
• PoE: 802.3at, Class 4, Max. 21W

• Max. 18W, 5.5 mm Coaxial Power Plug

• Operating Temperature : -30? to 60 °C
• Storage Temperature : -40 to 60 °C
• Operating Humidity : 95% or Less (Non-Condensing)
• Storage Humidity : 95% or Less (Non-Condensing)

• IP67 Weatherproof, IK10 Vandal Proof

• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
