กล้องวงจรปิด 2.8mm IP Camera VIGI C230I Mini

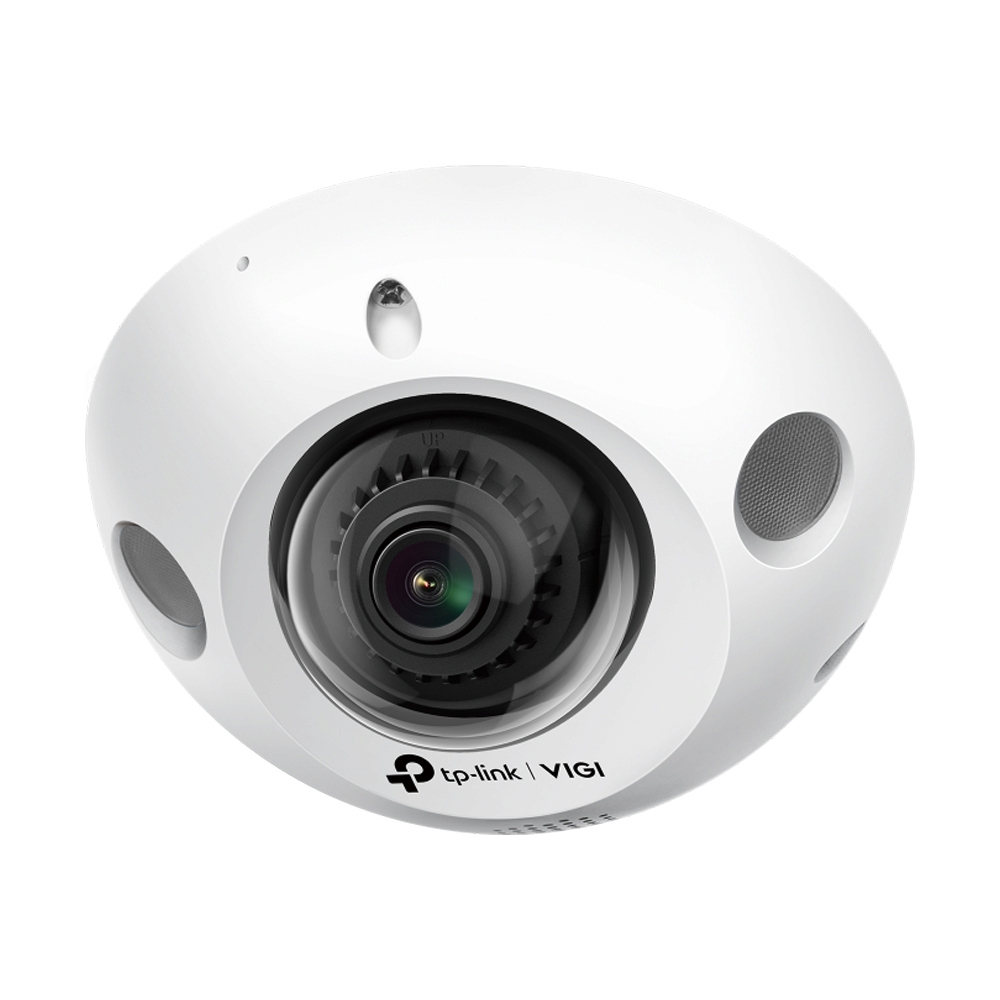

VIGI C230I Mini

• 3MP , 1/2.8” Progressive Scan CMOS

• 2.8mm

• M12

• Color: 0.1 Lux; 0 Lux with IR

N/A

N/A

• Horizontal FOV: 106.9°, Vertical FOV:56.9°, Diagonal FOV: 127.9°

 (Manual)
• Pan: -30° to 30°
• Tilt: 0° to 85°
• Rotate: -15° to 15°

• 1/3 to 1/10000 s

• 30m

• IR Cut Filter

• DWDR

• 2304 × 1296

• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264

Main Stream
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Sub-Stream
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

N/A

• Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB

• 1x RJ45 10/100M Self-Adaptive Ethernet Port

• YES

N/A

• YES

• TCP/IP
• UDP
• ICMP
• HTTP
• HTTPS
• DHCP, DNS, RTSP
• NTP
• UPnP UDP
• SSL/TLS
• FTP/SFTP
• RTP
• IPv4
• IPv6
• ARP
• SNMP
• IEEE 802.1x

• Human & Vehicle Classification
• Smart Detection
• Wide-Viewing Angle

• 12V DC ± 5%, 5.5mm Coaxial Power Plug
• PoE (802.3af/at, class 0)

• 12V DC: Max 7.5W
• PoE: Class 0

• Operating Temperature : -30–60 °C
• Storage Temperature : -40–60 °C
• Operating Humidity : 95% or Less (Non-Condensing)
• Storage Humidity : 95% or Less (Non-Condensing)

• IK08

• VIGI Network Camera
• Quick Start Guide
• Mounting Accessories
• Mounting Template
